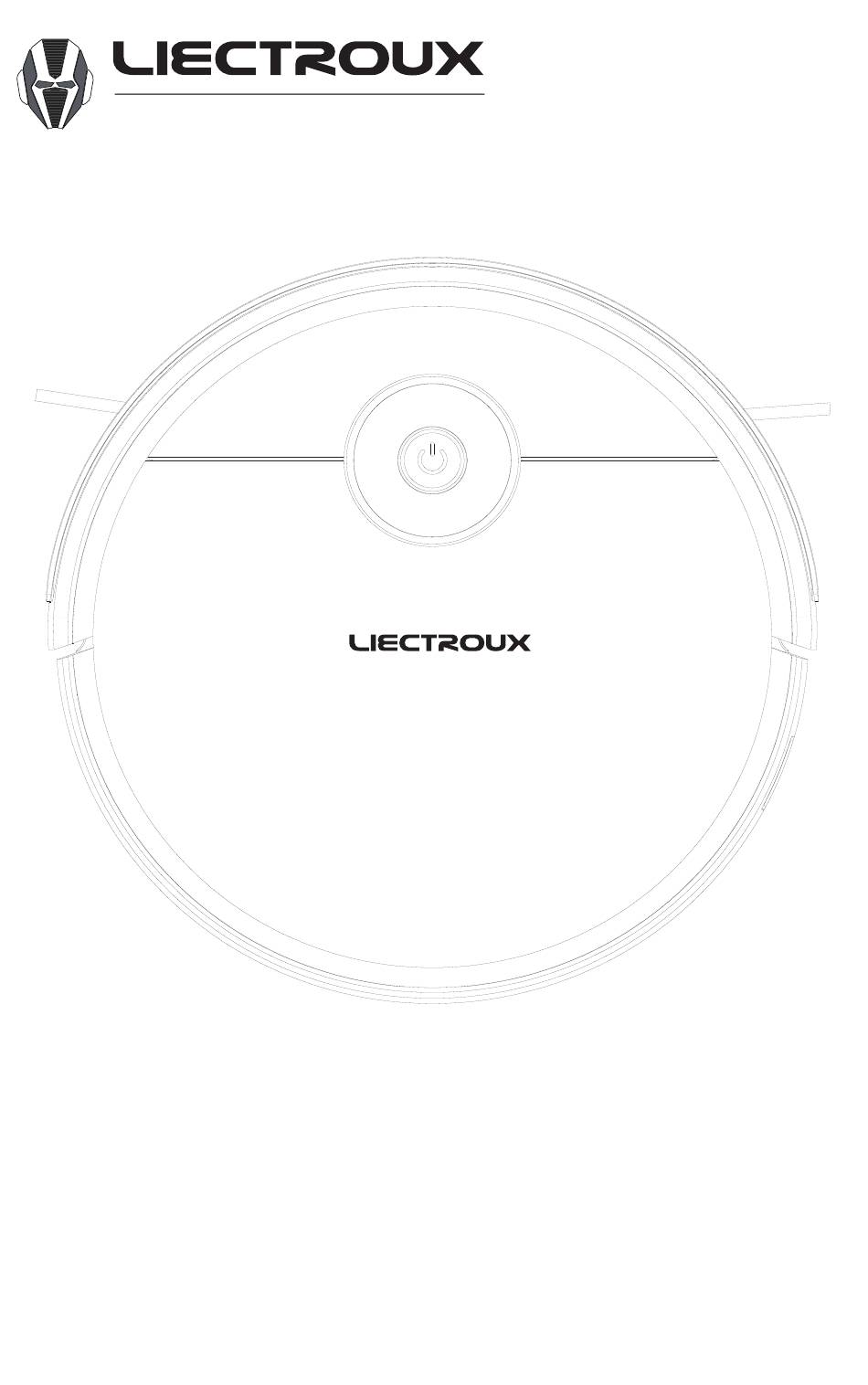

- Page 1 Robot Vacuum Cleaner T6S Robot Vacuum Cleaner Instruction Manual Please read this manual carefully before using the product and keep it safe.
- Page 3 Thank you for choosing the sweeping robots of Liectroux! Liectroux T6S is a smart robot integrating with sweeping, mopping and suctioning features. It can assist you to complete housekeeping work in a truly efficient and high-quality manner. It is featured with ultrahigh suction for dust collection, and is also equipped with multiple sensors and ultra-powerful obstacle navigation capability, and thus it can easily adapt to your distinct home environment.
-
Page 4: Table Of Contents
Contents APP Download..............1 APP Operation..............2 Safety Information..............3 Product Parameter.............4 Product Introduction............5 Product Installation............8 Charging Operation............9 Product Operation............10 Cleaning Modes...............11 Reservation Operation.............12 Remote Controller Operation.......... 13 Water Tank Operation............14 Routine Maintenance............15 Alarm Prompt..............17 Frequently Asked Questions..........17 Hazardous Substances...........18 Product Warranty.............19... -
Page 5: App Download
Mobile APP Download The product can be operated remotely via mobile APP, and please operate in accordance with the following instructions or by reference to the product guide described on the APP interface. APP Download Search "Tuya Smart" in Google Play Store or APP Store, or scan the following QR codes to download the Tuya Smart APP. -
Page 6: App Operation
Mobile APP Network Interfacing Operation 1. Ensure that the mobile is connected to an available WIFI network in your house, and the signal of the network shall be satisfactory. 2. Power on the product, hold the start key for 2S before a beeping sound and the voice of "Network Interfacing", and then the network interfacing status is valid. -
Page 7: Safety Information
Safety Information 1. Please use the robot as described in the manual. Any inconsistent operation may lead to its damage. 2. Children below 8 years old or mentally handicapped persons are prohibited from using the product. If it is unavoidable, please make sure the operation is supervised and instructed by custodians. Please do not let your children ride on or play with the robot. -
Page 8: Product Parameter
Product Parameter Robot PARAMETERS NAME External Dimension Height 70mm* Diameter 310mm Net Weight 2.3KG 14.8V Rated Voltage Rated Power 2500mAh lithium battery Battery Capacity 240-350min Charging Time 100-120min Cleaning Time 500ML Capacity of Dust Box Water Tank Capacity 300ML Power Adapter PARAMETERS NAME Input Voltage... -
Page 9: Product Introduction
Product Introduction Robot and Sensor Collision Sensor Infrared Receiver Start Button Bumper Dust box cover Middle Cover Cliff sensor Auto Charging Pin Nose Wheel Side brush Suck Passage Side Wheel Power interface Power switch... - Page 10 Product Introduction Charging Base IR signal launch window Signal indicator Top cover Charge Connecting Points Power Supply Socket Dust Box Water Tank...
- Page 11 Product Introduction Parts List Charging base Power adapter Primary HEPA filter Side brush HEPA filter Remote controller...
-
Page 12: Product Installation
Product Installation Charging Base Installing Installation of Side Brushes Place the charging base against the wall on Take out the side brushes from the packing the horizontal floor, and then connect it to box and press them into the mounting holes the power source. -
Page 13: Charging Operation
Charging Operation Automatic Charging Manual Charging Under the automatic cleaning mode, when the Turn on the power switch on one side of the robot (1 product is low in electric quantity, it will indicates power-on, and 0 indicates power-off), the automatically search the charging base for power key indicator on the panel becomes blinking, then connect the power adapter to the power source, and... -
Page 14: Product Operation
Product Operation In order to adapt to different ground conditions and realize in-depth cleaning, the product is configured with multiple cleaning modes, which are optional from the remote controller. 1. Use the remote controller to directly switch to any mode. 2. -
Page 15: Cleaning Modes
Cleaning Modes Auto cleaning Planned Cleaning On the remote controller, press the auto cleaning Press the cleaning key, and the robot will key, and the robot will perform automatic cleaning automatically enter a cleaning mode to perform in the random cleaning mode by comprehensively cleaning in smart planned manner. -
Page 16: Reservation Operation
Reservation Operation In order for easy cleaning, the product is configured with the "Schedule" feature, and the user can send instructions to the robot via the remote controller. After the reservation, the robot will clean automatically every day according to the set time. -
Page 17: Remote Controller Operation
Operation of Remote Controller 1. Power button: press the key to make the machine enter the sleeping mode. 2. Home key: press the key to make the machine automatically return to the charging base for charging. 3. Edge cleaning key: press the key to enable the robot to perform cleaning around the surrounding of a fixed object. (e.g. -
Page 18: Water Tank Operation
Water Tank Operation After cleaning, the dust box can be replaced with water tank assembly if mopping is required. 1. Paste the water seepage cloth Push through the two fixing corners of the water seepage cloth along the lower end of the duster cloth, paste the water seepage cloth securely, and mount the water seepage cloth bracket to the base of the robot in alignment. -
Page 19: Routine Maintenance
Routine Maintenance Dust Box Cleaning Clean the Primary & HEPA Filters 1. Gently lift the finger position of the dust box cover. 1.The primary & HEPA filters may be cleaned 2. The dust box cover will open. Hold the handle with with the electric blower or brush. - Page 20 Routine Maintenance Routine Maintenance Cliff Sensor 1. Directly turn the machine up and pluck up the side Use a soft cleaning cloth to wipe the sensor to brushes vigorously. ensure sensitivity. 2. Remove and clean the side brushes. 3. Mount the side brushes back to the equipment after cleaning.
-
Page 21: Alarm Prompt
Alarm Prompt S/ N PROMPT TONE FAULT CAUSES SOLUTION Low battery! Please charge the robot! Electric quantity below 20% Charge the robot Battery malfunction Battery charging fault Contact the manufacturer Master, I am afraid of higher place. The robot is raised during operation Put the robot back to the ground Please take or put me down gently Please check if the wheels are stuck... -
Page 22: Hazardous Substances
Hazardous Substances Hazardous Substances Component ategory Pb and its Hg and its Cd and its CrVi and its PBDE compounds compounds compounds compounds Plastic Parts Hardware(Alloy) Main Equipment Circuit Module Battery Power Cord (Metal) O: Indicates that the content of this hazardous substance in all the homogeneous materials of this component is below the limit prescribed in GB/T26572. -
Page 23: Product Warranty
Product Warranty Thank you for choosing the product. From the date of your purchase within one year, the product is covered by the warranty period. Within the warranty period, free maintenance and repair services will be available in accordance with the provisions of the warranty policy if the product malfunctions due to defects arising from original components of the product or transportation, provided that the product is installed as per the manual and used in the normal environment and conditions.
