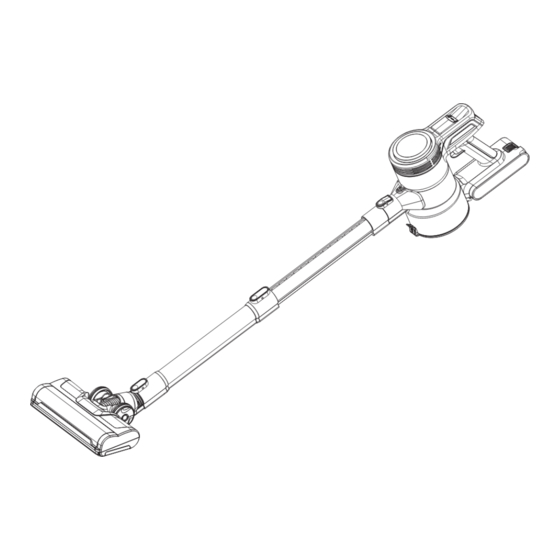

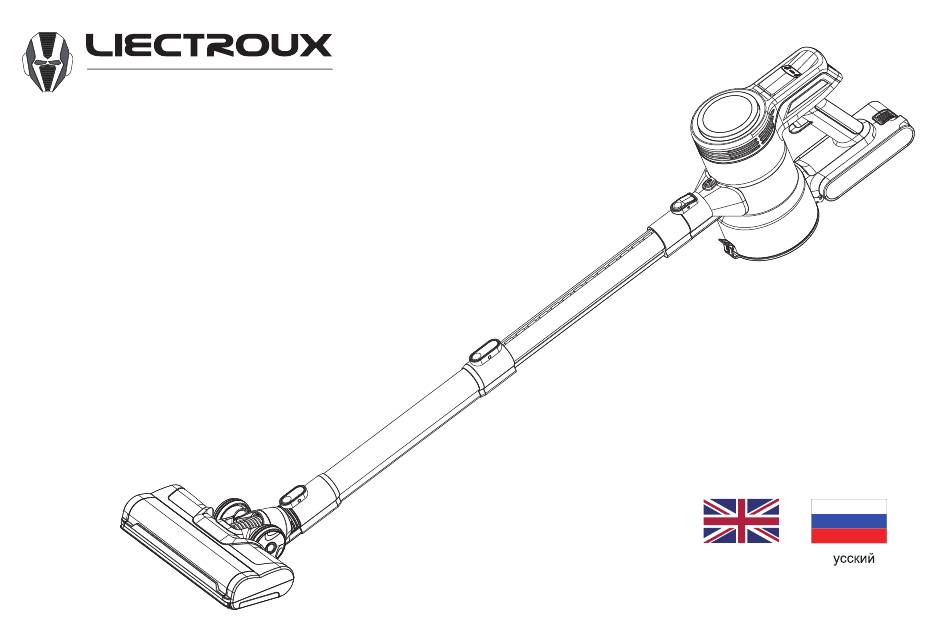

- Page 1 Cordless Stick Vacuum Cleaner i7 English Instruction Manual Please read this manual carefully before using the product and keep it safe.
-
Page 4: Important Safety Instructions
Important Safety Instructions This appliance is for indoor use with domestic purpose only. Use the appliance only on accordance with the instruction in this manual. Any other usage or modification is dangerous. The manufacturer is not liable for damage due to improper use of the appliance. WARNING To reduce the risk of fire, electric shock, or injury This vacuum cleaner is intended for household use. -
Page 5: Vacuum Cleaner Parts
Vacuum Cleaner Parts Name Quantity Main Appliance Aluminum Alloy Tube Crevice Nozzle 2-in-1 Dusting Brush Floor Brush Hanging Dock Battery Pack User Manual Charger HEPA Filter - 02 -... -
Page 6: Product Introduction
Product Introduction 1. Crevice nozzle 2. Dusting brush 3. Floor brush 4. Release button 5. Adjustment button 6. Aluminum wand 7.Release button 8. Vent cover 9. LED Screen 10. Mode switch 11. Charging Port 12. Battery pack button 13. Battery pack 14. -
Page 7: Assembling Your Vacuum Cleaner
Assembling Your Vacuum Cleaner Caution: Do not connect the power cord plug to the wall outlet until assembly is completed. Battery case : Insert the battery into the battery case until it clicks into place. Main body & Floor brush : Press and hold the release button, then insert the aluminum wand and nozzles separately until you hear a clicking sound, the installation is completed. - Page 8 Release Release button button Connect the Crevice nozzle to the vacuum cleaner. Connect the Floor brush to the main body. Release Release button button Press the lock to separate the Press the lock to separate the electric floor brush electric floor brush from the wand. from the main body.
- Page 9 Tools can be attached to the vacuum cleaner as needed. Simply drop the appliance to the wall-mounted dock. CAUTION：Please make sure that the battery pack is fixed firmly before hanging onto the wall. Use the screws to fix the dock onto the wall.
- Page 10 LED Display Indicator This product is equipped with an LED display power indicator. The battery is not fully charged at the time of purchase, so please be sure to charge before use (charge for at least 4 hours). Please note that if the battery power indicator only one LED lit, it means the power is low, please use it after charging How to use：...
-
Page 11: Cleaning And Care
Cleaning and Care How to empty the dust cup Empty the dust cup in the following cases: 2) Press the release button to open the 3) Reattach the dust cup bottom cover. - When dust level reached the “MAX” line. dust cup cover, and then empty the - When suction power has dropped. - Page 12 Cleaning the filter Open the dust cup bottom cover, twist anti-clockwise and remove the HEPA filter holder. Take out the HEPA from the filter holder, and replace with a clean one. Clean the HEPA under cold, running water. The HEPA filter should be air dried completely before re-installing. DO NOT wash in the dishwasher.
- Page 13 Cleaning the electric floor brush Cut off any hair, thread, string, carpet pile, and lint entangled around floor brush with a pair of scissors, then Push up the slide button located on the bottom of floor brush to the unlock position. Remove the latch.
- Page 14 Assembly Assemble the filter in reverse of disassembly. Put the sponge filter into the middle cover area. Put the top cover on the sponge filter. Close the filter cover.Twist clockwise the top cover, ensure it’s closed with the main body. - 11 -...
- Page 15 4) Put the HEPA filter back into the filtration holder. 5) Attach the filtration holder back into the dust cup by twisting in a counterclockwise direction. 6) Close the bottom cover. HEPA filter Filter stand - 12 -...
- Page 16 Press the dust cup lock, turn it in a clockwise direction. The dust cup can be separated with the main body. Press the lock slot 9) Ensure the rib on the dust cup fitted with the slot of main body. 10) Reattach the dust cup until it clicks.
-
Page 17: Troubleshooting
TROUBLESHOOTING: 1.Empty the dust bin Vacuum is not cleaning well 2.Check that the dust bin is correctly attached 3.Check that the filter is correctly attached 4.Clean the filter 1.Charge the battery Vacuum suddenly stops 2.Clear debris from the brush bar 1.Check connections Battery will not charge 2.Clear wall socket... -
Page 18: Maintenance And Warnings
Maintenance and warnings The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance. To maintain optimum suction power, clean the vacuum cleaner regularly. If the filter is damaged, it must be replaced by the manufacturer or its agent. Cleaning the dust cup frequently can make the vacuum cleaner maintain optimum suction power and prevent the vacuum cleaner from overheating and loss. -
Page 19: Руководство По Эксплуатации
Вертикальный пылесос i7 Руководство по эксплуатации Пожалуйста, внимательно прочтите это руководство перед использованием прибора и сохраните его. - Page 21 - 01...
- Page 22 - 02-...
- Page 23 Основная щетка Телескопическая штанга - 03 -...
- Page 24 - 04 -...
- Page 25 - 05 -...
- Page 26 - 06 -...
- Page 27 - 07 -...
- Page 28 - 08 -...
- Page 30 - 10 -...
- Page 31 - 11 -...
- Page 32 - 12 -...
- Page 33 - 13 -...
- Page 34 С - 14 -...
- Page 35 - 15 -...
