Summary of Contents for Sea Eagle FastCat12

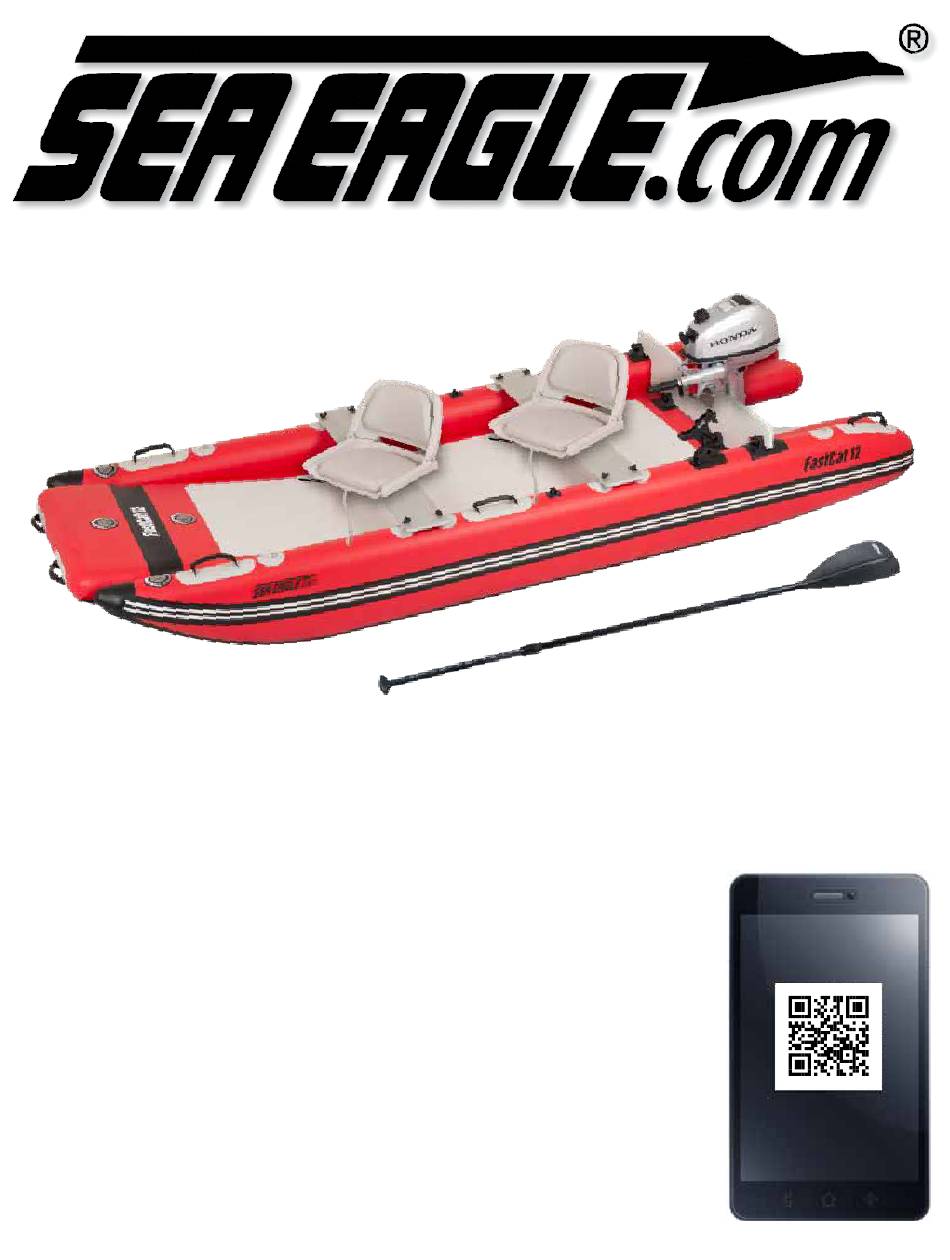

- Page 1 FastCat12 Instruction & Owner’s Manual VIDEO INSTRUCTIONS Sea Eagle Boats Inc. 19 N. Columbia Street, Suite 1 Port Jefferson, NY 11777 1-800-748-8066 scan this code or visit July 2022 http://sea.gl/VIFASTCAT...
- Page 2 Always contact your state boating authorities for information on boating registration and regulations. Most states require you to register your boat if you are using a motor. *The Sea Eagle FastCat12 is rated for use with up to a 6 hp motor.
-
Page 3: Boating Safety Tips
USCGBoating.org or enroll in a water safety course given by a local provider. As a safety reminder, each Sea Eagle has a safety summary we call Boating Safety Basics printed on it. Please follow these suggestions and use good boating safety practices. In addition to the basics, we suggest you have a reasonable swimming ability and know that it is safer to go boating with a buddy. - Page 4 SAFETY Boating is challenging and inherently dangerous. Follow safe boating practices. Be physically fit enough to meet the challenges, prepared for any weather conditions that might be anticipated, and follow the safety basics. Protect all personal items in a waterproof bag. Secure all accessories to the boat. Motor Safety and Reboarding DANGER Warning:...
-
Page 5: Working Pressure
The FastCat12 holds a lot of air! Inflating with the manual pump is hard work and may take 1 hour with breaks to inflate the boat. The exercise from inflating the boat may be valuable, but often boating time is limited and it is better to get out on the water as quickly as possible. - Page 6 Caution BEFORE & DURING USE: Avoid damage. Do not drag your Sea Eagle over abrasive surfaces like asphalt parking lots, or concrete boat ramps, whether the boat is in its bag or inflated. Carry or wheel your Sea Eagle from the car to the setup point, and then to the water when assembled.
-
Page 7: Motor Selection
In a river or tidal current, the FastCat12 cannot make progress against a current that is more than its hull speed or the top speed of the trolling motor. Forward speed will vary depending on conditions, but if the current is moving faster than the boat can go, it cannot make headway and may go backwards relative to land. -
Page 8: Battery Selection
(wheelchair) battery, or lithium ion battery is acceptable. A Group 24 lead-acid battery or smaller is recommended for the FastCat12. A Group 24 batteries weigh approximately 50 lbs and hold approximately 75 Ah of charge. A bigger battery, like Groupe 27 will hold approximately 100 Ah, can be used but will weigh approximately 60 lbs. - Page 9 FastCat12| SETUP: TOOLS FOR 1 TIME ASSEMBLY Tools for One-Time Screw the hose onto the Assembly pump. A #2 Phillips head screwdriver or drill with Begin In the double action #2 Phillips head bit and a mode for fast fill.
- Page 10 FastCat12 | ASSEMBLY & INFLATION Pressure gauge will not register until chamber begins to get pressurized. Start with floor grommets. Pump until working Adjust transom board to pressure of between 14- align the holes. 15 PSI is reached. Do not exceed 15 PSI (1 bar).
- Page 11 FastCat12 | ASSEMBLY & INFLATION Locate aluminum cross bench(es), quick Lay one end of bench over disconnect seat mount (s), the screws, so screws come seat(s) and hardware. up through the holes in bench. Hardware per bench 4 - M6 x 50 screws 4 - 5/16”...
- Page 12 FastCat12 | ASSEMBLY & INFLATION To swivel the seat, pull locking bar forward then turn the seat. Motor (OPTIONAL) Clamp electric motor or up to a 6hp gas motor to motor mount. Turn clamp To remove seat, lift the screws until tight.
- Page 13 FastCat12 | ASSEMBLY & INFLATION Fold the canvas in half so the shiny side is facing out Scotty® Deck Mounts and the bars are lying on (OPTIONAL): top of each other. Attach deck mounts with 7/8” phil cap screws Insert the side rods into the...
- Page 14 FastCat12 | ASSEMBLY & INFLATION FastCat12 | DEFLATION Attach Scotty rod mounts to the aluminum crossbenches with #6 x 1” truss head screws. Fold one side onto the other, so it lands centered This one-time installation on the bag. Push more air is easier done with a power out.
- Page 15 Pull the bag end flaps onto Storage Tips: “The best way to store a Sea Eagle is folded up in it’s bag. bag”. - Cecil Hoge, Jr., Sea Eagle President Run the staps thorough both metal rings.
- Page 16 Sea Eagle repair fees start at $75.00 and does not include return shipping charges. Please note that Sea Eagle does not service any other brand other than our own. All items sent to our repair facilities must have prior authorization in the form of a Return Authorization Number.
- Page 17 Feel free to give us a call at 1-800-748-8066 and we will be happy to talk with you! Our business hours are Monday to Friday from 9AM to 5PM, EST. Sea Eagle Boats Inc. 19 N. Columbia Street, Suite 1 Apply patch to the boat.
- Page 18 FastCat12| OPTIONAL ACCESSORIES BTP Turbo Electric Pump (OPTIONAL) Sea Eagle offers a large These electric pumps array of accessories for come with a nylon your FastCat12. shoulder carry bag, 12V DC power cord, hose and pre-attached recessed valve adapter. EZ Cart Heavy Duty...
