Air Lift LoadLifter 5000 Installation Manual

Hide thumbs Also See for LoadLifter 5000:
Table of Contents

Advertisement

Quick Links

Download this manual

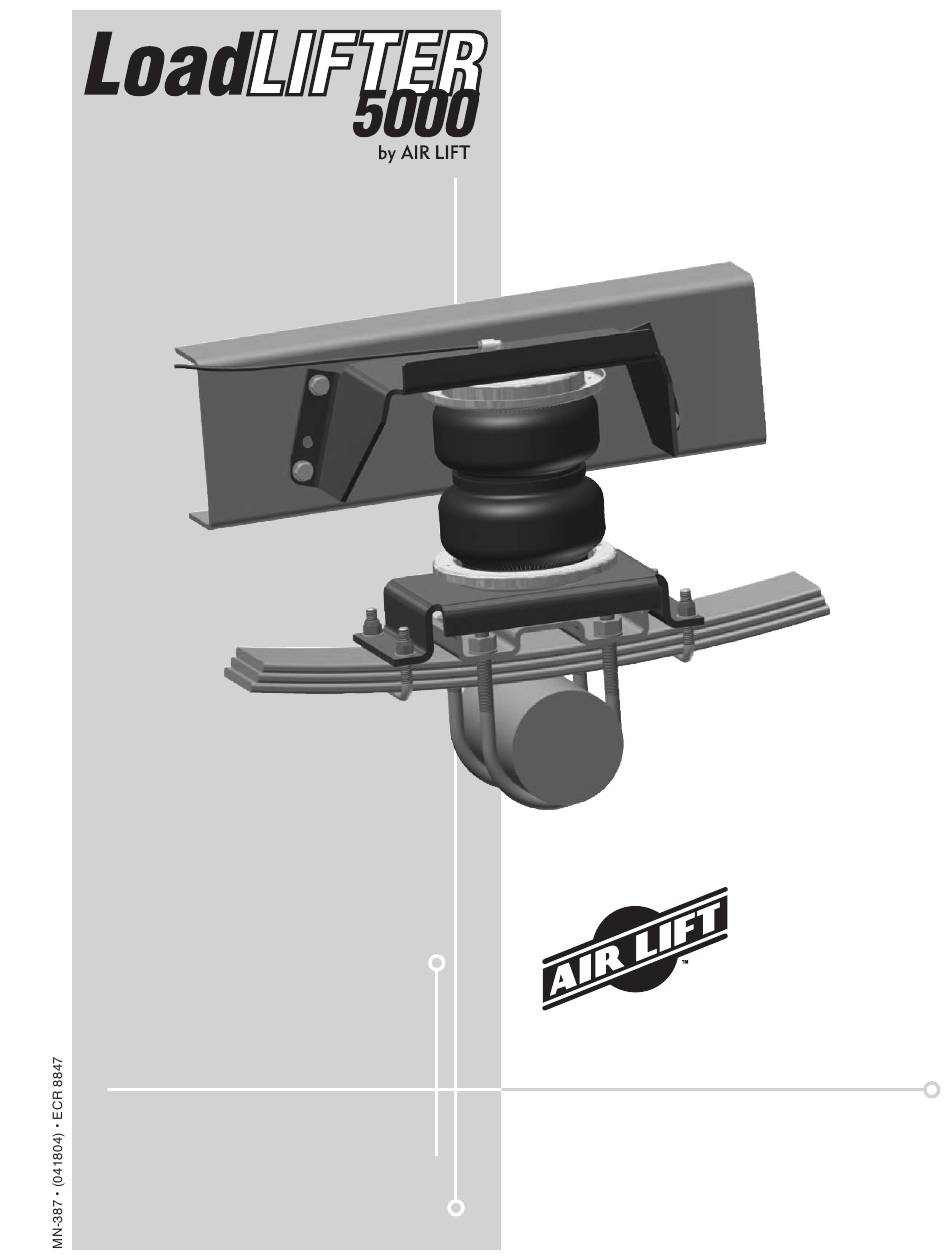

Kit 57207
INSTALLATION GUIDE
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation.
Failure to read these instructions can result in an
incorrect installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LoadLifter 5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Air Lift LoadLifter 5000

Summary of Contents for Air Lift LoadLifter 5000

  • Page 1 Kit 57207 INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an incorrect installation.

  • Page 3: Table Of Contents

    Installing the LoadLifter 5000 System . . . . . . . . . . . . . . . . . .

  • Page 4: Introduction

    . Air Lift Company reserves the right to make changes and improvements to its products and publications at any time . For the latest version of this manual, contact Air Lift Company at (800) 248-0892 or visit airliftcompany .com .

  • Page 5: Installation Diagrams

    LoadLifter 5000 Installation Diagram OUTBOARD FORWARD fig. 1 MN-387...

  • Page 6: Hardware List

    *Not shown in fig. 1. 01525 Spacer bar* .........4 Dodge Fenderwell Spacer Parts Missing or damaged parts? Call Air Lift customer STOP! service at (800) 248-0892 for a replacement part . Installing the LoadLifter 5000 System COMPRESSED AIR CAN CAUSE INJURY AND DAMAGE TO THE VEHICLE AND PARTS DANGER IF IT IS NOT HANDLED PROPERLY .

  • Page 7: Special Application Instructions

    LoadLifter 5000 SPECIAL APPLICATION INSTRUCTIONS 1 . 1994 model and newer Dodge 4WD pickups only: It will be necessary to remove the inner fenderwell liner on late model 4WD Dodge trucks . This is done by carefully driving the pin through the fasteners with a center punch (Fig .

  • Page 8: Assembling The Air Spring Unit

    LoadLifter 5000 ASSEMBLING THE AIR SPRING UNIT See Figure 7 below for assembly . 1 . Set a roll plate on both ends of the air spring . The radiused (rounded) edge of the roll plate will be toward the air spring so that the air spring is seated in both roll plates .

  • Page 9: Positioning The Brackets

    LoadLifter 5000 POSITIONING THE BRACKETS 1 . The air spring must be installed between 5” and 8” (127mm - 203mm) from both the upper bracket to the lower bracket (Fig . 8) . It is best to position the upper bracket as high as possible .

  • Page 10: Attaching The Upper Bracket

    LoadLifter 5000 ATTACHING THE UPPER BRACKET BEFORE DRILLING, CHECK THE BACK-SIDE OF THE FRAME FOR CLEARANCE CAUTION ISSUES WITH THE BRAKE LINES, GAS LINES, AND ELECTRICAL LINES . ANY OBSTACLES WILL NEED TO BE TEMPORARILY RELOCATED TO CLEAR THE AREA .

  • Page 11: Securing The Air Springs To The Brackets

    LoadLifter 5000 5 . Remove the clamps and drill the remaining two holes . Install the appropriate hardware and torque the nuts to 44 lb .-ft (60Nm) . 6 . Align the air spring uniformly between the upper and lower brackets and check the air spring alignment (Fig .

  • Page 12: Installing The Air Lines

    This section explains how to set up the air spring kit to be controlled with Schrader valves and a separate compressed air source . An on-board air compressor system allows for hassle-free control of the air springs . Learn more about Air Lift control systems at www .airliftcompany .com/products/compressor-systems .

  • Page 13: Tips For Installing Air Lines

    The hose should be straight beyond the fitting for 1” (25mm) before bending . Inspect hose for scratches that run lengthwise on hose prior to installation . Contact Air Lift customer service at (800) 248-0892 if the air line is damaged . Go to air-lift .co/cuttingairline to watch a video demonstrating proper air line cutting .

  • Page 14: Reinstalling The Fenderwell Liner - Late Model 4Wd Dodge Only

    LoadLifter 5000 Reinstalling the Fenderwell Liner – Late Model 4WD Dodge Only 1 . If this installation was on a late model 4WD Dodge truck, it is now necessary to reinstall the inner fenderwell liner using the original fasteners and provided spacers to allow for air spring clearance (Fig .

  • Page 15: Before Operating

    DO NOT CUT OFF THE AIR LINE COMPLETELY AS THIS WILL USUALLY NICK THE CAUTION BARB AND RENDER THE FITTING USELESS . 3 . If the preceding steps have not resolved the problem, call Air Lift customer service at (800) 248-0892 . MN-387...

  • Page 16: Installation Checklist

     Heat test — Be sure there is sufficient clearance from heat sources, at least 6” (152mm) for air springs and air lines . If a heat shield was included in the kit, install it . If there is no heat shield, but one is required, call Air Lift customer service at (800) 248-0892 .

  • Page 17: Product Use, Maintenance And Servicing

    . Operating the vehicle below the minimum air spring pressure will void the Air Lift warranty . 5 . When increasing load, always adjust air pressure to maintain normal ride height . Increase or decrease pressure from the system as necessary to attain normal ride height for optimal ride and handling .

  • Page 18: Tuning The Air Pressure

    LoadLifter 5000 TUNING THE AIR PRESSURE Pressure determination comes down to three things — level vehicle, ride comfort and stability . 1 . Level vehicle If the vehicle’s headlights are shining into the trees or the vehicle is leaning to one side, then it is not level (Fig .

  • Page 19: Troubleshooting Guide

    Q . Will installing air springs increase the weight ratings of a vehicle? No . Adding air springs will not change the weight ratings (GAWR, GCWR and/ or GVWR) of a vehicle . Exceeding the GVWR is dangerous and voids the Air Lift warranty .
  • Page 20 LoadLifter 5000 Notes MN-387...
  • Page 21 LoadLifter 5000 Notes MN-387...
  • Page 22 LoadLifter 5000 MN-387...

  • Page 23: Limited Warranty And Return Policy

    For additional warranty information contact Air Lift Company customer service . Replacement Part Information If replacement parts are needed, contact the local dealer or call Air Lift customer service at (800) 248-0892 . Most parts are immediately available and can be shipped the same day .

  • Page 24: Need Help

    Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or P .O . Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www .airliftcompany .com...
