MANTIS MANTel ASSeMbly INSTrucTIoNS
INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION.

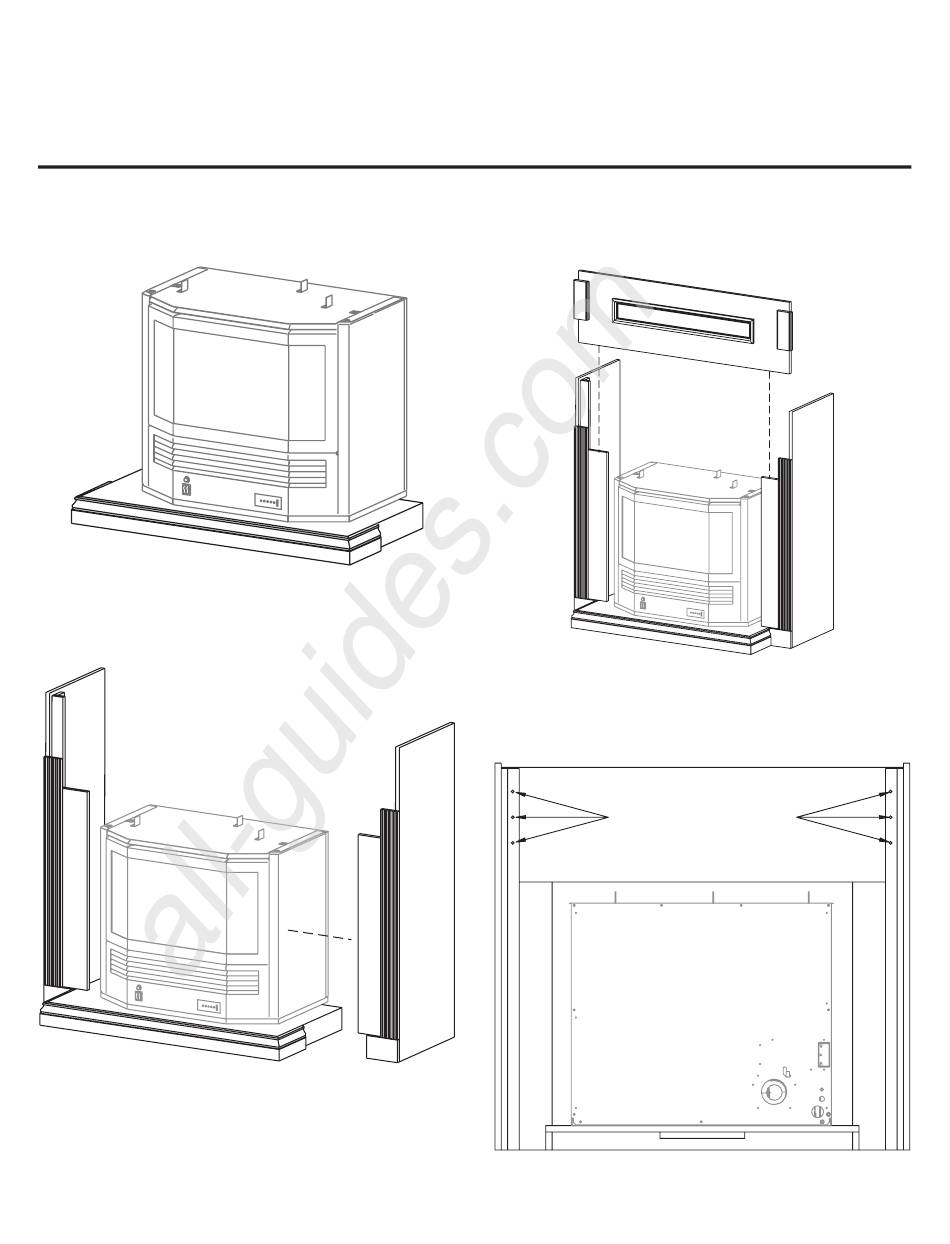

1. Place base in desired location. Place fireplace on base and
route gas line to fireplace.
2. Position left side assembly and right side assembly against
base.
M10590-0-1009
All manuals and user guides at all-guides.com
eMbF-9S-(c,Do,o,uH,uo,W)
Full cAbINeT MANTel
Figure 1
Figure 2
Empire Comfort Systems, Inc. • 918 Freeburg Avenue • Belleville, IL 62222
3. Position breastboard assembly to the front of left side as-
sembly and right side assembly.
4. Use six (6) 1 1/4" screws to attach breastboard assembly to
left side assembly and right side assembly.
(6) 1 1/4" SCREWS
Figure 3
Figure 4
Page 1
Advertisement
Related Manuals for Empire Comfort Systems EMBF-9S-C
Summary of Contents for Empire Comfort Systems EMBF-9S-C
- Page 1 4. Use six (6) 1 1/4" screws to attach breastboard assembly to left side assembly and right side assembly. (6) 1 1/4” SCREWS Figure 2 Figure 4 M10590-0-1009 Empire Comfort Systems, Inc. • 918 Freeburg Avenue • Belleville, IL 62222 Page 1...
- Page 2 Figure 5 6. Place Mantis slim top assembly onto fireplace top, making 8. Installation of mantel is completed. sure the pegs snap into place. Figure 6 Page 2 Empire Comfort Systems, Inc. • 918 Freeburg Avenue • Belleville, IL 62222 M10590-0-1009...
