Empire Comfort Systems EMBC-1S-C-1 Assembly Instructions

MANTEL ASSEMBLY INSTRUCTIONS

EMBC-1S-(C,DO,O,UH,UO,W)-1
EMBC-3S-(C,DO,O,UH,UO,W)-1
EMBC-5S-(C,DO,O,UH,UO,W)-1
EMBC-7S-(C,DO,O,UH,UO,W)-1
INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION.

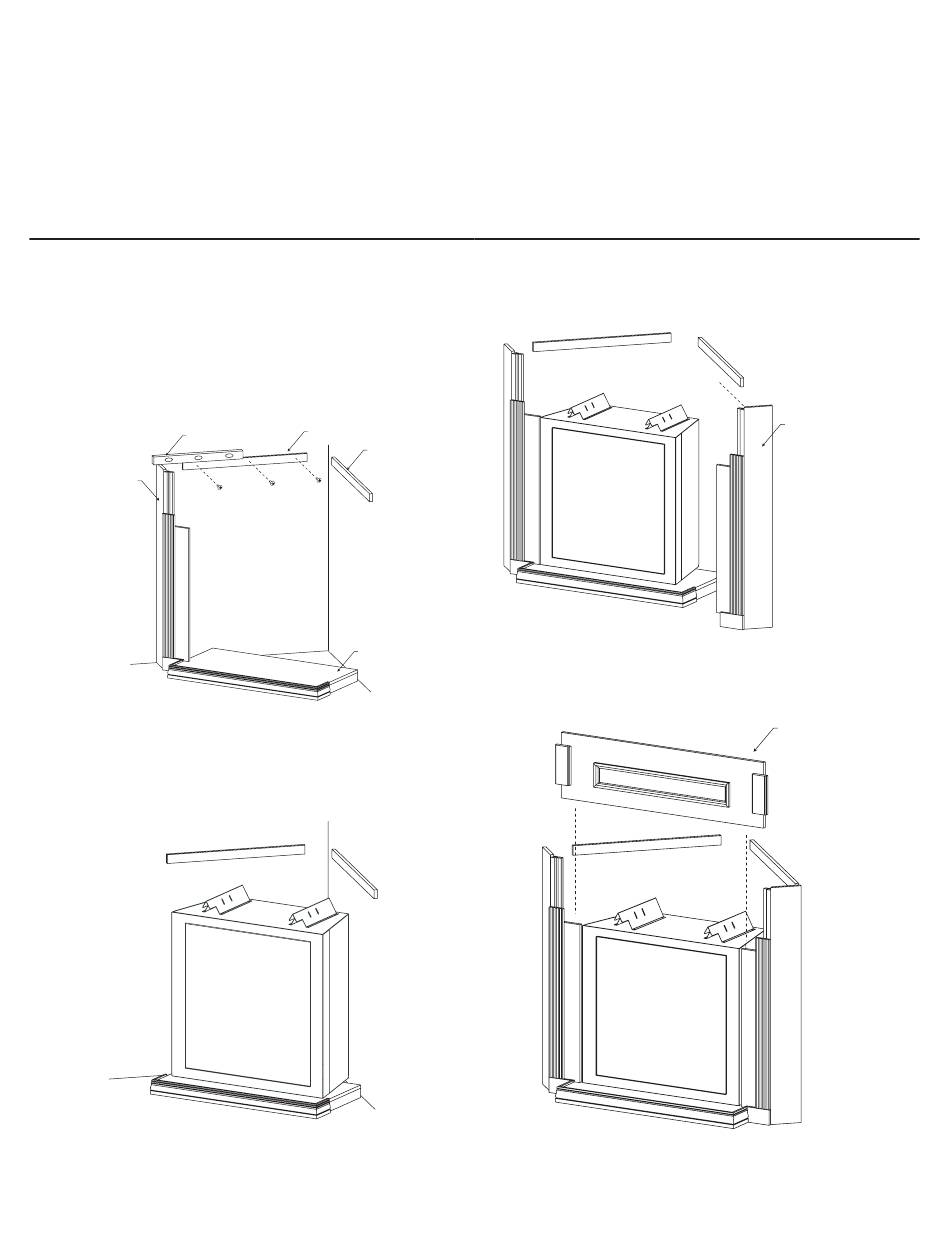

1. Place in desired location.
2. Position left side and right side assembly against base.
3. Attach mounting strips in corner with 2 1/2" screws level
mounting strips with left and right assembly.
LEVEL
LEFT SIDE ASSEMBLY
4. Remove left side and right side assembly.
5. Place fireplace on base and route gas line to fireplace.
Empire Comfort Systems, Inc. Nine Eighteen Freeburg Ave. Belleville, Illinois 62220-2623
19726-3-0414

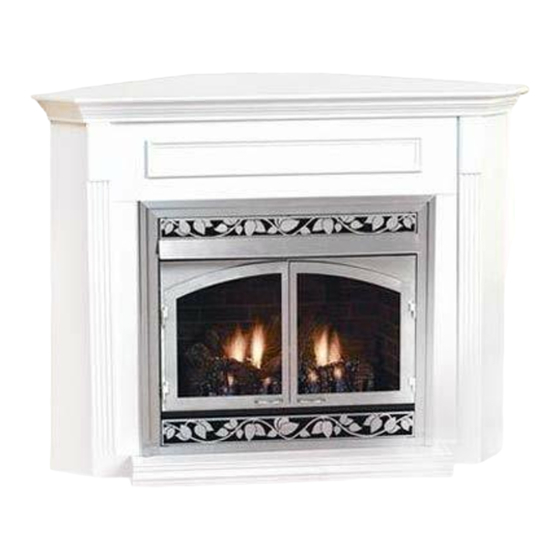

CORNER CABINET MANTEL
EFFECTIVE DATE DECEMBER, 2005
MOUNTING STRIP
MOUNTING STRIP
BASE
Figure 1
Figure 2
Empire Comfort Systems Inc. • 918 Freeburg Avenue • Belleville, IL 62220
EMBC-2S-(C,DO,O,UH,UO,W)-1
EMBC-4S-(C,DO,O,UH,UO,W)-1
EMBC-6S-(C,DO,O,UH,UO,W)-1
EMBC-8S-(C,DO,O,UH,UO,W)-1
6. Position left side and right side assembly against base.
7. Position breast board assembly to the front of left side
and right side assembly.
RIGHT SIDE ASSEMBLY
Figure 3
BREAST BOARD
Figure 4
Page 1
