PROFILE MANTEL
PROFILE MANTELSHELF
INSTALLATION INSTRUCTIONS
INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION.
PROFILE MANTEL INSTALLATION INSTRUCTIONS

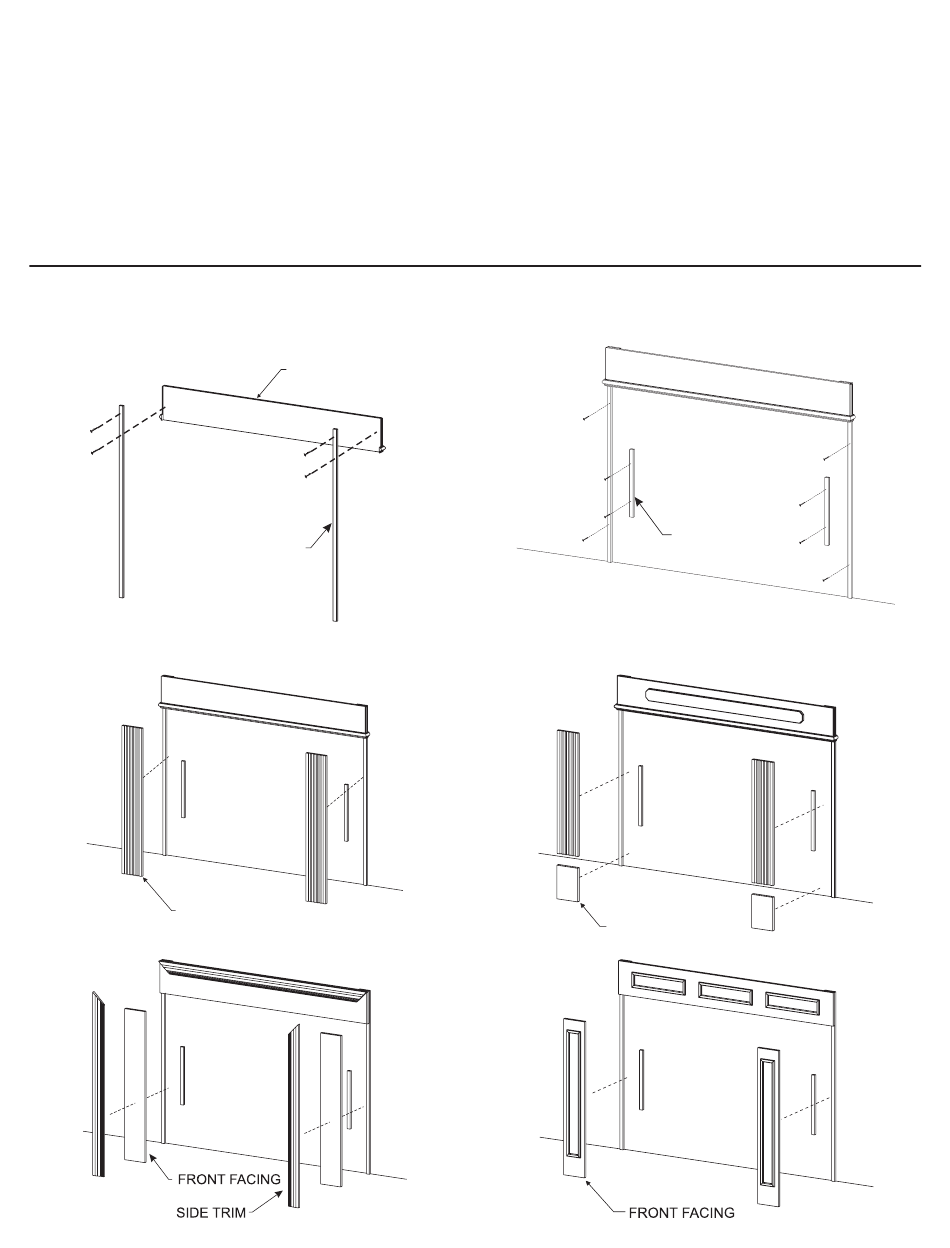

1. Align surround cleats flush with top and sides of breastboard.
Attach each surround cleat to breastboard with two (2) 1¼˝
drywall screws.
f i r e - p a r t s . c o m
SURROUND CLEAT
3. Attach front facing, plinths, and side trim to surround cleats with finishing nails.
FLUTED FACING
(REVERSIBLE)
19375-2-0116
AND
BREAST BOARD
PROFILE MANTELS
MFL-48(UH, UHP, UHD, UHA, UHB, UHR, UHT)-1
MFL-48(PG, PGP, PGD, PGA, PGB, PGR, PGT)-1
MFL-52(UH, UHP, UHD, UHA, UHB, UHR, UHT)-1
MFL-52(PG, PGP, PGD, PGA, PGB, PGR, PGT)-1
PROFILE MANTELSHELVES
MS-48(UH, UHD, UHM, UHS)-1
MS-48(PG, PGD, PGM, PGS)-1
MS-60(UH, UHD, UHM, UHS)-1
MS-60(PG, PGD, PGM, PGS)-1
MS-72(UH, UHD, UHM, UHS)-1
MS-72(PG, PGD, PGM, PGS)-1
2. Position breastboard and surround cleats against wall.
Attach each surround cleat to wall with two (2) 3˝ dry wall
screws.
PLINTH
OPTIONAL
VERTICAL
CLEAT
Page 1
Advertisement
Table of Contents
Related Manuals for Empire Comfort Systems MFL-48UH-1
Summary of Contents for Empire Comfort Systems MFL-48UH-1
- Page 1 PROFILE MANTELS MFL-48(UH, UHP, UHD, UHA, UHB, UHR, UHT)-1 MFL-48(PG, PGP, PGD, PGA, PGB, PGR, PGT)-1 PROFILE MANTEL MFL-52(UH, UHP, UHD, UHA, UHB, UHR, UHT)-1 MFL-52(PG, PGP, PGD, PGA, PGB, PGR, PGT)-1 PROFILE MANTELSHELVES PROFILE MANTELSHELF MS-48(UH, UHD, UHM, UHS)-1 MS-48(PG, PGD, PGM, PGS)-1 INSTALLATION INSTRUCTIONS MS-60(UH, UHD, UHM, UHS)-1...
- Page 2 4. At this time, you may install decorative stone or marble 8. Align and attach Mantelshelf to 1˝ X 2˝ X 42˝ wall cleat with behind the fluting and breastboard. finishing nails. 5. Align horizontal filler flush with front edge of underside MANTELSHELF of breastboard, attach horizontal filler to underside of breastboard with finishing nails. WALL CLEAT FILLER 6. Attach vertical cove to inside edge of fluting with finishing 9. Installation of Profile mantel is completed. nails. The back surface of vertical cove must be flush with front surface of decorative stone or marble. The vertical cove will hold the decorative stone or marble in place. f i r e - p a r t s . c o m VERTICAL COVE NOTE: These instructions apply to appliances manufactured by 7. Level and attach top of 1˝ X 2˝ X 42˝ wall cleat 4 5/8˝ above Empire Comfort Systems, Inc. When installing this product for top of breastboard to wall with (3) 3˝ drywall screws.
- Page 3 For second tier surround installation, repeat steps 1 PROFILE MANTELSHELF INSTALLATION through 9. INSTRUCTIONS 1. Level and attach bottom of 1˝ X 2˝ X 42˝ wall cleat a minimum of 13¼˝ above top of fireplace to wall with three (3) 3˝ drywall screws. 2. Align and attach shelf to 1˝ X 2˝ X 42˝ wall cleat with finishing nails. Pilot hole for finishing nail may be necessary. 3. Installation of shelf is complete. This is a combustible material SECOND TIER SURROUND NOTE: These instructions apply to appliances manufactured by Empire Comfort Systems, Inc. When installing this product for use with other manufacturers’ fireplaces, refer to their installation instructions for appropriate clearances to combustible materials. MANTELSHELF WALL CLEAT TOP OF FIREPLACE 13 1/4” f i r e - p a r t s . c o m MANTELSHELF MANTEL SHELF WALL CLEAT...
- Page 4 f i r e - p a r t s . c o m Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com Page 4 19375-2-0116...
