INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch;
do not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WARNING
If not installed, operated and maintained
in accordance with the manufacturer's
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
LOG SET
MODELS:
LS ( 18,24,30 ) CT
FALLEN TIMBER
Log sets comply with ANSI Z21.11.2 Unvented
Heaters and also comply with ANSI Z21.60
Decorative Vented Appliances for Solid Fuel
Burning Fireplaces. State or local codes may
only allow operation of log sets in a vented
configuration. Check your state or local codes.
Please See Our Website For Log Assembly Videos.
GAS-FIRED

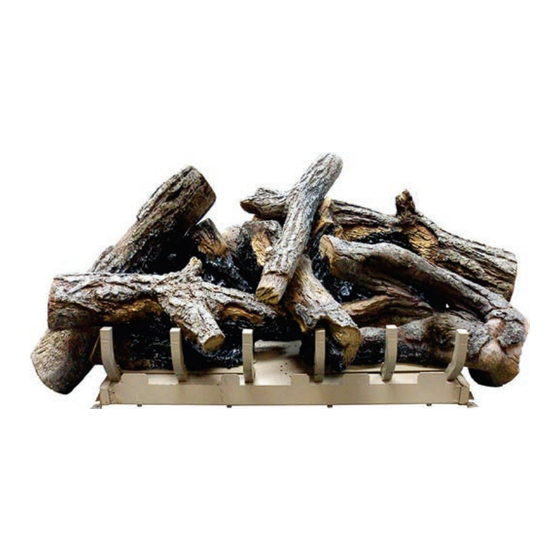

LS24CT
SHOWN
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS18CT and is the answer not in the manual?

Questions and answers

Summary of Contents for Empire Comfort Systems LS18CT

  • Page 1 INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL GAS-FIRED INSTALLER: LOG SET Leave this manual with the appliance. MODELS: CONSUMER: LS ( 18,24,30 ) CT Retain this manual for future reference. WARNING FIRE OR EXPLOSION HAZARD If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE Important Installation Guidelines ..........................3 General Information ..............................3 Requirements for Canada ............................4 LS(18,24,30)CT - Log Sets ............................5 LS(18,24,30)CT - Log Identification ..........................6 LS(18,24,30)CT - Log Placement .........................7 - 15 LS(18,24,30)CT - Ember Placement ..........................16 Appliance Service History ...........................17 - 18 Master Parts Distributor List ............................19 How To Order Repair Parts ............................19 45602-0-1223...
  • Page 3: Important Installation Guidelines

    IMPORTANT INSTALLATION GUIDELINES Proper Log Placement Candles Log placement is critical to proper burner performance. Logs must Avoid the use of scented or decorative candles while the log set is be correctly positioned onto the burner. The photos in this manual in operation.
  • Page 4: Requirements For Canada

    REQUIREMENTS FOR CANADA This unit cannot be installed in a UNVENTED application, WARNING this unit can only be installed as a VENTED application with these requirements. DO NOT OPERATE THIS GAS LOG SET WITH GLASS DOORS CLOSED IMPORTANT SAFETY INFORMATION Clothing or other flammable material should not be •...
  • Page 5: Ls(18,24,30)Ct - Log Sets

    LS(18,24,30)CT - LOG SETS LS24CT - LOG SET SHOWN 45602-0-1223 Page 5...
  • Page 6: Ls(18,24,30)Ct - Log Identification

    LOG IDENTIFICATION - LS ( 18,24,30 ) CT PART NO. & DISC. TOP VIEW FRONT VIEW LS24CT SHOWN R13560 (18) R13567 (24) R13574 (30) Rear Log (A) R13561 (18) R13568 (24) R13575 (30) Front Left Log (B) R13562 (18) R13569 (24) R13576 (30) Front Right Log (C)
  • Page 7: Ls(18,24,30)Ct - Log Placement

    Apply glowing embers per the ember placement section of this Refer to Figure 1 for the following warning. manual on page 16. Replace glowing embers with appropriate part number from the table below from Empire Comfort Systems, Inc. WARNING Application of excess glowing embers may adversely affect perfor- mance of the heater.
  • Page 8 LOG PLACEMENT - LS ( 18,24,30 ) CT Place Log (A) onto left rear pin on rear log support. TOP VIEW FRONT VIEW 45602-0-1223 Page 8...
  • Page 9 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Place Log (B) onto two (2) left front pins on burner pan. TOP VIEW FRONT VIEW 45602-0-1223 Page 9...
  • Page 10 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Place Log (C) onto two (2) right front pins on burner pan. TOP VIEW FRONT VIEW 45602-0-1223 Page 10...
  • Page 11 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Place Log (D) onto center of Log (A) and front center pin on burner pan. TOP VIEW FRONT VIEW 45602-0-1223 Page 11...
  • Page 12 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Place Log (E) onto right rear pin on rear log support. TOP VIEW FRONT VIEW 45602-0-1223 Page 12...
  • Page 13 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Place Log (F) onto left side of Log (A). TOP VIEW FRONT VIEW 45602-0-1223 Page 13...
  • Page 14 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Place Log (G) onto center of Log (D). TOP VIEW FRONT VIEW 45602-0-1223 Page 14...
  • Page 15 LOG PLACEMENT - LS ( 18,24,30 ) CT (CONT'D) Log placement is complete. TOP VIEW FRONT VIEW 45602-0-1223 Page 15...
  • Page 16: Ls(18,24,30)Ct - Ember Placement

    EMBER PLACEMENT - LS ( 18,24,30 ) CT 45602-0-1223 Page 16...
  • Page 17: Appliance Service History

    APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 45602-0-1223 Page 17...
  • Page 18 APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 45602-0-1223 Page 18...
  • Page 19: Master Parts Distributor List

    This list changes from time to time. For the current list, please click on the Master Parts button at www.empirecomfort.com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equip- ment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Dey Distributing F.
  • Page 20 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com 45602-0-1223 Page 20...
