9 Configuration
2 Pass the drain hose and refrigerant piping through the wall hole
and seal the gap with a putty.
8.3 To fix the unit on the mounting
plate
1 Set the indoor unit on the mounting plate hooks. Use the " "
marks as a guide.
2 Press the bottom frame of the unit with both hands to set it on
the bottom hooks of the mounting plate. Make sure that the
wires do NOT get squeezed anywhere.
Note: Take care that the interconnection cable does NOT get
caught in the indoor unit.
3 Press the bottom edge of the indoor unit with both hands until it
is firmly caught by the mounting plate hooks.
4 Secure the indoor unit to the mounting plate using 2 indoor unit
fixing screws M4×12L (accessory).
9 Configuration

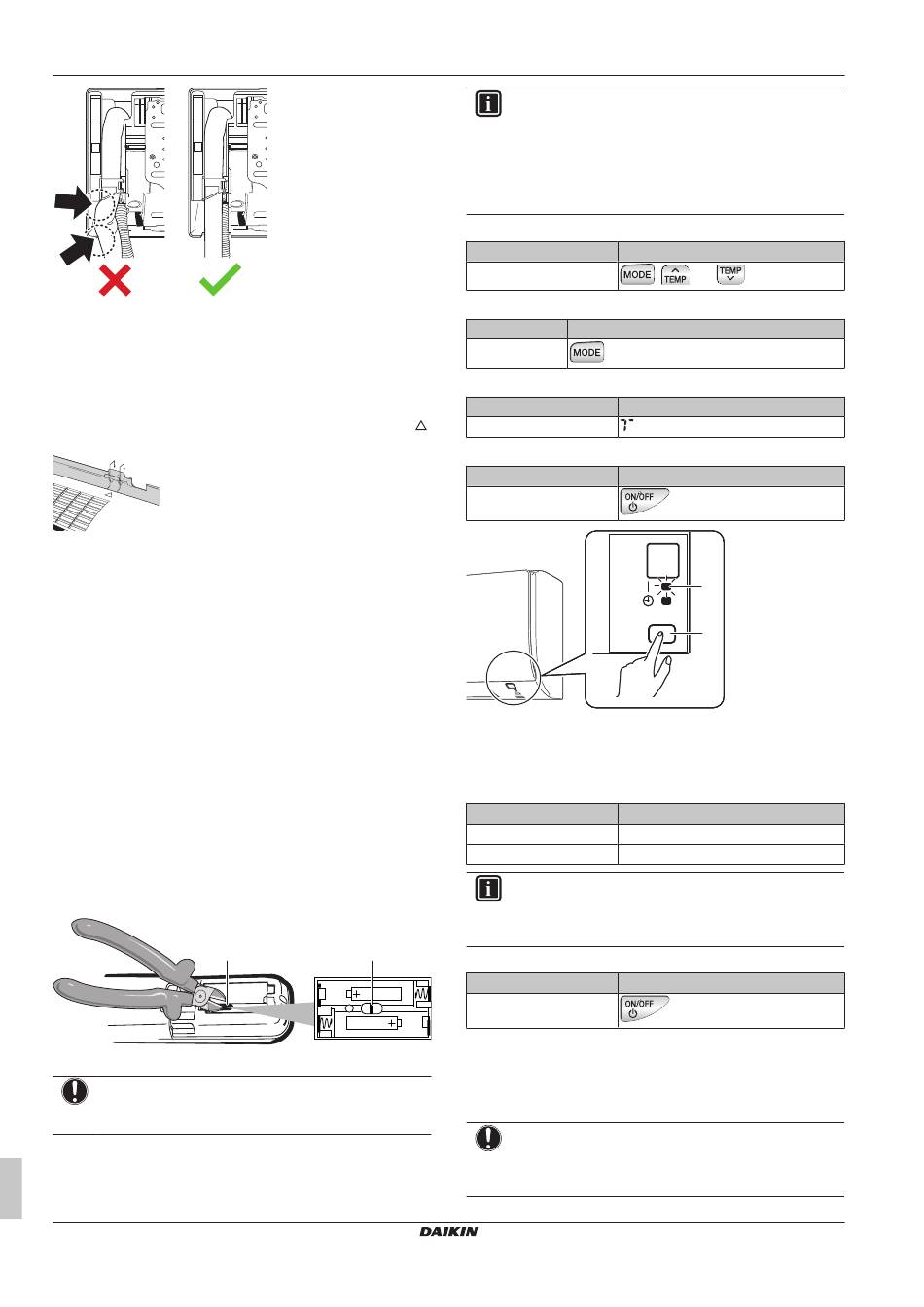

9.1 To set a different channel of the
indoor unit infrared signal receiver
In case 2 indoor units are installed in 1 room, different addresses for
2 user interfaces can be set.
1 Remove the batteries from the user interface.
2 Cut the address jumper.
a
a Address jumper
NOTICE
Be careful NOT to damage any of the surrounding parts
when cutting the address jumper.
3 Turn the power supply on.
Result: The flap of the indoor unit will open and close to set the
reference position.
Installation manual
14
INFORMATION
▪ For FTXF and ATXF units, the following setting MUST
be completed within 5 minutes after the power supply is
turned on.
▪ In case you could NOT complete the setting in time,
turn the power supply off and wait at least 1 minute
before turning the power supply back on.
4 Press simultaneously:
Model
FTXF, ATXF
5 Press:
Model
FTXF, ATXF
6 Select:
Model
FTXF, ATXF
7 Press:
Model
FTXF, ATXF
a
b
8 Press the indoor unit ON/OFF switch while the operation lamp
is blinking.
Jumper
Factory setting
After cutting with nippers
INFORMATION
If the setting could NOT be completed while the operation
lamp was blinking, repeat the setting process from the
beginning.
a
9 When the setting is complete, press:
Model
FTXF, ATXF
Result: The user interface will return to the previous screen.
10 Commissioning
NOTICE
ALWAYS operate the unit with thermistors and/or pressure
sensors/switches. If NOT, burning of the compressor might
be the result.
Buttons
, and
Button
Symbol
Button
a
b
ON/OFF
Operation lamp
Indoor unit ON/OFF switch
Address
1
2
Button
Daikin room air conditioner
3P748643-6D – 2024.02
FTXF20~42E5V1B
