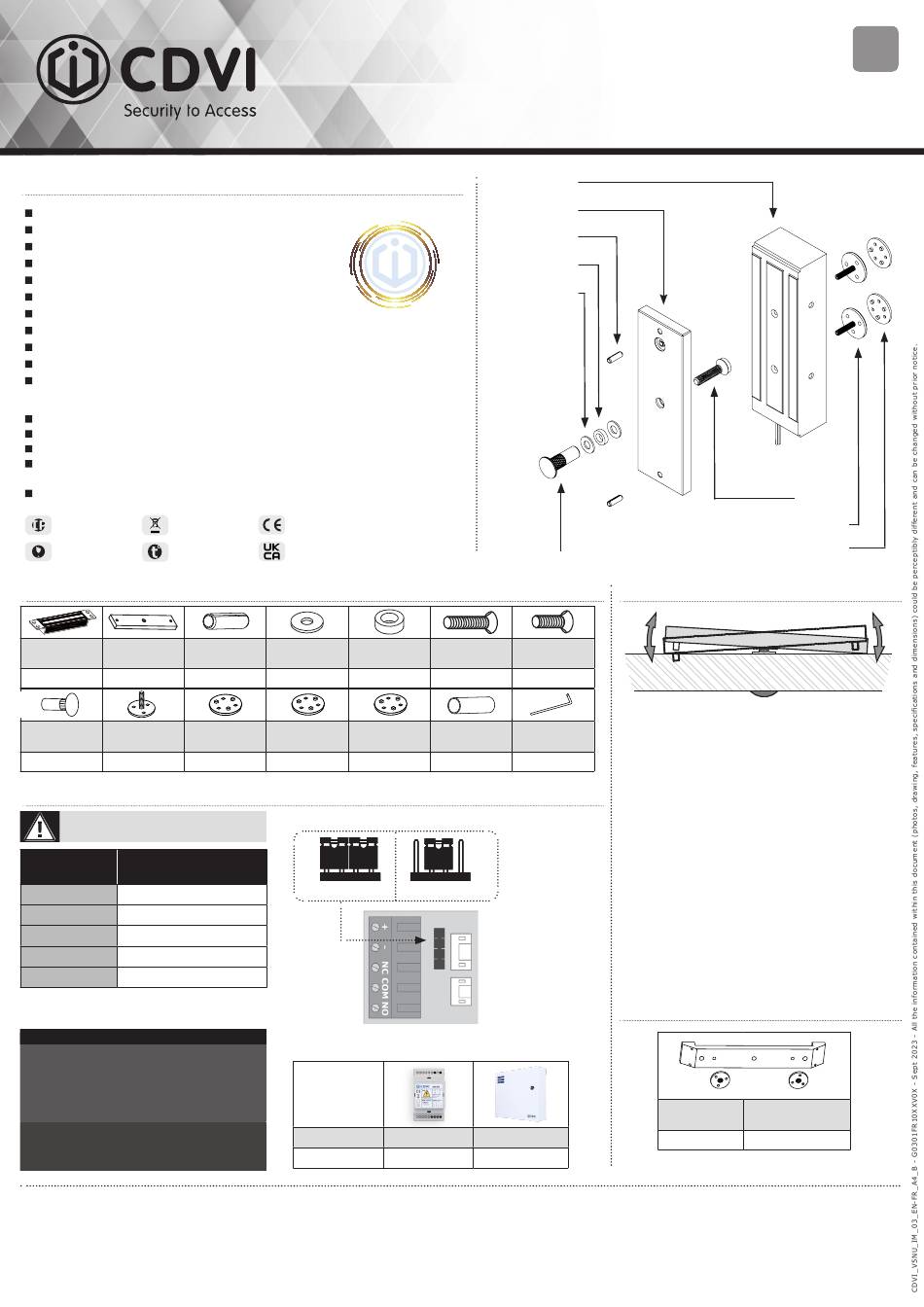

CDVI V5NU Quick Start Manual

PRODUCT PRESENTATION
Monitored NO/NC
Flush mount
High corrosion resistance
Delivered with armature plate
No mechanical wear
No residual magnetism
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 500 kg
Built-in varistor: Built-in electronic protection to
eliminate back EMF
Dimensions (L x W x D): 190 x 60 x 38 mm
Armature plate dimensions (L x W x D): 185 x 60 x 12 mm
Power supply: 12-24V dc
Consumption: 500 mA / 6W @ 12V dc
250 mA / 6W @ 24V dc
Power of remote: 0.4W @ 24V DC
IP42 WEEE & RoHS
IK10 -40°C to 60°C
PACKAGE CONTENT
Magnetic Armature
lock plate
1 1 1 1
Compression
Cap nut
screw
1 1 2 2
ELECTRICAL CONNECTIONS
12Vdc Default setup
Terminal
Correspondence
block
+ 12 or 24Vdc
- 0V
N.C NC (Normally closed)
COM COM
N.O NO (Normally open)
The NO/NC signal only switches when
the door is closed with the power to it on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. A wrong position
could damage the lock. This type of damage
is not covered by the warranty.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
The Armature plate must be able to pivot
slightly about its center mounting screw
to compensate for any door misalignment.
CDVI Group (Headquarters) CDVI UK
FRANCE + EXPORT Phone +44 (0)1628 531300
Phone +33 (0)1 48 91 01 02 www.cdvi.co.uk
www.cdvi.fr
CDVI AMERICAS
CDVI NORDIC Phone +1 866 610 0102
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se
V5NU
500 kg mortice electro-magnetic lock
10
YEAR
WARRANTY
CE Certification
UKCA Certification
5x16 Rubber
Steel washer
Roll pin washer
2 2 2 2
Spacer Spacer Spacer
2 mm 3 mm 5 mm
2 2 2 2
Voltage selection jumpers
12V dc
Recommended power supplies
Voltage Voltage
12Vdc
24Vdc 24Vdc
CDVI BENELUX
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
Maglock Maglock
Armature plate Armature plate
Roll pin Roll pin
Rubber washer Rubber washer
Steel washer Steel washer
Cap nut Cap nut
M8X35 M8x25
Screw Screw
1 1 1 1 1 1
Allen key
Guide piece
3 mm, 5 mm
2 2 1 1 1 each 1 each
24V dc
ADC335 ADC612S
ADC324 PSMB242
CDVI IBÉRICA
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
www.cdvi.it
Compression screw Compression screw
MOUNTING RECOMMENDATIONS
Armature plate
- It is vital that the magnetic lock and armature
plate are securely fixed to their supports.
- The magnetic lock and the armature plate must
be aligned.
- The armature plate must be mounted "floating"
around the central mounting screw to
compensate for any misalignment of the door
Compression screws & spacers
- Compression screws and spacers allow
installation of the maglock in an architectural
housing or similar.
- Screw the compression screw in from the rear of
the maglock and adjust through the holes in the
front of the maglock with the use of the supplied
allen key.
- Various spacers are included (2mm, 3mm,
5mm) in the kit to tailor to the depth of the
housing.
OPTIONAL ACCESSORIES
References AMB300
Description Description For armature plate For armature plate
