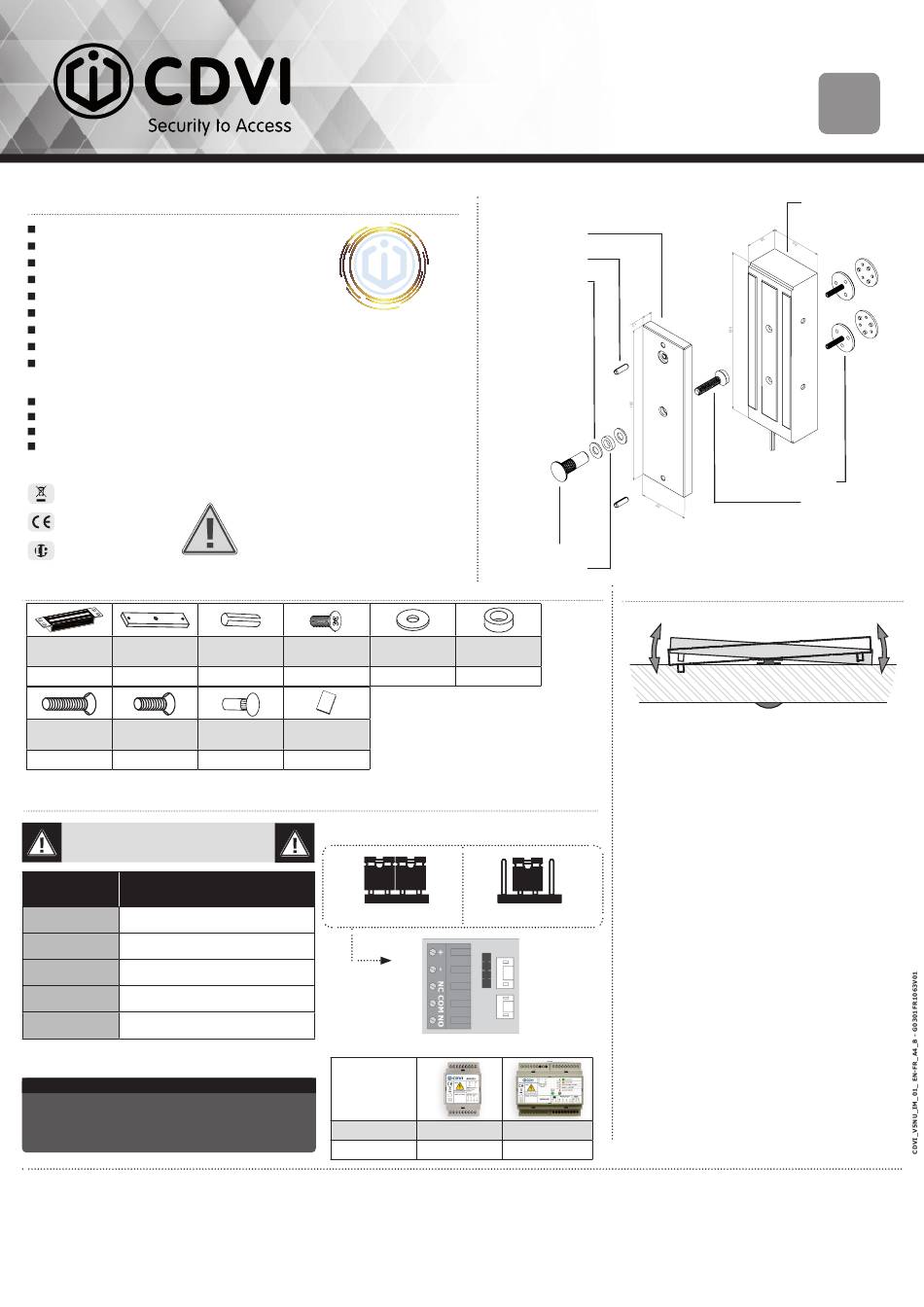

CDVI V5NU Instructions

PRODUCT PRESENTATION
NF S61-937 - PV n° SD20 00 22
High corrosion resistance
Delivered with armature plate
No mechanical wear
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force : 300 kg
Built-in varistor : Built-in electronic protection to
eliminate back EMF
Dimensions (L x W x D): 190 x 60 x 38mm
Armature plate dimensions (L x W x D): 185 x 60 x 12mm
Power supply: 12-24 V dc
Consumption: 500 mA / 6W @ 12V dc
250 mA / 6W @ 24V dc
WEEE & RoHS
CE Certification
IP42
PACKAGE CONTENT
Magnetic Armature
lock plate
1 1 1 1
M8x35 M8x25
Screw Screw
1 1 1 1
ELECTRICAL CONNECTIONS
12V dc Default setup
Terminal
Correspondence
block
+ 12 or 24V dc
-
- 0 V
N.C NC (Normally closed)
C COM
N.O NO (Normally open)
The NO/NC signal only switches when the door is
closed and the electromagentic lock powered.
IMPORTANT NOTE
Check the jumper position before connection the lock
into the input current. A wrong position could damage
the lock. This type of damage will not be covered by the
warranty.
CDVI FRANCE + EXPORT CDVI UK
31, av. du Général Leclerc [UNITED KINGDOM - IRE-
93500 PANTIN - France LAND]
Phone +33 (0)1 48 91 01 02 Phone +44 (0)1628 531300
www.cdvi.com www.cdvi.co.uk
CDVI SWEDEN CDVI AMERICAS
[SWEDEN - DENMARK - [CANADA - USA]
NORWAY FINLAND] Phone +1 (450) 682 7945
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se
Manufacturing Access Control since 1985
V5NU
500Kg Mortice Electromagnetic lock
(For general use)
10
YEAR
WARRANTY
Do not connect the magnetic
lock without the PCB.
5x16 M5X8
Steel washer
Roll pin Srew
2 2 8 8
Cap nut Manual
1 1 1 1
Voltage selection jumpers
12V dc
Recommended power supplies
Voltage Voltage
12V
24V 24V
CDVI BENELUX
[BELGIUM - NETHERLAND -
LUXEMBOURG]
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
Armature plate Armature plate
Roll pin Roll pin
Steel washer Steel washer
Cap nut Cap nut
Rubber washer Rubber washer
Rubber
washer
2 2 1 1
24V dc
ADC335 ADC612S
ADC324 ADC624S
CDVI IBÉRICA
[SPAIN - PORTUGAL]
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
Fax: +39 0321 90 8018
www.cdvi.it
MOUNTING RECOMMENDATIONS
Armature plate
- It is vital that the magnetic lock and armature
plate are securely fixed to their supports.
- The magnetic lock and the armature plate must
be aligned.
- The armature plate must be mounted "floating"
around the central mounting screw to
compensate for any misalignment of the door
CDVI MAROC
CDVI TAIWAN
Phone +212 (0)5 22 48
Phone +886 (0)42471 2188
09 40
www.cdvichina.cn
www.cdvi.ma
CDVI CHINA
CDVI POLSKA
Phone +86 (0)10
Phone +48 12 659 23 44
84606132/82
www.cdvichina.cn
www.cdvi.com
EN
Magnetic block Magnetic block
Jack Jack
Armature plate Armature plate
screw screw
