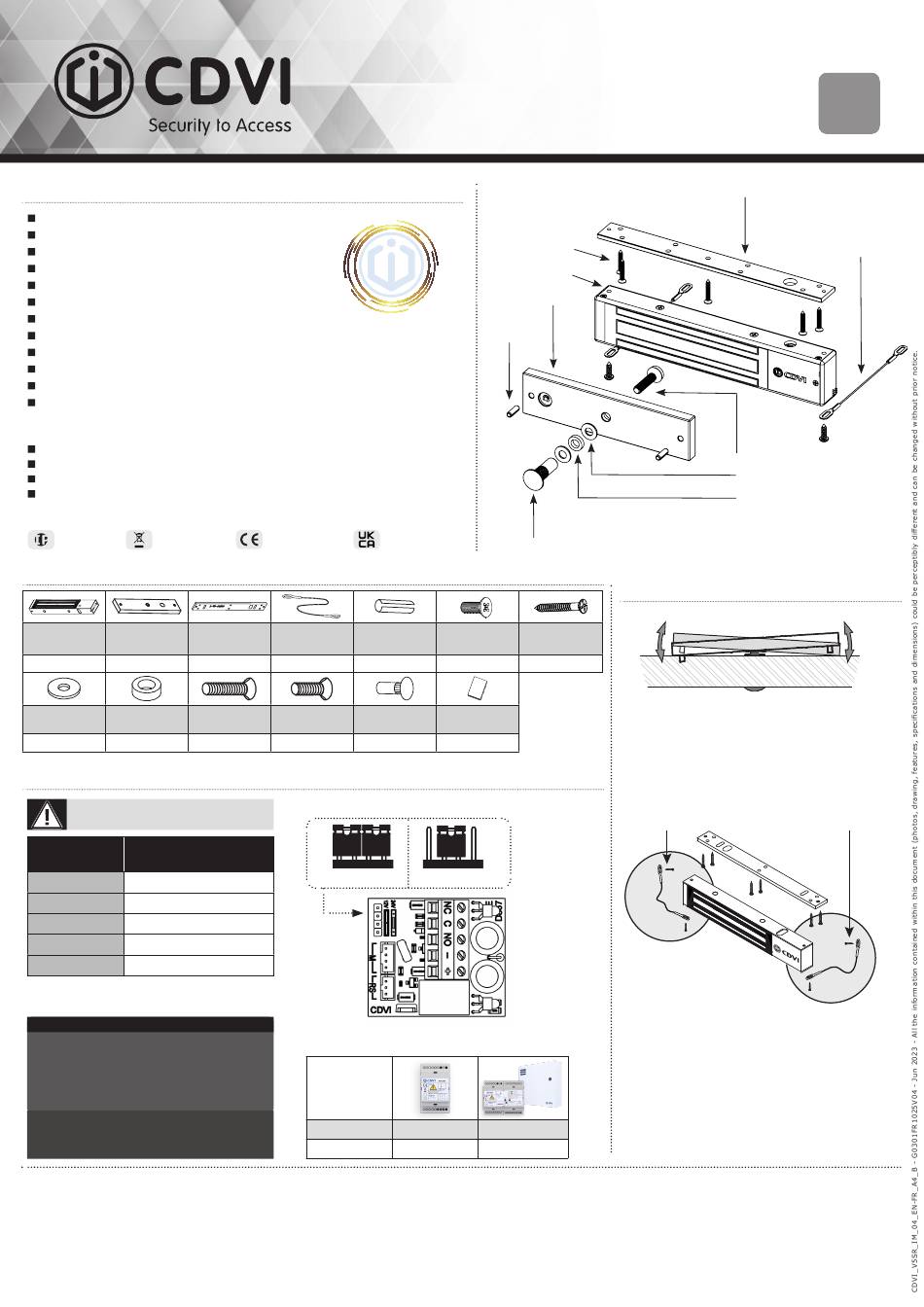

CDVI V5SR Quick Start Manual

Manufacturing Access Control since 1985
PRODUCT PRESENTATION
Monitored
Surface mount
High corrosion resistance
Safety rope
No mechanical wear
No residual magnetism
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 500 kg
Visual indication (Blue = Locked ; Green = Open)
Built-in varistor: built-in electronic protection
to eliminate back EMF
Dimensions (L x W x D): 272 x 66 x 40 mm
Armature plate dimensions (L x W x D): 185 x 60 x 12 mm
Power supply: 12-24V dc
Consumption: 290 mA @ 12V dc
145 mA @ 24V dc
IP42 WEEE & RoHS
PACKAGE CONTENT
Magnetic lock Armature plate
1 1
Steel washer Rubber washer M8x35 Screw
2 1
ELECTRICAL CONNECTIONS
12V dc Default setup
Terminal Description
+ 12 or 24V dc
- 0V
N.C
NC (Normally closed)
COM COM
N.O NO (Normally open)
The NO/NC signal only switches when the
door is closed with the power switched on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. Having it in the
wrong position could damage the lock. This
type of damage is not covered by the warranty.
- Make sure that the magnet and the armature
meet evenly over their entire facing surfaces.
The armature plate must be able to pivot
slightly about its center mounting screw
to compensate for any door misalignment.
CDVI FRANCE + EXPORT CDVI UK
31, av. du Général Leclerc [UNITED KINGDOM -
93500 PANTIN - France IRELAND]
Phone +33 (0)1 48 91 01 02 Phone +44 (0)1628 531300
www.cdvi.fr www.cdvi.co.uk
CDVI NORDIC CDVI AMERICAS
[SWEDEN - DENMARK - [CANADA - USA - LATAM]
NORWAY FINLAND] Phone +1 866 610 0102
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se
V5SR
500 kg Surface Mount Electromagnetic Lock
248
248x26x4,5mm
10
254
YEAR
WARRANTY
254x50x30mm
CE Certification
185x45x12mm
185
Fixing plate Security Rope 5x16 Roll pin
1 2
M8x25 Screw
1 1
Voltage selection jumpers
12V dc
Recommended power supplies
Voltage Voltage
12V
24V 24V
CDVI BENELUX
[BELGIUM - NETHERLAND -
LUXEMBOURG]
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
Wood screw
Magnetic lock Magnetic lock
Armature plate
Roll pin
UKCA Certification
Cap nut
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
C.A. :
4x25 Wood
Surface mount electromagnetic lock - 400kg
4X10 Screw
screw
Material : Aluminium
2 1
DES.: W. Sainvil
Cap nut Manual
1 1
24V dc
ADC335 ADC612S
ADC324 PSMB242
CDVI IBÉRICA
[SPAIN - PORTUGAL]
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
Fax +39 0321 90 8018
www.cdvi.it
Fixing plate Fixing plate
MOUNTING RECOMMENDATIONS
F05250000015-A
V4SR
General tolerance: 0.2 Surface condition: Ra 3,2
6
3
Vol. (mm ) : Weight (g) :
Armature plate
- It is vital that the magnetic lock and armature
plate are securely fixed to their supports.
- The magnetic lock and the armature plate must
be aligned.
- The armature plate must be mounted "floating"
around the central mounting screw to
compensate for any misalignment of the door.
Security rope
The security rope
Throughout its life, an electro-magnetic lock is
subject to an accumulation of repeated shocks and
stresses at the fixing points on the door frame.
Frequent opening and closing of the door as well
as attempts of opening a locked door or acts of
vandalism can cause the maglock to detach from
its mounting support or bracket. In order to avoid
the risk of the electro-magnetic lock falling, the two
safety ropes can be installed to guarantee the safety
of users. (see diagram above).
CDVI TAIWAN
Phone +886 (0)42471 2188
www.cdvichina.cn
CDVI CHINA
Phone +86 10 84606132/82
www.cdvichina.cn
CDVI MAROC
Phone +212 5 2248 0940
www.cdvi.ma
EN
Security rope
M8 Screw
Steel washer
Rubber washer
Plan M1073-ens
Edition 02
SCALE 1:2
Date 05/09/2019
A3H Project : A0238005
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
Security rope
CDVI POLSKA
Phone +48 12 659 23 44
www.cdvi.com.pl
CDVI GERMANY
+49 (0) 251 798477 0
www.cdvi.de
