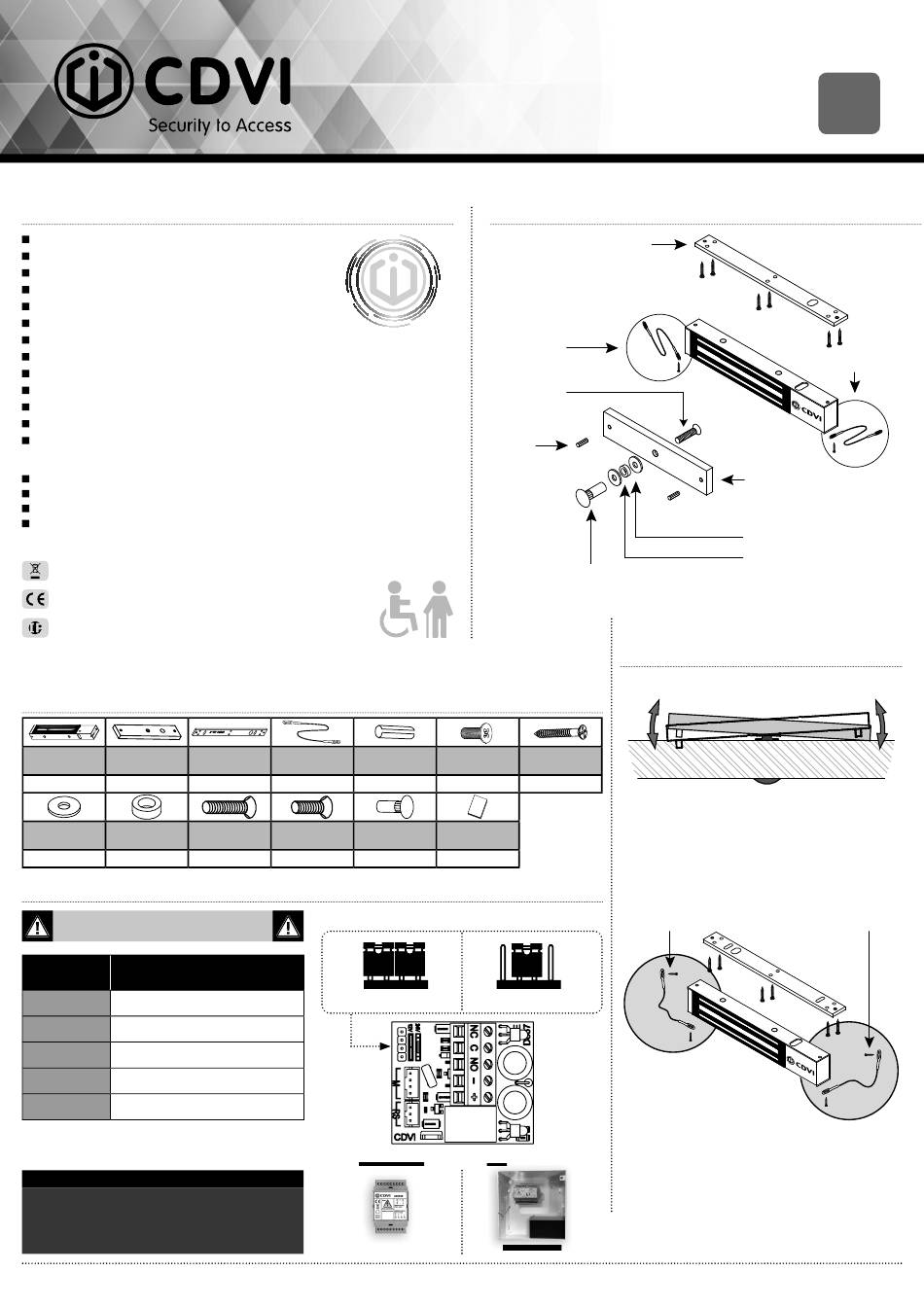

CDVI V5SR Quick Manual

PRODUCT PRESENTATION

Monitored
Surface mount
High Corrosion resistance
Safety Rope
Delivered with armature
No mechanical wear
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 500 kg
No residual magnetism
Visual signalling (Blue = Locked ; Green = Open)
Built-in varistor: Built-in electronic protection
to eliminate back EMF
Dimensions (L x W x D): 272 x 66 x 40 mm
Armature dimensions (L x W x D): 185 x 60 x 12mm
Power supply: 12/24V dc
Power absorption: 12 V DC = 550mA
24 V DC = 275mA
WEEE & RoHS
The V5SR is suitable for the new
EC certifi cation
regulations covering assistance to
IP42

PACKAGE CONTENTS

Armature
Magnetic lock
plate
1 1
Rubber
Steel washer M8x35 screw
washer
2 1

ELECTRICAL CONNECTIONS

12V dc default setup
Terminal
Correspondence
block
+
12 or 24V dc
- - 0 V
NO Normally open
C
COM
NC Normally closed
The N.O./N.C. signal only switches when the door
is closed and the electromagnetique lock powered.
IMPORTANT NOTE
Check the jumper position before connecting the
lock to the input current. A wrong position could

Specifications :

damage the lock. This type of damage is not
- Epoxy 1,6mm
covered by the warranty.
- Class 4
- PCBoard with 4 layers
- Metallized holes
All the information contained within this document (photos, drawing, features, specifi cations and dimensions) could be perceptibly different and can be changed without prior notice.
- Cooper 35µm for all layers
- Chemical finishing Nickel/Gold
YEAR
persons with reduced mobility.
Fixing plate Security rope Roll pin 5x16
1 2
2,5
M8x25 screw
1 1
Voltage selection jumpers
12V dc
Recommended power supplies Recommended power supplies Recommended power supplies
ADC335
V5SR

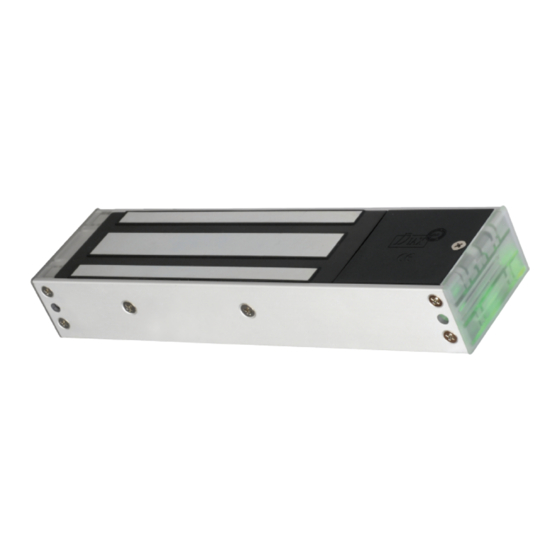

500 Kg Surface Mount Electromagnetic lock
(For general use - not fi re safety use)

INSTALLATION

10

WARRANTY

Security rope
M8 screw
Roll pin
12 round chips 2mm
for the tester pins
4X10 screw 4x25 screw
2 1
Cap nut Manual
1 1
3
24V dc
3,05 18,10
ADC612SB ADC612SB
G0301FR1025V03
Fixing plate
Cap nut

MOUNTING RECOMMENDATIONS

6
Armature plate
- It is vital to fi x the electromagnetic lock and
armature plate solidly on their supports.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
- The armature plate must be able to pivot slightly
about its center mounting screw to compensate
for any door misalignment.
Security rope
(fi xing on the magnetic lock and the frame)
Security ropes
The electromagnetic lock undergoes repeated
shocks and the vibration at the points of fi xation
on the frame (frequencies of openings / closures,
attempt of opening wears closed and attempts
of vandalism) which can loosen the fi xing bolts/
screws.
To prevent the risk of the electromagnetic block
from falling, install both security ropes supplied,
to guarantee the safety of the users (see plan
above).
EN
Security rope
Armature plate
Steel washer
Rubber washer
