ATESS NOVO EVA-07S-PU Quick Installation Manual

Single-phase ac charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Shenzhen Atess Power Technology Co.,Ltd
GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road,
Shuitian Community, Shiyan Street, Baoan District, Shenzhen
T
+ 86 755 2998 8492
E
info@atesspower.com
W
www.atesspower.com
Revised date:2024-02-23

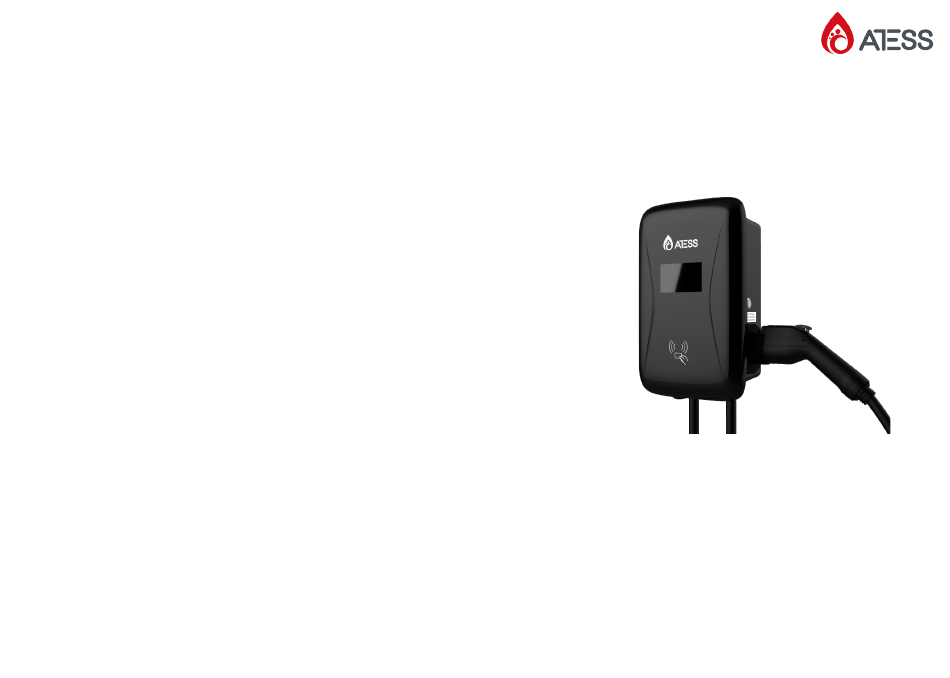

ATESS NOVO EVA-07/09/12S-PU
Single-phase AC charger Quick installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVO EVA-07S-PU and is the answer not in the manual?

Questions and answers

Related Manuals for ATESS NOVO EVA-07S-PU

Summary of Contents for ATESS NOVO EVA-07S-PU

  • Page 1 Shenzhen Atess Power Technology Co.,Ltd GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, ATESS NOVO EVA-07/09/12S-PU Shuitian Community, Shiyan Street, Baoan District, Shenzhen + 86 755 2998 8492 Single-phase AC charger Quick installation guide info@atesspower.com www.atesspower.com Revised date:2024-02-23...
  • Page 2 Disclaimer "IMPORTANT SAFETY INSTRUCTIONS” and “SAVE THESE This user manual is copyrighted by Shenzhen ATESS Power INSTRUCTIONS". Technology Co.,ltd.(Hereinafter referred to as”ATESS”) No INSTRUCTIONS IMPORTANTES CONCERNANT LA SéCURITé company or person may extract or copy part or all of this user CONSERVER CES INSTRUCTIONS.

  • Page 3: Table Of Contents

    Please read this document thoroughly before installing and using the ATESS AC charger. Failure to follow safety instructions may III. Installation and wiring ..... 4 result in electric shock, fire, serious injury or death.

  • Page 4: Product Description

    I.Product description Wiring definition in the side window PE L1 L2 1.LOGO and status indicator 2.LCD display (For LCD charger version) 3.RFID ready (For RFID version) 4.Start or stop button 5.25 feet type1 plug 1. Terminal block for meter wiring. The terminal definition is: 6.Mounting bracket 485A/485B is RS485 terminal for meter connection;...

  • Page 5: Packaging List

    llI.Installation and wiring Il.Packaging list 3.1 Mount on a wall 3.1.1 Open the packaging, you’ll see a charge point, a mounting bracket, a user Name Name Remark manual and a bag of mounting accessories. There is also an RFID card if the charge point is RFID version.
  • Page 6 3.2 Mount on a pole 3.1.3 Put the charge point onto the bracket, and fix it with the 2 screws at the bottom of the charge point. The installation is done. 3.2.1 Open the packaging of the pole, take out the pole and mounting accessories. 3.2.2 The pole must be installed on a hard surface, concrete surface is recommended, it can also be mounted on a solid ground.

  • Page 7: Parameter Setting

    3.2.4 Fix the mounting bracket onto the pole. Note: 1.Only professional personnel can do the wiring, connect the AC input wires in 3.2.5 Position the charge point onto the bracket and secure it on the bracket with the 2 screws. correct phase order according to the markings on the terminal block;...
  • Page 8 5. Select "Use the following IP address" and enter the IP address, Subnet Mask, 3. Right-click on Local Area Connection and click on Properties. Default Gateway. Click OK and close the Local Area Connection properties window. 4. Select Internet Protocol Version 4 (TCP/IPv4) and click on Properties. 4.2 Configure parameters Connect the charger to a computer via a network cable.
  • Page 9 (2) Charger ID, this is the unique identification of the Charger. If the charger is to be connected to ATESS back-office server, this ID must be set as the serial number on the nameplate of the Charger. Otherwise the Charger cannot be registered on the server.
  • Page 10 (12) Over temperature protection value, not suggested to change. (9)Server URL is to set the domain name or IP address of the back office server to be connected. The domain name of ATESS server is“ws://enerace-ws.atesspower.com/ocpp/ws”; IP address is “ws://47.56.208.172:80/ocpp/ws”. Heartbeat Interval is used for Fig.12 testing.
  • Page 11 (18) Relieve the power grid pressure, authorized charging, after the set time to start. (15) DC residual current sampling value calibration. Enter 0 and press “Set and Reboot ” to calibrate the DC RCD ring. Display real-time detection value of DC residual current.keep the default RCD level.
  • Page 12 (22)Set the load balancing or Solar function, sampling instrument type and address. (27) PIN of the charger, used to verify the PIN of user card. To use a RFID card with the charger, their PIN must be consistent. If the user card has a different PIN, then it cannot be used on this charger.

  • Page 13: Operation Instruction And Lcd Description

    (34) Upgrade the firmware of the charger. After clicking upload, the charger will restart. <APP/RFID mode operation process flow> Fig.34 If you are using the ATESS APP, Charging can be started/stopped by pressing the " " button on the APP.
  • Page 14 RFID mode: 5.2 LCD interface introduction Charging can only be initiated or ceased by swiping RFID card. Interface of standby status. Charging mode is displayed at the bottom centre of the screen. Interface of user card information Displayed for user to check card RFID mode operation process flow ID and balance when swiping RFID card while EV is not...

  • Page 15: Firmware Update

    VI. Firmware update 6.1 Update by SD card There are 2 ways to update firmware for EV charger. Interface of fault status. 1.Update by SD card 2. Update on parameter setting page Displayed with fault code and faultdescription when fault The firmware file must be named as"App.bin".
  • Page 16 3. Open the txt file,write"state=1"in it and save the file. 4. Insert the SD card into the charger, turn off and back on the charger, the update will start automatically. The indicator will first flash red and then flash green with a long beep as the end of the update(sometimes the beep sound may not be clearly heard).

  • Page 17: Troubleshooting

    VII.Troubleshooting 3. Click the ”Browse” button and select the firmware file. Click “Upload”, then 7.1 Troubleshoot by LED behavior or LCD display update will start automatically. If fault occurs, users can check the fault information on the LCD or by the number of blinks of the LED indicator light.
  • Page 18 7.2 Firmware update fails b. Please check and input the correct WiFi SSID and password to retry; 7.2.1 Firmware update failure with SD card: a. Check if the capacity is over 4G bytes,please use a SD card of less than 4G to retry;...
  • Page 19 e. Check if the charger is still connected to the computer. Please unplug it from computer otherwise the charger won’t connect to the back-office server. f.Check if server address is correct in the"Server URL"field. The correct setting is:ws://eneracews.atesspower.com/ocpp/ws. d. 1. Some routers have 2 WiFi, one is 2.4GHz, the other is 5GHz. Most homes just use the 5GHz WiFi as their default WiFi.
  • Page 20 (3). Right-click on Local Area Connection and click on Properties. c. Check what web browser is being used, it's suggested to use Firefox or IE, Chrome cannot be used to update firmware. d. Check if you have input the complete content, which is http://192.168.1.5:8080, in the address field, do not leave out the http:// or the“:8080”.

  • Page 21: Use Excess Solar Power To Charge Your Car

    VIII.Use excess solar power to charge your car 7.5 Charging issue The charge point can work with grid-tied solar system, to detect and use the residual solar power to charge your car that otherwise would be fed back to grid. If charging cannot start after the car is plugged in, a.

  • Page 22: Load Balancing

    INVERTER PV ARRAY CONSUMER UNIT ELECTRICITY METER (4) If you choose the PowerMeter.Plesae change PowerMeter Addr to the address shown on the meter. A+B- IX. Load balancing 8.4 Parameter configuration for this function Introduction The charge point can monitor the total power consumption of the household (1) Connect the charge point to a laptop with a network cable, access the during charging.
  • Page 23 (3) Select power sampling device in the field of the parameter: External Power 9.2 If a meter is used, the wiring will be as the following Sampling Wiring(0: Inner CT 1: PowerMeter). 0 means CT while 1 stands for meter. CONSUMER UNIT ELECTRICITY...

  • Page 24: Specification

    X. Specification XI. Annex 1 Model NOVO EVA-07/09/12S-PU 11.1. APP Introduction Dimension(mm) 246/382/162mm 11.1.1 Description <5/6/7 Weight(kg) EneRace is an app for controlling charger. It can help you quickly and easily charge Display LCD(opt) your vehicle with a EV charger. Stainless steel&...
  • Page 25 11.2.2 Registration and login When the user first visits, the user registration is performed by the following steps: Click the desktop icon Login page Register. When the user has an account, you can directly enter the user name and password to log in. If you forget the password, you can click the login page, forget the password button, and follow the prompts to retrieve the password through the mailbox.
  • Page 26 11.2.7 Charging record 11.2.5 Start and stop control of charger Press “Record” to view past charge records, including changer ID, gun number, time, energy, cost and so on.You can also view the energy consumption curve over time, and download the charging report to your email or local reference. Press “...
  • Page 27 There are three Pre-set charging schemes: Duration, Amountt and Energy. Users can choose one of these options.The scheme can be canceled before the start charging time is reached. For example, in the "Amount" mode, you can set the amount and stop charging if the amount reaches the set value.
  • Page 28 Charger Settings • Charging mode : Three modes control the charging of the charger, APP, RFID and plug and charge.Solar Mode: The Solar feature works in three ways, Fast, ECO and ECO+. In ECO mode, you need to set the power that can be allowed obtain from the grid.ECO current limit : In solar mode, part of the charging energy comes from the photovoltaic and part from the grid.
  • Page 29 Authrization To manage authorized users, you can view the authorization time, account name, and delete user in the authorization management interface. Users can authorize other users to use charging stubs through authorization management. Enter the user name to authorize other users to use the chargepoint. If the person you want to authorize does not have an account, you can register for the new user by registering the new user in the upper right corner.
  • Page 30 ●Only when the charger is in AP mode can you use the phone to connect to the charger. • Connect to WIFI When the charger is not connected to the server, every 60 seconds will switch to The charger ID is displayed in AP mode and the charger parameters can be set.Pay AP mode.

  • Page 31: Warranty

    XII.Warranty Warranty The warranty period of this product (Including hardware and software)is 2 year. If the contract stipulates otherwise, the contract shall prevail. For warranty cases during the warranty period, the customer should present the invoice of the purchase of the product to our service team. At the same time, the nameplate on the product should be clearly visible, otherwise the warranty claim might not be accepted.
  • Page 32 Statement of liability 13.2 Warning and safety marks Label description The copyright of this manual belongs to our company. Any organization or individual may not extract or copy part or all of the contents of this manual without any written permission from us, and may not be reproduced and spread in any form (including materials and publications).
  • Page 33 XIV. Contact Company Name:Shenzhen Atess Power Technology Co.,Ltd Website: www.atesspower.com Service line: +8675529988492 E-mail: info@atesspower.com Address: GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, Baoan District, Shenzhen...
