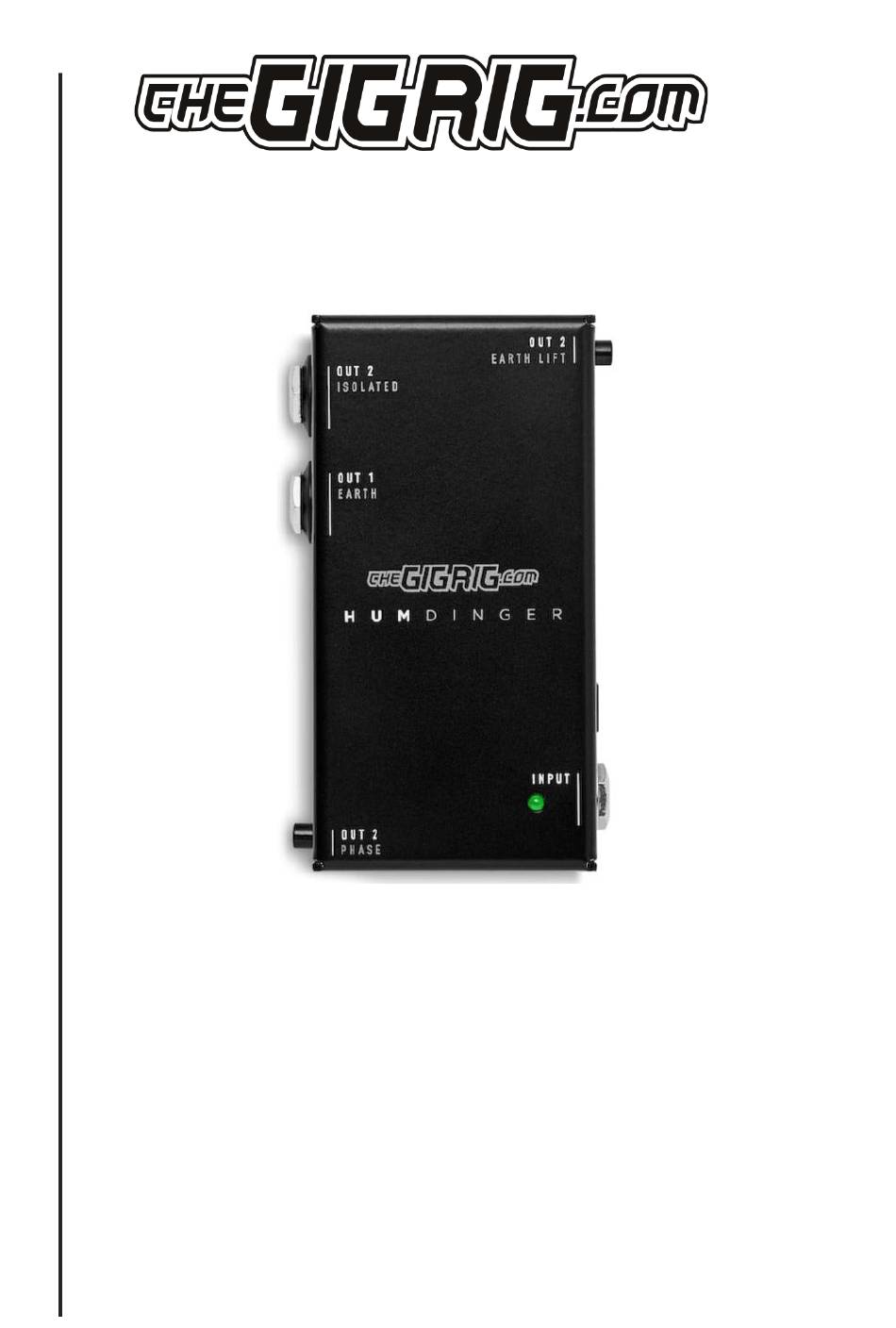

- Page 1 HUMDINGER MANUAL TheGigRig Ltd Humdinger Manual, January 2025...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION 2. OPERATION 3. SET UP EXAMPLES; 3.1. End Of Chain Splitting 3.2. TPS Wet/ Dry 4. TECHNICAL SPECIFICATION 5. WARRANTY TheGigRig Ltd Humdinger Manual, January 2025... -
Page 3: Introduction
1. INTRODUCTION TheGigRig HUMDINGER is an active splitter with a buffered output (Out 1), and a buffered, isolated, phase reversible output (Out 2). HUMDINGER INPUT: Plug in here POWER: Uses a standard 9V DC 2.1mm centre negative power supply @100mA... -
Page 4: Set Up Examples
3. SET UP EXAMPLES 3.1 END OF CHAIN SPLITTING: The most common way to set up the HumDinger is to position it at the end of your signal chain, enabling your signal to split between 2 different amps. You can also send your Out 1 to your amp and the isolated output to your DAW for re-amping later. -
Page 5: Technical Specification
17V (34V headroom peak to peak) Input impedance 680K Ohm (DC Coupled) Output A Buffered: Low Noise: 3nV/√Hz Output impedance 100 Ohm Frequency response: 5Hz to 100Khz, into 1M Ohm Output B Isolated: Low Noise: 3nV/√Hz Output impedance 100 Ohm Frequency response at guitar levels 5Hz to 100KHz TheGigRig Ltd Humdinger Manual, January 2025... -
Page 6: Warranty
In no event will The GigRig be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. The GigRig disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
