GigRig Generator Manual

Introduction

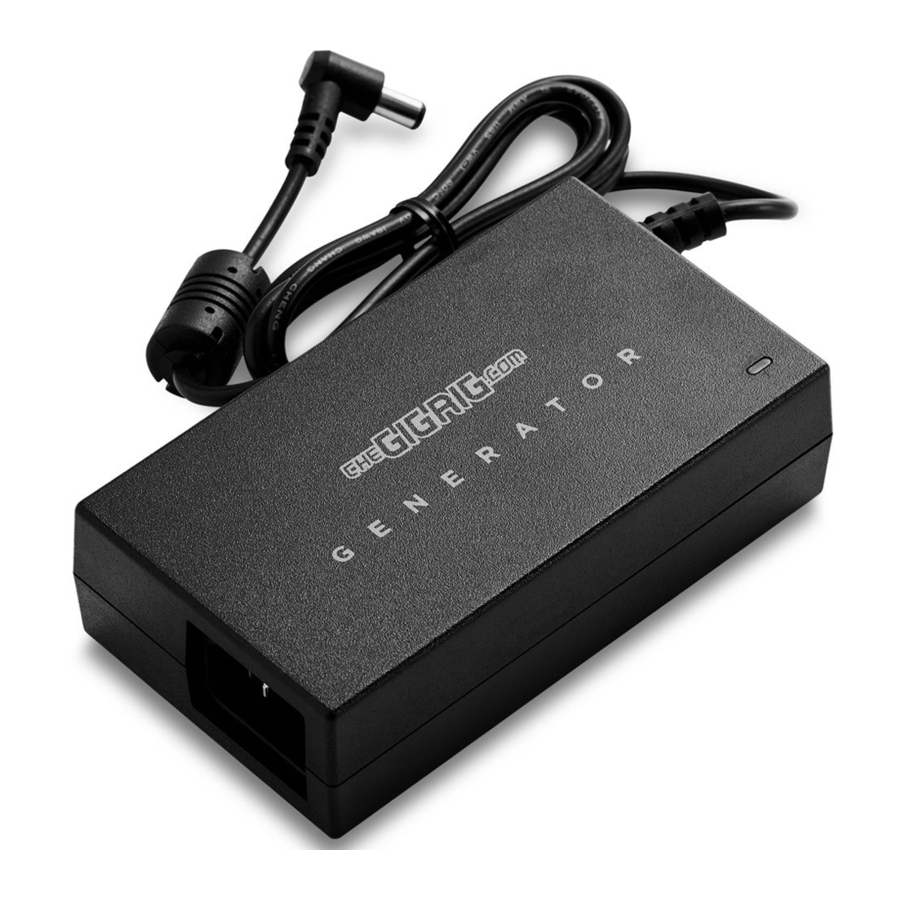

This small but extremely powerful 9-volt DC supply is designed for use specifically for guitar effects pedals. The Generator has the capability to power 20+ effects pedals with ample power to spare. Most effect pedals need current in the range of 20mA to 1000mA each. The GigRig Generator can supply up to 5 Amps!

Worldwide Use

The GigRig Generator will automatically adapt to the voltage and mains AC frequency of most countries in the World, including all US states and European countries. For other locations, check that the mains voltage is below 240V and above 100 Volts AC before connection. The GigRig Generator operates on both 50Hz and 60Hz mains frequencies.

Quality: Providing exceptional low-noise signal quality for stage and studio guitarists is our sole objective.
Safety: This Generator is for indoor use only. Don't get it wet!
Good Practice: Designed for use with The GigRig Distributor, Isolator and High Current Adapters to supply power to your DC powered switching and effects products. For more information see www.thegigrig.com/power.

Amplifier Suitability: The GigRig Generator is only for use with conventional earthed amplifiers.
Note: Some vintage amplifiers have no earth connection or have a ground lift switch. We strongly recommend that these amplifiers are professionally serviced and an earthed three-pin plug is fitted (for a safe solution to amplifier hum problems, see The GigRig Humdinger)
If your GigRig Generator shows any signs of damage, the supply must not be used.

Technical Specification

Specification: Type: Switch Mode SM overload, short circuit and over temperature protected.
Output specification:
Connector 2.1 mm Centre Negative. (Standard Guitar Pedal input)
Output Power 49.5 W
Output Voltage 9V DC. Fully regulated and smoothed.
Output Current max 5.5A
Output Hum: ePix Grade 7-SM. (Studio Quality Switch Mode)
Output Hiss: ePix Grade 8-SM (Studio Quality Switch Mode)
Output Ground: The DC output is isolated from mains earth. (Standard Guitar pedal supply construction) Input Specification:
Voltage Range. 100V AC to 240VAC
Frequency 50Hz to 60Hz.
Input Current. At 100V is 1.1A at 240V the input current is 0.4A
Input Fuse. A standard 5A mains fuse is recommended.
Regulations:
Your power supply conforms to BS EN 60950-2002 safety standard.
For use in Europe and UL E13237 listed 5T18 Level 3 for use in the USA.

Manufacturer: The GigRig Ltd, Unit 15 Whitehill Industrial Pk, Royal Wootton Bassett, SN4 7DB
Authorised Representative: EAS - Mustamäe tee 50, 10621 Tallinn, Estonia

For indoor use only. Keep away from water. Keep away from Children.
