GigRig Loopy 2 Manual

Table of Contents

Contents

1 Introduction
2 Features
3 Remote Input
4 Technical Specification
5 Power
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

Introduction

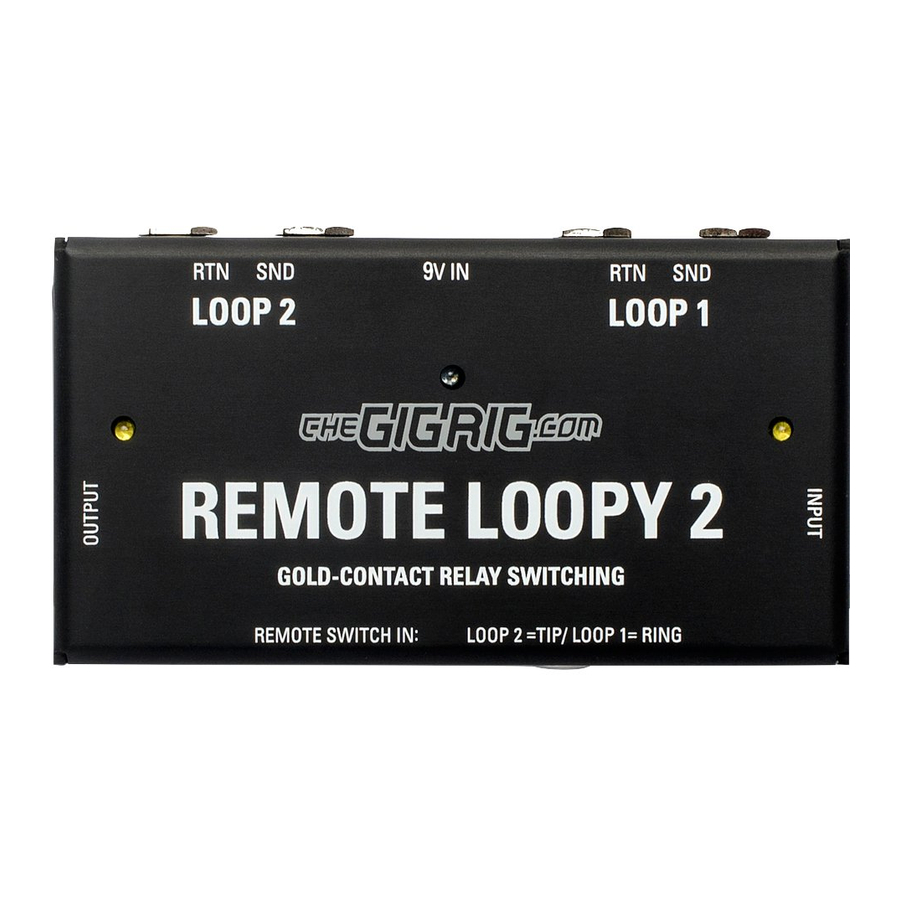

TheGigRig Remote Loopy 2 allows you to switch effects pedals silently in and out of your amplifiers effects loop.

The Remote Loopy 2 is controlled by an external foot switch. No guitar signals pass through the long control cable to the foot switch so your tone is preserved and your pedals are out of the way and close to your amp.

It is the ultimate performing silent dual effects loop remote Switching system.

Features

Silent Switching (electronically controlled).
Instantly compatible with all GigRig Products.
True Bypass, select to send your guitar signal direct to your amp.
Drops to True bypass if power is lost.
Bypassed pedal muting on both loops.

Remote Input

The Remote Loopy 2 can be controlled by any standard TRS dual latching footswitch, or any switching system with TRS Control functions (Such as G2/G3). It can also be split into two single jack leads for two separate Latching footswitches. The Remote Loopy 2 simply needs a latched connection between the stereo jack tip to shield or Ring to shield of the plug to activate a loop.
Remote Input

warning Note:
The light on the Foot Switch will show the status of the lights on the Loopy 2.
The foot switch can be used without applying power, but no LED will illuminate.
The blue light on the Remote Loopy 2 shows that power is connected as is similar for the Foot Switch.
The optional EXT output sends out a plus to clear other GigRig Foot switch systems.

Technical Specification

Bypass mode: True Bypass, Direct connection from guitar to amplifier.

Effects Bypass: True Bypass, Direct connection between send and return. Pedals are muted when bypassed.

Bandwidth/etc:
Studio Quality Bandwidth and silent switching.
Flat frequency response. DC to daylight!

Power

External power supply minimum 200mA regulated. Thermal and short circuit protected (see the GigRig Generator). Current Consumption: All outputs on, all LED's on = approximately 100mA.

Physical size: Dimensions: 125mm X 70mm X 41mm. including height of Switches.

warning Please note: All values are approximations. No responsibility will be taken for errors or omissions in the above specification. This specification is subject to change without notice. Please consult www.thegigrig.com for amendments.

Do not use TheGigRig loopy2 in wet conditions. If TheGigRig Loopy2 accidentally gets wet, it should be left in a warm dry place for 24 hours before it is used or stored. (Remove the base to aid drying.)
