GigRig ISOX4 Manual

INTRODUCTION

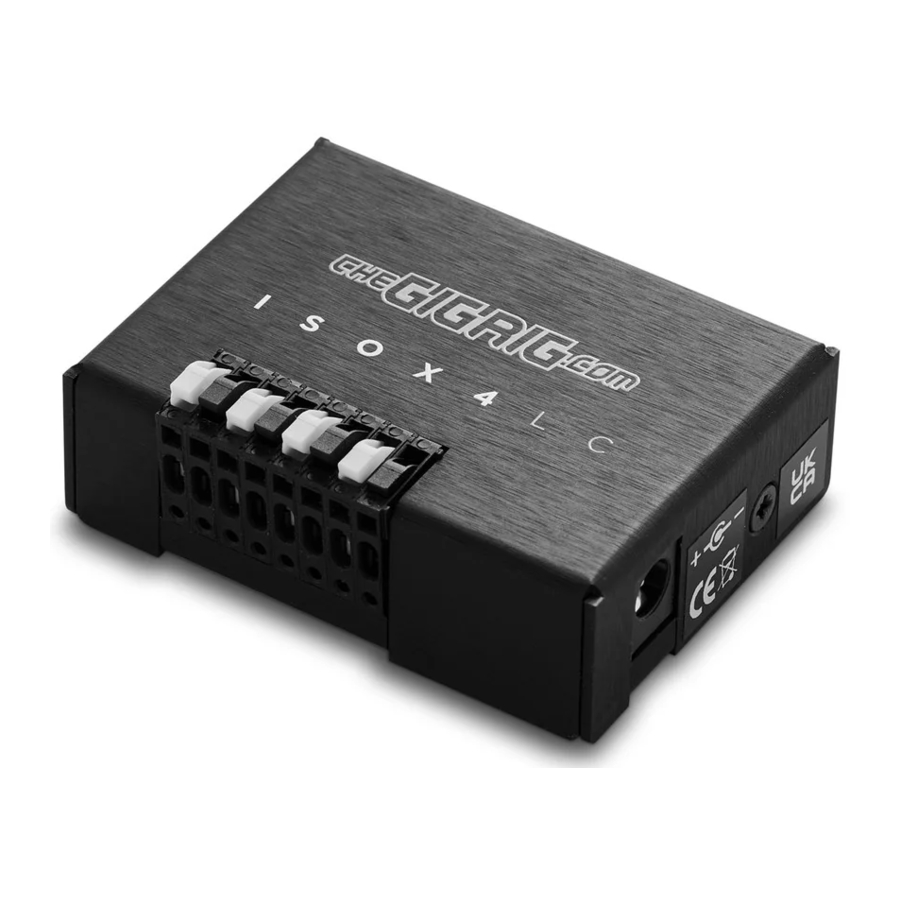

The GigRig Isolator works as part of our Modular Power Supply and provides ultra clean and isolated power to your lower current 9V DC pedals. The Isolator provides reverse isolation, so crosstalk between the powered pedal and other pedals is eliminated. Each Isolator has 4 x independent, isolated, 9V DC outputs capable of delivering 135 mA each. Use The GigRig Generator, connected to a Distributor, to power your ISOX4 LC or the 500mA @ 9V, 1000mA (set to 9V) outputs of the Gen-X-14.

INSTRUCTIONS FOR USE

Each ISOX4 LC is supplied with 4 x 1.5 metre length DC leads with right angled 2.1mm connectors to power your effects. Simply follow the instructions listed in the diagram provided to correctly connect them.

Please note, we cannot guarantee the performance of the adapter from any other supply.
DO NOT STRIP THE CABLE.
DO NOT COVER THE ADAPTER, IT MAY OVERHEAT AND SWITCH OFF!
It is normal for the adapter to run warm.
Short Circuit Protection: The Isolator will sense if there is a short circuit on its output and shut down to protect itself and your pedals.

Manufacturer: The GigRig Ltd, Unit 15 Whitehill Industrial Pk, Royal Wootton Bassett, SN4 7DB
Authorised Representative: EAS - Mustamäe tee 50, 10621 Tallinn, Estonia

For indoor use only. Keep away from water. Keep away from Children.
