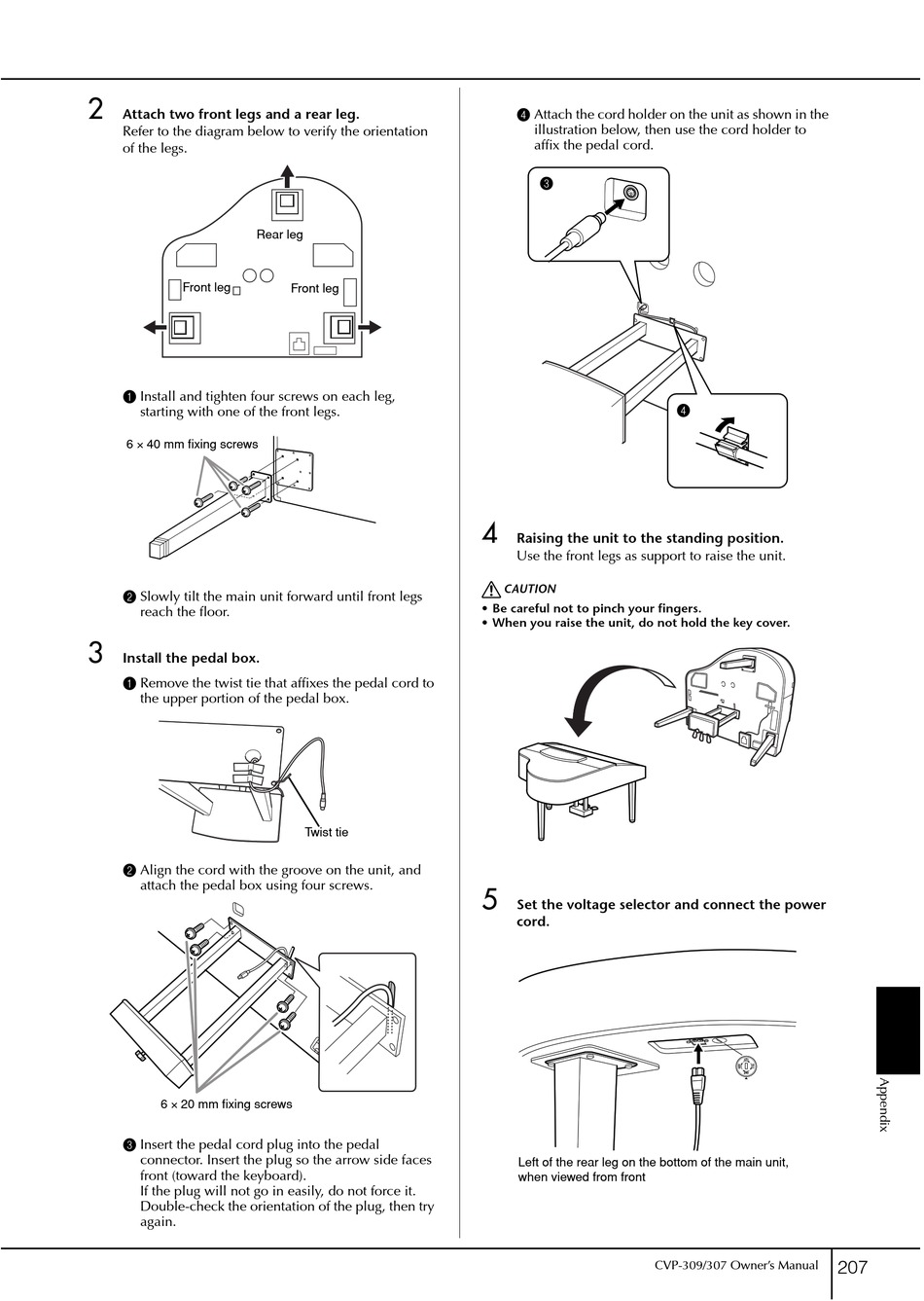

Attach two front legs and a rear leg.
Refer to the diagram below to verify the orientation
of the legs.
Rear leg
Front leg
1 Install and tighten four screws on each leg,
starting with one of the front legs.
6 × 40 mm fixing screws
2 Slowly tilt the main unit forward until front legs
reach the floor.
3
Install the pedal box.
1 Remove the twist tie that affixes the pedal cord to
the upper portion of the pedal box.
2 Align the cord with the groove on the unit, and
attach the pedal box using four screws.
6 × 20 mm fixing screws
3 Insert the pedal cord plug into the pedal
connector. Insert the plug so the arrow side faces
front (toward the keyboard).
If the plug will not go in easily, do not force it.
Double-check the orientation of the plug, then try
again.
Front leg
Twist tie
4 Attach the cord holder on the unit as shown in the
illustration below, then use the cord holder to
affix the pedal cord.
3
4
Raising the unit to the standing position.
Use the front legs as support to raise the unit.
CAUTION
• Be careful not to pinch your fingers.
• When you raise the unit, do not hold the key cover.
5
Set the voltage selector and connect the power
cord.
Left of the rear leg on the bottom of the main unit,
when viewed from front
