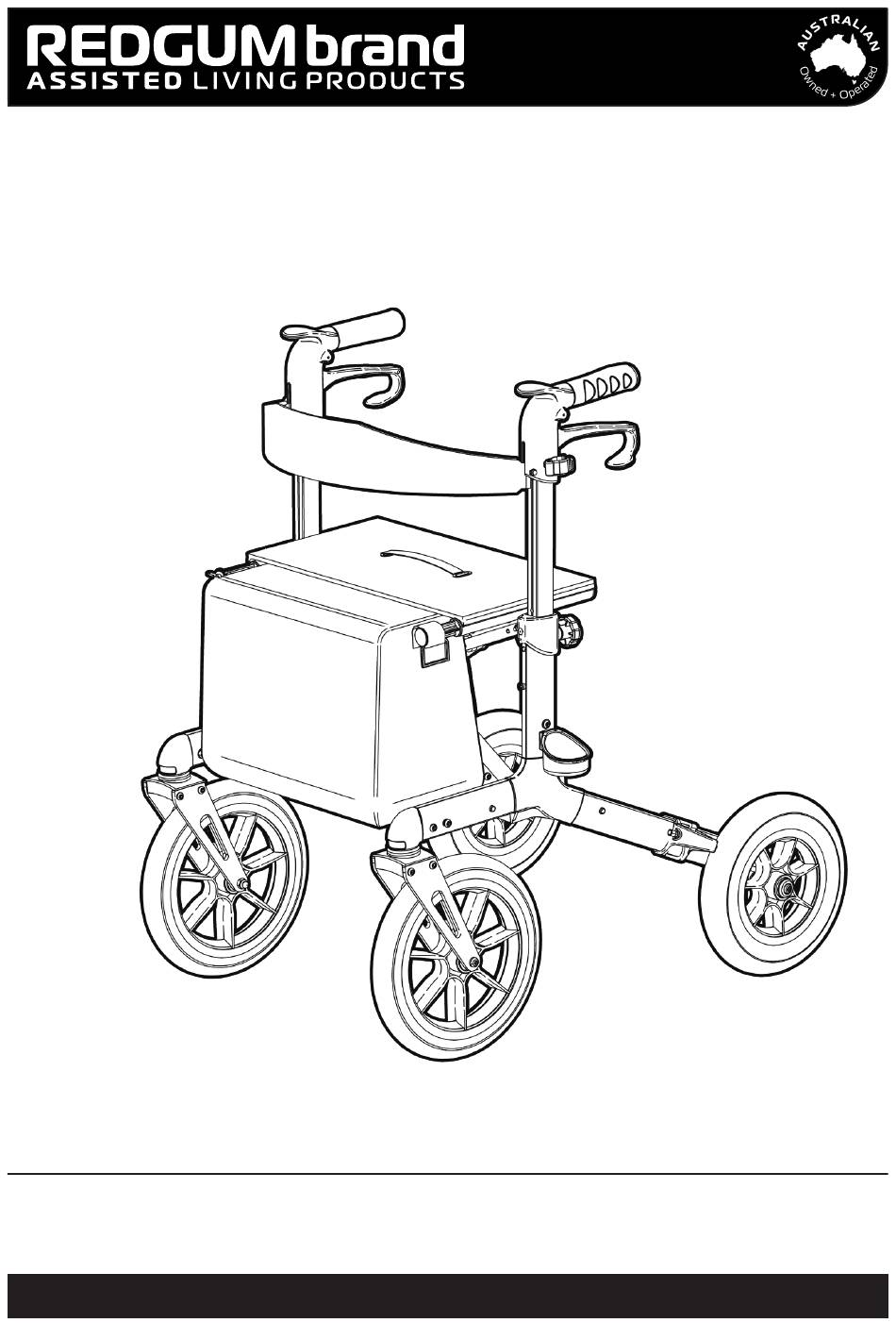

- Page 1 CROSS COUNTRY SEAT WALKER RG4416 Edition 1 USER MANUAL Please read and keep these instructions redgumbrandmobility.com.au ASK FOR THE BRAND...
- Page 2 A S S I S T E D L I V I N G P R O D U C T S REDGUM Brand owns the copyright to the Cross Country Seat Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION PRODUCT OVERVIEW UNPACK and INSPECT PARTS UNFOLD FRAME FIT FRONT WHEELS FIT REAR WHEELS FIT HANDLES ADJUST HANDLES FIT DRINK BOTTLE HOLDER FIT WALKING STICK CUP FIT BAG BRAKING USAGE FOLDING WALKER PRODUCT CARE WARRANTY redgumbrandmobility.com.au ASK FOR THE BRAND... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the Cross Country Seat Walker please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines. -
Page 5: Product Overview
PRODUCT OVERVIEW FEATURES - Great walking and stability aid - Hand and park brakes - Folds for storage and transport - Height adjustable handles - Ergonomic rubber hand grips - Padded seat and backrest strap - Removable carry bag - Walking stick holder - Large flat free wheels - Bottle holder - Walking stick holder... -
Page 6: Unpack And Inspect Parts
UNPACK and INSPECT PARTS Ensure you have been supplied with the following parts: 1 x Handles 1 x Frame 2x Rear Wheels 1 x Bottle Holder (not to scale) 2 x Front Wheels 1 x Bag 1 x Walking Stick Cup (not to scale) Please take care when unpacking the product and removing the protective packing materials. -
Page 7: Unfold Frame
UNFOLD FRAME Please follow these steps to unfold the frame: 1. Using both hands pull the frame apart. 2. Push down on both sides of the seat until a loud “click” is heard which indicates that the seat is now locked in position. redgumbrandmobility.com.au ASK FOR THE BRAND... -
Page 8: Fit Front Wheels
FIT FRONT WHEELS Please follow these steps to fit the front wheels: 1. Determine the correct front wheel prior to fitting. The lever should be facing inside of the frame. 2. Slide the wheel onto the frame until it hits the pin. 3. -
Page 9: Fit Rear Wheels
FIT REAR WHEELS Please follow these steps to fit the rear wheels: 1. Determine the correct rear wheel prior to fitting. The lever should be facing inside of the frame. 2. Slide the wheel onto the frame until it hits the pin. 3. -
Page 10: Fit Handles
FIT HANDLES Please follow these steps to fit the handles: 1. Determine the correct handle assembly prior to fitting. Hand grip must be facing to the rear and the brake cable is inline with the rear wheel. 2. Slide the handle tube into the frame as shown. -
Page 11: Adjust Handles
ADJUST HANDLES Please follow these steps to adjust the handles: It is very important that the handles are set to the correct height to suit the user. Stand behind the seat walker with your shoulders relaxed and your arms hanging loosely at your sides. The height of the handles should be adjusted so that they are level with your wrists. -
Page 12: Fit Drink Bottle Holder
FIT DRINK BOTTLE HOLDER Please follow these steps to fit the drink bottle holder: 1. Locate the mount bracket on the right side of the seat walker frame. Mount bracket 2. Slide the drink bottle holder onto the mount bracket until secured in place. -
Page 13: Fit Walking Stick Cup
FIT WALKING STICK CUP Please follow these steps to fit the walking stick cup: Mount bracket 1. Slide the walking stick cup onto the mount bracket located on the left side of the seat walker frame. 2. Once located on the mount bracket, rotate the cup to be inline with the walking stick strap. -
Page 14: Fit Bag
FIT BAG Please follow these steps to fit the carry bag: 1. Locate the peg on the front of the walker, and the loops on either side of the bag. Loop 2. Slide the loops on the sides of the bag onto the pegs on the ends of the seat tubes. -
Page 15: Braking
BRAKING Please follow these guidelines to brake the seat walker in a safe manner: Both hand brakes should be used simultaneously to ensure the seat walker stops as required and the user is in full control. SLOW DOWN AND STOP To slow down or stop the seat walker from rolling: Gently pull up on both... -
Page 16: Usage
USAGE Please follow these guidelines to operate the Cross Country Seat Walker in a safe manner. Failure to follow these guidelines may result in damage to the product and put the user at risk. Do not overload the seat walker (136kg max. load) Do not overload the carry bag (5kg max. -
Page 17: Folding Walker
FOLDING WALKER Please follow these steps to fold the seat walker: Handle 1. Pull up on the handle in the middle of the seat to fold up the seat walker. Important Note: Seat walker can become unstable and fall over when folded up. Ensure the front swivel wheels are inline with the seat walker when folded. -
Page 18: Product Care
Do not use any abrasive cleaners or abrasive cleaning pads as they could potentially damage the seat walker. If you have any questions about the cleaning of the Cross Country Seat Walker please contact your supplier or REDGUM brand direct. redgumbrandmobility.com.au ASK FOR THE BRAND redgumbrand.com.au... -
Page 19: Warranty
To do so will void your warranty and may seriously compromise your safety. If you have any issues or questions about the Cross Country Seat Walker please contact your supplier or REDGUM Brand direct on: T: +61 8 9248 4180 E: orders@for-de.com.au redgumbrandmobility.com.au... - Page 20 DISTRIBUTOR: Explore our whole range of products! redgumbrandmobility.com.au ASK FOR THE BRAND redgumbrand.com.au...
