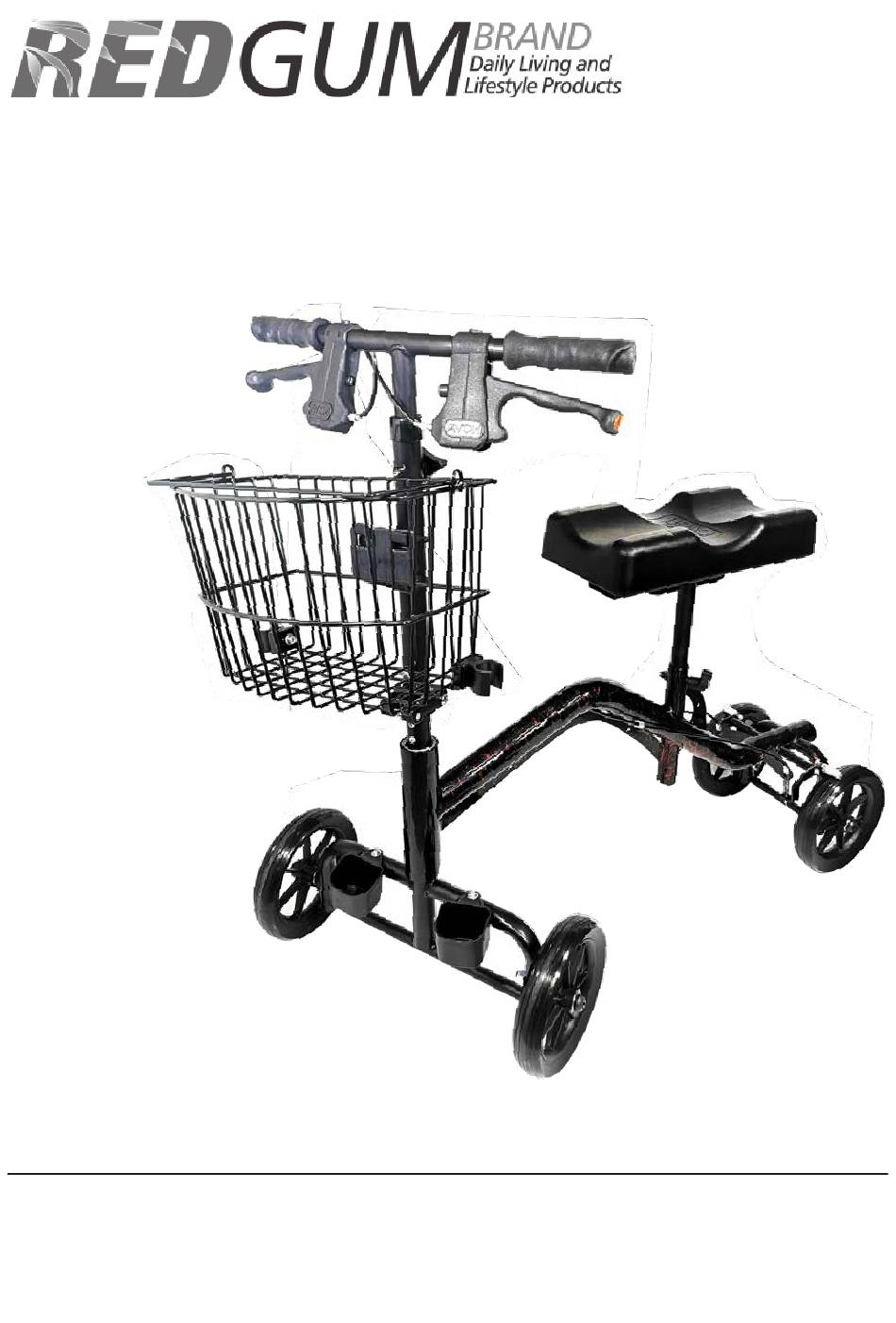

- Page 1 KNEE WALKER RG40KWHD USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 REDGUM Brand owns the copyright to the Knee Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - HANDLEBAR ASSEMBLY - HANDLEBAR (continued) ASSEMBLY - KNEEPAD ASSEMBLY - WIRE BASKET USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE NOTES redgumbrand.com.au... -
Page 4: Intended Use
INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Knee Walker please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... -
Page 5: Product Overview
Handlebar Width: 490mm Handlebar Height: 900 - 1050mm (from floor to top of handlebar) Wheel Diameter: 200mm / 8” Product Weight: 15.5kg Maximum User Weight: 180kg Please contact REDGUM Brand if you would like any further information on your Knee Walker. redgumbrand.com.au... - Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x Frame 1 x Handlebar 1 x Kneepad 1 x Wire Basket 1 x Washer 1 x Handlebar bolt 1 x Lever screw 1 x Allen key 1 x Nut 1 x Spanner...
-
Page 7: Assembly - Handlebar
ASSEMBLY - HANDLEBAR The handlebar requires location into the frame: 1. Ensure the front of the handlebar is facing toward front of knee walker. 2. Line up and insert the handle screw into hole. 3. Screw on washer and nut to lock handlebar in position. -
Page 8: Assembly - Handlebar (Continued)
ASSEMBLY - HANDLEBAR (continued) 4. Rotate the quick release lever up and over onto the top mounting plate. 5. Pivot the lever over to lock the steering column in position. 6. To adjust the handle height remove the tri wheel bolt, move the tube up and down to the desired height setting, align holes and using the bolt fix it into position. -
Page 9: Assembly - Kneepad
ASSEMBLY - KNEEPAD The kneepad requires location into the rear part of the frame: 1. Insert tube on kneepad into upright on frame. 2. Line up holes at required height setting and insert screw into hole. 3. Screw on knob to lock kneepad in position. -
Page 10: Assembly - Wire Basket
ASSEMBLY - WIRE BASKET The Knee Walker comes with a wire basket. To fit the wire basket to the handlebar: 1. Align the holes on basket mount plate with the hangers on the handlebar. 2. Attach the basket to the hangers as shown. IMPORTANT NOTE: Do not overload the wire basket as it may affect steering... -
Page 11: Usage Guidelines - Do's + Don'ts
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Knee Walker. Failure to follow these guidelines may result in damage to the Knee Walker and put the user at risk. 180kg Maximum User Weight. Ensure ALL FOUR WHEELS remain on ground at all times when the Knee Walker is being used. -
Page 12: Product Care
PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you check your Knee Walker visually periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Withdraw the Knee Walker immediately if you suspect damage or any other fault. -
Page 13: Warranty
WARRANTY Your REDGUM Brand RG40KWHD - Knee Walker is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. -
Page 14: Redgum Brand Product Range
Electric Beds Portable / Fixed Aluminium Ramps Exercisers Personal Alarms REDGUM Brand stock a large range of Spare Parts for all REDGUM brand products. Please contact REDGUM Brand for further information: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au... -
Page 15: Notes
