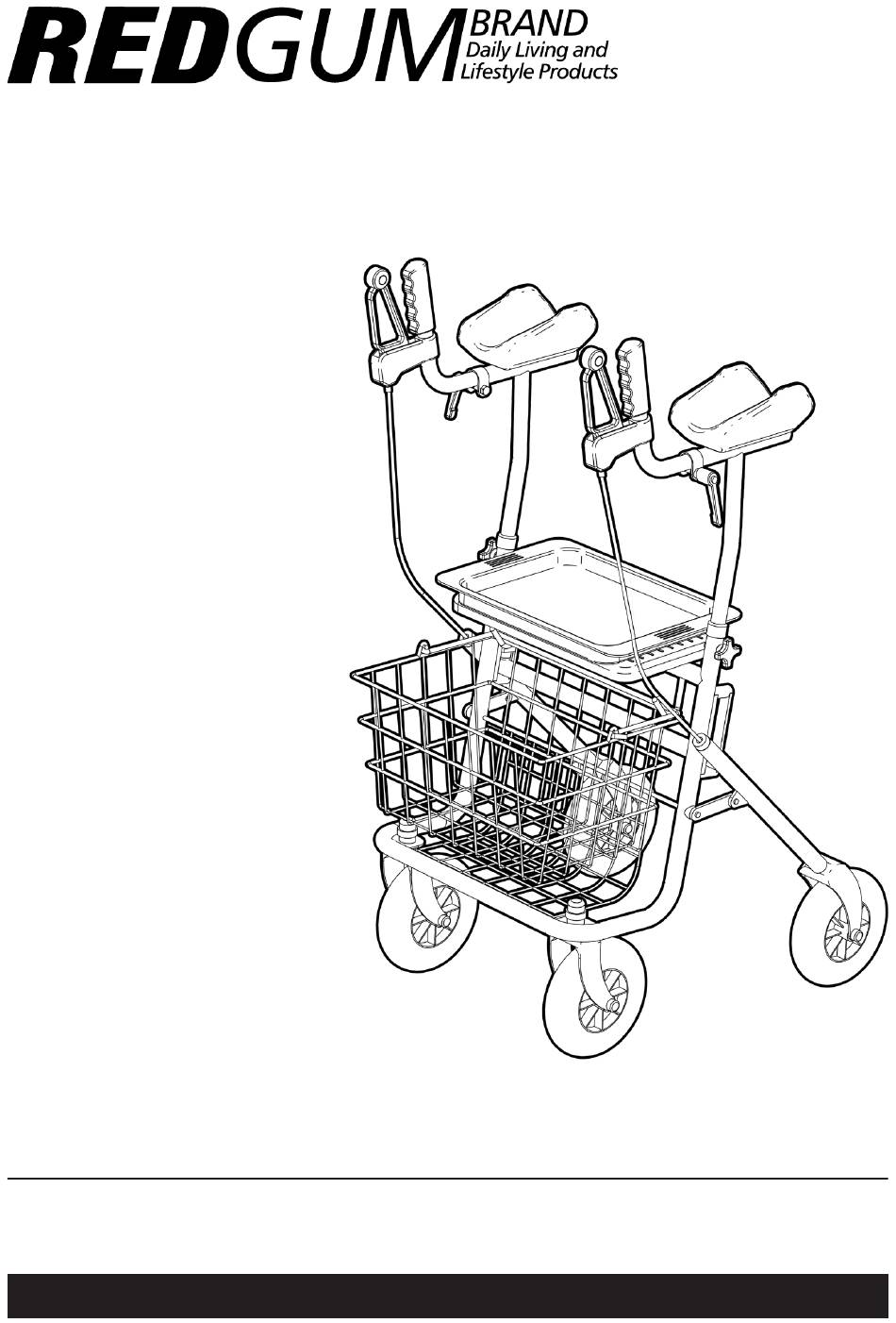

- Page 1 WALKING TUTOR RG4310AA Edition 1 USER MANUAL Please read and keep these instructions redgumbrand.com.au ASK FOR THE BRAND...
- Page 2 REDGUM Brand owns the copyright to this walking tutor user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - UNFOLD FRAME ASSEMBLY - FIT UPRIGHTS ASSEMBLY - FIT HANDLES ASSEMBLY - FIT TRAY ASSEMBLY - FIT BASKET OPERATION - BRAKES USAGE GUIDELINES - SAFETY PRECAUTIONS PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY...
-
Page 4: Intended Use
INTRODUCTION Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the walking tutor please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines. -
Page 5: Product Overview
PRODUCT OVERVIEW FEATURES To assist those with limited hand and wrist strength. Mobile walking frame. Folding frame for transit and storage. Height adjustable padded forearm supports. Depth adjustable handles. Dual hand and park brakes. Flat free wheels. Removable clear tray. Removable wire basket with carry handle. - Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: 1 x FRAME Note: Frame and handles are connected by cables 2 x HANDLE 2 x UPRIGHT 1 x BASKET 1 x TRAY IMPORTANT NOTE Remove all the protective wrapping and check all the parts.
- Page 7 ASSEMBLY - UNFOLD FRAME Please follow these steps to unfold the frame as required: 1. Pull the frame with rear wheels away from the main frame of walking tutor. 2. Rotate the locking bracket down to fix rear legs in place. To fold the walker tutor for transit or storage: Rotate the locking bracket up and push the rear wheel frame in towards the main frame of walking tutor.
- Page 8 ASSEMBLY - FIT UPRIGHTS Please follow these steps to fit the uprights onto the frame as required: 1. Remove the hand wheel, washer and bolt from the upright tube. 2. Align the upright with the frame as shown. 3. Insert upright into frame. 4.
- Page 9 ASSEMBLY - FIT HANDLES Please follow these steps to fit the handles onto the uprights as required: 1. Line up tube on handle with tube on underside of forearm pad with the hand grip and brake lever facing up. 2. Slide handle in to the required depth. 3.
- Page 10 ASSEMBLY - FIT TRAY Please follow these steps to fit the tray onto the walking tutor as required: 1. Line up pins on underside of tray with holes in top of seat. 2. Firmly push tray down onto seat. Pins Tray max.
- Page 11 ASSEMBLY - FIT BASKET Please follow these steps to fit the basket onto the walking tutor as required: 1. Centrally align the basket with the front of the walking tutor. 2. Hook the top rim of the basket onto the two hooks located on the crossbar underneath the seat.
- Page 12 OPERATION - BRAKES The walking tutor has independant hand brakes on both handles. IMPORTANT NOTE: Both hand brakes should be used simultaneously to ensure the walking tutor stops as required and the user is in full control. SLOW DOWN AND STOP To slow down or stop the walking tutor from rolling gently pull back on both hand brakes simultaneously.
- Page 13 Do not lean too far to one side or lean backwards causing the wheels to leave the ground. If you have any issues or questions about the walking tutor please contact your supplier or REDGUM Brand direct. redgumbrand.com.au ASK FOR THE BRAND...
-
Page 14: Product Care
Abrasive cleaners or abrasive cleaning pads could damage the walking tutor and should not be used. If you have any questions about the cleaning of the walking tutor please contact your supplier or REDGUM Brand direct. redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au... -
Page 15: Warranty
WARRANTY REDGUM Brand walking tutor is covered by a 12 month warranty from the date of purchase. During the guarantee period, if the company is satisfied there is a genuine fault, we will repair or replace the product at our earliest convenience. There may be freight charges if product needs to be returned to your place of purchase. - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
