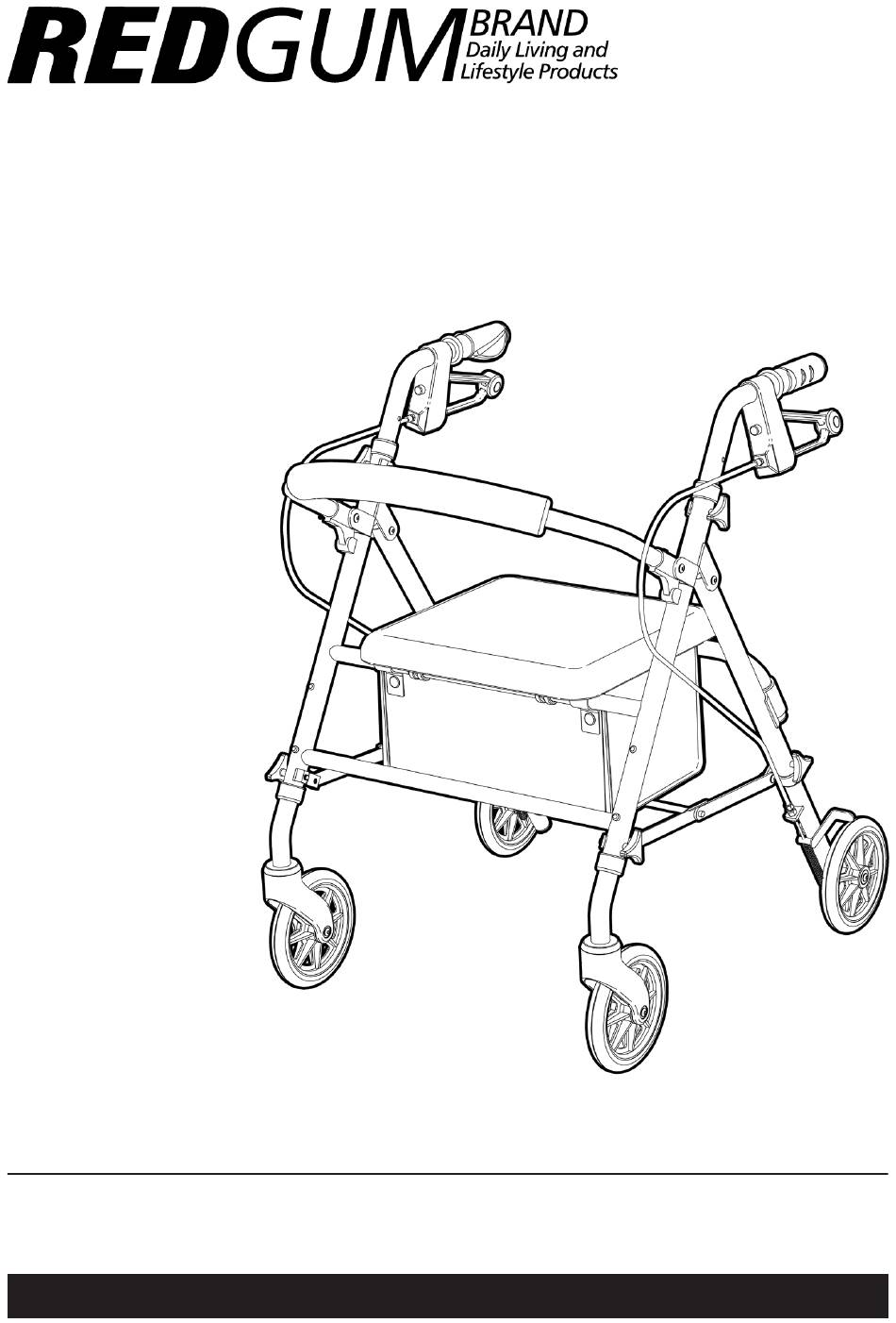

- Page 1 HEIGHT ADJUSTABLE SEAT WALKER RG4209 (6” WHEELS) RG4210 (8” WHEELS) Edition 1 USER MANUAL Please read and keep these instructions redgumbrand.com.au ASK FOR THE BRAND...
- Page 2 REDGUM Brand owns the copyright to the Height Adjustable Seat Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 CONTENTS INTRODUCTION - INTENDED USE PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - UNFOLD WALKER ASSEMBLY - FIT FRONT WHEELS ASSEMBLY - FIT REAR WHEELS ASSEMBLY - FIT HANDLES ASSEMBLY - HANDLE HEIGHT USAGE GUIDELINES - BRAKING USAGE GUIDELINES - SAFETY PRECAUTIONS PRODUCT CARE - INSPECTIONS / CLEANING...
- Page 4 INTRODUCTION Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the Height Adjustable Seat Walker please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines.
- Page 5 Wheel Diameter: Ø150mm / 6” Wheel Diameter: Ø200mm / 8” Product Weight: 6.7kg Product Weight: 7.7kg Maximum User Weight: 120kg Maximum User Weight: 120kg Please contact REDGUM Brand if you would like any further information. redgumbrand.com.au ASK FOR THE BRAND...
- Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied Remove and dispose of the rubber protectors with the following parts: 6 x Tri Wheels (Not shown to scale) 1 x Frame 1 x Backrest 1 x Right Handle + Rear Leg 2 x Front Leg...
- Page 7 ASSEMBLY - UNFOLD WALKER Please follow these steps to unfold Rear the seat walker frame correctly: Legs 1. Position the frame on its side as shown. 2. Rotate the rear legs on frame out. 3. Press down on the leg braces on both sides to ensure the frame has fully opened out.
- Page 8 ASSEMBLY - FIT FRONT WHEELS Please follow these steps to fit the front wheels onto the seat walker frame correctly: 1. Line up the tube on front leg with Front Leg the tube on the frame as shown. (Press buttons must line up with hole on front of main frame) Tri Wheel 2.
- Page 9 ASSEMBLY - FIT REAR WHEELS Please follow these steps to fit the rear wheels onto the seat walker frame correctly: Determine the correct leg and handle to go on the correct side of the frame. Wheel must face toward the outside of the main frame.
- Page 10 ASSEMBLY - FIT HANDLES Please follow these steps to fit the handles onto the seat walker frame correctly: Ensure that the handle is fit to the same side as the rear leg it is connected to with the brake cable. 1.
- Page 11 ASSEMBLY - HANDLE HEIGHT It is very important that the handles on the Height Adjustable Seat Walker are set to the correct height to suit the user. Stand behind the seat walker with your shoulders relaxed and your arms hanging loosely by your sides. The height of the handles should be adjusted so that they are level with your wrists.
- Page 12 USAGE GUIDELINES - BRAKING The Height Adjustable Seat Walker has independant hand brakes on both handles. IMPORTANT NOTE: Both hand brakes should be used simultaneously to ensure the seat walker stops as required and the user is in full control. SLOW DOWN AND STOP To slow down or stop the...
- Page 13 To do so will void your warranty and may seriously compromise your safety. If you have any issues or questions about the product please contact your supplier or REDGUM Brand direct. redgumbrand.com.au ASK FOR THE BRAND...
- Page 14 Abrasive cleaners or abrasive cleaning pads could damage the seat walker and should not be used. If you have any questions about the cleaning of the seat walker please contact your supplier or REDGUM Brand direct. redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
- Page 15 To do so will void your warranty and may seriously compromise your safety. If you have any issues or questions about the seat walker please contact your supplier or REDGUM Brand direct on: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 redgumbrand.com.au...
- Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au ASK FOR THE BRAND redgumbrand.com.au...
