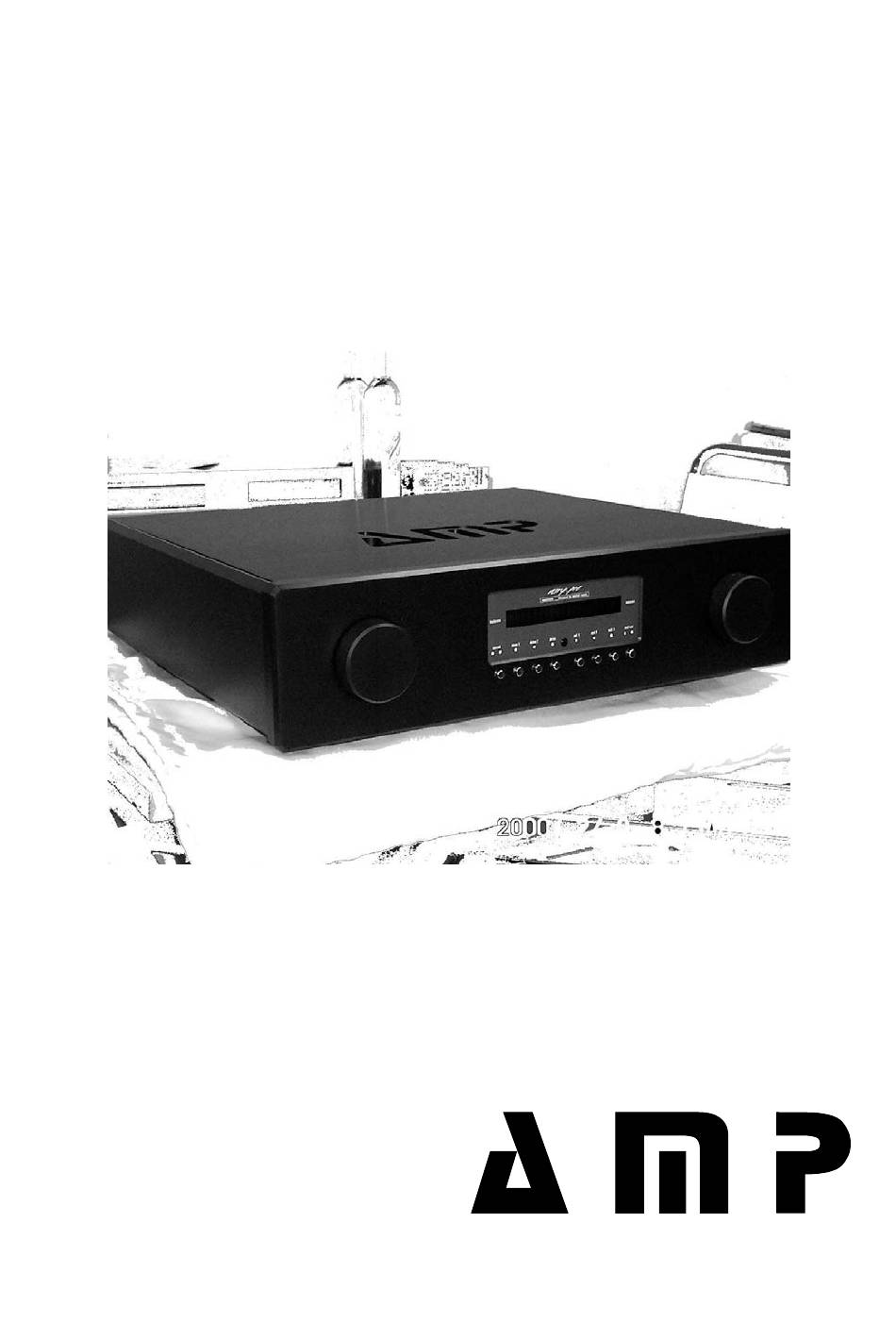

- Page 1 Pre Amplifier AMP essential pre Operating Instructions dvanced usical roducts . AMP by AVM GmbH, Daimlerstrasse 8, D-76316 Malsch, Germany...
-
Page 2: Table Of Contents
Page 1 Prolog, Certificate of Conformity Page 2 Technical specialties short Page 2 Construction and method of operation Page 3 Operation of the essential pre/overview Page 4 Placement of unit/cooling Page 4 Connection of signal sources Page 4 Connection of recorders... - Page 3 Its large mass leads to excellent immunity to vibrations. Inputs / Outputs The essential pre is a modularly constructed pre amplifier. All of the in- and outputs, as well as the volume control unit, are pluggable. In this manner the pre amplifier can be individually built to your own requirement.
-
Page 4: Operation Of The Essential Pre/Overview
Operation of the essential pre A first request: Please follow the instructions stated in this manual in their given sequence before you initially take this equipment into use. In this manner you will get to know all the capabilities of your amplifier and reduce faults through self-made operating mistakes. -
Page 5: Placement Of Unit/Cooling
Connection of tonal processors/equalizers To achieve this your pre amp must be equipped with a processor card which is installed in plug-in slot 8. The outputs of the processor are to be connected with the input sockets “in l” and “in r” of the pre... -
Page 6: Connection Of The Power Amplifier
When you wish to switch the pre amp off at a later time press the button “on/off” (4). The supplies to the analogue parts and the display are switched off and the equipment goes into the economic standby mode. -
Page 7: Output Selection
To switch on the tape recorder output: switch the pre amp off with the button “on/off” (4). Hold the button “mon 1” (5) depressed while switching the equipment on by toggling the button “on/off” (4). -
Page 8: Adjustment Of Input Sensitivity
To prevent this you can individually adjust the sensitivity of each of the inputs. To make the settings you should first operate the pre amp in normal mode, select the loudest signal source and adjust the volume to a suitable level. - Page 9 Despite this, several rules must be followed to ensure the correct functioning of your pre amp: the unit is equipped with a total of 12 plug-in slots, the slots 1 to 8 and 10 to 12 are accessible from the rear of the unit. Additionally a further slot (9) has been provided internally for the volume control unit.
-
Page 10: Phono Module
Phono module for preamp essential pre 1. Setting of gain and impedance To obtain optimal sound quality You have to adjust the phono module according to the specifications of Your phono cartridge. You can choose between MC and MM pickup, and set input impedance and gain of the module. -
Page 11: Care Of Casing
( Your dealer will supply). Remote control does not work: • The remote control battery is empty. • There is no line of sight between the remote control and the pre amp unit (infra-red light provides the communication signal). -
Page 12: Conditions Of Warranty
Before the main power supply is activated the in built microprocessor checks the assembly of the pre amp. If an error is detected it is shown in the display (2) and the unit will not switch on to prevent further damage. Mostly this is caused by the previous incorrect insertion of a plug-in card. To rectify follow the instructions in the display. - Page 13 Technical details AMP essential pre Input sensitivity Line input 100 mV 2 mV 0. 2 mV Input impedance Line input Cinch 5 kOhms Line input XLR 10 kOhms 47kOhms 1 kOhms Signal to noise ratio High level >100dB(A) >85dB(A) >75dB(A)
