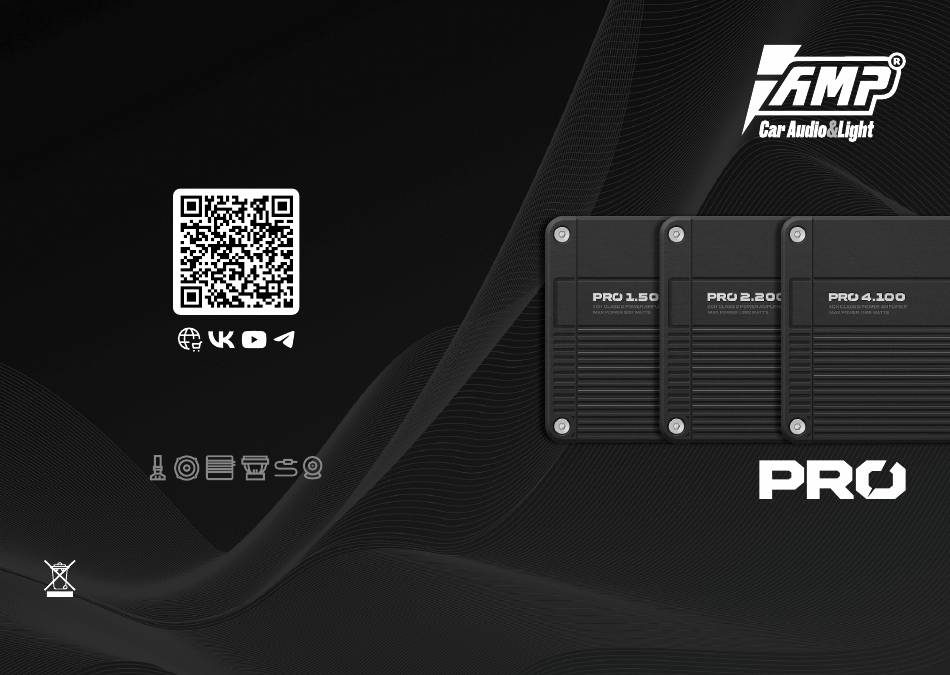

USER MANUAL
MADE IN PRC
specially for AMP™
WWW.AMPGROUP.PRO
series
1CH/2CH/4CH AMPLIFIERS
Your AMP product was developed and manufactured with high-quality materials
and components which can be recycled and/or re-used. This symbol indicates that
We respect your choice for choosing AMP.
electrical and electronic equipment must be disposed of separately from normal
AMP company does everything possible
garbage at the end of its operational lifetime. Please dispose of this product
to ensure that our products meet your needs,
by bringing it to your local collection point or recycling centre for such equipment.
and quality match the best world standards.
This will help to protect the environment in which we all live.
Advertisement
Table of Contents
Related Manuals for AMP PRO Series
Summary of Contents for AMP PRO Series
- Page 1 WWW.AMPGROUP.PRO series 1CH/2CH/4CH AMPLIFIERS Your AMP product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that We respect your choice for choosing AMP. electrical and electronic equipment must be disposed of separately from normal AMP company does everything possible garbage at the end of its operational lifetime.
-
Page 2: Specifications
CONTENTS We respect your choice! Congratulations on your purchase of a AMP™ Amplifier. Specifications . It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you of listening pleasure. General precautions . -
Page 3: General Precautions
Connecting the amplifier 4 Chаnnel 4.100 4.120 4.150 4.200 4.300 4.400 Class RMS power 4Ω 100W x 4 120W x 4 150W x 4 200W x 4 300W x 4 400W x 4 1. Connect the power ground terminal to the closest point on the chassis of the car. RMS power 2Ω... -
Page 4: Power Wiring
Power Wiring Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your (+) Wire amplifier at the same time! ≥... -
Page 5: Speaker Wiring
Speaker Wiring +12V +12V SUBFOOWER SPEAKER 2 Channel Speaker IMPEDANCE 1 Ch Monoblock IMPEDANCE amplifier 2-8 OHMS 1-4 OHMS BRIDGE SPEAKER OUTPUT POWER INPUT POWER INPUT SPEAKER OUTPUT SUBFOOWER LEFT Speaker RIGHT Speaker Speaker Bridge Mode +12V SUBWOOFER SUBWOOFER 1 Ch Monoblock 2 Channel IMPEDANCE IMPEDANCE... -
Page 6: Troubleshooting
It is best to set the amplifier's input level control as low as possible. The best subjective signal-to-noise ratio is achieved in this manner. Try to set Bridge Mode the head unit as high as possible (without distortion) and the amp input level as low as possible. CH1-... -
Page 7: Технические Характеристики
170W x 4 230W x 4 300W x 4 450W x 4 600W x 4 звука. AMP™ предлагает широкий выбор компонентов для построения автомобильных аудиосистем любого уровня и получения удовольствия от прослушивания музыки. Мощность RMS 4Ω 300W x 2 340W x 2... -
Page 8: Подключение Питания
Подключение Подключение питания 1. Подсоедините клемму заземления разъема питания «GND» к корпусу автомобиля. Длина провода не должна превышать 100 см. (+) Сечение провода 2. Чтобы головное устройство включало/выключало усилитель, подключите усилитель к головному устройству через разъем «REM» с помощью кабеля сечением 16GA. - Page 9 Подключение по низкому уровню Подключение акустики Для наилучшего звучания используйте подключение с помощью высококачественных RCA кабелей (мы рекомендуем продукцию AMP™). ВНИМАНИЕ! Не подключайте одновременно входы высокого и низкого уровней вашего головного устройства к усилителю! +12V Импеданс Сабвуфера / 1 канальный...
- Page 10 CH1 Динамик CH2 Динамик +12V Импеданс 2 канальный Динамика усилитель 2-8 Ом BRIDGE BRIDGE +12V POWER INPUT SPEAKER OUTPUT Импеданс 4 канальный Динамика усилитель 2-8 Ом POWER INPUT Левый динамик Правый динамик CH3 Динамик CH4 Динамик Мостовой режим Мостовой режим +12V Импеданс...
- Page 11 Неисправности и методы их устранения INFORMATION ГАРАНТИЙНЫЕ ABOUT WARRANTY REPAIR РАБОТЫ Неисправность Возможные причины / Методы устранения Усилитель Проверьте заземление. Service center не включается. Проверьте напряжение на терминале дистанционного включения ( 12В). ≥ Проверьте заряд аккумулятора ( 12В). ≥ Work performed Проверьте...
Need help?
Do you have a question about the PRO Series and is the answer not in the manual?
Questions and answers
Здравствуйте у меня усилитель амп 4400 как подключить динамики четыре штуки 300 Вт
To connect four 300W speakers to the AMP PRO Series 4400 amplifier, follow these steps:
1. Speaker Compatibility: Ensure each speaker has an impedance of 4–8 ohms, which is supported by the amplifier.
2. Amplifier Channel Use: The AMP PRO Series 4400 is a 4-channel amplifier. Each channel can deliver up to 300W RMS at 2 ohms or 200W RMS at 4 ohms. To drive four 300W speakers effectively:
- Use speakers with 2-ohm impedance to get 300W RMS per channel, or
- Use 4-ohm speakers in bridged pairs for 600W RMS (per bridged channel), if suitable for the speakers.
3. Connection:
- Connect one speaker to each channel: CH1+, CH1−; CH2+, CH2−; CH3+, CH3−; CH4+, CH4−.
- Maintain correct polarity (positive to positive, negative to negative).
- If using bridged mode, connect speakers as per manual: CH1− and CH2+ for one speaker, CH3− and CH4+ for another.
4. Wiring:
- Use high-quality speaker cables.
- Ensure secure and insulated connections.
5. Power Setup:
- Connect the power cable to the +12V terminal with an inline fuse within 45 cm of the battery.
- Connect the GND terminal to the vehicle chassis using a short ground wire (<100 cm).
- Connect the REM terminal to the head unit’s remote turn-on lead.
6. Initial Setup:
- Set GAIN to minimum.
- Set filters/crossovers as needed.
- Power on the system.
- Set the head unit volume to 3/4 and adjust GAIN to just below distortion.
Ensure all connections are double-checked before powering on.
