AMP PRO Series Manual

Specifications

All specifications subject to change without notice.

1 Ch Monoblock

1 Ch Monoblock 1.500 1.600 1.800 1.1000 1.1500 1.2000
Class D D D D D D
RMS power 4Ω 200W x 1 250W x 1 300W x 1 400W x 1 600W x 1 830W x 1
RMS power 2Ω 350W x 1 450W x 1 550W x 1 680W x 1 1000W x 1 1380W x 1
RMS power 1Ω 500W x 1 600W x 1 800W x 1 1000W x 1 1500W x 1 2000W x 1
MAX power 900W 1200W 1600W 2000W 3000W 4000W
Low-pass filter 35Hz – 250Hz 35Hz – 250Hz 35Hz – 250Hz 35Hz – 250Hz 35Hz – 250Hz 35Hz – 250Hz
Subsonic 10Hz – 50Hz 10Hz – 50Hz 10Hz – 50Hz 10Hz – 50Hz 10Hz – 50Hz 10Hz – 50Hz
Bass boost 0dB – 12dB 0dB – 12dB 0dB – 12dB 0dB – 12dB 0dB – 12dB 0dB – 12dB
Frequency response 10Hz – 250Hz 10Hz – 250Hz 10Hz – 250Hz 10Hz – 250Hz 10Hz – 250Hz 10Hz – 250Hz
Input sensitivity 0.25V – 6V 0.25V – 6V 0.25V – 6V 0.25V – 6V 0.25V – 6V 0.25V – 6V
Signal-to-noise ratio 96dB 96dB 96dB 96dB 96dB 96dB
HIGH LEVEL input + + + + + +
Remote Subwoofer level control + + + + + +
Protection system + + + + + +
Fuse 25A x 2 35A x 2 30A x 3 40A x 3 ≥180A* ≥240A*
Operating voltage 12V 12V 12V 12V 12V 12V
Terminal Clamp Clamp Clamp Clamp Clamp Clamp
Dimensions (L/W/H), mm 194х125х53 234х125х53 254х125х53 274х125х53 314х125х53 354х125х53

* external, not included

2 Channel

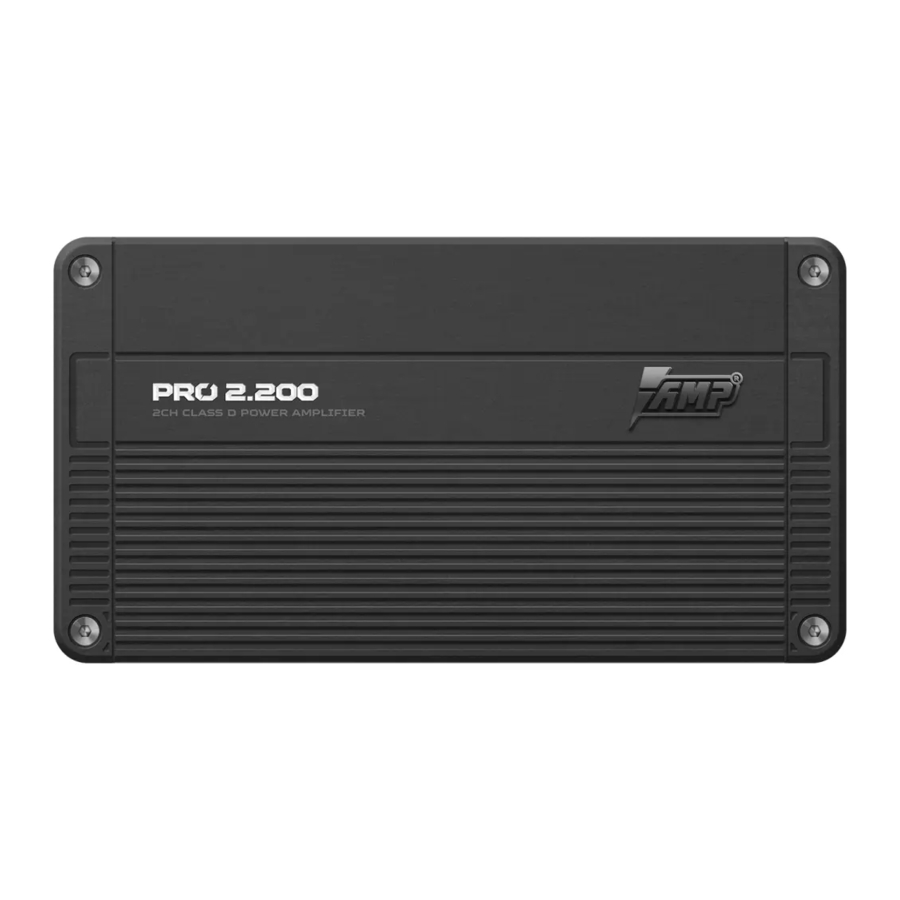

2 Channel 2.200
Class D
RMS power 4Ω 200W x 2
RMS power 2Ω 300W x 2
RMS power 4Ω Bridge mode 600W x 1
MAX power 1200W
Low-pass filter 50Hz – 250Hz
Hi-pass filter 50Hz – 250Hz
Frequency response 10Hz – 50kHz
Input sensitivity 0.2V – 6V
Signal-to-noise ratio 90dB
Protection system +
Fuse 35A x 2
Operating voltage 12V
Terminal Clamp
Dimensions (L/W/H), mm 234х125х53

4 Channel

4 Channel 4.100 4.120 4.150 4.200 4.300 4.400
Class D D D D D D
RMS power 4Ω 100W x 4 120W x 4 150W x 4 200W x 4 300W x 4 400W x 4
RMS power 2Ω 150W x 4 170W x 4 230W x 4 300W x 4 450W x 4 600W x 4
RMS power 4Ω Bridge mode 300W x 2 340W x 2 460W x 2 600W x 2 900W x 2 1200W x 2
MAX power 1100W 1360W 1840W 2400W 3600W 4800W
Low-pass filter 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz
Hi-pass filter 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz 50Hz – 250Hz
Frequency response 10Hz – 50kHz 10Hz – 50kHz 10Hz – 50kHz 10Hz – 50kHz 10Hz – 50kHz 10Hz – 50kHz
Input sensitivity 0.2V – 6V 0.2V – 6V 0.2V – 6V 0.2V – 6V 0.2V – 6V 0.2V – 6V
Signal-to-noise ratio 90dB 90dB 90dB 90dB 90dB 90dB
Protection system + + + + + +
Fuse 30A x 2 40A x 2 35A x 3 40А х 3 40А х 4 ≥180A*
Operating voltage 12V 12V 12V 12V 12V 12V
Terminal Clamp Clamp Clamp Clamp Clamp Clamp
Dimensions (L/W/H), mm 214х125х53 254х125х53 274х125х53 294х125х53 334х125х53 354х125х53

* external, not included

Connecting the amplifier

  1. Connect the power ground terminal to the closest point on the chassis of the car. Keep this ground wire to less than 39" (100 cm) in length. Use 8 gauge (or heavier) wire.
  2. Connect the remote terminal to the remote output of the head unit using 16 gauge (or heavier) wire.
  3. Connect an empty fuse holder within 18" (45 cm) of the car battery, and run cable from this fuse to the amplifier location.
  4. Check that the fuse holder is empty. Then connect the fuse holder to the "FUSES" connection on the amplifier.
  5. If multiple amplifiers are being used in your system, either:
    • Run a separate pair of cables from the battery and a chassis ground point to each amplifier. Cable (+) must have its own inline fuse.

-or-

    • Connect amplifiers through distribution block. Then run separate cables from the amplifier to this distribution block and to independent chassis ground points.
  1. Connect all line inputs and outputs (if used) using high-quality cables. Connect all speakers, following the diagrams in this manual. Be sure to observe proper polarity to avoid audio phase problems.
  2. Recheck all connections before powering up the amplifier.
  3. Set GAIN to minimum position, and set all crossover controls/switches to the desired frequency points.
  4. Power up the head unit and the amplifier. Then set the volume control on the head unit to about 3/4 volume, and adjust the amplifier's GAIN to just below the level of distortion.
  5. Further fine tuning of the various controls may be necessary to obtain best results.


Don't misuse the GAIN (input level control)!
Do not mistake the GAIN for a volume control!
It is designed ONLY to match the output level of your audio source to the input level of your amplifier. Do not adjust GAIN to maximum unless your input level requires it.
Ignoring these instructions will result in an input overload to the amplifier, and excessive audio distortion. It can also cause the protection circuit to engage.
shockhazard SHOCK HAZARD! Do not open the case of this product. There are dangerous voltages present within the unit. There are no user-serviceable parts within the unit.
Warranty period:
12 months
Warranty lifetime: 3 years
Warranty service life: 5 years
The operating temperature: +5...+30°C
Transportation and storage temperature: -40...+40°C

Power Wiring

(+) Wire

≥ 8Ga ≥ 4Ga
1.500
1.600
1.800
4.100
4.120
4.150
1.1000
1.1500
1.2000
2.200
4.200
4.300
4.400

Power Wiring

High Level Input Wiring

The high level input should only be used when your head unit lacks RCA outputs. Connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.
NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

1 Ch Monoblock
High Level Input Wiring - 1 Ch Monoblock

Low Level Input Wiring

Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.
NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

1 Ch Monoblock
Low Level Input Wiring - Part 1 - 1 Ch Monoblock

2 Channel amplifier
Low Level Input Wiring - Part 2

4 Channel amplifier
Low Level Input Wiring - Part 3

Speaker Wiring

1 Ch Monoblock
Speaker Wiring - Part 1 - 1 Ch Monoblock

2 Channel amplifier
Speaker Wiring - Part 2 - 2 Channel amplifierSpeaker Wiring - Part 2 - 2 Channel amplifier

Bridge Mode

2 Channel amplifier
Speaker Wiring - Part 3

Speaker Wiring - Part 4

Troubleshooting

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips, which may help, eliminate the problems.

SYMPTOM Try this!
Amplifier will not power up. Check to make sure you have a good ground connection.
Check that the Remote Input (Turn-On) has at least 12V.
Check that there is battery power on the (+) terminal.
Check that there is at least 12V.
Check all fuses, replace if necessary.
Make sure that the Protection LED is not illuminated.
If it is it, shut off the amplifier briefly, and then repower it.
Protection LED comes on when amplifier is powered up. Check for short circuits on speaker leads.
Turn down the volume control on the head unit to prevent overdriving.
Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty and needs servicing.
No output. Check that all fuses are OK.
Check that amplifier is properly grounded.
Check that the Remote Input (Turn-On) has at least 3VDC.
Check that the RCA audio cables are plugged into the proper inputs.
Check all speaker wiring.
Low output. Reset the Level Control.
Check the Crossover Control settings.
Audio present in only one channel. Check the RCA interconnect cables. Check all speaker wiring.
High hiss in the speakers. Disconnect all RCA inputs to the amplifiers. If the hiss disappears, then plug in the component driving the amplifier and unplug its inputs. If the hiss disappears at this point, go on until the faulty/noisy component is found.
It is best to set the amplifier's input level control as low as possible. The best subjective signal-to-noise ratio is achieved in this manner. Try to set the head unit as high as possible (without distortion) and the amp input level as low as possible.
Squealing noise from speakers. Check for improperly grounded RCA interconnects.
Distorted sound. Check that the Input Level Control is set to match the signal level of the head unit. Always try to set the Input Level as low as possible.
Check that all crossover frequencies are properly set.
Check for short circuits on the speaker leads.
Amplifier gets very hot. Check that the minimum speaker impedance for the amp model is correct.
Check that there is good air circulation around the amp. In some applications, it may be necessary to add external cooling fan(s).
Engine noise (static type). This is usually caused by poor quality RCA cables, which can pick up radiated noise. Use only the best quality cables, and route them away from power cables.
Engine noise (alternator whine). Check that speaker leads are not shorted to the vehicle chassis. Check that the RCA grounds are not shorted to the vehicle chassis. Check that the head unit is properly grounded.

General precautions

Before installing and using your new amplifier, please become familiar with all the information contained in this manual.
Please keep this manual in a safe place for future reference.

  • Do not open or attempt to repair this unit yourself. Dangerous high voltages are present which may result in electric shock. Refer any repairs to a qualified service technician.
  • To avoid risk of electronic shock or damage to the amplifier, do not permit any of this equipment to become damp or wet from water or drinks. If this does occur, immediately unplug the power wires and send the amplifier to your local dealer or service center as soon as possible.
  • If there is smoke or any peculiar odor present during use or if there is damage to any of the component enclosures, immediately unplug the power wire and send the amplifier to your local dealer or service center as soon as possible.

Installation precautions

Before you drill or cut any holes, investigate your car's layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring.
Never operate the amplifier when it is unmounted. Attach all audio system components securely to prevent damage, especially in an accident.
Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.
If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the amplifier. Using a fuse of a different type or rating may result in damage to your audio system or your amplifier which is not covered by the manufacturer's warranty.
Mounting the amplifier

  1. Find a suitable location in the vehicle in which to mount the amplifier.
  2. Make sure there is sufficient air circulation around the intended mounting location.
  3. Mark the location for the mounting hole screws by positioning the amplifier where you wish to install it.
  4. Drill pilot holes in the mounting surface for the mounting screws. Place the amplifier in position, and attach the amplifier to the mounting surface securely using screws.

WWW.AMPGROUP.PRO
