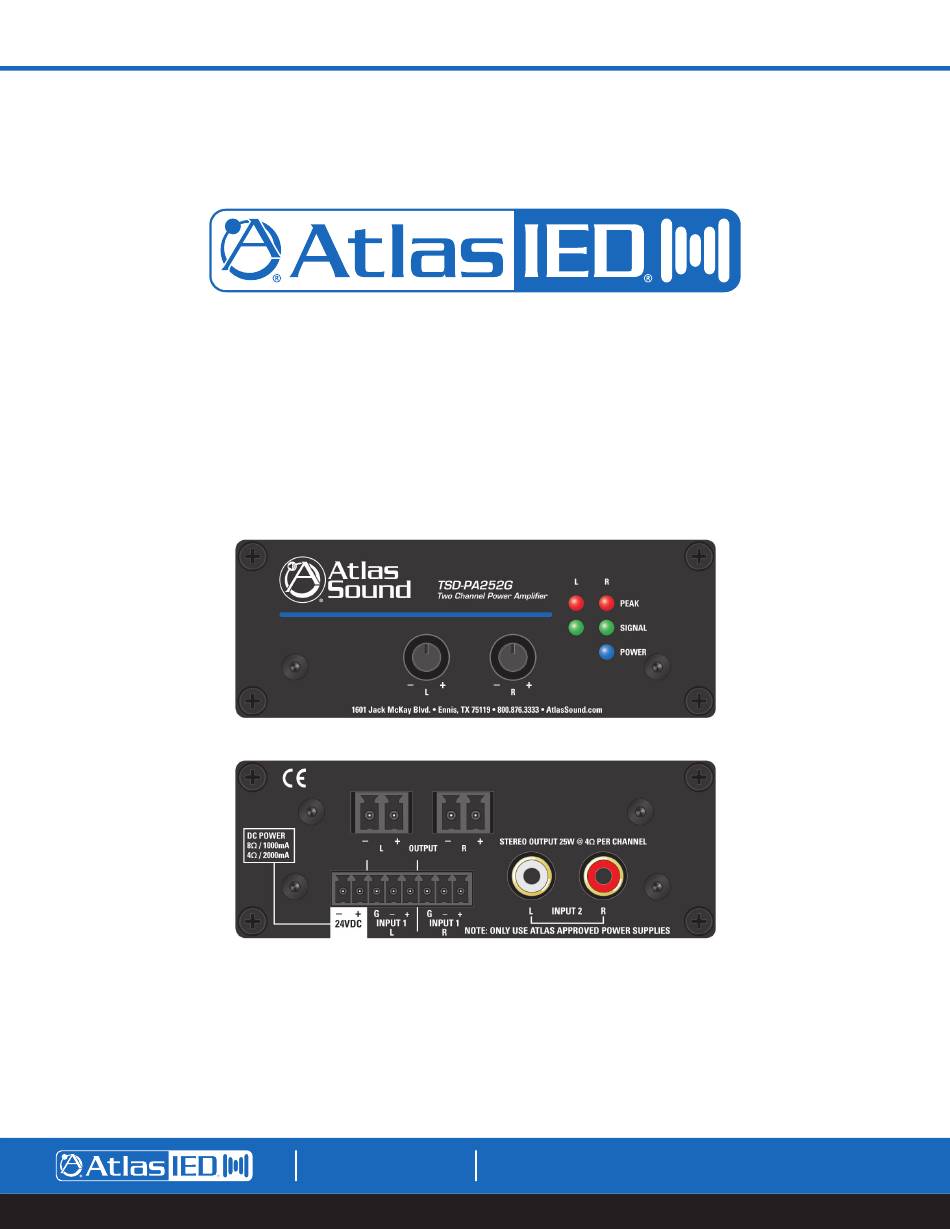

- Page 1 TSD-PA252G 2x25W Global Audio Amplifier 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Table Of Contents
TSD-PA252G Owner’s Manual Table of Contents Introduction ..........................................3 Key Features ........................................... 3 Applications ..........................................3 Installation ..........................................3 Front Panel Description ......................................4 Rear Panel Description ......................................5 Cable Management ........................................ 6 Knob and Security Cover ......................................6 Mounting ..........................................7 Optional Mounting Accessories ..................................... -
Page 3: Introduction
The TSD-PA252G is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 5.2") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way. All models are made from high quality components and include removable individual I/O connectors for quick and precise wiring, separate ground terminals for all I/Os assuring secured connections, and removable level controls that can be replaced with tamper-resistant security covers. -
Page 4: Front Panel Description
TSD-PA252G Owner’s Manual Front Panel 1. Input Level Controls L & R Adjusts the gain of the source audio signal of both the left and right channels. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. When in Bridge Mode, the Left Input control adjusts the audio level at the speakers. Note: The Input Level Control knobs can be removed and replaced with a supplied security cover to prevent unauthorized adjustment. -
Page 5: Rear Panel Description
(+) terminal and the right (+) speaker output terminal. The Left speaker output terminal is positive (+) in Bridged configuration. Note: The Bridge Mode speaker wiring configuration differs from other AtlasIED TSDs. Check each model’s manual for specific wiring instructions. -
Page 6: Cable Management
TSD-PA252G Owner’s Manual Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. 1. Knob Installation Turn the potentiometer shaft fully counter-clockwise. -
Page 7: Mounting
TSD. The multi-position mounting plate is a new addition being included with TSDs. If the TSD being used did not include the mounting plate, contact AtlasIED customer service at 1-800-876-3333. -
Page 8: Optional Mounting Accessories
1. TSD-RMK 19" Width Rack Mount Kit For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. Use the included hardware to mount the TSD into the rack mount kit using the top mount screw holes on the TSD. - Page 9 TSD-PA252G Owner’s Manual 3. TSD-RRMK Rear Rack Mounting Kit For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 10: Specifications
TSD-PA252G Owner’s Manual System Type 2 x 25W Global Audio Amplifier Inputs Input Type Unbalanced, Qty 2 Connection RCA Left and Right Impedance 10kΩ Input Level 316mV (-10dBV) Input Type Balanced Line, Qty 2 Connection Removable 3 Position Captive Screw 3.5mm Spacing Impedance 10KΩ... - Page 11 TSD-PA252G Owner’s Manual Optional Accessories TSD 24VDC Power Supply TSD-RMK 1 RU 19" Width Rack Mount Panel (Supports 4 TSD Units) TSD-RMKHR 1 RU Half Rack Width Panel (Supports 2 TSD Units) TSD-RRMK Rear Rack Mounting Kit Safety & Certifications...
-
Page 12: Block Diagram
TSD-PA252G Owner’s Manual Block Diagram RCA INPUT 2 PEAK R IN – R CH LEVEL R OUT 12W 4 ohm CLASS D SIGNAL BRIDGE OUT 24W 8ohm BRIDGE IN L IN – L CH LEVEL L OUT 12W 4 ohm... -
Page 13: Dimensional Drawings
TSD-PA252G Owner’s Manual Dimensional Drawings 4" (101mm) TSD-PA252G Two Channel Power Amplifier PEAK 1.5" SIGNAL (39mm) POWER – – 1601 Jack McKay Blvd. • Ennis, TX 75119 • 800.876.3333 • AtlasSound.com DC POWER – – STEREO OUTPUT 25W @ 4 PER CHANNEL... - Page 14 TSD-PA252G Owner’s Manual Notes: 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 14 –...
- Page 15 TSD-PA252G Owner’s Manual Notes: 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 15 –...
-
Page 16: Warranty
Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
