Summary of Contents for AtlasIED TSD-MIX41

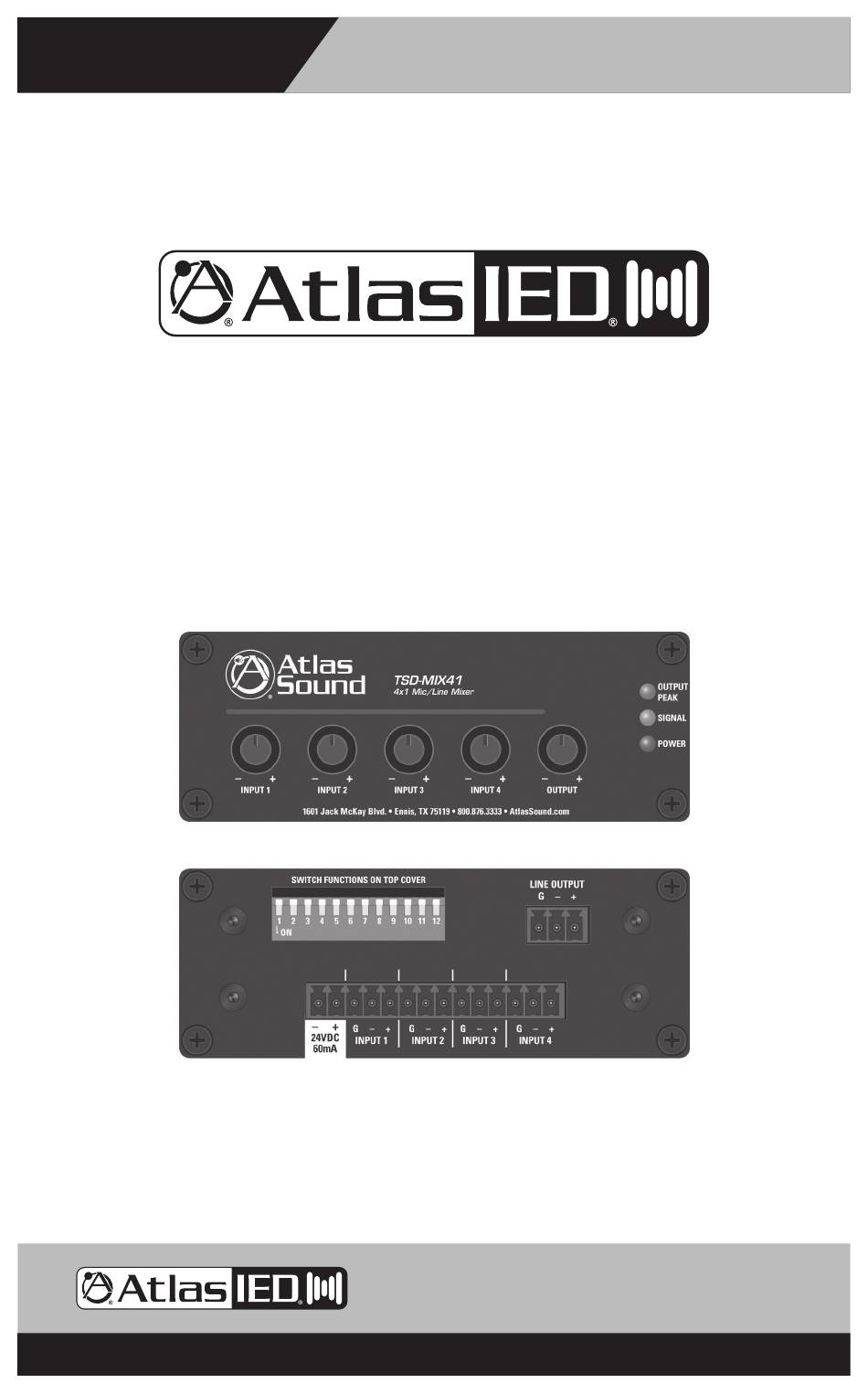

- Page 1 TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer TSD-MIX41 4x1 Mic/Line Mixer 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
-
Page 2: Audio Applications
The TSD-MIX41 is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest and in the most efficient and cost-effective way. -
Page 3: Front Panel Description
TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer Front Panel Description 1. Inputs 1-4 Level Controls - Adjusts the gain of the independent input signals. Turn clockwise to increase the signal level and counter-clockwise to decrease it. Note: The Input Level Control knobs can be removed and replaced with a supplied security cover to prevent unauthorized adjustment. -
Page 4: Rear Panel Description
TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). -
Page 5: Switch Position
TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer Dip Switch Function Identification Switch Position • DIP SW # 1,2,3,4 - 24VDC Phantom Power applies power for condenser mic operation to corresponding input terminal. Down position is On. • DIP SW # 5,6,7,8 - Input Mic or Line Select for input gain selection for each of the inputs. Up position is Line, down position is Microphone. -
Page 6: Cable Management
TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. - Page 7 M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD. The multi-position mounting plate is a new addition being included with TSDs. If the TSD being used did not include the mounting plate, contact AtlasIED customer service at 1-800-876-3333.
-
Page 8: Optional Mounting Accessories
4x1 Mic/Line Mixer Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit - For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. - Page 9 TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer 3. TSD-RRMK Rear Rack Mounting Kit - For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 10: Block Diagram
TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer Block Diagram 1 2 3 4 5 6 7 8 9 10 11 12 DIP SWITCH FUNCTION SET PHANTOM INPUT 1 INPUT 2 INPUT 3 INPUT 4 LOW CUT 125Hz/12dB INPUT 1 INPUT 2... - Page 11 TSD-MIX41 Owner’s Manual 4x1 Mic/Line Mixer Line Input Level 1V (0dBV) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 6V (+15dBV) Mic Input Level 46dB Gain, 10mV (-40dB) Balanced = 2V (+6dBV) Balanced Output, Maximum Input 40mV (-27dBV) Outputs Type...
-
Page 12: Limited Warranty
AND FITNESS FOR A PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
