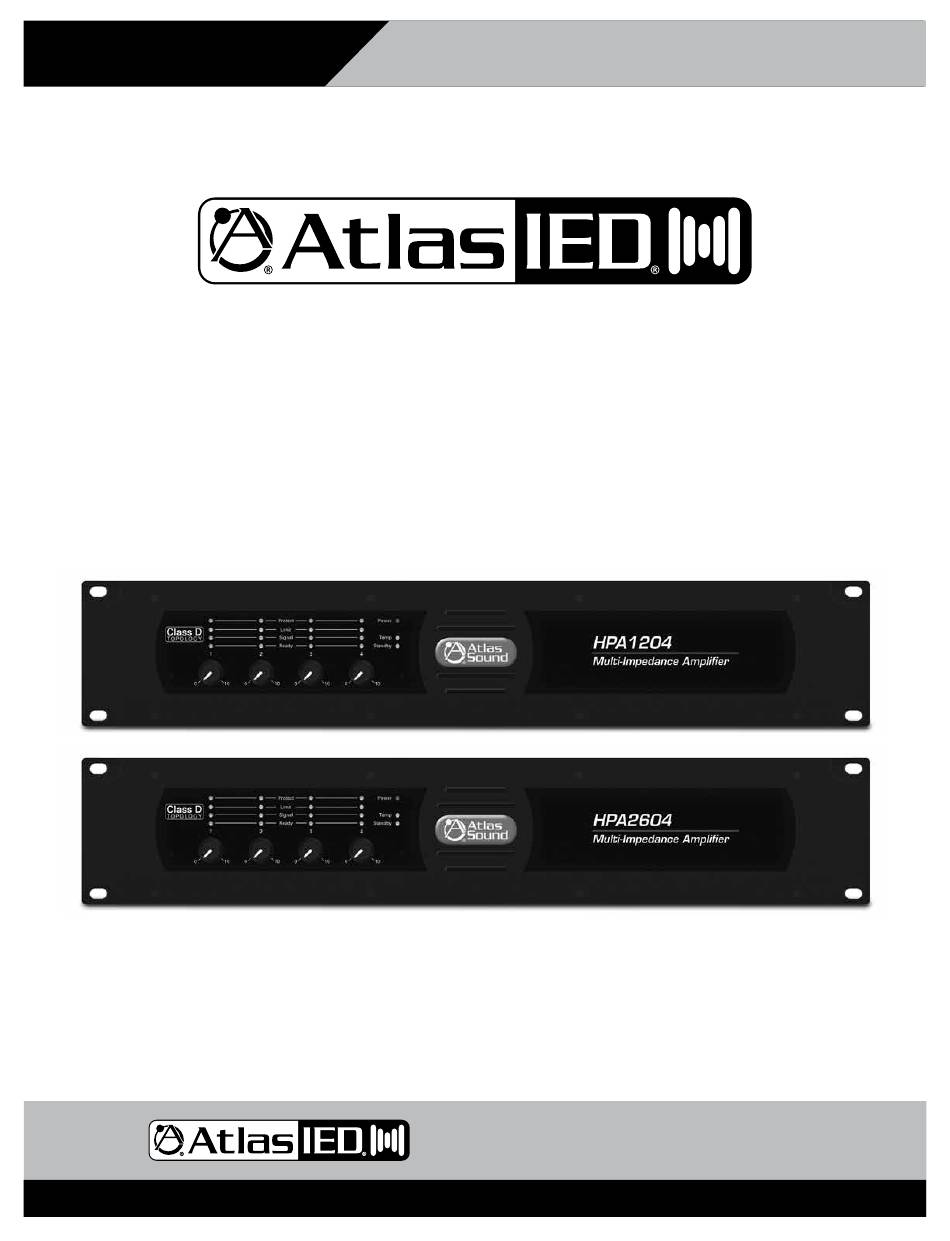

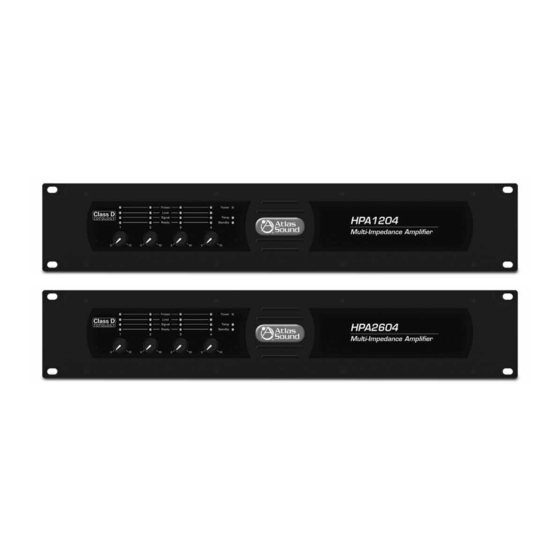

- Page 1 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers HPA1204 / HPA2604 Multi-Impedance High Power Amplifiers 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.
-
Page 2: Table Of Contents
HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Table of Contents Important Safety Instructions ........................3 Introduction ............................5 Key Features ............................5 Front Panel Description ........................... 6 Tamper Proof Security Cover ........................6 Rear Panel Description ..........................8 Bridge Mode Operation ........................... 9 Remote Turn On .............................10... -
Page 3: Important Safety Instructions
HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact AtlasIED. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...
-
Page 5: Introduction
Multi-Impedance High Power Amplifiers Introduction Thank you for purchasing the AtlasIED HPA Series amplifier. The AtlasIED high power amplifier, “HPA” Series, is designed for use in either commercial 70V/100V distributed systems or professional applications that require amplifiers to handle multiple impedance loads. -
Page 6: Front Panel Description
2. Level Control Security Cover The HPA Series comes with a tamper-proof level control security cover. There are two screws that hold the security cover in place covering all level controls. - Page 7 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Front Panel D. Ready - The Ready LED will illuminate green when the amplifier channels are stable and ready for use. Signal - The Signal LED will illuminate green when the amplifier output signal produces at least 1-watt output.
-
Page 8: Rear Panel Description
The HPA2604 has an IEC-600320-C20 receptacle with retainer clip and is provided with removable a 1.8 meter 12 gauge NEMA 5-20 power cord. Insert the IEC connector of the power cord into the IEC receptacle of the HPA Series amplifier making sure it is properly secured using the retainer clip. -
Page 9: Bridge Mode Operation
HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Rear Panel 5. Amplifier Sensitivity Select & Parallel Mode Dip Switches Note: Switch 1 controls CH 1 and 2. Switch 3 controls CH 3 and 4. DP SW #1 - N/A = Not Applicable (Not Used) DP SW #2 - Parallel (Up) = Parallel mode internally combines Inputs 1 &... -
Page 10: Remote Turn On
HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Rear Panel 7. Remote Turn ON Terminals The HPA amplifier can be turned on or activated from a remote location. Note: In order for the amplifier to go from Standby mode to Active mode, the amplifier switch must be in the Up (On) position, with either the Contact Closure in place or DC voltage (5-24VDC) present. - Page 11 10. Accessory Card Slot The accessory card slot is for optional input cards such as the HPA-DAC4 (4 Channel Digital Audio Input Card). Contact AtlasIED for a full list of accessory cards. Note: Accessory card installation must be done by a qualified technician.
-
Page 12: Placement Of The Amp
Balanced Input - AtlasIED recommends using either 20 or 22-gauge two-conductor wire with shield for low level signals. Maintain the proper polarity, + to +, - to – and shield to ground. Note: The ground center pin of the Phoenix connector is common for both channels. -
Page 13: Connecting The Hpa Amplifier To Ac Mains
Never plug an HPA Series amplifier into a circuit without knowing what other products are connected to the same circuit. 2. Never plug an HPA Series amplifier into a power strip. Always connect directly to a dedicated circuit wall receptacle. Power strips are not designed to deliver high amounts of continuous or peak current. -
Page 14: Optional Dante™ Input Card
The HPA amplifier series allows for an optional HPA-DAC4 4-Channel Dante™ receiver card to be installed into the HPA amplifier. Contact AtlasIED for a list of accessory cards. Note: Accessory card installation must be done by a qualified technician. Remove the HPA amplifier from the AC mains source. - Page 15 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Dimensional Drawings 19.00" Protect Power Limit HPA1204 Signal Temp Ready Standby Multi-Impedance Amplifier FRONT " 19.00" HPA1204 Protect Power Limit Multi-Impedance Amplifier HPA1204 Signal Temp Ready Standby Multi-Impedance Amplifier SIDE FRONT 1601 Jack McKay Blvd. • Ennis, TX 75119 800.876.3333 •...
-
Page 16: Specifications
HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers System Type Power Amplifier, 4 Channel Power Supply Type Switch Mode - Wide Range- PFC Amp Topology Class D Number of Fixed Inputs Accessory Inputs DSP Internal Network Optional Card Slot Output Power (Note 1) - Page 17 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers GPIO Ports (Rear Panel) Number of Ports Qty 5 Type of Connector Euro Block 3.5mm Functions Remote Turn ON via Contact Closure Functions Remote Turn ON via DC Voltage 5-24V Functions Fault Report...
- Page 18 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Power Consumption & Current Draw @ 120V AC Mains (HPA2604) Amps Watts BTU / hr (Note 4) Standby Mode 0.272A 0.35W 2.39 BTU Idle Active 0.915A 85.5W 170.6 BTU Average Power 4Ω, All CH Driven 3.1A...
- Page 19 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 19 – AtlasIED.com Specifications are subject to change without notice.
-
Page 20: Warranty
PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
