AtlasIED DPA Series Quick Start Manual

DSP and Amp
Configuration Interface For DPA Configuration Instructions
Web Browser Access Visit www.AtlasIED.com/DPA
Ethernet Input

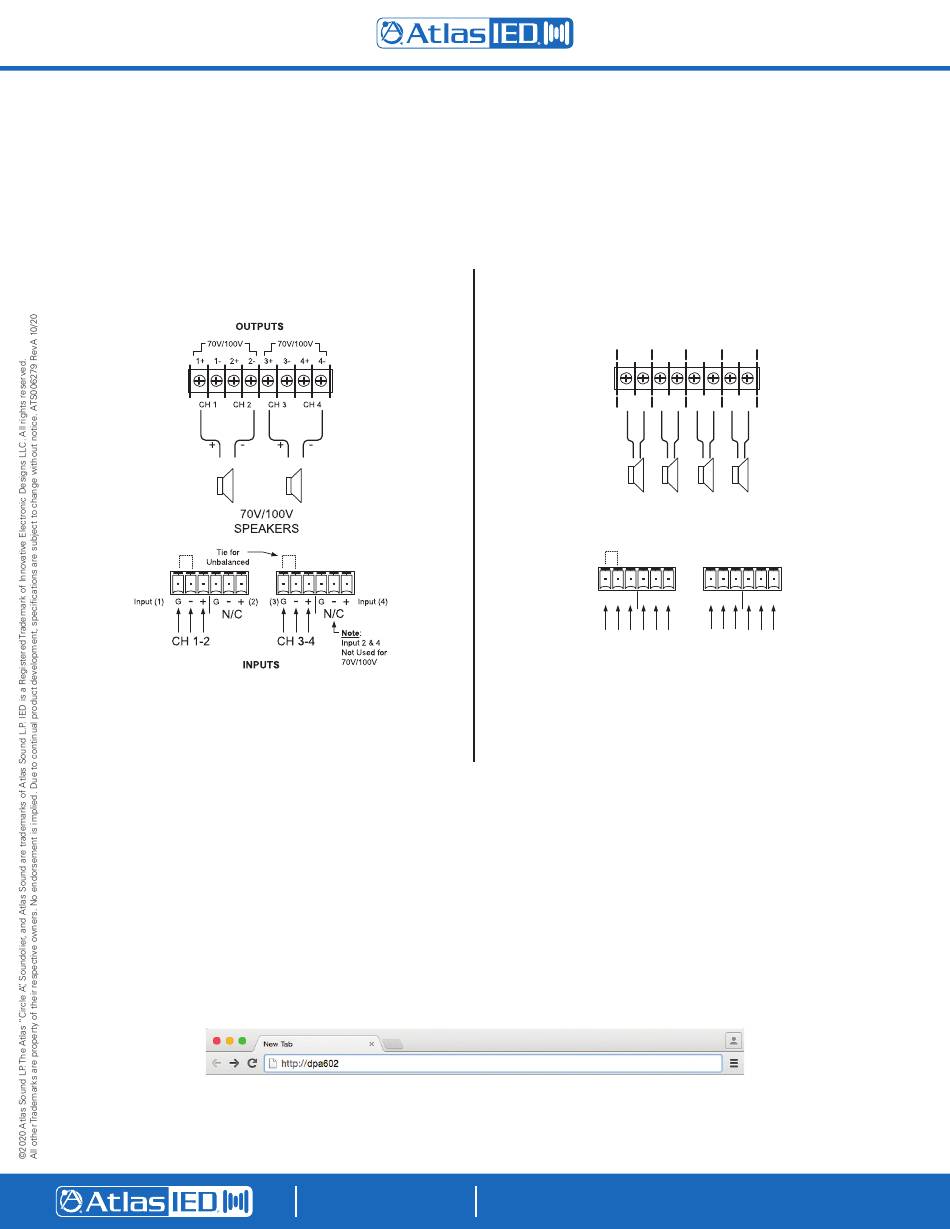

DPA Configurations

DPA amplifiers include a unique set of features and configurations. All DPA amplifiers are configured from the factory (out of the box) to operate
as 70V commercial power amplifiers. See default configurations for models below. Ethernet connectivity is not required for "default" operation of
a DPA amplifier. However, to change configurations and take full advantage of the DSP settings such as, EQ, High & Low-Cut filters, level control /
assignment and limiter settings, the DPA Control Panel must be accessed via the local network. External software is not required to operate the DPA
amplifier. The software is embedded in the amplifier as a WEB browser accessed GUI Control Panel.
Out of box Default = 2 CH 70V / 100V
Alternate configurations set in GUI:
• 4 channel, 4 or 8 Ohm
• 1 channel 70V / 100V and 2 channel 4 or 8 Ohm
• Also see top of amplifier for diagrams

Accessing the DPA GUI Control Panel

The DPA amplifier GUI is accessible through your web browser. If the device IP address is known you may enter it in the address bar of your browser.
Example: http://10.0.0.123. If you are connected to a single DPA amplifier you may be able to locate the device by typing its model name into your
browser address bar. Additionally, you may download and install the AtlasIED DPA Site Manager application which can automatically locate connected
DPA amplifiers & provides additional management functions.
To access the DPA onboard control panel using the DPA model number on a Windows computer:
1. Connect the DPA amplifier to a router using a standard Ethernet cable. Make sure the router is in DHCP mode, the usual default mode.
2. Connect your computer to the same router via an Ethernet cable or Wi-Fi.
3. Open a Web browser. AtlasIED suggests using Google Chrome or Mozilla Firefox. Note: In some cases, your browser may direct you to a search
engine when you enter the DPA amplifier model number.
4. In the Web browser address bar, enter the amplifier's model number and hit enter. Example: http://DPA602. It is not case sensitive, but the full
exact name is required.
1601 Jack McKay Blvd. • Ennis, TX 75119
800.876.3333 • AtlasIED.com
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ELÉCTRIQUE - NE PAS OUVRIR
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
Note: If your browser fails to open the DPA User PC Control Page, we suggest using the Site Manager Software.
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
AVIS: NE PAS EXPOSER CE MATÉRIEL À LA PLUIE OU L'HUMIDITE
AFIN DE REDUIRE LE RISQUE D'INFLAMMATION OU DE CHOC ELÉCTRIQUE 5. If the DPA Amplifier's IP address is already known, enter the IP address into the Web Browser to access the DPA GUI.
Example: http://192.168.1.110
+10V C2 C4
Control Ports
Input 1 & 3
DPA Amplifier Series (See Manual) 70V / 100V
Input [1]
C1 C3 GND
DPA-602, 1202, 2402
AtlasIED Digital IP Configuration
To Reset IP Configuration to Factory Default Settings:
• Disconnect the Power From the Device
• Wait 60 Seconds
• Connect Power To the Device
• Press and Hold Front Panel Power Switch Until LED Blinks 5 Times Quickly
• IP Configuration is Reset to Factory Default Settings
• Factory Settings DHCP Enabled
• For Direct Connection to Amp: Refer to Installation Guide
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Configuration Interface For DPA Configuration Instructions
Web Browser Access Visit www.AtlasIED.com/DPA
DPA Amplifier
Accessory Card Slot
Ethernet
[2] [3] [4] Input
G – + G – + G – + G – +
Quick Start guide
4 CHANNEL 70V/100V CONFIGURATION
For Unbalanced
Line Tie Low to G
Input (1)
Alternate configurations set in GUI:
CONTROL PORT SETTINGS FOR REMOTE LEVEL
• 4 channel, 4 or 8 Ohm
REMOTE LEVEL CONTROL ON CHANNEL 1, 2, 3 & 4
• 2 channel 70V / 100V and 2 channel 4 or 8 Ohm
• Also see top of amplifier for diagrams
WPD-VC10K
WPD-VC10K
1601 Jack McKay Blvd. • Ennis, TX 75119
800.876.3333 • AtlasIED.com
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ELÉCTRIQUE - NE PAS OUVRIR
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
AVIS: NE PAS EXPOSER CE MATÉRIEL À LA PLUIE OU L'HUMIDITE
AFIN DE REDUIRE LE RISQUE D'INFLAMMATION OU DE CHOC ELÉCTRIQUE
TELEPHONE: (800) 876-3333
SUPPORT@ATLASIED.COM
70V/100V
+10V C2 C4
1 + 1 – 2 + 2 – 3 +
Control Ports
(See Manual)
C1 C3 GND
CH 1 CH 2
Note: Factory Default Out of
DPA-404, 804
Factory Default
Out of box Default = 4 CH 70V / 100V
OUTPUTS
1+ 1- 2+ 2- 3+ 3- 4+ 4-
CH 1 CH 2 CH 3 CH 4
- - - -
+ + + +
70V/100V
SPEAKERS
- - - -
+ + +
G G (2) (3) G G
CH 1 CH 2 CH 3 CH 4
INPUTS
(FACTORY DEFAULT)
+10V C2 C4
Note: Factory Default
The Control Ports are set
as follows: C1, C2, C3, and
C1 C3 GND
C4, control CH1, CH2, CH3,
and CH4 respectively.
P1
P2
P3
Remote Remote Remote
Level #2 Level #3 Level #4
4 Individual 10K Linear Pots
10VDC
can be used or, a single Pot
P1
can be used as a Master.
10K Ohm
LINEAR P3
TAPER RETURN
P2
GND
For Optimum Performance AtlasIED Recommends:
FAP Series In-Ceiling Speakers
SM Series Surface Mount Speakers
AP Series Paging Horns
Atlas Power Sequencers and Conditioners
500 Series Equipment Racks
LAR150 Rack Loading Tool
To reset IP configuration to factory default settings:
• Disconnect the power from the device
• Wait 60 seconds
• Connect power to the device
• Press and hold front panel power switch until LED blinks 5
• IP configuration is reset to factory default settings
Note: Amplifier Output Load Configuration Is Set VIA DSP GUI
• Factory settings DHCP enabled
• For direct connection to amp refer to installation guide
DPA Amplifier
Note: Amplifier Output
Accessory Card Slot
Load 4 /8 /70V/100V
70V/100V
Configuration Is
Set Using the Web
3 – 4 + 4 –
Browser GUI
Amplifier
Channel
Input [1] – + – + [2] [3] – +
G G G
Outputs
T
Class 3 Wiring
CH 3 CH 4
OUTPUT CHANN
DPA CONFIGUR
1
-
+
Input (4) Input (1) G
CH
DPA
• Vi
Di
Man
• Th
• Co
• O
• In
• Th
• U
• O
Note: O
a

Factory Reset Instructions

CAU
agai
sam
ATT
rech
FUS
120/
