AtlasIED HPA1302 Owner's Manual

Hpa series multi-impedance high power amplifiers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HPA Series
Owner's Manual
Multi-Impedance High Power Amplifiers
HPA602 / HPA1302
Multi-Impedance High Power Amplifiers
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasIED.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPA1302 and is the answer not in the manual?

Questions and answers

Related Manuals for AtlasIED HPA1302

Summary of Contents for AtlasIED HPA1302

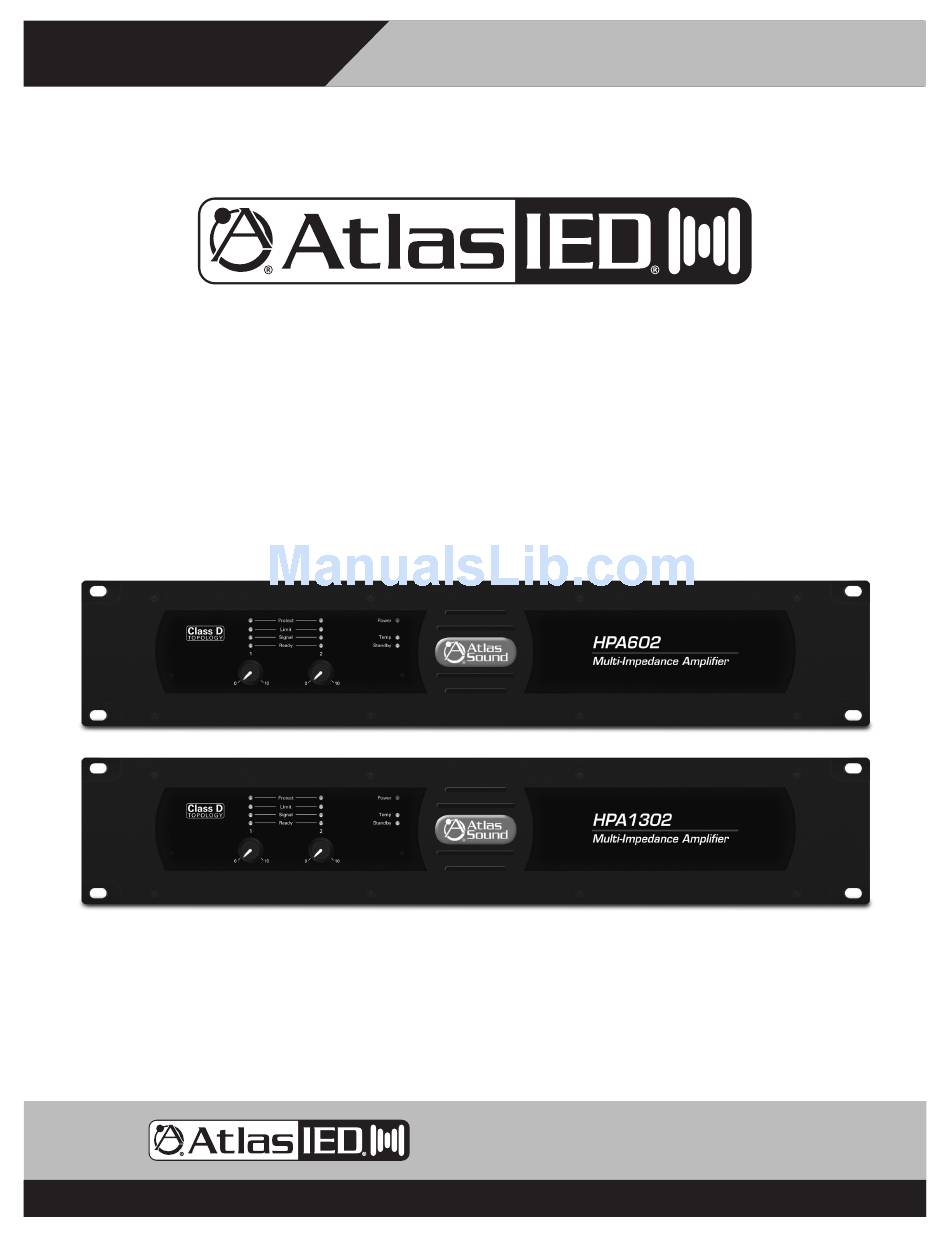

  • Page 1 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers HPA602 / HPA1302 Multi-Impedance High Power Amplifiers 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasIED.com Specifications are subject to change without notice.

  • Page 2: Table Of Contents

    Connecting the HPA Amplifier to AC Mains ..................13 Optional Dante™ Input Card ......................... 14 Specifications ............................15 Warranty ..............................20 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasIED.com – 2 – Specifications are subject to change without notice.

  • Page 3: Important Safety Instructions

    Protective earthing terminal. The apparatus should be connected to a mains socket with a protective earthing connection. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 3 – AtlasIED.com Specifications are subject to change without notice.
  • Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact AtlasIED. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...

  • Page 5: Introduction

    Multi-Impedance High Power Amplifiers Introduction Thank you for purchasing the AtlasIED HPA Series amplifier. The AtlasIED high power amplifier, “HPA” Series, is designed for use in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle multiple impedance loads. The HPA is compact and lightweight in comparison to other models delivering similar power levels.

  • Page 6: Front Panel Description

    Note: Also refer to the Protect LED. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasIED.com – 6 – Specifications are subject to change without notice.
  • Page 7 4. Failure of amp channel, if DC is present at the output the respective amp channel will go into protect. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 7 – AtlasIED.com Specifications are subject to change without notice.

  • Page 8: Rear Panel Description

    1. AC Mains Input The HPA602 and HPA1302 feature a global, wide range AC Mains power supply that operates from 100V-240V 50/60Hz power sources. An IEC-60320-C15 receptacle with a retainer clip is provided to make changing the power cord to meet local requirements easier. A 2M 16-gauge power cord is provided with a USD NEMA 5-15 male plug.

  • Page 9: Bridge Mode Operation

    PARAL SENS LOAD LOAD .775V 100V 32dB Remote Fault – – In 1 In 2 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 9 – AtlasIED.com Specifications are subject to change without notice.

  • Page 10: Remote Turn On

    Failure of amp channel, if DC is present at the output the power supply will go into protect. Fault Reporting 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasIED.com – 10 – Specifications are subject to change without notice.
  • Page 11 10. Accessory Card Slot The accessory card slot is for optional input cards such as the HPA-DAC2 (2 Channel Digital Audio Input Card). Contact AtlasIED for a full list of accessory cards. Note: Accessory card installation must be done by a qualified technician.

  • Page 12: Placement Of The Amp

    Balanced Input - AtlasIED recommends using either 20 or 22-gauge two-conductor wire with shield for low level signals. Maintain the proper polarity, + to +, - to – and shield to ground. Note: The ground center pin of the Phoenix connector is common for both channels.

  • Page 13: Connecting The Hpa Amplifier To Ac Mains

    Never plug an amplifier into a circuit without knowing what other products are connected to the same circuit. 2. Never plug an HPA602 or HPA1302 into a power strip. Always connect directly to a dedicated circuit wall receptacle. Power strips are not designed to deliver high amounts of continuous or peak current.

  • Page 14: Optional Dante™ Input Card

    The HPA amplifier series allows for an optional HPA-DAC2 2-Channel Dante™ receiver card to be installed into the HPA amplifier. Contact AtlasIED for a list of accessory cards. Note: Accessory card installation must be done by a qualified technician. Remove the HPA amplifier from the AC mains source.

  • Page 15: Specifications

    Number of Fixed Inputs Accessory Inputs DSP Internal Network Optional Card Slot Output Power (Note 1) HPA602 HPA1302 100V x 2 CH 2 x 300W 2 x 650W 70.7V X 2 CH 2 x 300W 2 x 650W 8Ω x 2 CH...
  • Page 16 Wire Size 6-18 Gauge (Class 2 Wire) Current Rating 57A per Terminal Electrical Specifications (General) HPA602 HPA1302 Total Harmonic Distortion 1 kHz and 1 dB Below ≤0.15% Rated Power Signal to Noise Ratio >70dB Below Rated Output (A-Weighted) Frequency Response 20Hz - 20kHz (+0/-1.5dB)
  • Page 17 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Power Consumption & Current Draw @ 120V AC Mains (HPA1302) Amps Watts BTU / hr (Note 4) Standby Mode 0.194A 0.7W 2.39 BTU Idle Active 0.568A 170.6 BTU Average Power 4 Ohm, All CH Driven 1.5A...
  • Page 18 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasIED.com – 18 – Specifications are subject to change without notice.
  • Page 19 HPA Series Owner’s Manual Multi-Impedance High Power Amplifiers Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 19 – AtlasIED.com Specifications are subject to change without notice.

  • Page 20: Warranty

    PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
