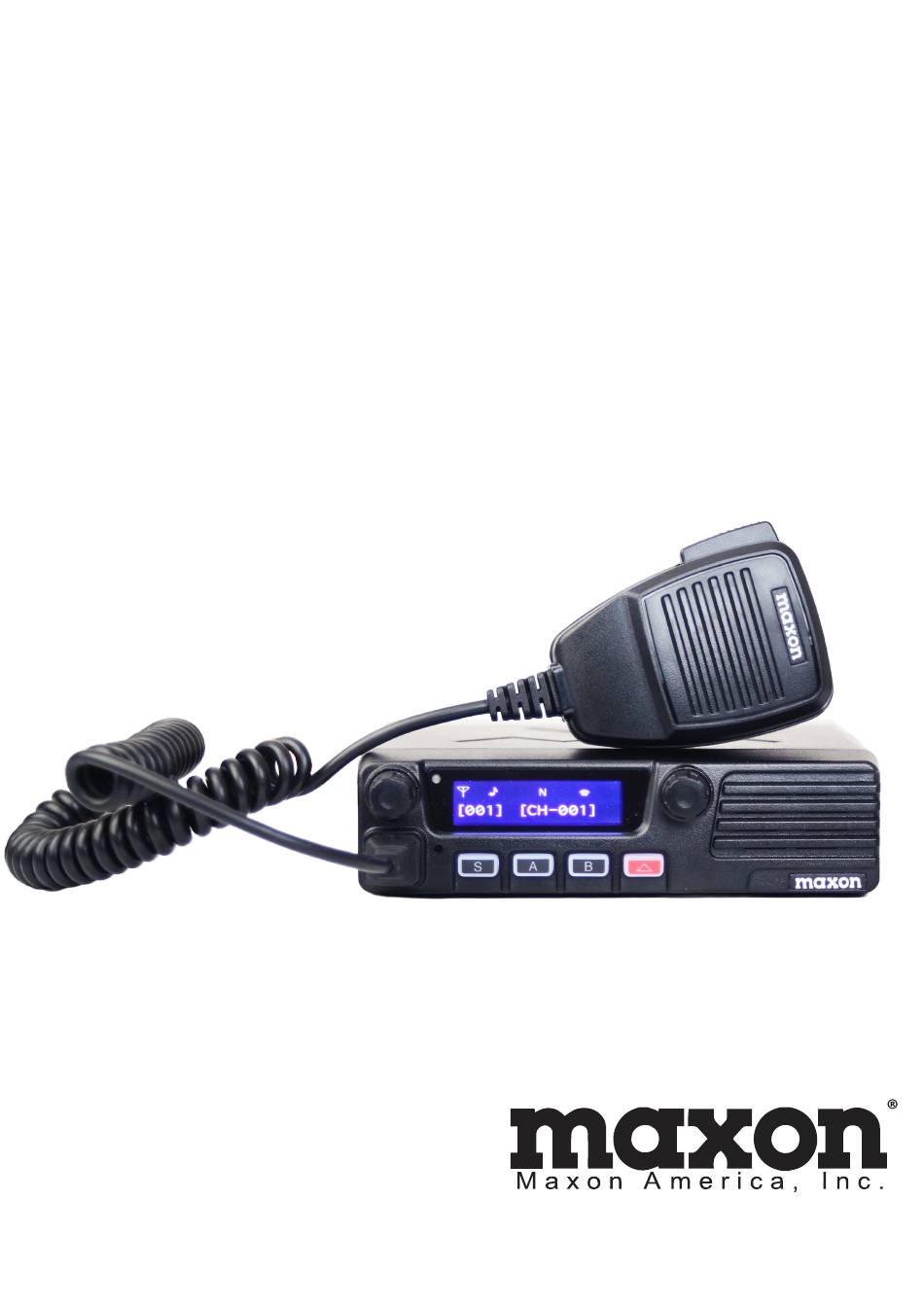

- Page 1 USER MANUAL VHF Transceiver TM-8102C UHF Transceiver TM-8402C 11535 W. 83 Terrace, Lenexa, KS 66214 www.maxonamerica.com...
-
Page 3: Table Of Contents
www.maxonamerica.com Table of Contents 1. Safety / Warnings 2. Features 3. Appearance of TM-8000C Series Mobile Radio 4. Controls & Keys 5. Menu Description 6. Terminal Description 7. Specifications 8. Warranty Statement... -
Page 4: Safety / Warnings
1. Safety / Warnings Notices Government law restricts the operation of unlicensed radio transmitters within government controlled territories. Illegal operation is punishable by fine or imprisonment or both. Refer service to qualified technicians only. EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Shut OFF the transceiver while refueling or while parked in gasoline service stations. -
Page 5: Power Cable Connection
www.maxonamerica.com Preparation Electronic equipment in your vehicle may malfunction if they are not properly protected from the radio frequency energy which is present while transmitting. Typical examples include electronic fuel injection, anti-skid braking, and cruise control. If your vehicle contains such equipment, consult the dealer in determining if they will perform normally while transmitting. -
Page 6: Connecting Microphone
Flat Washer Spring Washer 5x16mm Microphone Self-tapping Screw M4 x 6mm Hex-headed Screw Mounting Bracket M4 x 6mm Antenna Connector Hex-headed Screw Red(+) Cable Heat Sink (Aluminum Diecasting) Fuse DC Power Cable 12V Vehicle Battery Black(-) Cable Power Input Connector Connecting Microphone 1. -
Page 7: Features
www.maxonamerica.com 2. Features The followings are the main features of the TM-8000C Series Mobile Radio: 192 x 64 Dot-matrix Graphic LCD 512 Channels and 32 Groups are Selectable. External Squelch Control Channel Spacing: 12.5 / 25kHz (12.5kHz for USA) Wide Band Coverage (VHF: 136~174MHz; UHF: 400~470, 450~520MHz) Call Guard Squelch of Standardized CTCSS / DCS Identification Origination (2 Tone) Normal Scanning / Priority Scanning... -
Page 8: Appearance Of Tm-8000C Series Mobile Radio
3. Appearance of TM-8000C Series Mobile Radio Hand MIC Enter Switch Channel UP/DOWN Selection / Group Selection TX/RX Status LED Power ON/OFF Speaker Volume Switch MIC Jack Programmable Function Buttons Emergency MIC Antenna Connector 15 Pin Accessory Connector EXT Speaker Jack Heat Sink DC Power Cable (Aluminum Diecasting) -
Page 9: Controls & Keys
S Key B Key Emergency MIC A Key Figure 5-1) TM-8102C / 8402C Front Panel Power ON / OFF Volume Switch & Squelch Control Press and hold the knob over 2 seconds to turn the mobile radio on and off. Welcome... -
Page 10: Programmable Key Functions
Microphone Jack Insert the microphone plug into this jack. S Key Press the key to activate its programmable function. The default setting is RF power. A Key Press the key to activate its programmable function. The default setting is Key tone/Menu. B Key Press the key to activate its programmable function. - Page 11 www.maxonamerica.com DTMF Buffer Clear Channel Up Public Address ON/OFF Channel Down Scan Add/Remove Talk Around ON/OFF Monitor ON/OFF Fast Channel Mode Status Send Key lock ON/OFF TOT ON/OFF Staus Receive Check Scan Mode BCL ON/OFF DTMF One Time Send Voting Mode TX Power Change TX Inhibit ON/OFF Emergency...
-
Page 12: Power Adjustment
1. Press “S” button (default setting) or a button programmed as power control. 2. Rotate the selector to select one of 4 transmitting output power levels. The maximum output power is 40W for UHF (TM-8402C / TM-8402C) and 50W for VHF (TM-8102C). Receiving CH 001 1. - Page 13 www.maxonamerica.com channel by up/down button. Furthermore, the channel of receiving signal can be deleted from the list of scan temporarily. When the priority is received, the channel can not be changed or deleted. Key Lock During standby, if a key programmed for key lock is pressed, the key lock icon will be shown on the Power Adjustment display.
-
Page 14: Horn Alert
2-Tone When 2-tone is matched between caller and receiver in the status of programmed 2-tone, normal communication is performed. Horn Alert This function is to alert people outside of the vehicle through external speaker when certain calls are received. Public Address This function is to route audio to an external speaker or similar external equipment. - Page 15 www.maxonamerica.com Hanger in Scan (Programmable) Scan operates while a microphone hangs in the clip. If the microphone is lifted up, scan stops during that time. Off-Hook Monitor (Programmable) When the microphone is on the hanger, the radio must receive CTCSS + carrier to open the audio. When the microphone is off, the radio must receive carrier only to open the audio.
-
Page 16: Menu Description
5. Menu Description To enter the menu, press and hold the channel selector knob for 2 seconds. The menu consists of 10 main menus along with various sub-menus. The main menu has a list such as SCAN, ID ANI, Message, Status Setting, Utility, Vehicle, Sound/Tone, RPT/ Talk Ad, GPS Setting, Firmware Ver. - Page 17 www.maxonamerica.com 2) Priority Use ① Rotate the right selector knob to change Yes/No. P r i o r i t y Use P r i o r i t y Use Y E S ② Push the right selector knob to set, Back to upper menu. P r i o r i t y Use Scan Y E S...
-
Page 18: Status Setting
② Press the knob to set. DTMF ID ANI Y E S DTMF ③ To return to upper menu, press the red button. 5.3 Status Setting Consists of two modes similar to “Send” or “Receive Check”; pre-programmed status is sent to the ID to the channel receiving. - Page 19 www.maxonamerica.com ③ To erase all of the received status, press the “A” button and select Yes. RX S t a t u s L i s t ALL DELETE ? STATE L i s t Y E S D e l e t e S t a t u s ! 5.4 Utility Setting Consists of six sub-menus of RF Power, Lone Worker, LCD Contrast, Big Font, and Password.
- Page 20 4) Big Font ① Rotate the right selector knob to select one of them such as “Name, Number, and Normal” and press the knob to set. Big Font Big Font Big Font Normal CHANNEL Name CHANNEL Number ② To return to upper menu, press the red button. 5) Password ①...
-
Page 21: Vehicle Setting
www.maxonamerica.com 5.5 Vehicle Setting Consist of Horn Alert and Public Address. Rotate the right selector knob to select one of them and press the knob to set. V e h i c l e V e h i c l e Horn A l e r t P u b l i c AD 1) Horn Alert... - Page 22 5.6 Sound / Tone Consists of seven sub-menus of ID Sound, Key Tone, Speaker, Name Tone, MSG Tone, and Call Tone. The selection is made available by rotating the right selector knob and then pressing the knob to set. 1) ID Sound ①...
- Page 23 www.maxonamerica.com 4) Name Tone ① Rotate the right selector knob to select preferred tone and press the knob to set. Name Tone Name Tone Sound/Tone Name Tone ② To return to upper menu, press the red button. 5) Message Tone ①...
-
Page 24: Firmware Version
2) Talk Around ① Rotate the right selector knob to select “Yes” and then press the knob to set. T a l k A r o u n d T a l k A r o u n d R p t r / T a l k A r n d Y E S Y E S T a l k A r o u n d... -
Page 25: Terminal Description
www.maxonamerica.com 6. Terminal Description D-SUB 15 Pin Connector Pin No Pin Name Description Specification Remark 0.6~1.4V RX Signal Strength DC Power Output Power ON : After Ignition Signal Input Power OFF : PCB Version R79 is selection XM1-R5 R12 is selection Low Speed Data XM2-R3 XM4-R7... -
Page 26: Microphone Jack
Microphone Jack Pin No Pin Name Description Specification Remark Backlight of Microphone DC+13.6V DC Power Output 13.6 5% Ground Ground PTT/TXD0 PTT/PC Serial Data 3.3V TTL MIC Ground MIC Ground MIC Signal Input HOOK/RXD0 HOOK/PC Serial Data 3.3V TTL MIC Data Detection High Impedance Speaker Jack (3.5mm Phone Jack) 4Watt/4 Pin No... -
Page 27: Specifications
7. Specifications 7.1 TM-8102C General Frequency Range VHF: 136 ~ 174 MHz Frequency Stability 1.5PPM (-30 to +60 ) Programmable Channels 512 Channels/32 Group Channel Spacing Dual Channel Spacing 12.5/25 kHz (12.5kHz USA) Dimensions 103mm (H) x 52mm (W) x 32mm (D) Weight 1.1Kg... - Page 28 7.2 TM-8402C General Frequency Range TM-8402C : 400 ~ 470 MHz Frequency Stability 1.5PPM (-30 to +60 ) Programmable Channels 512 Channels/ 32 Group Channel Spacing Dual Channel Spacing 12.5/25 kHz (12.5kHz USA) Dimensions 103mm (H) x 52mm (W) x 32mm (D) Weight 1.1 Kg Power Source...
-
Page 29: Warranty Statement
The Authorized Maxon Dealer will repair the product or return the product for repair to Maxon or its Authorized Repair Depot. The user is responsible for the removal of the product from a vehicle or any equipment attached to it, or other site of its use; transportation of the product to the Authorized Maxon Dealer;... - Page 30 PURPOSE. FOR ANY PRODUCT THAT DOES NOT COMPLY WITH THE WARRANTY SPECIFIED, THE SOLE REMEDY WILL BE REPAIR OR REPLACEMENT. IN NO EVENT WILL MAXON BE LIABLE FOR ANY DAMAGES, INCLUDING ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR THE LOSS OF PROFIT, REVENUE OR DATA ARISING OUT...
- Page 32 11535 W. 83rd Terrace, Lenexa, KS 66214 Toll-Free: 800-456-2071 (US Only) Phone: 913-859-9515 Website: www.maxonamerica.com Email: maxon@maxonamerica.com Printed in Korea...
