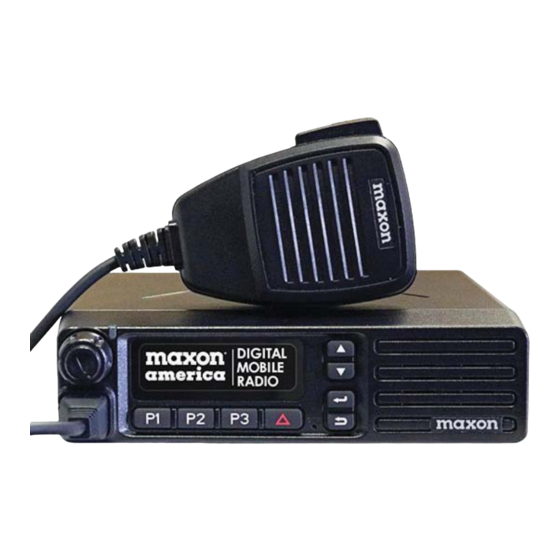

- Page 1 MDM SERIES DMR TIER II TDMA & ANALOG MOBILE RADIO USER MANUAL UHF & VHF Transceiver 11535 W. 83rd Terrace, Lenexa, KS 66214 Toll-Free: 800-456-2071 (US Only), 913-859-9515 Website: www.maxonamerica.com * User Manual is subject to change without notice. Printed in Korea...
-
Page 2: Table Of Contents
Pg 21 10. Warranty Card Pg 22 Thank You for Purchasing the MDM Series Radio! 1. Before operating the radio, please read the user manual carefully. 2. Functions and specifications are subject to be changed without notice for improvement of... -
Page 3: Features Of The Mdm Series
Mobile Radio. Packed with popular digital features such as messaging, AES Encryption, contact Frequency Range lists, and call recording. MDM Series Mobile Radio can be turned into a Base Station with a cabinet MDM-4424/2424 (406 ~470 MHz) enclosure, power supply, and desk mic. The external accessory connector can be used in various Frequency Stability 1.5ppm (-30 to +60°C) -
Page 4: Dimensions & Appearance
www.maxonamerica.com 3. Dimensions & Appearance 4. Assembly & Installation Flat Washer Spring Washer 5x16mm Microphone Self-tapping Screw M4 x 6mm Hex-headed Screw Mounting Bracket M4 x 6mm Antenna Connector Hex-headed Screw Red(+) Cable Heat Sink Fuse (Aluminum Diecasting) DC Power Cable 12V Vehicle Battery Power Input Black(-) Cable... - Page 5 www.maxonamerica.com 4.2 Accessory Jack Layout Microphone Jack ACC (D-SUB 15 Pin Connector) Pin No Pin Name Description Specification Microphone Backlight DC+13.6V DC Power Output 13.6 15% Ground Ground PTT/TXD0 PTT/PC Serial Data 3.3V TTL MIC Ground MIC Ground MIC Signal Input HOOK/RXD0 HOOK/PC Serial Data 3.3V TTL...
-
Page 6: Controls & Operation
Press and hold in the Power On/Off knob to power on the radio. Display screen will start with a Figure 5-3b) MDM Series Full Menu Tree (Digital Channel) Maxon screen and a power-up tone. Press and hold the power on/off knob to power off. Display screen will power off and you will hear a voice notification stating “Good-bye”... -
Page 7: Functionality
Press the menu/select button again and highlight the recipient from your contacts list. Press select button to select the recipient and send the message. To cancel the message, Figure 6-1) MDM Series Digital Mode Menu press and hold the Cancel/Return button. - Page 8 Your radio can store 10 IDs of radios you have called in your call history Outbox. If more than groups called “Zones”. Your MDM Series mobile radio supports up to, 5000 total channels using any 10 IDs are stored, the oldest IDs are overwritten by the new ones. The Delete menu in your combination of 64 zones, with a maximum of 1,024 channels per zone.
- Page 9 www.maxonamerica.com 3) Lone Worker (Digital Mode Only) 7) OLED LCD Backlight When turned on, the “Lone Worker” feature will automatically send out an emergency call to OLED LCD Backlight function ON or TIMED the OLED LCD backlight. the rest of your fleet through your radio when there is no radio activity within the time set in the menu.
-
Page 10: Single Frequency Repeater Function (Mdm-4000 Only)
2. Saves frequency resources. A single frequency point can set up a complete repeater system. What is it? MDM Series mobile radios have a factory-optional feature called Single Frequency Repeater (SFR) that allows your mobile radio to be used as a repeater to help radios communicate that might fall out of normal communications range. -
Page 11: Precautions
www.maxonamerica.com 8. Precautions 9. Safety Notes & FCC 7.1 Precautions for Safe Operation of this equipment. Please keep the radio away at least 1 inch from the body. Be careful when removing your antenna from the Radio and don’t transform your antenna or Do not touch antenna if it is damaged. -
Page 12: Warranty Card
Failure of the product under normal operating conditions, during the warranty period may be repaired by Maxon America, Inc or our authorized service organization free of charge. 3. For the following cases, some service fees will be charged.
