Intermatic TWS-T1CIP66-WH Installation Manual

This manual ensures safe and efficient use of the twilight switch (referred to as "device" in the
following). This manual is a component of the device and must remain accessible at all times for
everyone who uses the device. Everyone who uses the device must have read and understood this
manual before commencing any work. The basic prerequisite for working safely is compliance with all
safety instructions and usage instructions specified in this manual.
Copyright
This manual is copyright protected. Handover of this manual to third parties, reproductions of any type
and form – including excerpts – and use and/or disclosure of the content without the written permission
of the manufacturer, except for internal purposes, is not permitted. Violations will result in liability for
compensation. The manufacturer reserves the right to assert additional claims. The copyright is held
by the manufacturer.
Declaration of conformity
Intermatic hereby declares that the "TWS-T1CIP66-WH" twilight switch
conforms to Directive 2014/35/EU and to Directive 2014/30/EU.
Overview ........................................................................................................... 1
Safety ................................................................................................................ 1
Operation and function .................................................................................... 2
Disposal ............................................................................................................ 2
TWS-T1CIP66-WH

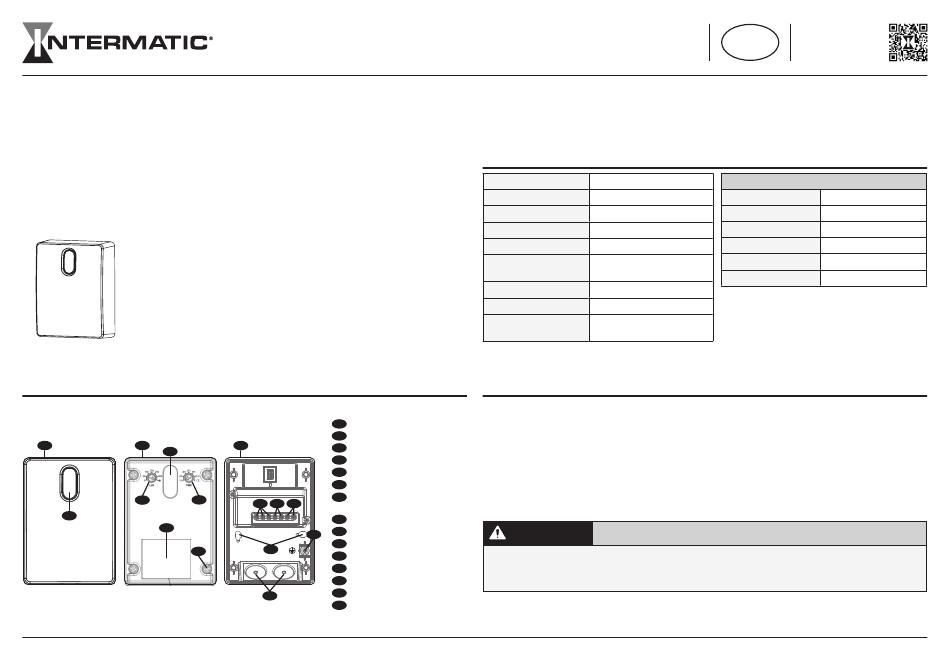

OVERVIEW
1 2
10
11 12
15
13
14
INTERMATIC INCORPORATED | 1950 Innovation Way, Suite 300 | Libertyville, Illinois 60048 | www.Intermatic.com
TWS-T1CIP66-WH Installation Manual
Front cover
1
Frame
2
3
3 Mounting installation base
4 Drill holes
5 Terminal for neutral conductor
6 Terminal for phase conductor
7 Terminal for switched external
5 6 7
conductor
8 Earth conductor
9 Rubber washer
N N N L L L' L'
8
Lux sensor
10
4
11 Brightness settings
12 Timer settings
13 Rating label
Screws for frame (4x)
14
9
15 Sensor window
Intelligent Twilight Switch
Description of function
The twilight switch is suitable for outdoor applications and is only intended for wall mounting. The
built-in brightness sensor allows the lighting to be switched automatically on and off, depending on the
ambient light setting. The twilight switch has 1 channel. Both the lux value and the time settings can be
adjusted separately by using a rotary knob.
TECHNICAL DATA
Supply Voltage 220-240 Vac 50/60 Hz
Lux Setting 5 - 300 Lux, (Teach-in)
Operating Temperature
-20°C ~ +45°C
Protection class II
Ingress Protection IP66
Dimensions 4.283 x 3.102 x 1.457 in
108.8 x 78.8 x 37 mm
Color White
Consumption < 0.5W
Time Setting 1 - 8 H, D-D (Dusk-Dawn Mode),
I.T. (Intelligent Twilight Mode)
SAFETY
Intended use
• The twilight switch is intended solely for switching electric devices in private and commercial areas,
provided this does not infringe on the intended use of these devices.
• The twilight switch is suitable for outdoor applications and is only intended for wall mounting.
• Ensure that the twilight switch is not installed near to any other light sources. Do not install in
direct sunlight.
The intended use also includes compliance with all information specified in this manual. Any use other
than the intended use is considered incorrect use. The legal warranty is voided by any interference
with, or modifications to, the device.
Risk of Fire or Electric Shock
WARNING
• Electrical equipment may only be installed and assembled by a qualified electrician (DIN VDE 0105 Part 1).
• General safety precautions must be observed, e.g.: Before starting work, switch off the equipment's power
supply and secure against being switched back on.
Scan this QR code to
EN
access the product page
at Intermatic.com for
additional information
SWITCHING CAPACITY MAX
LED 400W
Incandescent 16A, 2000W
AC Halogen 1000W
LV Halogen
1000VA / 900W
Fluorescent 1400VA
CFL 600VA / 400W
