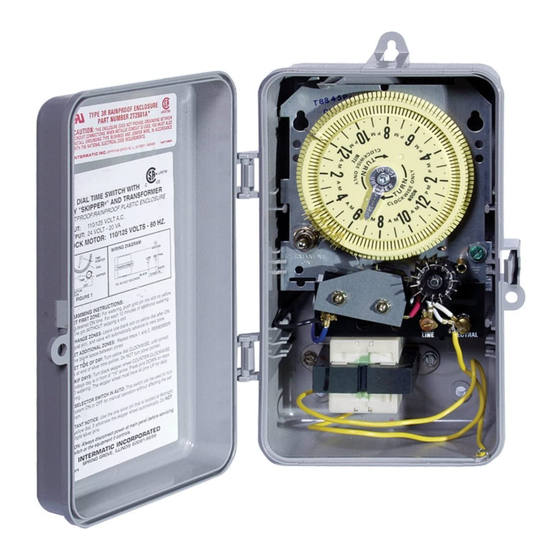

MODEL: T8845PV
24 HR. DIAL TIME SWITCH WITH
14-DAY "SKIPPER
IN DUSTPROOF/RAINPROOF PLASTIC ENCLOSURE
INPUT:
OUTPUT: 24 VOLT - 20 VA
CLOCK MOTOR: 110/125 VOLTS - 60 HZ.
AUTO
TIME
DAY
SELECTOR
SWITCH

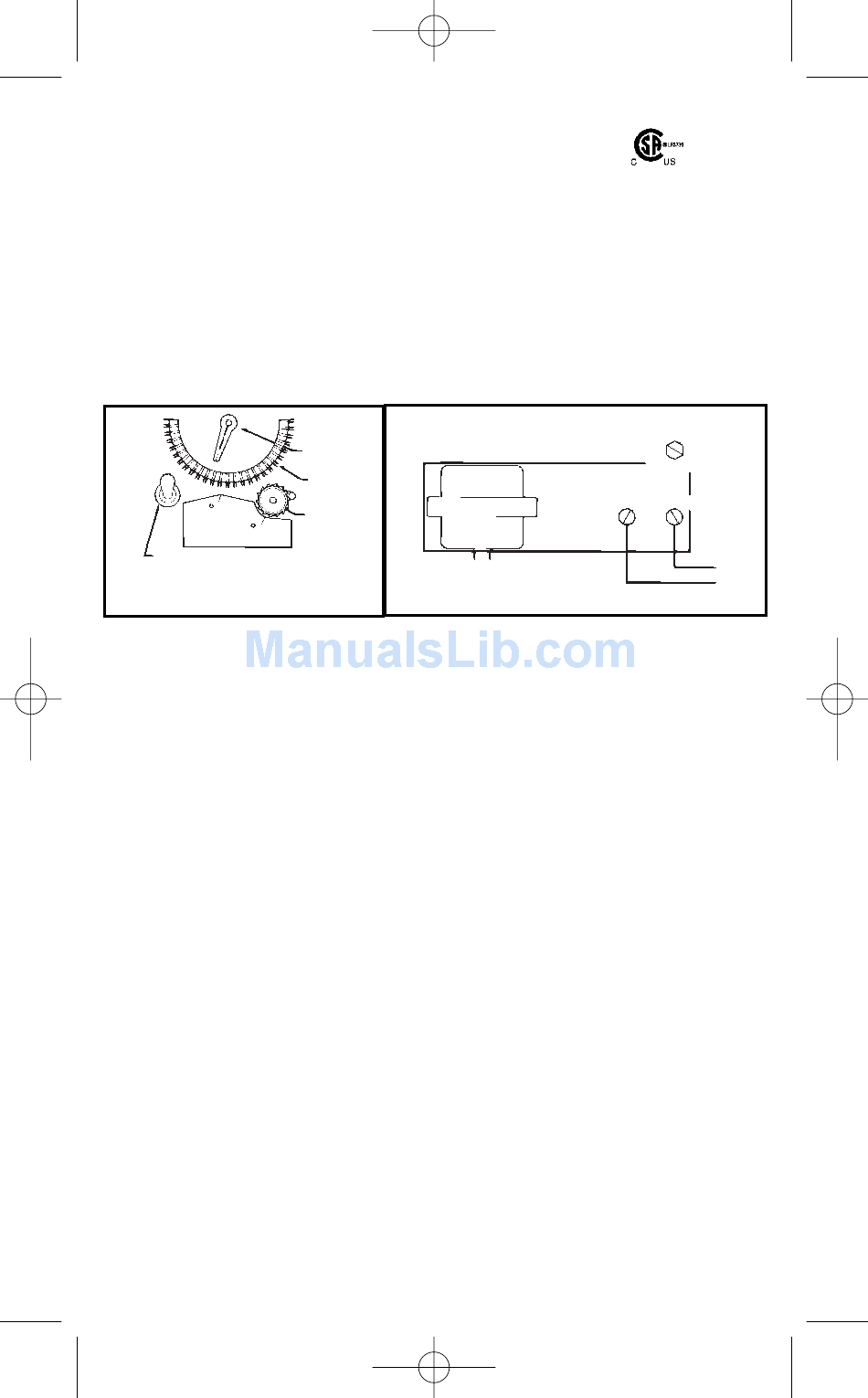

FIGURE 1
PROGRAMMING INSTRUCTIONS:
1. TO SET FIRST ZONE: For watering, push gold pin into slot on yellow
dial at desired ON time. For each 12 minutes of additional watering
add one pin WITHOUT skipping a slot.
2. TO CHANGE ZONES: Leave one blank slot on yellow dial after ON
line (gold pin), and valve will automatically advance to next zone.
3. TO SET ADDITIONAL ZONES: Repeat steps 1 and 2. REMEMBER
to leave blank space between zones
4. TO SET TIME OF DAY: Turn yellow dial CLOCKWISE, until correct
line is at end of silver time pointer. Do NOT turn silver pointer.
5. TO SKIP DAYS: Turn black skipper wheel COUNTER-CLOCKWISE
until todays day is in front of "14" arrow. Press pins DOWN on days
of NO watering. The skipper wheel must have all pins UP for daily
watering.
6. PUT SELECTOR SWITCH IN AUTO: This switch can be used to turn
the system ON or OFF for manual operation without affecting the set
program.
IMPORTANT NOTICE: Use the one silver pin that is located at Midnight
on the yellow dial, it advances the skipper wheel automatically. Do NOT
use multiple silver pins.
CAUTION: Always disconnect power at main panel before servicing
this Switch or the equipment it controls.
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
158TS10974
10:30 AM
Page 1
" AND TRANSFORMER
®
110/125 VOLT A.C.
WIRING DIAGRAM
TIME
POINTER
DIAL
SKIPPER
TO: 24 VOLT SOLENOID
TRANSFORMER
BLACK
LR3730
GROUND
LINE
NEUTRAL
WHITE
POWER IN
