acaia UMBRA LUNAR Get Started

Hide thumbs Also See for UMBRA LUNAR:

Advertisement

Table of Contents

GET STARTED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UMBRA LUNAR and is the answer not in the manual?

Questions and answers

Related Manuals for acaia UMBRA LUNAR

Summary of Contents for acaia UMBRA LUNAR

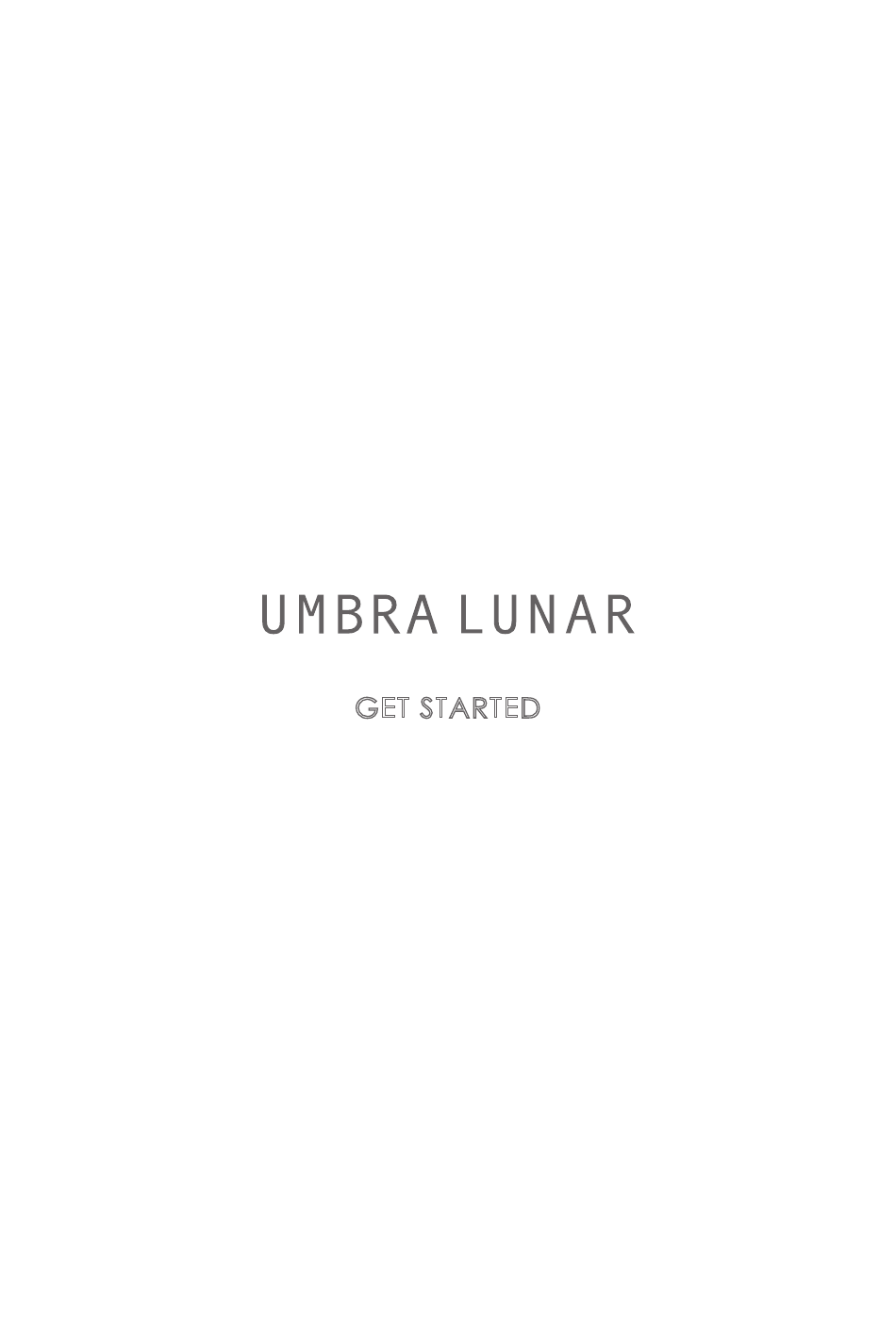

  • Page 1 GET STARTED...
  • Page 2 This Quick Start Guide walks you through the essential setup and features, from basic operation to advanced integrations. Use the Umbra Lunar as a standalone scale via the Acaia app or connect it with other Acaia devices to unlock more possibilities.

  • Page 3: Inside The Package

    Inside the Package Acaia Umbra Lunar Heat Resistant Pad USB Type-C Charger Cable Acaia Calibration Protective Strip Weight 100 g Non-slip Protective Strip x 2 Friction-reduction Protective Strip x 2...
  • Page 4 Umbra Lunar Overview Weighing Pan USB Type-C Charging Port Power Power On Power Off Pair / Unpair / Reset / Update Switch Function Tare Tare / Zero the Umbra Lunar weight Action Double Tap Press and Hold...

  • Page 5: Action Button

    Power On / Off Tap to turn on. Double tap to turn off. � Reset to Default Press and hold for 15 seconds while the Umbra Lunar is off, and release when the LED turns Green. Firmware Update � Press and hold for 30 seconds while the Umbra Lunar is off, and release when the LED turns from Green to Red.
  • Page 6 Unpaired / Pairing in progress / Sleep Mode Paired but disconnected / Sleep Mode Blue White Pairing successful / Weighing on the Umbra Lunar Weighing on the paired device with battery level around 70–100% / Green Charging Status: battery level is above 90% / Reset to factory default Weighing on the paired device with battery level around 30–70% /...
  • Page 7 Using Your Umbra Lunar Power On Turn on the paired device, it will wake the Umbra Lunar automatically if it’s in Sleep Mode. Turn on the Umbra Lunar, it will automatically connect with the paired device. Control The control is now shared with the paired device. Tare, Start, Stop, and Mode Changes, etc.
  • Page 8 Umbra Lunar Modes To operate the Umbra Lunar, press and hold Action the Power Button on your paired device to switch between: Double Tap Press and Hold Weight Only Mode Umbra Lunar weight Device weight 18.0 20.0 Tare the Umbra Lunar...
  • Page 9 Connecting Your Umbra Lunar Pairing with Acaia devices for the First Time Make sure both the Umbra Lunar and the device to be paired are using the latest firmware via the Acaia Updater App. Place the Umbra Lunar and other Acaia devices on a stable, vibration-free, and preferably level surface.
  • Page 10 You will only need to pair the Umbra Lunar once. The Umbra Lunar will automatically connect with the paired device each time it is powered on. Note: If the Umbra Lunar is disconnected with the paired device, the Umbra Lunar turns blinking Blue.
  • Page 11 Umbra Lunar. You can connect the app to the Umbra Lunar to use it as an extended display and configure basic settings. Scan the QR Code or visit acaia.co/apps. Note: Please refer to page 14 of the Umbra Lunar Manual for further connection information.

  • Page 12: Battery Charging

    Battery Charging You can charge the battery by plugging the USB Type-C cable into any of the power supplies listed below: • A computer • A USB wall-charger with an output of 5 volts and 1 amp • A USB-C PD charger supporting 5 volts •...
  • Page 13 Applying the Protective Strips The non-slip protective strips keep the Umbra Lunar more stationary on the drip tray. The friction-reduction protective strips keep the Umbra Lunar from sliding easily on the drip tray. Turn the scale over. Clean the area where you will place the protective strips with rubbing alcohol.

  • Page 14: Smart Calibration

    Action Button when it turns from Green to Red Once released, the Umbra Lunar will enter the Firmware Update Mode. Note: If Umbra Lunar turns Magenta after the Green, please fully charge the Umbra Lunar before proceeding with the update.

  • Page 15: Year Limited Warranty

    Purchases from unauthorized dealers will not be covered by warranty. E-mail us at support@acaia.co if you need any assistance. Acaia will contact you to assess the issue and offer the best route for repair.
  • Page 16 Find Help in Your Language Find the Umbra Lunar User Manual online in English, 繁體中文, 简体中文, 日本語, Italiano, Deutsch, Français, acaia.co/manuals/ and Español or visit our help center at help.acaia.co umbra-lunar...
  • Page 17 Need help? Contact us at support@acaia.co...
