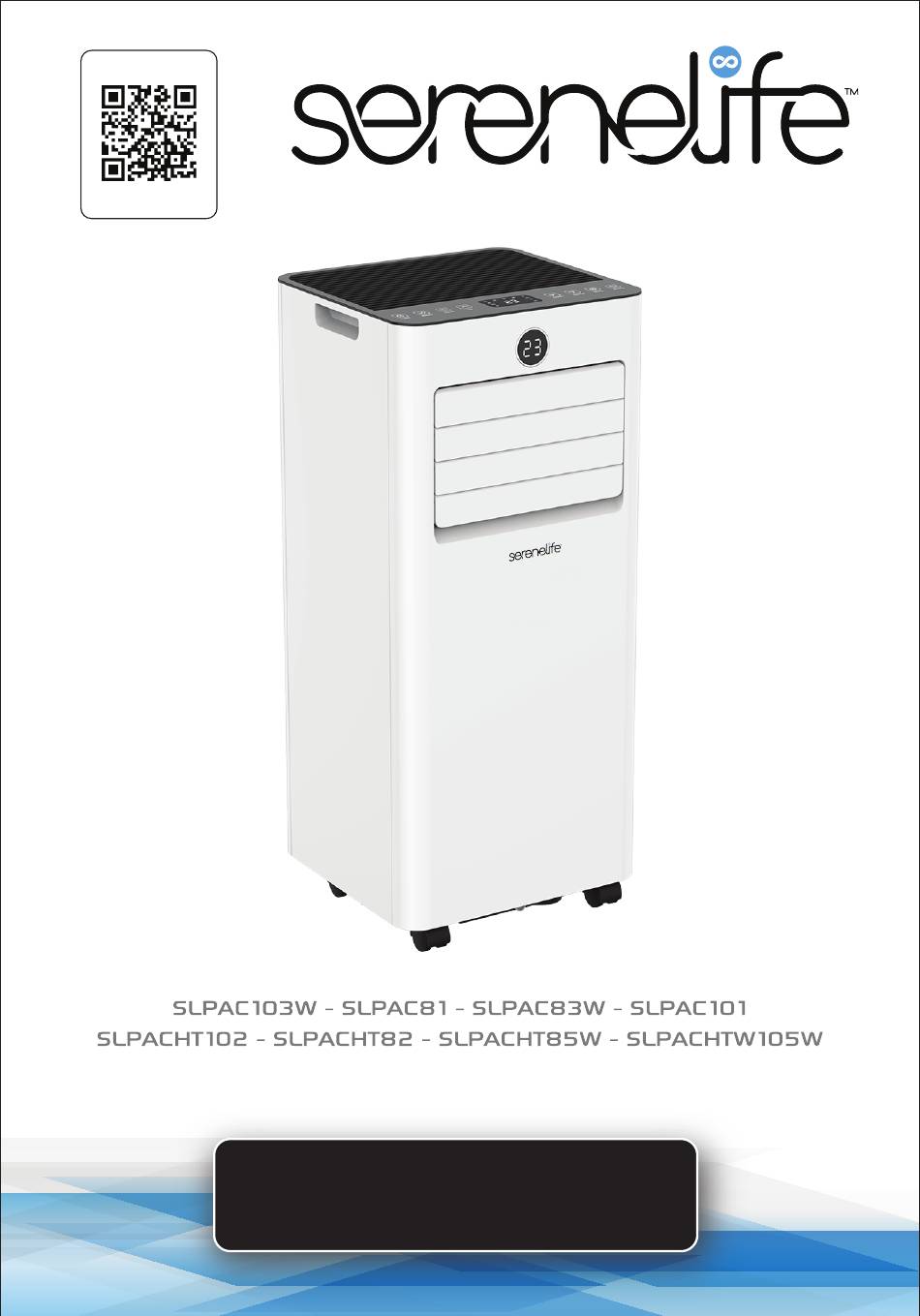

- Page 1 Start Here Serenelifehome.com/ register Portable Air Conditioner USER GUIDE...
-
Page 2: Table Of Contents
PLEASE KEEP THIS MANUAL CAREFULLY FOR FUTURE REFERENCE. FOR HOUSEHOLD USE ONLY. TABLE OF CONTENTS FEATURES AND TECHNICAL SPECS BEFORE YOU BEGIN SAFETY GUIDELINES OPERATIONAL PRECAUTIONS SAFETY PRECAUTIONS DURING SERVICING PRODUCT OVERVIEW INSTALLATION OPERATION SETTINGS WI FI FUNCTION CLEANING AND CARE TROUBLESHOOTING DECOMMISSIONING REGISTER PRODUCT... -
Page 3: Technical Speci Cations
E cient & Powerful Cooling • Metal Control Box for Fire & Explosion Prevention • Rotary Compressor • Built-in WiFi Capability ( SLPAC103W, SLPAC83W, SLPACHT85W, SLPACHTW105W ) • Universal castors for easy movement • Front temperature display • Compact, freestanding design •... -
Page 4: California Prop 65 Warning
What’s in the Box: • AC Unit • Exhaust Hose • Window Installation Plate (Window Kit) • Remote Control (Batteries Not Included) • Hose Connector • Drain Pipe Additional Technical Details • Power Supply: 115V/60Hz • Refrigerant Type: R-32 • Operating Temperature Range: Cooling: 61-95°F / Heating (if applicable): 41-81°F •... - Page 5 FCC Warnings & Precautions Model: SLPAC83W, SLPACHT85W, SLPAC103W and SLPACHTW105W ID: 2ANDL-WBR3 FCC Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.
-
Page 6: Before You Begin
BEFORE YOU BEGIN PRODUCT DESCRIPTION This portable air conditioner is an excellent cooling solution for individual rooms, o ering ventilation and dehumidifying functions. It is self-contained and does not require permanent installation, making it ideal for kitchens, garages, temporary residences, and locations where installing an outdoor AC unit is impractical. -
Page 7: Operational Precautions
OPERATIONAL PRECAUTIONS • Use a properly grounded outlet matching the unit’s voltage and frequency. • Do not use an extension cord or adapter plug. • Always unplug the unit before cleaning or servicing. • Keep hands dry and do not expose the unit to liquids. •... - Page 8 Fire Extinguisher Availability • If hot work is required on the refrigeration equipment or its components, ensure a re extinguisher is on hand. • Keep a dry powder or CO2 re extinguisher within reach of the work or charging area. Avoid Ignition Sources •...
-
Page 9: Product Overview
Checks to Electrical Devices • Inspect and perform safety checks on electrical components during repair or maintenance. • If a fault compromises safety, disconnect the electrical supply until the issue is resolved. • For urgent situations where the fault cannot be corrected immediately, implement an adequate temporary solution and inform the equipment owner to ensure all parties are aware. -
Page 10: Installation
INSTALLATION Unpacking • Unpack the carton and carefully remove the appliance and all accessories. • Inspect the device for any visible damage or scratches. • Included accessories: 1. Exhaust hose 2. Hose connector 3. Window kit adapter 4. Remote control 5. - Page 11 NOTE: The manufacturer may provide additional information about refrigerant odors or speci c examples of safe usage. Attaching the Exhaust Hose To ensure proper ventilation, the air conditioner must be vented outside to expel waste heat and moisture. Do not replace or extend the exhaust hose, as this may reduce e ciency or cause the unit to shut down due to low back pressure.
- Page 12 Attaching the Exhaust Hose 4. Secure the Window Kit: • Close the window to keep the kit in place. • Use duct tape to rmly secure the window kit if needed. • Ensure all gaps between the adapter and window sides are sealed for optimal e ciency.
- Page 13 6. Adjust the Exhaust Hose: • Ensure the distance between the unit and the window is at least 28 inches (70 cm). • The height of the exhaust hose from the oor should be at least 35 inches (90 cm). •...
-
Page 14: Operation
OPERATION CONTROL PANEL AND DISPLAY 1. POWER: Press to switch the unit ON or OFF. 2. MODE: Press to switch between operation modes: Cooling, Heating (optional), Fan, or Dehumidifying. 3. SPEED: Press to toggle the fan speed between HIGH and LOW. 4. -
Page 15: Settings
SETTINGS Start-Up and Shutdown • Press POWER to turn on the unit. • Press the MODE button to select the desired operation mode. • Press POWER again to turn o the unit. Operation Modes The unit o ers ve operation modes: Cool, Heat (optional), Dehumidi er, Fan, and Sleep. -
Page 16: Additional Details
Sleep Mode Sleep mode can be activated using the remote control and functions in Cool or Heat mode. In Cool Mode: After another hour, the temperature increases by an additional 2°F, then remains constant. In Heat Mode: • After 1 hour, the preset temperature decreases by 2°F. •... -
Page 17: Wi Fi Function
Wi-Fi Function Press and hold the TIMER button to activate the Wi-Fi function. Refer to the Wi-Fi instructions in the last section of this manual for setup details. Information on the App “Smart Life” The “Smart Life” app is available for Android and iOS devices. Scan the corresponding QR code to directly access the app download page. - Page 18 Wi-Fi Connection Methods Method 1: Connect via Bluetooth 1. Turn on Bluetooth on your mobile device. 2. Ensure the Wi-Fi indicator on the appliance is ashing. 3. Open the “Smart Life” app, and the appliance will automatically connect via Bluetooth. Method 2: Connect via Wi-Fi 1.
-
Page 19: Automatic Defrost
AUTOMATIC DEFROST In low ambient temperatures, frost may build up on the evaporator. The unit will automatically initiate the defrost process, and the POWER LED will blink during this time. Defrost Control Sequence A. Cooling and Drying Modes: If the ambient temperature sensor detects the evaporator coil temperature falls below 30°F, the compressor will stop operating for 10 minutes or until the coil temperature reaches 44°F, after which the unit will resume cooling. -
Page 20: Continuous Drainage
4. Once all the water is drained, securely reinsert the water plug. Final Step: Restart the machine only after reinstalling the water plug and drainage cover. Failure to do so may cause condensate water to leak onto the oor or carpet. CONTINUOUS DRAINAGE The self-evaporating system uses collected water to cool the condenser coils for better e ciency. - Page 21 For continuous or unattended operation in drying mode, attach the included drain hose: 1. Turn O the Unit: Switch o the unit and unplug it. 2. Prepare the Drain Hose: Remove the plug from the water outlet and keep it safe. 3.
-
Page 22: Cleaning And Care
CLEANING AND CARE Cleaning the Air Filter (Every Two Weeks) Dust accumulates on the lter, restricting air ow and reducing system e ciency. A blocked lter may damage the unit. Regular cleaning is necessary. 1. Press the POWER button to turn o the unit and unplug it. 2. -
Page 23: Troubleshooting
TROUBLESHOOTING Symptom Inspection Solution • Check if the power cord • Insert the power cord securely is securely connected. into the wall outlet. The unit is not • Check if the water level • Empty the drain pan by operating indicator is lit. -
Page 24: Decommissioning
Decommissioning Storage Long-Term Storage If you will not be using the unit for an extended period (more than a few weeks), follow these steps to clean and store the unit properly: 1. Unplug the Unit: Disconnect the unit from the power source. 2. -
Page 25: Register Product
Register Product Start Here Thank you for choosing SereneLife. By registering your product, you ensure that you receive the full bene ts of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your Model Number: SereneLife purchase in perfect condition. - Page 26 Questions or Comments? We are here to help! Phone: 1.718.535.1800 Serenelifehome.com/ContactUs...
Need help?
Do you have a question about the SLPAC103W and is the answer not in the manual?
Questions and answers
Where is the air filter located? It says to clean it every two weeks but the manual only shows the filter under a sink to be cleaned. There is nothing that shows where it's located before removing and cleaning it and I've looked all over the unit and can't find it. I have the SLPAC103W.
