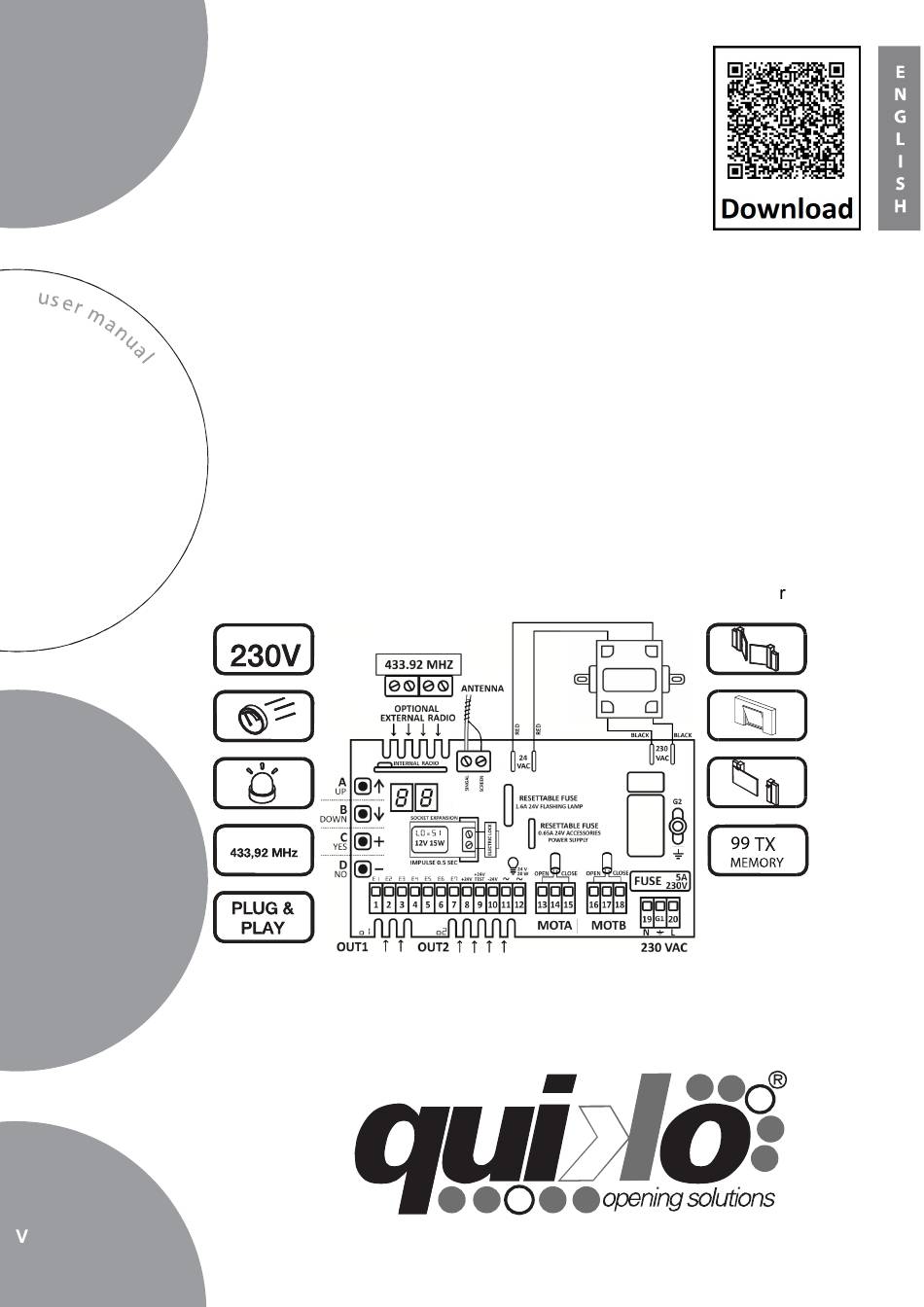

QK-CE2204UNI
CONTROL BOARD FOR 1/2 230V MOTORS
IMPORTANT NOTICE:
This user manual can be used also for the same version of control board
for 110V motors. Item code of the board becomes QK-CE1104UNI and:
- all 230/220V within this manual to be read as 110V
- Fuse is 10A
- QK-CE1104UNI control board is equipped with a 110V transforme
25/2024
SW: V25
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for quiko QK-CE2204UNI
Summary of Contents for quiko QK-CE2204UNI
- Page 1 QK-CE2204UNI CONTROL BOARD FOR 1/2 230V MOTORS IMPORTANT NOTICE: This user manual can be used also for the same version of control board for 110V motors. Item code of the board becomes QK-CE1104UNI and: - all 230/220V within this manual to be read as 110V...
-
Page 2: Safety Instructions
This device is intended for gate automation, any other applications is strongly advised. Not respecting of rules may cause serious damage to people, animals, things. Quiko Italy Srl discharges all responsibility for missed respect of rules. Don't let this control unit unattended or where children can reach. -
Page 3: Table Of Contents
INDEX CONTROL BOARD LAYOUT ....4 STANDARD WORKING TIME ............... 12 SLOWDOWN WORKING TIME ............. 12 CONTROL BOARD MODE ..... 4 START UP TIME .................. 12 SLIDING ....................4 DISPLACEMENT TIME ON OPENING ............ 12 SWING ....................4 STANDARD FORCE ................12 DUAL SLIDING .................. -
Page 4: How To Change Control Board Mode
CONTROL BOARD LAYOUT NPUTS sliding swing dual sliding START N.O. START N.O. START N.O. MOTB. CLOSING DISABLED DISABLED LIMIT SWITCH N.C. DISABLED DISABLED DISABLED DISABLED DISABLED DISABLED MOT A. CLOSING MOTA. CLOSING OPEN ONLY N.O. LIMIT SWITCH NC LIMIT SWITCH NC MOT A. -
Page 5: Typical Installation
TYPICAL INSTALLATION SWING GATE Dt = xb → SWING GATE MODE CLOSING PHOTOCELL E3 = tD E3 = TC During the opening: it doesn’t have any effect. During the closing: it stops gate closing and starts gate opening. → the opening cannot be started if the closing photocell is detecting an obstacle OPENING PHOTOCELL E4 = tA... -
Page 6: Common Terminal Block Connections
COMMON TERMINAL BLOCK CONNECTIONS Series wiring of: 1xClosing Safety Edge 8K2 and NC contact E3 = td E3 = tC Closing photocells: Series wiring of two closing photocells: E3 = td E3 = E4 = tA Opening photocells: (I.E. Photocell): Wiring of electric lock module QK-ELOCKM in the NC motor A limit switches : →... -
Page 7: Functions Summary
FUNCTIONS SUMMARY FUNCTIONS TERMINAL BLOCKS FUNCTIONS menu MOTOR A SETTINGS menu menu xb X5 Standard Working time Automatic closure time Terminal block input 1 Slowdown working time Pedestrian working time Terminal block input 2 7 . 0 7 . 0 Start up time Kick-back function during closing Terminal block input 3... -
Page 8: Working Time Programming
WORKING TIME PROGRAMMING (SWING or DUAL SLIDING). These procedures are an easy way to The motors working time programming functions are (SLIDING) and program the working time parameters of the control board. To ensure a proper operation, make sure the gate is closed, the terminal block inputs are connected, the motor directions are verified and that you have a START input before beginning. -
Page 9: Remote Configuration
REMOTE CONFIGURATION SAVING A REMOTE KEY Step 1 Step 2 Step 3 Step 4 STEP1: Hold down or keep pressing BUTTON A or B until the display shows one of the following functions: R1 START STOP PEDESTRIAN ( FAST CLOSURE PROGRAMMABLE FUNCTION 1 PROGRAMMABLE FUNCTION 2... -
Page 10: Remote And Terminal Blocks Commands
REMOTE AND TERMINAL BLOCKS COMMANDS START NORMALLY OPEN REMOTE KEY STORED AS r1 If the gate is closed a START command opens the gate. If the gate is opening the START commands stop the gate. When the gate is closing, START commands inverts gate movement from closing to opening. -
Page 11: Motor A Settings
MOTOR A SETTINGS STANDARD WORKING TIME From 0.0 to 240 Sec Sliding Swing Dual Sliding Motor A works for A1 seconds. During this time the motor power is . After this time motor A stars the slowdown for seconds. This is for both phases: opening and closing. In the menu you can adjust in these range: from 0.0 to 9.9 seconds (step +- 0.1 sec). -
Page 12: Motor B Settings
MOTOR B SETTINGS From 0.0 to 240 Sec STANDARD WORKING TIME Swing Dual Sliding Motor B opens after motor A. Motor B works for seconds. After this time motor B starts the slowdown for seconds. This In the menu you can adjust b1 in these range: is for both phases: opening and closing. -
Page 13: Functions
FUNCTIONS From 0.0 to 240 Sec AUTOMATIC CLOSURE TIME Sliding Swing Dual Sliding After the opening the gate waits for seconds before beginning the closure. To disable the automatic closure set . To set hold down or keep pressing button C until the display shows . -
Page 14: Functions
FUNCTIONS ASSISTANCE REQUEST FROM CYCLE COUNTER Sliding Swing Dual Sliding Set to to disable this function. When the gate has completed working cycles, the display shows . Each 20 minutes the A. 1 flashing lamp is on for 1 minutes. This function is useful for programming assistance request. is programmable from (x 1) , (x 10) ,... -
Page 15: O1/O2 Output 1 / Output 2
HARDWARE EXPANSIONS AND OUTPUT FUNCTIONS QUIKO code QK-ELOCKM QK-ELOCKM330 QK-RELAY Output 1 Output 2 Socket ELECTRIC LOCK 12V ELECTRIC LOCK 12V GENERAL PORPOUSE RELAY Hold power: 0.3 A 12V Hold current: 0.5 A 12 V Coil input: 24VDC Peak power:... -
Page 16: Input / Radio / Error Logs
INPUT / RADIO / ERROR LOGs The control board records the last ten events from these sources: terminal block inputs, remote control commands and errors. → • Displays the status of the last ten terminal block inputs. → • Displays the last ten remote control inputs. →... -
Page 17: Declaration Of Conformity
E-Mail address: info@quikoitaly.com declare that the DoC is issued under our sole responsibility and belongs to the following product: Apparatus model/Product: QK-CE2204UNI Type: CONTROL BOARD INCLUDING RADIO MODULE FOR SLIDING AND SWING GATE OPERATORS (220V) The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:... - Page 18 www.quikoitaly.com...
- Page 19 www.quikoitaly.com...
- Page 20 QUIKO ITALY Via Seccalegno, 19 36040 Sossano (VI) - Italy Tel. +39 0444 785513 Fax +39 0444 782371 info@quikoitaly.com www.quikoitaly.com...
