quiko QK-CE220WRL Quick Start Manual

Electronic Control Unit
QK-CE220WRL
An electronic control unit integrated into the Wind, Sun and
Rain Sensor compartment, for the automation of sun blinds and
rolling window shutters, with the possibility of radio control op-
eration for individual and/or centralised control.
T
ECHNICAL DATA
- Power supply:
- Motor output
- Operating temperature:
- Radio receiver
- Compatible radio controls:
- Anemometer sensitivity:
- Sun sensor sensitivity:
- Number of codes that may be stored:
- Packaging dimensions:
mm.
- Container:
C CN 1 T
ONNECTION OF
1: Earth.
2: 230 V line input (Phase).
3: 230 V line input (Neutral).
4: Upward movement motor output.
5: Shared motor output.
6: Downward movement motor output.
I O
NITIAL PERATING CONDITION
The device can only operate in conjunction with one or more
radio controls. There is no radio control code stored in the de-
fault factory setting.
O
PERATION USING DIFFERENT
Operation using a 3-button radio control (QK-TXTUB):
The following type of operation is obtained using the QK-
TXTUB radio control: the (Up) button controls the upward
movement until the end of the motor time, the (Stop) button
causes all movement to stop and the (Down) button controls
the downward movement. If a stop command is sent during the
upward or downward movement, the control unit causes this
movement to stop. If a command that is in the opposite direc-
tion to the current movement is sent during the upward or
downward movement, the control unit causes the shutter to
change direction.
Operation using a 3-button radio control (QK-TXTUB3/ QK-
TXTUB6):
When using the QK-TXTUB3/ QK-TXTUB6 radio control, you
will obtain the same operation as previously described for the
QK-TXTUB version; in addition, by using the keys (-) and (+) at
the sides of the radio control it is possible to select the UP –
STOP – DOWN controls for 3 different types of use (QK-
TXTUB3) or for 6 different types of use (QK-TXTUB6). In addi-
tion, by using the keys (-) and (+) at the sides of the radio con-
trol it is possible to enable and disable the sun sensor (the se-
lection is confirmed by a quick UP / Down movement of the mo-
tor).
I
NVERSION OF THE ROTATION MOTOR
If you notice that when pressing the UP key on the radio-control
the control unit causes the shutter to move upwards instead of
downwards, simply repeat the programming procedure pressing
the DOWN key instead of the UP key, or invert the motor's Up-
ward movement wire and the Downward movement wire.
230V~ 50/60Hz 600W Max.
: 230V~ 500W Max.
-10÷55°C
: 433,92 MHz
12-18 Bit or Rolling Code
5 ÷ 40 Km/h
5 ÷ 40 Klux
10 Max.
240 x 185 x 110
PC UL94V-0 (IP54)
ERMINAL BOARD
M R C
ODELS OF ADIO ONTROL
GB
G G
ROUP OR ENERAL
It is also possible to enter two identical codes ( buttons ) from
one radio control onto all the control units or a group of them
which are situated at a maximum distance of 20 metres from
the point of command, in order to obtain general or partial mo-
tion of more than one automation.
A O
NEMOMETER PERATION
The electronic control unit will cause the sun shade to move
upwards every time the wind exceeds the selected threshold.
S S O
UN ENSOR PERATION
The electronic control unit controls the downward movement of
the sun shade after 5 minutes during which the brightness is
greater than the threshold selected using the VR1 trimmer and
displayed when the SUN LED lights up; it also controls the up-
ward movement of the shade after 5 minutes during which the
brightness is below the selected threshold.
Sun sensitivity adjustment ( 5 ÷ 40 Klux )
The control unit allows you to adjust the sensitivity of the Sun
Sensor using the VR1 trimmer. When the SUN LED lights up
on the control unit, this indicates that the intensity of the sun
exceeds the selected threshold; this enables you to use the cur-
rent light conditions as a reference when setting the desired
value.
R S O
AIN ENSOR PERATION
The electronic control unit will cause the sun shade to move
upwards as soon as the sensitive part of the rain sensor gets
wet with water as displayed when the RAIN LED lights up.
O
PERATION PRINCIPLES

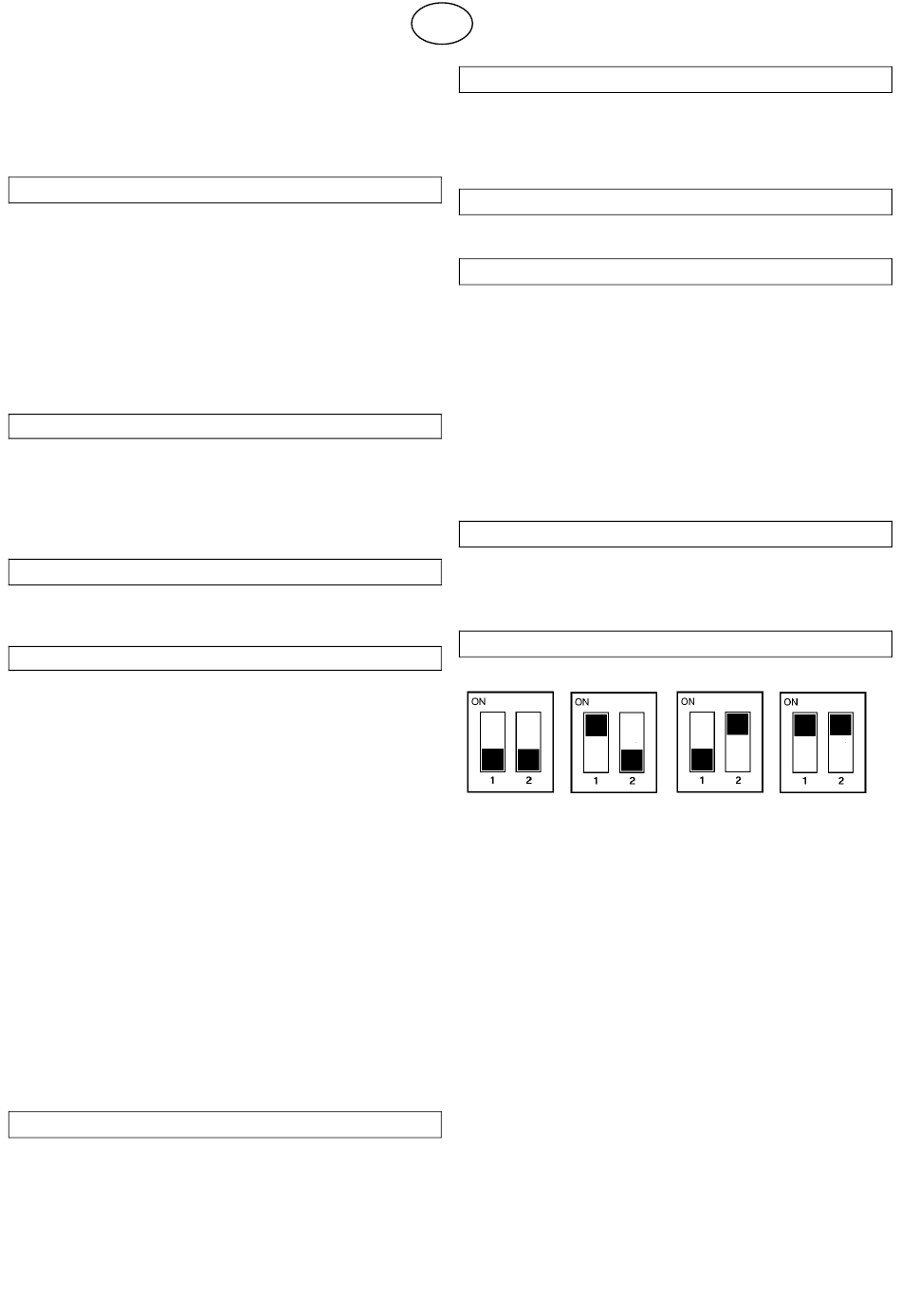

SW1 SW1
Step-by-step P/P + Aut Sensors
1) Step-by-step (Dip 1 and 2 OFF)
The electronic control unit has a cyclic "Step-by-Step" logic,
whose operation depends on the type of radio control associ-
ated with.
2) Step-by-step + Aut. Sensors (Dip 1 ON and Dip 2 OFF)
The electronic control unit allows the "Step-by-Step" operation
as described above, with the addition of the automatic control of
the Wind and Rain sensors. After the activation of one of the
two sensors, once the disturbance is over, the electronic control
unit controls the downward movement of the sun shade after 5
minutes.
3) Manually-controlled (Dip 1 OFF and Dip 2 ON)
Using the radio control the "User present" operating mode can
be obtained, i.e. the control must be constantly enabled so that
the blind or shutter can be moved as necessary. The movement
stops when the control is released.
4) Sensor Test (Dip 1 and 2 ON)
The electronic control unit allows to check the sensor operation
and the correct rotation direction upon installation; we advise
that you place the shade in intermediate position in order to ver-
ify the confirmation movements during the tests.
Warning: after you have tested the sensors, restore the Dip 1
and 2 in the desired operation mode.
1
C
ENTRALISATION
SW1 SW1
User Present Sensor Test
www.quikoitaly.com
