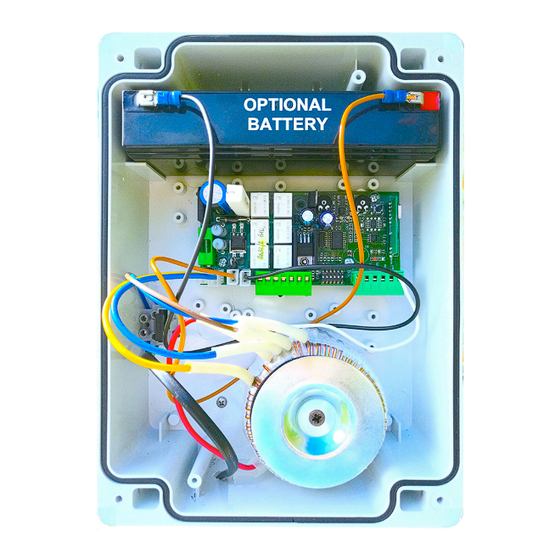

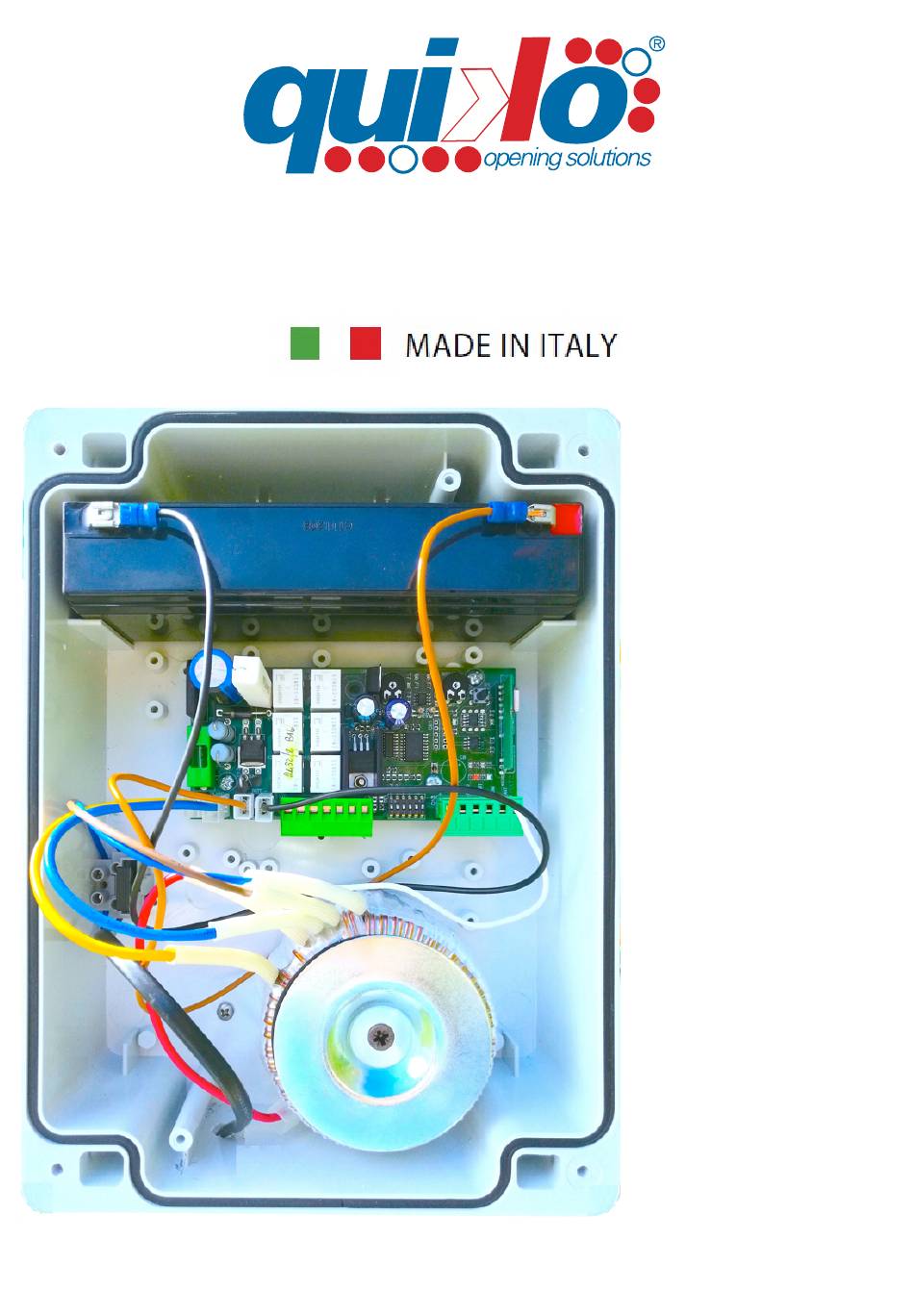

- Page 1 QK-CE24BAT110 Control board for 24V swing gate operators OPTIONAL BATTERY USER MANUAL V01 Sw: 2432/2 Now with: ! Built in battery charger ! Built in electric lock module Apposite room for 12V 2.6Ah battery (optional QK- BATT26) www.quikoitaly.com...
- Page 2 7 8 9 10 11 12 13 14 15 16 17 TECHNICAL CHARACTERISTICS Power supply 24 AC, 100W Operating time 120 sec. No. of motors 2 x 24V Pause time 15-60 sec. Flash light 24V AC 10W max Displacement time 3-10 SEC Photocell power supply 12 V DC 8W max Operating temperature...
- Page 3 IMPORTANT: THE CONTROL BOARD WILL STOP THE MOTION OF THE GEARMOTORS WHEN THESE HAVE REACHED THE MECHANICAL LIMIT SWITCHES / GROUND STOPPERS AT THE END OF THE OPENING OR CLOSING MANOEUVRES DIP SWITCH SETTING DIP1 (If DIP2 is in OFF) COMMUNITY MODE (after the RESIDENTIAL if DIP2 is in OFF.
- Page 4 FAST RE-CLOSING FUNCTION (DIP3 = ON): With this function you can reduce pause time to 3 seconds from intervention and clearing of the photocells. To enable this function set DIP3 in ON position INCREASED PAUSE TIME (DIP 3= ON ) Putting in ON the DIP 3, pause time increases from 15 to 60 seconds EMERGENCY BATTERY SETTINGS: Make sure to connect + and –...
