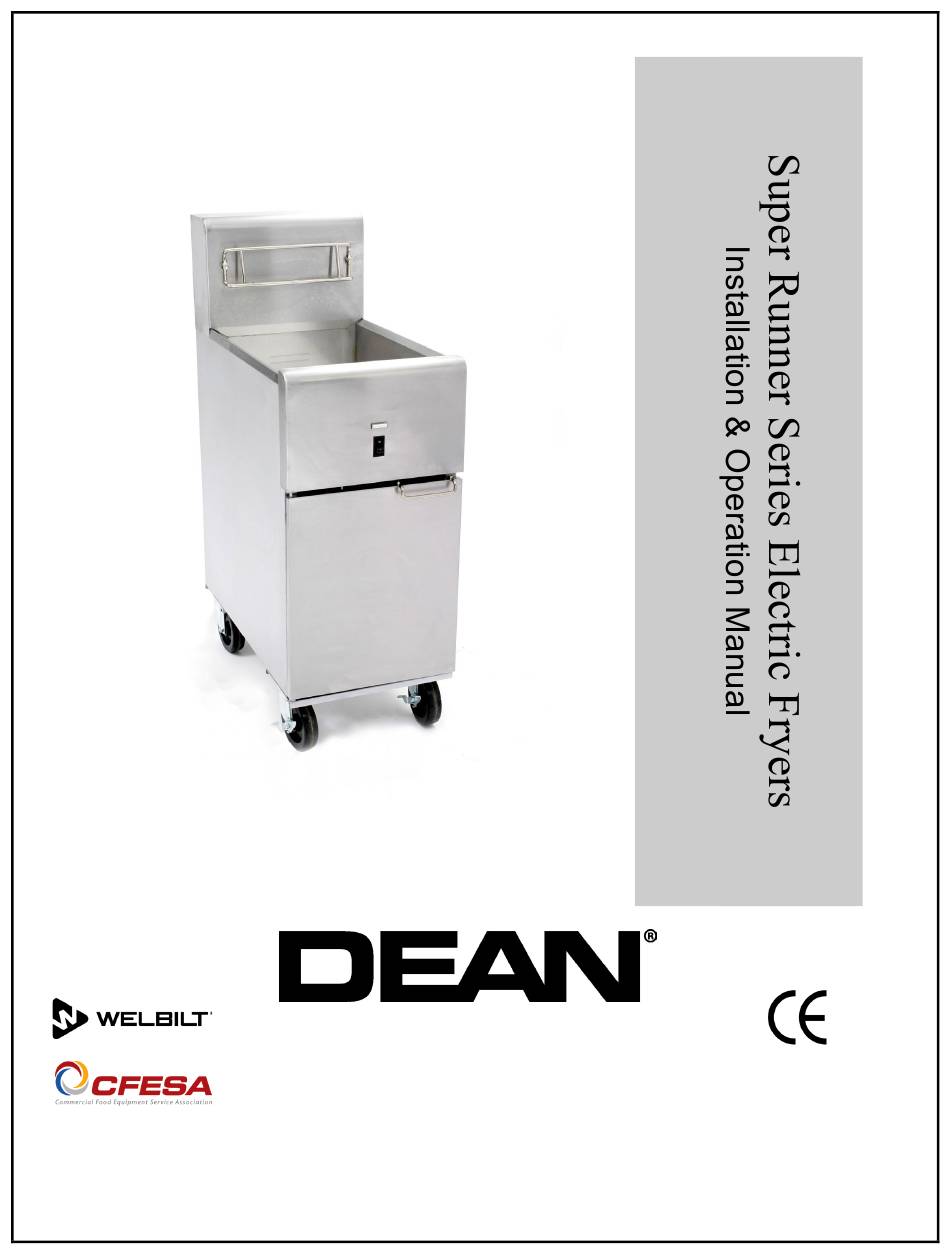

- Page 1 Super Runner Series Electric SR114E NON-CE & Dean, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. 24-Hour Service Hotline *8196010* 1-800-551-8633 10/2023...
- Page 2 Please read all sections of this manual and retain for future reference. NOTICE IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER DEAN EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER DEAN, OR ANY OF ITS AUTHORIZED SERVICERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID.
- Page 3 DANGER Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. DANGER This appliance must be connected to a power supply having the same voltage and phase as specified on the rating plate located on the inside of the appliance door. WARNING Use caution and wear appropriate safety equipment to avoid contact with hot oil or surfaces that may cause severe burns or injury.
-
Page 4: Chapter 1: Installation Instructions
SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 1: INSTALLATION INSTRUCTIONS Safety Information Before attempting to operate your unit, read the instructions in this manual thoroughly. Throughout this manual you will find notations enclosed in double-bordered boxes with the symbol . The information contained in the box concerns actions or conditions that may cause or result in injury to personnel or damage to your system, and/or cause your system to malfunction. -
Page 5: Clearance And Ventilation
SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 1: INSTALLATION INSTRUCTIONS CLEARANCE AND VENTILATION This fryer must be installed with a 6-inch (150-mm) clearance at both sides and back when installed adjacent to combustible construction. No clearance is required when installed adjacent to non-combustible construction. A minimum of 24-inches (600-mm) clearance should be provided at the front of the fryer. - Page 6 SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 1: INSTALLATION INSTRUCTIONS Frying systems with built-in filtration: Take off the filter support brace and remove the filter pan from the cabinet. Decathlon four-battery systems: Casters are pre-installed on the frying system and the carton is furnished with three unloading ramps.
-
Page 7: Chapter 2: Operation
SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 2: OPERATION 2.1 Initial Startup Wash the unit and accessories thoroughly with hot, soapy Thermostat water to remove any film residue, dust or debris. Rinse and Probe wipe dry. Close the drain valve completely. Ensure the thermostat and high-limit thermostat sensing bulbs inside the frypot are securely seated in the holding clamp and that High-Limit... -
Page 8: Daily Operation
SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 2: OPERATION Shutdown 1. Press the ON/OFF switch to the "OFF" position. 2. Filter oil or shortening and clean the fryer. 3. Place the frypot covers on frypots. 2.2 Daily Operation 1. Do not allow grease to accumulate or harden on the frame or body of the fryer. Clean the fryer inside and out with a solution of detergent and hot water daily. -
Page 9: Chapter 3: Parts And Wiring Diagrams
SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 3: PARTS AND WIRING DIAGRAMS 3.1 Wiring Diagram Single Phase... - Page 10 SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 3: PARTS AND WIRING DIAGRAMS 3.2 Wiring Diagram 3-Phase W10C BLK ELEMENTS LIGHT HIGH LIMIT W11C BLK RELAY W22C BLK W24C BLU W27C BLK W23C YEL W25C BLK W26C BLK W28C BLK TRANSFORMER W9C BLU W22C BLK W8C BLU W21C BLK...
- Page 11 SUPER RUNNER SERIES ELECTRIC FRYERS CHAPTER 3: PARTS AND WIRING DIAGRAMS 3.3 Wiring Diagram 3-Phase WYE ELEMENTS LIGHT HIGH LIMIT RELAY TRANSFORMER PRIMARY (LINE) SECONDARY (LOAD) FRAME TEMP PROBE ON/OFF 8051586A...
- Page 12 FRYMASTER 8700 LINE AVENUE, SHREVEPORT, LA 71106-6800 800-551-8633 318-865-1711 WWW.FRYMASTER.COM EMAIL: FRYSERVICE@WELBILT.COM Welbilt offers fully-integrated kitchen systems. Welbilt’s portfolio of award-winning brands includes Cleveland ™ , Convotherm ® , Crystal Tips ® , Dean ® , Delfield ® , Fabristeel ®...
