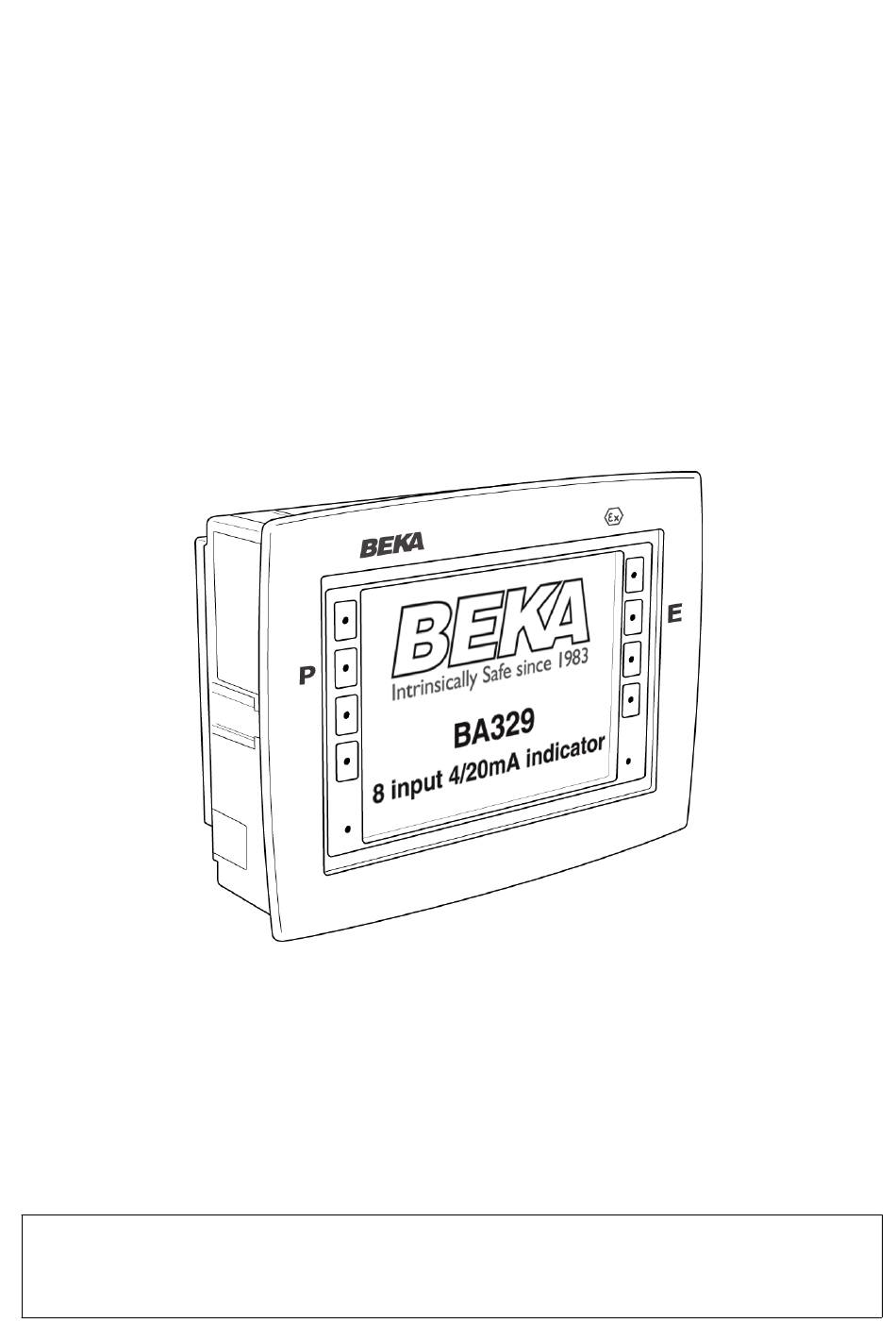

BA329-GL & BA329-PC
intrinsically safe
8 input 4/20mA
panel mounting indicators
Issue 1
Issue: 1
3rd April 2025
The BA329 is CE marked to show compliance with the European Explosive Atmospheres Directive 2014/34/EU and the
European EMC Directive 2014/30/EU.
It is also UKCA marked to show compliance with UK statutory requirements Equipment and Protective Systems Intended
for Use in Potentially Explosive Atmospheres Regulations UKSI 2016:1107
(as amended) and with the Electromagnetic Compatibility Regulations UKSI 2016:1091 (as amended).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BEKA BA329 Series
Summary of Contents for BEKA BA329 Series
- Page 1 BA329-GL & BA329-PC intrinsically safe 8 input 4/20mA panel mounting indicators Issue 1 Issue: 1 3rd April 2025 The BA329 is CE marked to show compliance with the European Explosive Atmospheres Directive 2014/34/EU and the European EMC Directive 2014/30/EU. It is also UKCA marked to show compliance with UK statutory requirements Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres Regulations UKSI 2016:1107 (as amended) and with the Electromagnetic Compatibility Regulations UKSI 2016:1091 (as amended).
-
Page 2: Table Of Contents
2 2 2 2 2 2 2 2 2 2 2 CONTENTS Description 6. Configuration and Calibration 6.1 Configuration menu 6.2 Access code Construction 6.3 Screen layouts 2.1 Controls 6.4 Page titles 6.5 Process variables 6.5.1 Input enable Intrinsic safety certification 6.5.2 Digital display calibration 3.1 Construction 6.5.2.1 Dummy decimal point... -
Page 3: Description
This, together with the low voltage drop introduced by each input in the 4/20mA loop, simplifies application and documentation. The BA329 is powered by a BEKA power isolator located in a safe area, or in Zone 2 if mounted within an enclosure providing IP54 protection. - Page 4 When a BA329 Indicator is operating, the function of each touch button is shown by the colour of the buttons backlight. Green The touch button controls how the adjacent input is displayed. For screen layouts where the display(s) are not adjacent to the touch buttons, the buttons are in the same vertical order as the displays.
-
Page 5: Intrinsic Safety Certification
3. INTRINSIC SAFETY CERTIFICATION Having a temperature classification of: Both BA329 models have IECEx, ATEX and UKEX gas and dust certification. 3.1 Construction The BA329-GL and the BA329-PC Indicators are At ambient temperatures between -40 and +65 constructed from three different modules, each with individual intrinsic safety apparatus certificates The operating temperature of the display Note:... -
Page 6: Special Conditions For Safe Use
3.4 Special conditions for safe use The output safety parameter of each input are zero. All the certificate numbers for the modules These inputs comply with the requirement for simple comprising the BA329 have an ‘X’ suffix indicating apparatus allowing connection with almost any that special conditions for safe use apply. -
Page 7: System Design For Gas Hazardous Areas
Further information is contained in the BEKA Application Guide AG210. 4.3 Applications in Group IIC gases For most applications in a group IIC gas, the BEKA BA243 Power Isolator should be used as shown in Fig 2 BA329 powered by BA212 Power Isolator Fig 3. -
Page 8: Maximum Cable Length Determined By Cable L/R Ratio
Additional information about calculating maximum cable lengths is contained in Appendix 2 of these Fig 3 BA329 powered by a BA243 Power Isolator instructions, and in the BEKA Application Guide AG210. 4.3.1 Maximum cable length determined by total 4.4 Documentation and certification labels cable inductance. -
Page 9: Installation
5. INSTALLATION 5.1 EMC The BA329-GL and BA329-PC intrinsically safe The BA329 indicator complies with the requirements panel mounting indicators feature a 316 stainless of the European EMC Directive and the UK EMC steel front panel surrounding the display, with a statutory requirements. - Page 10 Fig 4 Dimensions including cut-out Fig 6 BA329 input terminal connections and wiring for 4/20mA source and for a loop powered transmitter. Fig 5 Installation of BA329 Indicator and mounting clamps.
-
Page 12: Configuration And Calibration
Fig 8. Enter the access code character by character, if the correct code has been entered, pressing E will cause the Configuration Menu to be displayed. Please contact BEKA associates if the indicator's access code is lost. Fig 8 Access to the Configuration Menu... -
Page 13: Screen Layouts
6.3 Screen layout This sub menu allows one of the following nine screen formats to be selected. Rows: 4 variables Rows: 8 variables + bargraphs Columns: 4 variables + bargraphs Rows: 8 variables Rows: 2 variables + bargraphs Grid: 8 variables + bargraphs Single variable + bargraph Grid: 8 variables... -
Page 14: Page Titles
To select a screen format, first select Screen 6.5 Process Variables Layout from Configuration Menu shown in Fig 7 This sub-menu allows: and press P. Each 4/20mA input to be enabled Calibration of each digital display and bargraph Entry of Units of Measurement for each display Entry of Tag information for each display Configuration of C--P function Fig 10 Selecting the required Screen Layout... -
Page 15: Dummy Decimal Point
6.5.2.1 Dummy decimal point 6.5.2.4 Units of measurement and tag information To position the dummy decimal point in a digital Units of measurement with up to 8 characters may display select Decimal Places on the Process be added to each display. To add units to a digital Variable screen and press P. -
Page 16: C--P Function
6.6 C--P function 6.8 Reset to defaults When the indicator is in the operating mode, The BA329 indicator configuration can be reset to continuously touching the button with a green the following defaults using this function. After backlight adjacent to a display will change that resetting to defaults, the previous configuration can display to the input current in milliamps, or to the not be recovered, therefore the instruction has to be... -
Page 17: Maintenance
7.5 Guarantee Indicators which fail within the guarantee period Check supply voltage and voltage caused by all should be returned to BEKA associates or your local instruments in the 4/20mA agent. It is helpful if a brief description of the fault loop. -
Page 18: Appendix 1 Using A Ba212 Power Isolator
APPENDIX 1 Using a BA212 Power Isolator The BA212 isolator is primarily intended to power The maximum allowable cable length can be a BA329 indicator in gas group IIB (ethylene) or IIA calculated as follows: (propane). The BA212 does have IIC (hydrogen) certification, but the output inductive parameters Lo Max cable length = [(Vo min - VL min) - Ro max ] [ IL max... -
Page 19: Appendix 2 Using A Ba243 Power Isolator
APPENDIX 2 Using a BA243 Power Isolator The BA243 Power Isolator has four galvanically Max cable length = BA243 Lo for each output Cable inductance per metre isolated outputs which have been certified intrinsically safe in IIC atmospheres when remotely As an example, using a cable having inductance of interconnected by a BA3901 Power Combiner. -
Page 20: Appendix 3 Descriptive System Drawings
APPENDIX 3 Descriptive Systems Drawings Using BA212 Power Isolator... - Page 21 APPENDIX 4 Descriptive Systems Drawings Using BA243 Power Isolator...
