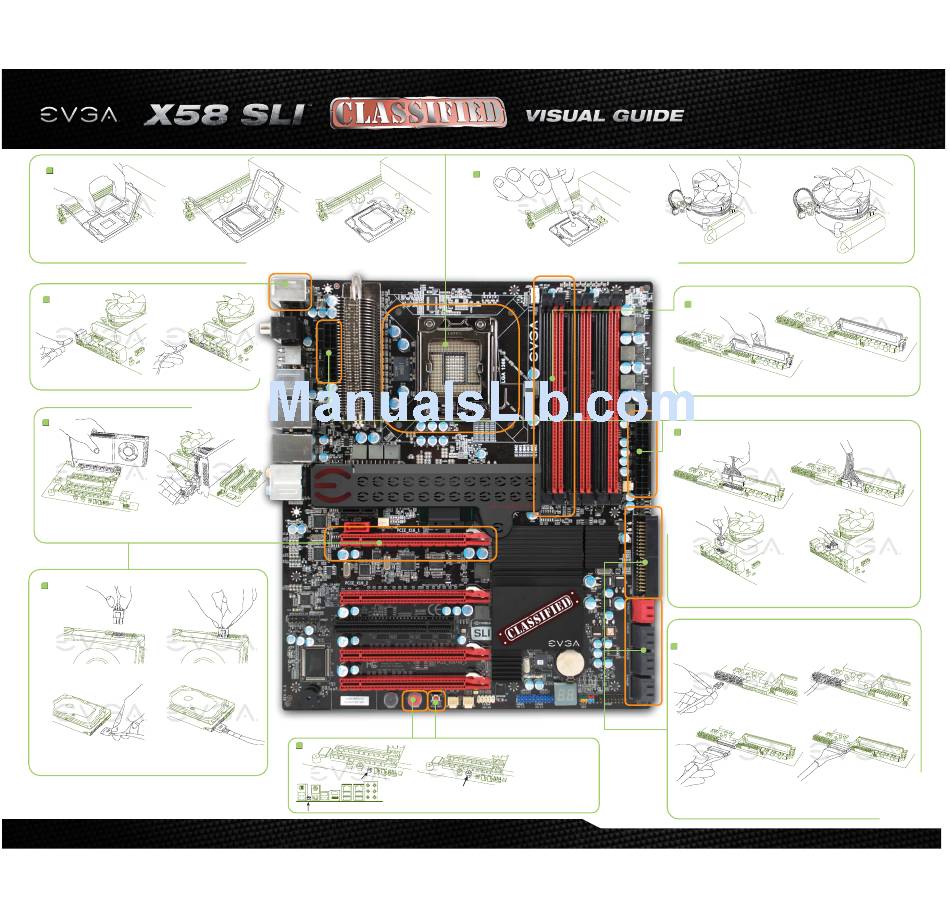

EVGA 170-BL-E762-A1 Visual Manual

1
a. b.
Unhook the socket lever and lift up the load plate. Remove the 1366 protective cover and carefully install your Intel processor making sure to properly align the notches.
Close the load plate and with light pressure, lower the socket lever back in to its original position.
3
a. b.
Plug in one keyboard into a USB port or PS/2 port.
5
b.
a.
Insert your graphics card into either the PCI-E 2.0 slot or the PCI slot. The type of slot depends on the graphic card
bus type. Connect a monitor to the output connector of the graphics card.
7
a. b.
c. d.
Plug in power connectors to both the graphics card and the hard disk drive. Power connector types will vary
depending on the hard disk drive and graphic card's power requirements.
2
c.
9
a. b.
Press the onboard Clear CMOS button Press the red Power Button
a. b.
Apply a small, pea-sized drop of thermal paste on to the middle of the processor. Install your processor heatsink and fan.
On the power supply, flip the power
switch to the ON position. LEDs will
now be lit on the motherboard. Press
the onboard Clear CMOS button once
then press the red Power Button to
begin powering up the system.
At this final stage, you should now be
greeted with the POST screen on
your monitor.
The following quick steps will guide you through testing the absolute bare minimum essentials
of your motherboard before installing it into a system chassis. Visual aids are provided to assist
you during the following procedures.
To reduce the risk of fire, electric shock, and injury always follow basic safety precautions.
It is recommended that you use electrostatic discharge (ESD) countermeasures
such as an ESD wrist strap or anti-static mat when handling computer components.
After removing the EVGA X58 SLI TM Classified from its packaging, place it on to a nonconductive
surface. For example: wood, cardboard box, or an anti-static mat.
c.
b.
4
a.
Install one stick of system memory (DIMM) into the appropriate DIMM slot (see other side).
6
a. b.
c. d.
Make sure your power supply's power switch is in the OFF position then connect your 24-Pin ATX Power Connector
and 8-Pin CPU Power Connector to the motherboard. Optional: for overclocking it is recommended to install two 8-Pin
CPU Power Connectors.
SATA Connection
8
a. b.
IDE Connection
c. d.
Connect one hard drive disk to either one of the SATA Connectors or to the IDE Connector
depending on the hard disk drive connection type.
