Manufactured by: Living Style (Singapore) Pte. Limited
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Customer Service Support: 1-800-379-9773
Lot Number:
Date of purchase:

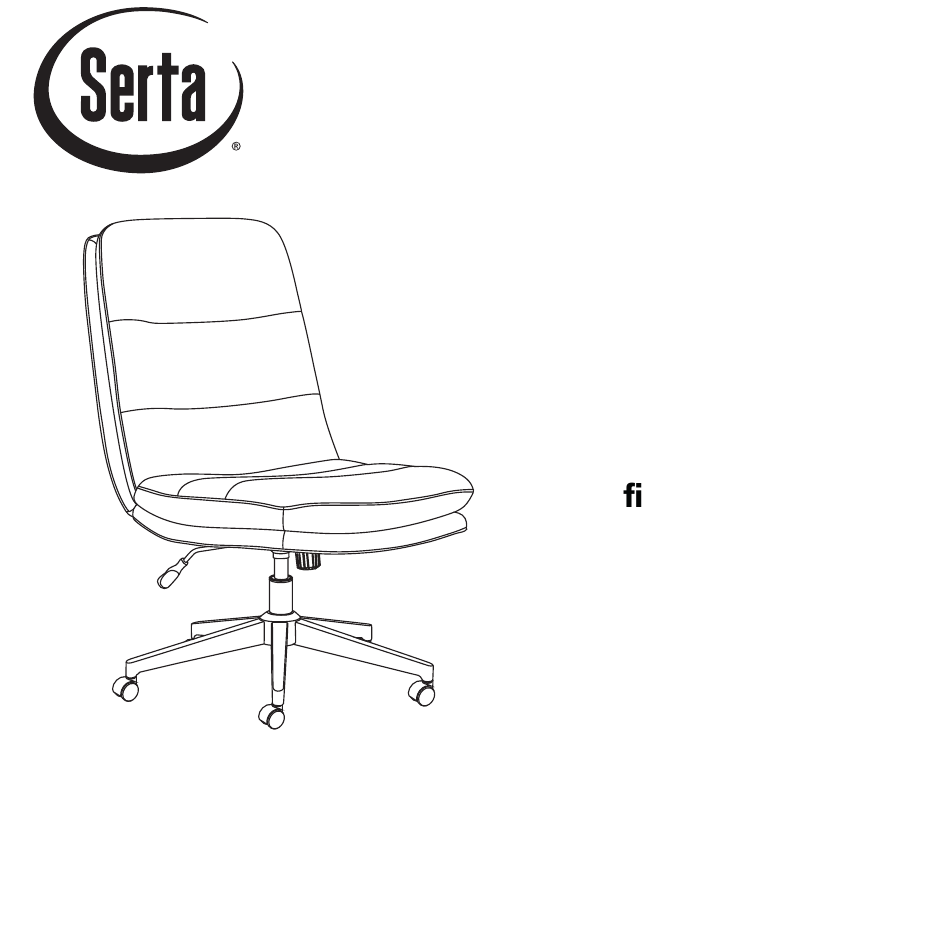

Home Of ce Chair
Assembly Instructions
Model Number:
52185-BLK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Serta 52185-BLK
Summary of Contents for Serta 52185-BLK
- Page 1 Lot Number: Date of purchase: Home Of ce Chair Assembly Instructions Model Number: 52185-BLK Manufactured by: Living Style (Singapore) Pte. Limited THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Customer Service Support: 1-800-379-9773...
- Page 2 Chair Assembly Instructions Carefully unpack all parts and identify them against the parts list before attempting to assemble. To avoid scratching the components, assemble the chair on a protected surface. Note: 1. Do not stand on the seat cushion. 2. For indoor use only. Please do not expose to direct sunlight, sources of excessive heat, or use in wet or damp environments. 3.
- Page 3 PARTS Casters Base and Base Cover Metal Legs Quantity: 5 Quantity: 1 Quantity: 5 Gas Lift Seat Cushion Seat Plate Quantity: 1 Quantity: 1 Quantity: 1 1” Big Screws Back Cushion 16 mm Small Screws Quantity: 4 Quantity: 1 Quantity: 5 Hex Wrench 1-1/4”...
- Page 4 Take off Base Cover (C) from the Base (B), then turn the base over. Insert Metal Legs (D) into the Base (B) and secure by 16 mm Small Screws (I). Tighten all the screws. Warning: Fully hand-tighten all 5 bolts at each leg/hub connection. Be careful not to overtighten or strip bolts. Do not use power tools.
- Page 5 Press the Casters (A) into holes at the end of each leg. Turn the star base upright and then attach the Base Cover (C) to the Base (B) as shown. Insert the Gas Lift (E) through the center hole on top of the Base (B).
- Page 6 Attach Seat Plate (F) to the bottom of the Seat Cushion (G) (with the front of the seat plate facing the front of seat cushion). Attach by using 1” Big Screws (J) for the holes of the Seat Plate (F) and tighten screws. *Note: Tighten the screws completely.
- Page 7 Align the Back Cushion (H) with the Seat Cushion (G) by positioning the back support plate over the Seat Plate (F) with 1-1/4” Big Screws (K). *Note: Tighten the screws completely.
- Page 8 Position the assembled chair upright with the seat plate facing down. Insert the Gas Lift (E) into the center hole of the Seat Plate (F). Push down rmly over the Gas Lift (E) until it is securely connected.
- Page 9 Operating instructions Function Instruction - 1 To Adjust Seat Height: While seated, lean forward and reach under the right side of the chair to nd the handle. Lift the handle and raise your body up slightly to allow the chair to rise to the desired height.
-
Page 10: Function Instruction
Function Instruction - 2 To Operate Tilt Lockout: While seated, reach under the right side of the chair to nd the height-adjustment handle. Pull the handle all the way out (away from the gas lift) to allow the chair to tilt backwards. - Page 11 Function Instruction - 3 To Adjust Tension On The Tilt: Reach under the front center of the chair, grasp the round knob (R) and turn it counter- clockwise to stiffen the tilt mechanism for a heavier user. Turn the knob (R) clockwise to loosen the tilt mechanism for a lighter user.
-
Page 12: Limited Warranty
Limited Warranty True Innovations seating products are warranted against defects in material and workmanship while owned by the “Original Purchaser”. The term “Original Purchaser” is de ned as that party or entity which purchases True Innovations furniture from an authorized True Innovations retailer as shown by the original sales receipt. This warranty does not apply to “as is” or previously owned seating products.
