Multitech SocketModem MTQN-MNG1-B01 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SocketModem® MTQN
MTQN-MNG1-B01 Device Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the SocketModem MTQN-MNG1-B01 and is the answer not in the manual?

Questions and answers

Related Manuals for Multitech SocketModem MTQN-MNG1-B01

Summary of Contents for Multitech SocketModem MTQN-MNG1-B01

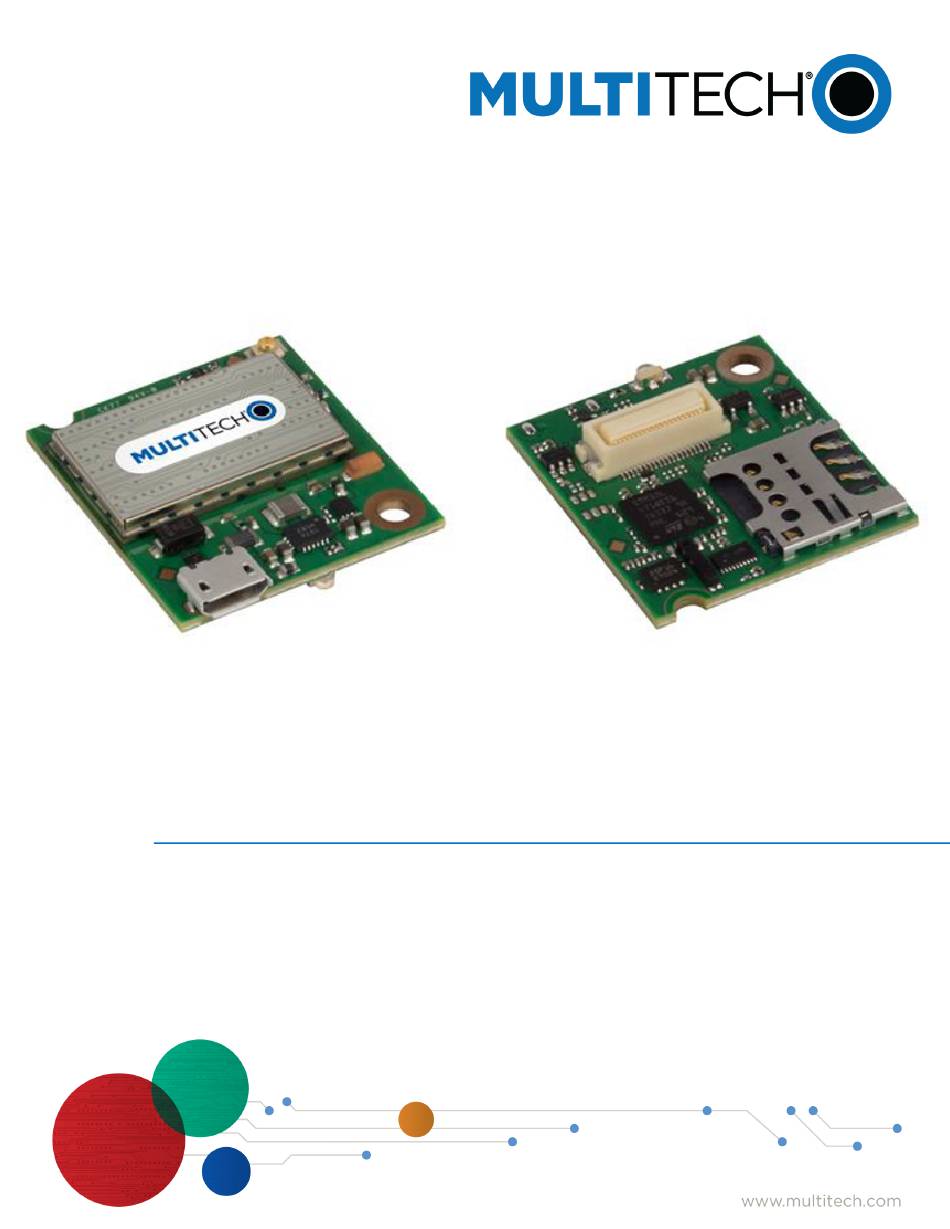

  • Page 1 SocketModem® MTQN MTQN-MNG1-B01 Device Guide...
  • Page 2 Legal Notices The MultiTech products are not designed, manufactured, or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.

  • Page 3: Table Of Contents

    CONTENTS Contents Chapter 1 Product Overview............................. 6 Overview .......................................... 6 Product Build Options ....................................6 Documentation ......................................6 Chapter 2 Mechanical Drawings ..........................8 MTQN-MNG1-B01 ...................................... 8 Chapter 3 Hardware and Specifications ........................ 9 Specifications........................................ 9 Mounting Hardware ....................................10 Recommended Parts..................................
  • Page 4 CONTENTS Chapter 6 Getting Started............................27 Developing with an MTQN in Mbed..............................27 About Mbed ......................................... 27 Programming the MTQN Microcontroller ............................. 27 Useful Links ........................................27 ST Microcontroller STM32L471QG ..............................28 Installing a SIM Card....................................28 Configuring u-blox Cellular Radio..............................28 USB Driver Installation ..................................
  • Page 5 CONTENTS Troubleshooting ......................................45 Serial COM port is not available in the Serial Modem Settings................... 45 Device is not detected ("No Device") ............................45 USB Modem is not detected ................................ 46 Connection Manager is not working, and a device connected to the computer is not detected .... 46 Connection Manager displays "Device Error"...

  • Page 6: Chapter 1 Product Overview

    SIM cards from your service provider. The complete product code may end in .Rx. For example, MTQN- MNG1-B01.Rx, where R is revision and x is the revision number. All builds can be ordered individually or in 50-packs. Documentation This documentation is on the product page at https://multitech.com/all-products/cellular/embedded- modems/multitech-socketmodem-mtqn. Document Description Part Number...
  • Page 7 PRODUCT OVERVIEW Document Description Part Number Sara-R4/N4 series, AT Provides AT commands and parameters used to UBX-17003787 Commands Manual configure your device. Note: Additional documentation is available at www.multitech.net. See Chapter 6, Getting Started for details. SocketModem® MTQN MTQN-MNG1-B01 Device Guide...

  • Page 8: Chapter 2 Mechanical Drawings

    MECHANICAL DRAWINGS Chapter 2 Mechanical Drawings MTQN-MNG1-B01 SocketModem® MTQN MTQN-MNG1-B01 Device Guide...

  • Page 9: Chapter 3 Hardware And Specifications

    HARDWARE AND SPECIFICATIONS Chapter 3 Hardware and Specifications Specifications Category Description Performance 3GPP Release 13 Cat M1 Half Duplex (Up to 375K bps downlink and uplink) Frequency Band AT&T Verizon (MHz) 700 MHz (B12), 850 MHz (B5), 700 MHz (B13) AWS1700 MHz (B4) and 1900 MHz (B2) Interface...

  • Page 10: Mounting Hardware

    HARDWARE AND SPECIFICATIONS Category Description EMC Compliance FCC Part 15 Class B Radio FCC Part 22, 24, 27 Compliance Safety UL/cUL 60950-1 2nd ED, IEC 60950-1 2nd ED +Am.2 Compliance Network PTCRB Carrier AT&T Verizon Actual performance speeds may be affected by a variety of attributes such as cell tower distance, data loads, packet sizes, etc.

  • Page 11: Mtqn-Mng1-B01 Pin Definitions

    HARDWARE AND SPECIFICATIONS MTQN-MNG1-B01 Pin Definitions Note: To program and use the SocketModem MTQN, you will need a UDK2 Developer Kit. For more pinout information and other details, refer to the STM32L471QG processor manual. In addition to their stated functions, all GPIO pins (PA_*, PB_*, PC_*, PG_*) can also be used as Digital-In and Digital- Out interfaces.
  • Page 12 HARDWARE AND SPECIFICATIONS Processor Processor IO Type Net name 40 Pin UDK2 pin Primary Pin Number Pin Name /Arduino Function VSS5 VSS6 VSS7 USB_DP USB_DP USB_DP USB_DM USB_DM USB_DM VCC-IN VCC-IN VCC-IN VCC-IN VCC-IN VCC-IN FT_a IO_00/RXD Serial Comm output from MTQN FT_a IO_01/DCD...
  • Page 13 HARDWARE AND SPECIFICATIONS Processor Processor IO Type Net name 40 Pin UDK2 pin Primary Pin Number Pin Name /Arduino Function FT_f IO_15/SDA/S GPIO, 4.7K pull up FT_s IO_16/MISO1 26 GPIO / MISO input to MTQN IO_17/SS2 GPIO FT_a IO_18/CTS Serial Comm output from MTQN IO_19/DSR...
  • Page 14 HARDWARE AND SPECIFICATIONS Processor Processor IO Type Net name 40 Pin UDK2 pin Primary Pin Number Pin Name /Arduino Function PB12 VCC- Control for IN_MEAS_EN enabling power measurement , pulled low with 100K resistor FT_fa VCC- Ananlog IN_MEAS power measurement PC10 FLASH_SCK FLASH_SCK,...
  • Page 15 HARDWARE AND SPECIFICATIONS Processor Processor IO Type Net name 40 Pin UDK2 pin Primary Pin Number Pin Name /Arduino Function PD14 RADIO_DCD Serial for Radio PD15 RADIO_DSR Serial for Radio RADIO_TXD Serial for Radio RADIO_RXD Serial for Radio VMEM_EN Power control for Flash, 100K pull up, active...
  • Page 16 HARDWARE AND SPECIFICATIONS Processor Processor IO Type Net name 40 Pin UDK2 pin Primary Pin Number Pin Name /Arduino Function VDD4 VDD5 VDD6 VDD7 VDDA VDDIO2 VREF+ Data taken from STM32L471QG processor datasheet. Key for IO type values: FT 5V tolerant IO TT 3.6V tolerant IO B Dedicated Boot pin RST Reset pin...
  • Page 17 HARDWARE AND SPECIFICATIONS UDK2 Primary Alternate names PA_3 UART2_RX ADC1_IN8, ADC2_IN8, SERIAL_RX , IO_21 PA_6 IO_11 ADC1_IN11, ADC2_IN11 PA_7 UART2_DCD TIM3_2, TIM7_1, ADC1_IN12, ADC2_IN12, SERIAL_DCD, IO_01 PA_9 UART2_DSR SERIAL_DSR, IO_19 PB_0 SERIAL_RI TIM3_3, ADC1_IN15, ADC2_IN15, IO_02 PB_10 SPI2_SCK IO_13 PB_12 VCC_IN_MEAS_EN PB_15 SPI2_MOSI...

  • Page 18: 40-Pin Connector

    HARDWARE AND SPECIFICATIONS UDK2 Primary Alternate names PD_10 RADIO_RI MDMRI PD_11 RADIO_CTS MDMCTS, UART3_CTS PD_12 RADIO_RTS MDMRTS, UART3_RTS PD_13 RADIO_DTR MDMDTR PD_14 RADIO_DCD MDMDCD PD_15 RADIO_DSR MDMDSR PD_8 RADIO_TX MDMTXD PD_9 RADIO_RX MDMRXD , UART3_RX PE_1 VMEM_EN PE_11 CELL_GPIO5 PE_13 CELL_GPIO2 PE_14 CELL_GPIO3...

  • Page 19: Communications Flow

    HARDWARE AND SPECIFICATIONS Communications Flow MTQN-MNG1-B01 The MTQN-MNG1-B01 provides full UART from the cellular radio to the processor as well as the user application. Model B01 provides a direct USB interface connection to the radio, but not through the 40- pin connector.

  • Page 20: Nominal Ratings

    HARDWARE AND SPECIFICATIONS Symbol Description Conditions Min. Max. Unit External voltage -0.3 DDIO2 Input Voltage Input voltage on FT_xxx pins V -0.3 min (V DDIO2 + 4.0 3 & 4 Input voltage on TT_xx pins -0.3 Input voltage on BOOT0 pin V Input voltage on any other -0.3 pins...

  • Page 21: Power Draw

    HARDWARE AND SPECIFICATIONS Symbol Ratings Max Voltage (mA) Total output current sunk by sum of all I/Os and control IO(PIN) pins Total output current sourced by sum of all I/Os and control pins Injected current on FT_xxx, TT_xx, RST and B pins, -5/+0 INJ(PIN) except PA4, PA5...

  • Page 22: Usb Cable Recommendations

    If possible, use a USB port that connects directly to the motherboard rather than a USB port with added cabling inside the computer chassis. Use USB 3.0 ports if available. These ports are typically rated for more current. You can order the USB cable through MultiTech. The part number is: CA-USB-A-MICRO-B-3. SocketModem® MTQN MTQN-MNG1-B01 Device Guide...

  • Page 23: Chapter 4 Antennas

    ANTENNAS Chapter 4 Antennas Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 0.698 - 0.96 GHz 1.710 - 2.170 GHz...

  • Page 24: Chapter 5 Safety Instructions

    SAFETY INSTRUCTIONS Chapter 5 Safety Instructions Handling Precautions To avoid damage due to the accumulation of static charge use proper precautions, such as an ESD strap, when handling any cellular device to avoid exposure to electronic discharge during handling and mounting the device.

  • Page 25: General Safety

    SAFETY INSTRUCTIONS Éteignez votre appareil sans fil à proximité des pompes à essence ou de diesel avant de remplir le réservoir de votre véhicule de carburant. Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés.

  • Page 26: Vehicle Safety

    Do not expose the device to water, rain, or other liquids. It is not waterproof. Exposure to liquids could result in damage to the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with the device accessory specifications may invalidate the warranty.

  • Page 27: Chapter 6 Getting Started

    Compile in the cloud or locally, copy the resulting binary file to the Mbed USB drive, and reset the MTQN-MNG1. MTQN software is open source. Useful Links Description Link MTUDK2-ST-CELL https://www.multitech.com/models/94557065LF developer guides (see Manuals for different versions) Serial Flash Datasheet http://www.micron.com (refer to P/N M25P16)

  • Page 28: St Microcontroller Stm32L471Qg

    GETTING STARTED Based on current research, cellular devices do not pose a significant health problem for most pacemaker wearers. However, people with pacemakers may want to take simple precautions to be sure that their device doesn't cause a problem. Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device.
  • Page 29 GETTING STARTED LTE bands intended for the application device and within regulatory compliance. The module is not intended be used in the factory-default setting. Depending on your MNO profile, certain elements may or may not be available. Refer to the table for details.

  • Page 30: Usb Driver Installation

    For the Windows USB driver, refer to the SARA-R4 USB Driver Installation Guide on the product page of the Multitech website. The driver is located under the Downloads section of the product page. For the Linux USB driver, if your Linux OS does not automatically detect your device, you may need to execute a script.

  • Page 31: Chapter 7 At Commands

    AT COMMANDS Chapter 7 AT Commands Powering Down the Cellular Radio CAUTION:: Failing to properly power down the cellular radio before removing power may corrupt the radio's file system. To properly power down the cellular radio, use one of the following methods: Issue command AT+CPWROFF then either wait 40s or until 1.8v from the cellular radio goes low.
  • Page 32 AT COMMANDS PSM mode- AT+CPSMS command eDRX- AT+CEDRXS command Device functionality- AT+CEDRXS command Power to Cellular Radio After power down, RADIO_PWR can be configured as an analog input with no pull resistor to disable the power supply regulator that powers the radio. There is an on board resistor that sets the RADIO_PWR signal level so that the regulator is disabled.

  • Page 33: Chapter 8 Labels

    This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered.

  • Page 34: Chapter 9 Regulatory Information

    REGULATORY INFORMATION Chapter 9 Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 35 REGULATORY INFORMATION The device operates within approved frequencies overlapping with the following cellular bands: LTE 2, 1900 PCS UP LTE 25, 1900+ UP LTE 35, TD PCS Lower DOWN UMTS CH 2 UP UMTS CH 25 UP UMTS CH 35 DOWN The following table provides the certified radio frequency data for this device: FCC Rule Frequency Range...

  • Page 36: Chapter 10 Environmental Notices

    Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.

  • Page 37: Eu Reach-Svhc Statement

    Multi-Tech Systems, Inc. confirms that none of its products or packaging contain any of the Substances of Very High Concern (SVHC) on the REACH Candidate List, in a concentration above the 0.1% by weight allowable limit. For the current REACH-SVHC statement and additional regulatory documents, go to https://multitech.com/approvals-and-certifications/. SocketModem® MTQN MTQN-MNG1-B01 Device Guide...

  • Page 38: Chapter 11 Using Connection Manager

    Click Connection Manager. Open or unzip the Connection Manager file and run the installer (.msi file). On the MultiTech Connection Manager Setup Wizard Welcome Panel, click Next. Read the end-user license agreement and check I accept the terms in the License Agreement.

  • Page 39: Setting Up A Serial Device In Windows Device Manager

    In the Setup Wizard, click Finish. Note: To open Connection Manager automatically after installation, check Start the MultiTech Connection Manager when the installation is finished. If using a USB device, you can connect the device to the carrier's network with Connection Manager. See Connecting a Device.
  • Page 40 USING CONNECTION MANAGER In the Add Hardware Wizard: Click Next. Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right.

  • Page 41: Connecting A Device

    USING CONNECTION MANAGER Connecting a Device Prerequisite: Make sure that your device is connected to the computer where Connection Manager is installed. If you have a serial device, set up the device in Device Manager. See Setting Up a Serial Device in Windows Device Manager.

  • Page 42: Uninstalling Connection Manager

    USING CONNECTION MANAGER On the Settings tab, select USB Modem or Serial Modem depending on whether you are connecting a USB or serial device. If you are connecting a serial device, provide the serial settings on the Settings tab: In the Modem type list, select the appropriate modem type. For the other settings, provide the values that match the serial-port settings for the device in Device Manager.

  • Page 43: Connection Manager User Interface

    The steps above describe how to uninstall Connection Manager using Control Panel. You can also uninstall the application by using the installer file (.msi). Double-click the file, in the MultiTech Connection Manager Setup Wizard, click Next, and then select Remove on the next two pages.

  • Page 44: Main Tab

    USING CONNECTION MANAGER Main tab The Main tab displays the following: Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected The action button, which changes according to the current device connection status: Detect, Connect, or Disconnect Signal strength bars and percentage indicator (only when connection to the carrier's network is established) Note: The signal strength is displayed for a serial device only when the device is not connected to...

  • Page 45: Connection Tab

    USING CONNECTION MANAGER If Serial Modem is selected, the tab displays the serial settings that match the serial-port settings for the device. You can edit these settings. The Settings tab also contains the Run application at Windows startup and Connect to the Internet automatically options.
  • Page 46 USING CONNECTION MANAGER Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. If you are connecting a serial device, make sure that all serial modem settings correspond to the serial modem and serial port configuration.
  • Page 47 USING CONNECTION MANAGER In Connection Manager, click the Settings tab. In Device Manager, open Modems and then right-click on your device and select open the Properties. Note: If Modems and Ports don't appear in Device Manager, open the View Menu and select Show hidden devices.
  • Page 48 USING CONNECTION MANAGER In Device Manager, open Ports (COM & LPT) and then right-click on the Com Port used by your device and select Properties. Click the Port Settings tab to confirm the Bits per second, Date bits, Parity, Stop bits and Flow control match those settings in Connection Manager.
  • Page 49 USING CONNECTION MANAGER SocketModem® MTQN MTQN-MNG1-B01 Device Guide...

  • Page 50: Warranty

    Warranty To read the warranty statement for your product, go to https://www.multitech.com/warranty. Contact Information General Information info@multitech.com https://multitech.com/contact-us/ Sales +1 (763) 785-3500 sales@multitech.com Technical Support Portal +1 (763) 717-5863 https://support.multitech.com Website www.multitech.com World Headquarters 2205 Woodale Drive Mounds View, MN 55112...
