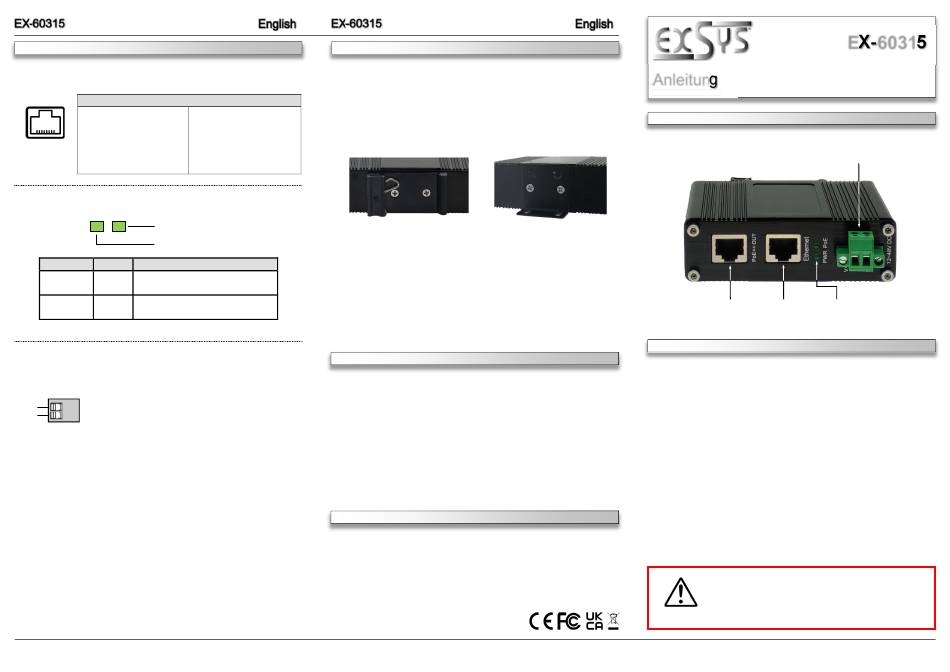

Exsys EX-60315 User Manual

CONNECTORS & LED'S
RJ45 Port:
Power over Ethernet IEEE802.3af/at/bt (PoE++ / 4PPoE)
RJ45 Port
Pin Signal PoE Pin
Mode A Mode B
1 BI_DA+ VCC+
87654321
2 BI_DA- VCC+
3 BI_DB+ VCC-
4 BI_DC+ VCC+
Status LEDs:
PoE LED
Power LED
LED Name Color LED Function
On: Powered
Power Green
Off: no power connection
On: PoE activated
PoE Green Blinking: Power Device (PD) detected
Off: no (PD) device connected
12V to 48V T-Block:
ATTENTION!
V+
Please pay attention to the correct polarity!
V-
Never connect the power supply to the terminal block while it
is switched on!
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1. Install the EX-60315 on a mounting rail using the DIN-Rail kit or on the wall using the wall
mounting brackets.
Signal PoE
Mode A Mode B
The DIN-Rail Kit is pre-assembled with
5 BI_DC- VCC+
two screws on the rear side
6 BI_DB- VCC-
7 BI_DD+ VCC-
8 BI_DD- VCC-
2. Connect the power connector of the optionally available power supply to the terminal block
and turn on the power supply.
3. When the power is turned on, the PWR indicator lights up. If the indicator is not lit, check
for proper connection to the power supply.
4. Connect your router to the RJ45 input of the PoE injector.
5. Now connect your PoE PD device to the PoE port.
6. If all cables are connected correctly, the indicators light according to the port status of the
LEDs (page 5).
TECHNICAL NOTE
Procedure for STP Cable Grounding
When using shielded cables to connect two Ethernet devices, a ground loop may occur if the
shielding on the cables generates an additional grounding connection path. This can cause
ground current to flow through to the Ethernet ports and damage the devices. If it is necessary
to use shielded cables, we recommend using a metallic RJ45 connector on one end and a non-
metallic connector on the other end. Alternatively, a patch panel can be used in between the
two devices to prevent ground loops from occurring.
For connections over short distances (e.g., between two devices installed in the same cabinet),
both ends of the shielded cable can be referenced to the same grounding point. Therefore, in
this case, it is acceptable to use a shielded cable with metallic RJ45 connectors on both
devices.
CLEANING
To clean the unit, use only a dry, lint-free cloth and apply light pressure to remove dirt. Take
care not to leave any fibres of the cloth in the connectors.
Never use a damp or wet cloth for cleaning!
