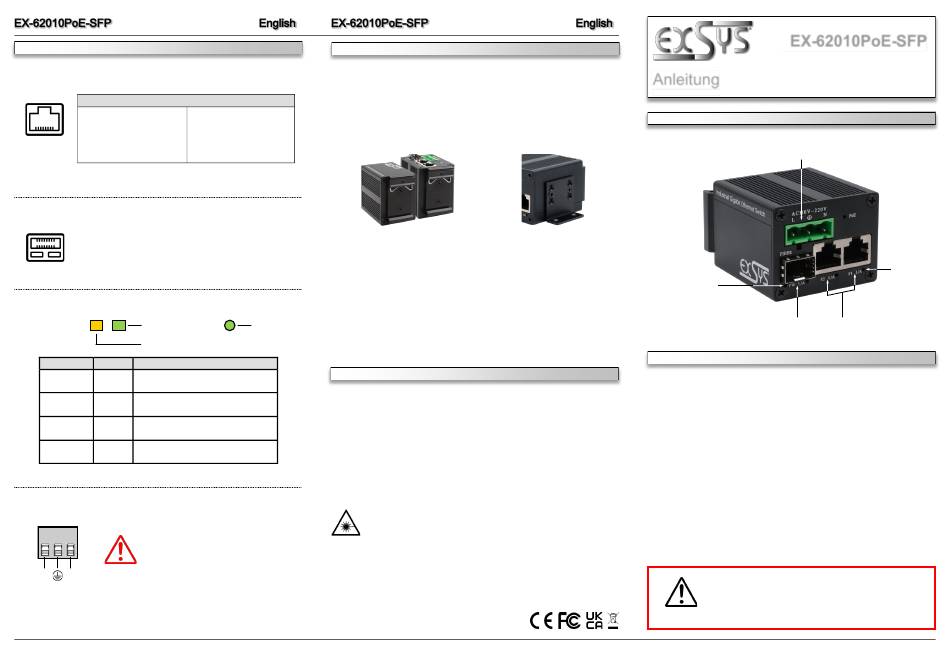

Exsys EX-62010PoE-SFp Manual

CONNECTORS & STATUS LEDs
RJ45 Port:
Power over Ethernet IEEE802.3af/at (PoE+), Mode B
RJ45 Port
Pin Signal PoE Pin
1 BI_DA+
2 BI_DA-
87654321
3 BI_DB+
4 BI_DC+ VCC+
PoE-Budget: 40W max.
SFP slot:
ATTENTION!
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not stare
directly into the laser beam.
Status LEDs:
PoE LED
LINK / Activity LED
LED Name Color LED Function
Steady on: Power on
Power (PW) Yellow
Off: Power not connected
Steady on: Device connected
RJ45 L/A Green Blinking: Data Transmission
Off: No device connected
Steady on: Fiber linked
SFP L/A Green Blinking: Data Transmission
Off: No Fiber connected
Green (P1) Steady on: PoE is activated
PoE
Red (P2) Off: No (PD) device connected
85VAC to 250VAC T-Block:
WARNING!
Mains voltage: Risk of electric shock if the
wiring is incorrect.
Never connect the power supply to the terminal
block when switched on!
L N
5
HARDWARE INSTALLATION
Please read the following installation instructions.
1. Install the EX-62020POE-SFP on a mounting rail using the DIN-Rail kit or on the wall using
the wall mounting bracket.
Signal PoE
The DIN-Rail Kit is pre-assembled to
5 BI_DC- VCC+
the rear with two screws. Alternatively,
it can be attached to the side
6 BI_DB-
(threads under label).
7 BI_DD+ VCC-
8 BI_DD- VCC-
2. Slide the optionally available SFP transceiver into the SFP slot.
3. Connect your network devices to the switch using a network cable.
4. Connect the fiber optic cable used to connect to the media converter or switch to the SFP
transceiver you are using.
CAUTION! Do not look directly into the laser beam of the fiber optic connector!
5. Connect the power supply to the terminal block and switch on.
CAUTION! Ensure correct wiring to avoid risk of electric shock.
6. After the power is turned on, the PWR indicator lights up. If the indicator does not light up,
FX LED
check that it is connected to the power supply correctly.
7. When all cables are connected correctly, the indicators light up according to the port status
of the LEDs (page 5).
NOTICE & CLEANING
Procedure for STP Cable Grounding
When using shielded cables to connect two Ethernet devices, a ground loop may occur if the
shielding on the cables generates an additional grounding connection path. This can cause
ground current to flow through to the Ethernet ports and damage the devices. If it is necessary
to use shielded cables, we recommend using a metallic RJ45 connector on one end and a non-
metallic connector on the other end. Alternatively, a patch panel can be used in between the
two devices to prevent ground loops from occurring.
Switch off the power supply before disconnecting modules or wires.
The propper power supply voltage is indicated on the product label. Check the voltage of your
power source to ensure you are using the correct voltage. DO NOT use a voltage higher than
what is specified on the product.
SFP Transceivers are a Class 1 Laser/LED product.
To avoid causing serious damage to your eyes, do not stare directly into the
laser beam.
To clean the device, please use only a dry, non-fibrous cloth and remove the dirt with light
pressure. In the area of the connections, please make sure that no fibers of the cloth are left in
the socket.
Attention! Never use a moist or wet cloth for cleaning!
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
The wall bracket can be mounted
using the same threads as the
DIN-Rail Kit
Switzerland: Italy:
EXSYS Vertriebs GmbH EXSYS Italia Srl
Dübendorfstrasse 17 Via Belvedere, 45/B
8602 Wangen I-22100 Como
www.exsys.ch www.exsys.it
6
EX-62010PoE-SFP
Anleitung Anleitung
Vers. 1.0 / 20.02.25
AUFBAU
85-250VAC T-Block
für Netzteil
Betriebs-LED
1x SFP Slot
100/1000 Gigabit PoE
BESCHREIBUNG & TECHNISCHE DATEN
Der extrem kompakte, industrietaugliche 3-Port Gigabit Switch EX-62010POE-SFP ist die
perfekte Lösung, wenn es eng wird. Er kann auf kleinstem Raum als Switch, Medienkonverter
oder PoE-Injektor eingesetzt werden. Da er mit Wechselspannung (Terminal Block, 85-
250VAC) betrieben wird, ist kein DC-Netzteil erforderlich, was zusätzlich Platz spart. An einem
der beiden RJ45-Ports stehen bis zu 40W für den Anschluss von PoE Powered Devices (PD)
wie z.B. IP-Kameras oder IP-Telefone zur Verfügung. Für den SFP-Slot sind passende SFP-
Transceiver als Zubehör erhältlich. Durch das robuste Metallgehäuse und den erweiterten
Betriebstemperaturbereich von -40°C bis 75°C eignet sich der EX-62010POE-SFP für eine
Vielzahl von Anwendungen auch in rauen Umgebungen. Zum Lieferumfang gehören ein
vormontiertes DIN-Rail Kit und eine Wandmontagehalterung.
Kompatibilität: Gigabit Ethernet 10/100/1000Base-T
PoE: IEEE 802.3af/at (PoE+), Mode/Alternative B
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 2x RJ45-Buchse, 1x SFP-Slot, 1x Terminal Block 85~250VAC
Lieferumfang: EX-62010POE-SFP, DIN-Rail Kit, Wandmontagehalterung,
Anleitung
ACHTUNG!
Bei geerdetem Minuspol
unbedingt den Technischen Hinweis auf Seite 3
beachten.
1
Status LEDs
2x RJ45
der Stromversorgung
