JBL PROFLORA CO2 Manual

Instructions for use

Read the instructions for use carefully, especially the safety instructions. Failure to observe these instructions for use may result in serious injury or damage to the product.

Important note in advance (only JBL PROFLORA CO2 PROFESSIONAL U-, M-, or V SET)

Please don't forget to buy a new JBL PROFLORA CO2 pH SENSOR SET!
To guarantee you the highest reliability when using the JBL PROFLORA CO₂ CONTROL contained in the systems above, the systems are sold without a pH sensor. When purchasing the device make sure to also purchase a new pH SENSOR SET. Your specialist pet shop will have one in stock for you.

Congratulations on your purchase of this ultramodern JBL PROFLORA CO₂ system from SYSTEM U- M- or V. Whether with disposable or refillable CO₂ pressurised gas cylinders, precise and easy-to-use technology ensures a convenient and safe supply of CO₂ to your aquarium. This will give you beautiful and vibrant aquarium plants almost in no time at all.

Differentiating between the systems and sets:
SYSTEM BIO: CO₂ gas is produced from biological fermentation processes.
SYSTEM M: Reusable CO₂ pressurised gas cylinders with thread W21.8 x 1/14" are refillable.
SYSTEM U: Disposable CO₂ pressurised gas cylinders with thread M10x1 are not refillable.
SYSTEM V: VARIO sets do not contain CO₂ pressurised gas cylinders. However, they can be operated with M and U CO₂ pressurised gas cylinders.

Special features of the SYSTEM V:
JBL PROFLORA CO₂ fertiliser systems of SYSTEM V differ in their design in that no CO₂ pressurised gas cylinders are included. All descriptions for SYSTEM M also apply to SYSTEM V.

Intended use:
The product is designed for use in an aquarium only. The product is to be used indoors only. It is intended for private use only and is not suitable for commercial use.
Use the product only as described in this instruction manual. Any other use will be deemed inappropriate and may result in property damage or personal injury. The product is not a child's toy.

Special features

Professional water care:

• Beautiful and vibrant aquarium plants.
• Active algae prevention and healthy fish.
• For both fast and slow growing plants.

Economical:

• CO₂ reactors/diffusers of the JBL PROFLORA CO₂ TAIFUN range with maximum diffusion rate of CO2 in water.
• Exact dosing using a high-precision fine needle valve at the pressure regulator.
• CO2 savings from night switch-off with solenoid valve.JBL PROFLORA CO₂ PROFESSIONAL SET only:
• Digital measuring and control technology JBL PROFLORA CO₂ CONTROL regulates pH value and CO₂ supply reliably and fully automatically.

Convenient:

• Easy to assemble.
• Best monitoring with bubble counter JBL PROFLORA CO₂ TAIFUN COUNT SAFE with integrated backflow protection.
• Refillable reusable CO₂ pressurised gas cylinder JBL PROFLORA CO2 CYLINDER 500 M (SYSTEM M).
• Convenient disposable CO₂ pressurised gas cylinder JBL PROFLORA CO₂ CYLINDER 500 U (SYSTEM U). JBL PROFLORA CO₂ BASIC SET only:
• Elegant glass diffuser with ceramic membrane JBL PROFLORA CO₂ TAIFUN GLASS. From JBL PROFLORA CO₂ ADVANCED SET onwards:
• Pressure regulator with pressure gauges for working and residual pressure display.
• Expandable reactor JBL PROFLORA CO2 TAIFUN SPIRAL. JBL PROFLORA CO₂ PROFESSIONAL SET only:
• CO₂/pH control JBL PROFLORA CO₂ CONTROL with touch display and multilingual user guidance.

Safe:

• Tested refillable CO₂ pressurised gas cylinders JBL PROFLORA CO₂ CYLINDER 500 M with overpressure protection and secure wall mounting (SYSTEM M).
• Tested disposable CO₂ pressure gas cylinders JBL PROFLORA CO₂ CYLINDER 500 U, free-standing (SYSTEM U).
• With pressure relief valve on the pressure regulator.
• Bubble counter JBL PROFLORA CO₂ TAIFUN COUNT SAFE with integrated non-return valve to protect the pressure regulator against backflowing water.
• With hose screw connections to prevent the hose from slipping off.

JBL PROFLORA CO₂ ADVANCED SET and JBL PROFLORA CO₂ PROFESSIONAL SET only:

• Pre-assembled solenoid valve JBL PROFLORA CO₂ VALVE operated with 12 V safety extra-low voltage.

JBL PROFLORA CO₂ PROFESSIONAL SET only:

• CO₂/pH control JBL PROFLORA CO2 CONTROL operated with 12 V safety extra-low voltage.

Overview of the equipment variants

* pre-assembled

Parts and description

CO2 pressurised gas cylinders

Version:

1. JBL PROFLORA CO₂ CYLINDER 500 U
   Disposable CO₂ pressurised gas cylinders filled with 500 g CO₂ (SYSTEM U)

2. JBL PROFLORA CO2 CYLINDER 500 M
   Refillable CO₂ pressurised gas cylinders with stand, filled with 500 g CO₂ (SYSTEM M)


Pressure regulator

REGULATOR PROFESSIONAL

Version:

1. JBL PROFLORA CO2 REGULATOR PROFESSIONAL (SYSTEM M)
2. JBL PROFLORA CO2 REGULATOR PROFESSIONAL (SYSTEM U)

Parts:

1. Connection adapter (JBL PROFLORA CO₂ ADAPT U - M) for refillable CO₂ pressurised gas cylinders W21.8 x 1/14Ø (only for version 1).
2. Connection thread for disposable CO₂ pressurised gas cylinders: M10 x 1 (SYSTEM U).
3. Pressure gauge (display) for cylinder pressure.
4. Pressure gauge (display) for working pressure.
5. Connection (screw fitting) for CO₂ hose 4 / 6 mm.
6. Needle valve for CO₂ quantity.
7. Adjustment knob for working pressure.
8. Opening of the pressure relief valve.
9. Valve body.
10. Power supply unit 12 V DC.

Description:
State-of-the-art pressure regulator that can be used for both refillable and disposable CO2 pressurised gas cylinders:
The JBL PROFLORA CO₂ REGULATOR PROFESSIONAL (SYSTEM M) pressure regulator (version 1) can be converted to disposable CO₂ pressurised gas cylinders by simply unscrewing the JBL PROFLORA CO2 ADAPT U - M thread adapter (part a.)
The JBL PROFLORA CO₂ REGULATOR PROFESSIONAL (SYSTEM U) pressure regulator (version 2) can be converted to fit refillable CO₂ pressurised gas cylinders by purchasing the adapter JBL PROFLORA CO2 ADAPT U - M (part a.).
The cylinder connection nut of the pressure regulator is designed as a knurled nut that only needs light tightening by hand, without the use of tools. The use of tools can lead to damage.
The pressure in the CO2 pressurised gas cylinder and the working pressure can conveniently be read on two separate pressure gauges. The working pressure can be adjusted to 1.2 bar. A safety valve ensures safety in case of unintentional excess pressure caused by releasing the CO₂ into the environment.
Pre-assembled and silent 12 V solenoid valve (part i.) of the highest quality. Power consumption of only 2 W, optimised for use with CO₂ fertiliser systems, saves electricity. An electronic 12 V power supply unit enables use on all common mains voltages worldwide.

REGULATOR BASIC

Version:

1. JBL PROFLORA CO2 REGULATOR BASIC (SYSTEM M)
2. JBL PROFLORA CO2 REGULATOR BASIC (SYSTEM U)

Parts:

2. Connection adapter (JBL PROFLORA CO2 ADAPT U - M) for refillable CO₂ pressurised gas cylinders W21.8 x 1/14Ø (only for version 1).
3. Connection thread for disposable CO₂ pressurised gas cylinders: M10 x 1 (SYSTEM U).
4. Connection (screw fitting) for CO₂ hose 4 / 6 mm.
5. Needle valve for CO₂ quantity.

Description:
With this pressure reducer, JBL has succeeded in creating an inexpensive yet high-quality pressure regulating fitting for refillable as well as for disposable CO2 pressurised gas cylinders. The two pressure gauges have been deliberately omitted in order to keep the cost of the pressure regulator low.
A conversion to disposable or refillable CO2 pressurised gas cylinders is also possible here by purchasing or removing the JBL PROFLORA CO2 ADAPT U - M thread adapter (part a.).
All pressure regulators come equipped with a smooth-running and high-precision adjustment screw (needle valve) that allows you to set the CO2 quantity you need conveniently and precisely.

CO2 reactor

Version:

1. JBL PROFLORA CO₂ TAIFUN SPIRAL TAIFUN SPIRAL 10
2. JBL PROFLORA CO₂ TAIFUN SPIRAL TAIFUN SPIRAL EXTEND

Parts JBL PROFLORA CO₂ TAIFUN SPIRAL 10:

1. Lower part with screw connection.
2. Lid for lower part (to prevent slugs entering).
3. 10x spiral modules.
4. Collection cap to prevent CO₂ loss.
5. CO₂ hose JBL PROFLORA CO2 TAIFUN TUBE BLACK.
6. 3x Holding clip with suction cup.

Parts JBL PROFLORA CO₂ TAIFUN SPIRAL EXTEND:

6. 5x spiral modules

6. 1x Holding clip with suction cup.

Description:
CO₂ reactor that can be expanded as required with maximum diffusion rate of CO₂ in water.
The modular design of the JBL PROFLORA CO₂ TAIFUN SPIRAL reactor allows the reactor to be adapted for optimum CO₂ utilisation in practically any size of aquarium. The basic version with 10 modules provides the optimal CO₂ amounts for aquariums up to 400 l. An extension JBL PROFLORA CO₂ TAIFUN SPIRAL EXTEND with five modules increases the range by 200 l. The unique design of the spiral channel up which the CO₂ bubbles rise, with ventilation slits at the sides, allows the complete diffusion of the CO₂ into the surrounding water without the need for an additional water pump to create turbulence. The transparency of the reactor allows the rising bubbles to be closely observed.

CO2 diffuser

JBL PROFLORA CO2 TAIFUN GLASS MIDI (JBL PROFLORA CO₂ BASIC SET only)

Description:
Elegant glass diffuser with ceramic membrane. The ceramic membrane ensures extra-fine CO2 bubbles, through which the CO2 diffuses perfectly into the water. The reactor is ideal for supplying CO2 to aquariums up to 300 l and cannot be extended.

CO2 hose

JBL PROFLORA CO2 TAIFUN TUBE BLACK

Description:
3 m special hose, impermeable to CO₂, for loss-free supply of CO₂ to the aquarium.

Bubble counter with integrated backflow stop

JBL PROFLORA CO2 TAIFUN COUNT SAFE with integrated backflow stop

Description:
Bubble counter with integrated backflow stop for convenient control of the CO₂ quantity.
The bubble counter JBL PROFLORA CO2 TAIFUN COUNT SAFE allows convenient control of the CO₂ quantity. An integrated backflow stop provides additional protection against backflowing water. The installation of a separate backflow protection is not necessary. Hose screw connections at the inlet and outlet ensure safety. The enclosed screws can also be used for fastening to rougher furniture surfaces.
Note on the function of the integrated backflow protection: A built-in seal is „pre-tensioned" by a spring and thus prevents water from penetrating expensive solenoid valves, pressure regulators and CO₂ pressurised gas cylinders. CO₂ has a very strong diffusion force which, in the case of „normal" non-return valves without a spring, would draw the water out of the aquarium through the valve and into the CO₂ pressurised gas cylinders.

pH CONTROL

JBL PROFLORA CO₂ CONTROL (JBL PROFLORA CO2 PROFESSIONAL SET only)

Parts:

1. JBL PROFLORA CO ₂ CONTROL measurement and display device
2. Wall mount with screws
3. Temperature sensor
4. 2x suction cups for temperature sensor
5. Connection cable to solenoid valve
6. Power supply 12V DC
7. Tray for calibration cuvettes

Description:
The latest digital measuring and control technology measures the pH value and temperature and regulates the pH value and supply of CO₂ reliably and fully automatically via an external solenoid valve. This ensures beautiful and luxuriant aquarium plants and healthy fish. The JBL PROFLORA CO₂ CONTROL pH control has a modern coloured touch display as well as a whole range of useful features never before incorporated in equipment of this class. A multilingual menu guides you easily and safely through all the functions. The complete equipment runs on low voltage (12V), providing the highest possible safety.

(For further details, please refer to the operating instructions separately enclosed with this unit).

JBL PROAQUATEST CO2-pH Permanent

(JBL PROFLORA CO₂ BASIC SET and JBL PROFLORA CO₂ ADVANCED SET)
Description: CO₂ permanent test to check the correct CO₂/pH value of the water.

JBL Ferropol basic fertiliser

Description: Fertiliser for aquatic plants

JBL Ferropol 24 daily fertiliser

Description: Daily fertiliser for aquatic plants.

Allen key 6mm

Description: Allen key for mounting or dismounting the thread adapter JBL PROFLORA CO₂ ADAPT U - M.

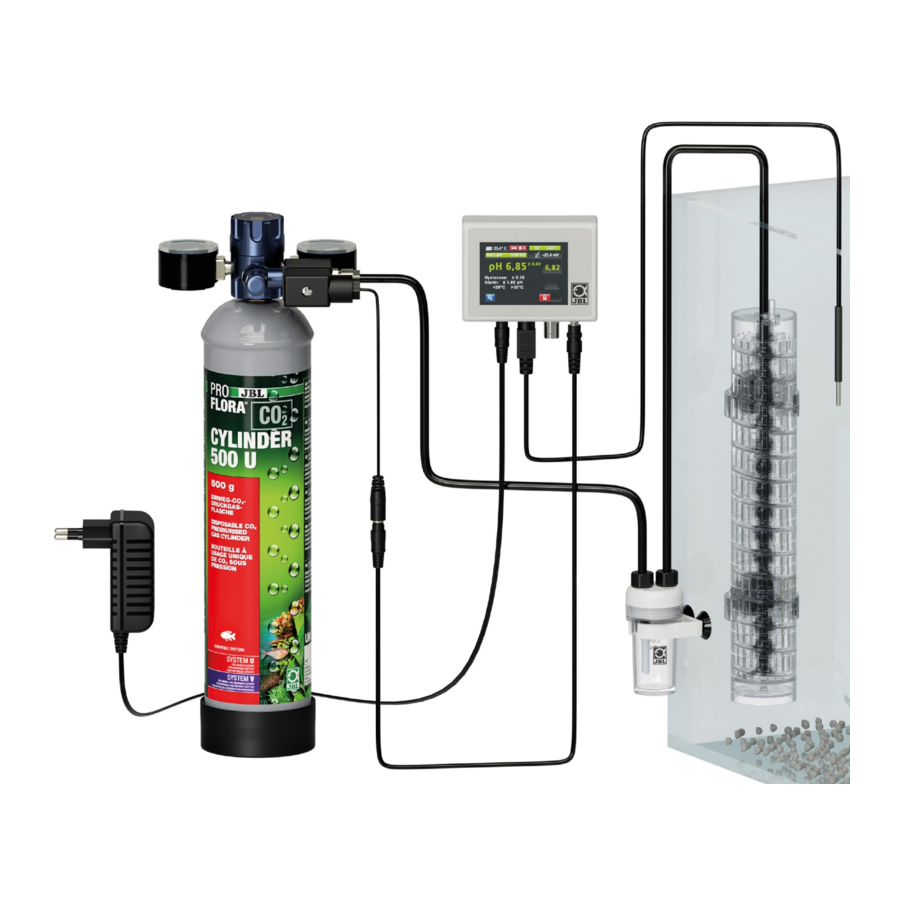

Installation scheme

The following figure shows a schematic installation overview. For the sake of clarity, we have limited ourselves to showing the CO₂-carrying parts. Sensors and voltage supply lines are not shown. Only the connecting cable from the CO₂ CONTROL to the solenoid valve is shown.

Installation step by step

Mounting the CO2 reactor or CO2 diffuser

JBL PROFLORA CO₂ BASIC SET:
Rinse the JBL PROFLORA CO₂ TAIFUN GLASS MIDI CO₂ diffuser (see "CO2 diffuser") with lukewarm tap water and connect it to the CO₂ hose (see "CO2 hose").
Place the diffuser in a position where there is a gentle water movement as close as possible to the bottom of the aquarium.

JBL PROFLORA CO₂ ADVANCED SET and JBL PROFLORA CO₂ PROFESSIONAL SET:
First attach the JBL PROFLORA CO₂ TAIFUN SPIRAL EXTEND extensions according to the aquarium height to the JBL PROFLORA CO₂ TAIFUN SPIRAL CO₂ reactor (see "CO2 reactor").
Rinse the reactor with lukewarm tap water and place it vertically in the aquarium in a position with slight water movement. The top edge should be approx. 2 cm below the water level. Prevent plants or decorative objects as much as possible from blocking the slots of the individual modules.

Installing the CO2 permanent test

JBL PROFLORA CO₂ BASIC SET and JBL PROFLORA CO₂ ADVANCED SET:
Install the CO₂ permanent test (see "JBL PROAQUATEST CO2-pH Permanent") in the aquarium according to the instructions enclosed.

Installing the bubble counter

Choose a suitable place that you can observe comfortably and install the bubble counter there (see "Bubble counter with integrated backflow stop"). The bubble counter can either be attached with suction cups (e.g. on the outside of the aquarium) or to a wall or furniture surface with the enclosed screws. Cut the CO₂ hose (see "CO2 hose") accordingly and attach the free ends to the hose screw connections of the bubble counter. Make sure to connect the supply hose to the connection with the long tube in the bubble counter. Unscrew the lid of the bubble counter. Fill it about 2/3 full with water and close it again. If the backflow stop (check valve) was dismantled during unscrewing, make sure to reassemble all parts correctly (see drawing on the separate packaging of the bubble counter).

Note: For installations without a bubble counter, it is necessary to install a separate backflow stop, which is not included in the set.

JBL PROFLORA CO₂ PROFESSIONAL SET:
Select a dry and easily accessible location for installation when mounting the pH control (see "pH Control"). Connect the solenoid valve of the pressure regulator ("Regulator Professional") to the connection „valve" of the pH control (see "pH Control") using the valve connection cable enclosed. The sockets on the pH control and the plug connections of the valve cable are designed in such a way that an incorrect connection is not possible.

Moving the CO2 pressurised gas cylinder into position

SYSTEM M:
Choose a place to mount the refillable CO₂ pressurised gas cylinder that is out of the reach of children (e.g. aquarium cabinet). Mount the JBL PROFLORA CO₂ CYLINDER WALLMOUNT on a wall or furniture surface using the two enclosed screws. The thickness of the furniture boards should not be less than 16mm. The refillable CO₂ pressurised gas cylinder JBL PROFLORA CO2 CYLINDER 500 M ("CO2 pressurised gas cylinders" version 1) can now be hung on the wall mount using the safety bracket.

SYSTEM U:
The JBL PROFLORA CO₂ CYLINDER 500 U disposable CO₂ pressurised gas cylinders ("CO2 pressurised gas cylinders" version 2) are free-standing.
Choose a place for mounting the CO₂ pressurised gas cylinder that is out of the reach of children (e.g. aquarium cabinet).

Connecting the pressure regulator to the CO2 pressurised gas cylinder

SYSTEM U:
Quickly screw the rear internal thread of the pressure regulator fitting ("Regulator Professional". version 2, "Regulator Basic". version 2) onto the external thread of the disposable CO₂ pressurised gas cylinder. After a few turns a brief hissing noise will be heard. Continue to turn briskly until resistance is felt. Then turn about half a turn more until the pressure regulator is hand-tight.

SYSTEM M:
Screw the rear connection nut of the pressure regulator ("Regulator Professional" version 1, "Regulator Basic" version 1) onto the external thread of the cylinder valve on the refillable CO₂ pressurised gas cylinder JBL PROFLORA CO₂ CYLINDER 500 M ("CO2 pressurised gas cylinders" version 1). The connecting nut is a knurled nut intended for use WITHOUT tools! Only tighten it „hand-tight" without tools. Use of tools can lead to damage. Close the needle valve clockwise if not already closed. Never operate a vertical or inverted CO₂ pressurised gas cylinder!! This can destroy the pressure regulator!

From JBL PROFLORA CO₂ ADVANCED SET onwards:
The left pressure gauge now shows the cylinder pressure of about 60 bar and the right pressure gauge the working pressure of about 1.2 bar.

Attaching the CO2 hose

Now attach the CO₂ hose to the hose screw connection of the pressure regulator ("Regulator Professional" part e, "Regulator Basic" part e.).

Adjusting the pressure regulator

Slowly open the needle valve on the pressure regulator and set a bubble rate of about 10 – 15 bubbles on the bubble counter. After a run-in period of 24h, set the bubble count for your aquarium, as described in chapter "Setting the amount of CO2".

JBL PROFLORA CO₂ ADVANCED SET:
First plug the power supply unit of the solenoid valve into a socket carrying continuous current and connect the 12 V cable of the power supply unit to the cable of the solenoid valve.
After the required number of bubbles have been set for your aquarium (chapter "Setting the amount of CO2"), connect the solenoid valve to the power supply which is controlled by the time switch for the aquarium lighting. This ensures the CO2 supply is interrupted at night when the plants do not require CO₂.

JBL PROFLORA CO₂ PROFESSIONALSET:
Put the pH control unit into operation and carry out the calibration required for the initial start-up in accordance with the operating instructions enclosed separately. Make sure that the solenoid valve of the pressure regulator is connected to the pH control unit via the valve connection cable. Set the control for the solenoid valve to „man open":
Settings key > select "Valve" > press OK > select "man open"> press OK.
Continue as described for JBL PROFLORA CO2 ADVANCED SET. After the run-in period of 24 hours, set the control for the solenoid valve to „auto":
Settings key > select "Valve" > press OK > select "auto" > press OK.
Then set the pH set point required for your aquarium and the required number of bubbles on the pH control unit as described in the operating instructions enclosed separately. The pH control unit now automatically regulates the pH value and the CO₂ supply for your aquarium.

How much CO2 is needed

pH level and CO2 and carbonate hardness

The three parameters, pH value, CO₂ content and carbonate hardness, are inseparably linked, as they are interdependent.
When CO₂ comes into contact with water, a certain amount of carbon dioxide is produced which reduces the pH value. The greater proportion remains dissolved in the water in the form of gas and serves as an important nutrient for plants. CO₂, therefore, has two benefits: it reduces the level of pH in the aquarium, which is usually too high, to a level appropriate for fish and plants whilst at the same time providing plants with their main source of nutrients. This guarantees luxuriant plant growth and lively, healthy fish.
How much CO₂ is needed to maintain a particular pH value depends on the KH in the aquarium. The higher the KH, the more CO₂ is required. Once the KH and pH values are known, the CO₂ content can be calculated. The following table saves you making the calculations and also shows the pH values which you can set without any risk to your fish.
The auto pH curve shows the values that are automatically maintained by the pH control unit in the JBL PROFLORA CO₂ PROFESSIONAL SET fertiliser systems if the „auto pH" function has been activated. We recommend activating this function to always keep the pH value within the ideal range for your fish and plants.

CO₂ content depending on pH value and KH
CO₂ (mg/l)

The correct amount of CO2 and the correct pH value

JBL recommends a CO2 content of between 15 and 35 mg/l in aquarium water. This range is marked with "CO₂ correct " in the table above. 20 – 25 mg/l have proved to be ideal. This level is not harmful to fish whilst at the same time promotes luxuriant plant growth. For aquascaping we recommend values up to 35 mg/l.

• Measure the KH of your aquarium water with the enclosed JBL KH test kit.
• In the section "CO₂ correct", look for the pH value which is correct for the KH and the desired CO₂ value.
• Gradually adjust the CO₂ bubble count so that this pH level is attained.

Please ensure that only those pH values are set which do not harm fish. This is the section of the table labelled "CO₂ correct".

Setting the amount of CO2

The amount of CO2 which must be added for the desired pH value depends on various factors such as water movement, consumption by plants, etc. and needs to be calculated individually for each particular aquarium.

• Begin with about 15 bubbles per minute in the JBL PROFLORA CO₂ TAIFUN GLASS MIDI per 100 l aquarium water. This corresponds to about 10 bubbles per minute using the bubble counter JBL PROFLORA CO₂ TAIFUN COUNT SAFE.
• After one day, check whether the desired pH value has been attained in the aquarium.
• Should this not be the case, increase the CO₂ supply to about 20 – 25 bubbles in the JBL PROFLORA CO2 TAIFUN SPIRAL (approx. 14 - 16 bubbles in the bubble counter). If necessary, increase the supply in further small stages until the required pH level is reached.
• Check to make sure the pH level is maintained, so that the CO₂ level in the CO₂ permanent test is also correct.
• JBL PROFLORA CO₂ ADVANCED SET: With these systems, the pH control unit takes over the automatic maintenance of the desired pH value.

Note on the pressure displayed on the pressure regulator

In the CO₂ pressurised gas cylinders, the CO₂ gas is under high pressure. This pressure depends on the ambient temperature. At room temperature (approx. 20°C), the left pressure gauge of the pressure regulator shows a pressure of about 50 bar. This increases as the room temperature rises.
Thus at 30°C, the pressure gauge shows about 70 bar. The pressure in the CO₂ pressurised gas cylinder is not a measure of how full the cylinder is. It will remain constant at the temperature-related value until shortly before the cylinder is empty. How much CO₂ is in a CO₂ pressurised gas cylinder can only be determined by weighing it. The empty weight (tare) is stamped on the cylinder. The current weight minus the tare gives the available amount of CO₂.

The pressure in the CO₂ pressurised gas cylinder is regulated down to an easy-to-handle so-called „working pressure" by the pressure regulator. The right-hand pressure gauge of the pressure regulator shows this working pressure. It is preset to approx. 2 bar in the JBL PROFLORA CO2 REGULATOR BASIC pressure regulators. When changing the working pressure, it is important that a decrease in CO₂ takes place, i.e. the adjustment screw must not be closed, otherwise the new working pressure cannot regulate itself.

Changing cylinders

If the cylinder pressure on the left-hand pressure gauge falls below 30 bar, the refillable CO₂ pressurised gas cylinder needs to be refilled within the next 2 - 3 days. The disposable CO₂ pressurised gas cylinder may only be changed when it no longer contains CO₂. This is when both pressure gauges show 0 bar or no more CO₂ bubbles rise in the aquarium.

Disposable CO₂ pressurised gas cylinder:
Make sure that the disposable CO₂ pressurised gas cylinder is completely empty. There should be no CO₂ bubbles rising in the reactor or diffuser. Disconnect the CO₂ hose from the pressure regulator fitting and turn the pressure regulator counterclockwise off the Cylinder. Dispose of the empty cylinder according to your local regulations. Connect a new cylinder as described in chapter "Technical data".

Refillable CO₂ pressurised gas cylinder:
Close the cylinder valve and disconnect the CO₂ hose from the pressure regulator. Open the adjusting screw and release any pressure still present in the pressure regulator until both pressure gauges indicate 0 bar. Loosen the connecting nut of the pressure regulator from the cylinder valve. Hand over the reusable CO₂ pressurised gas cylinder for refilling.
If there is no filled reusable CO₂ pressurised gas cylinder available, you can also connect a disposable cylinder. Use the enclosed Allen key (size 6) to remove the cylinder connection nut from the pressure regulator. The thread that comes free will fit the disposable CO₂ cylinder.
Connect the filled reusable CO₂ pressurised gas cylinder or the disposable CO₂ pressurised gas cylinder as described in chapter "Technical data".

Technical data

Pressure regulator JBL PROFLORA CO₂ REGULATOR PROFESSIONAL:
Version V with pre-assembled thread adapter JBL PROFLORA CO₂ ADAPT U - M
Cylinder connection thread W21.8 x 1/14" to M10x1
Version U without pre-assembled thread adapter JBL PROFLORA CO₂ ADAPT U - M
Cylinder connection thread: M10 x 1

Pressure gauge cylinder pressure: 0 – 160 bar
Pressure gauge working pressure: 0 – 4 bar
Adjusting screw for working pressure
Precision needle valve
Connection thread for hose screw connection: 1/8"
Hose screw connection for hose 4/6 mm

Pressure regulator JBL PROFLORA CO₂ REGULATOR BASIC:
Version V with pre-assembled thread adapter JBL PROFLORA CO2 ADAPT U - M
Cylinder connection thread W21.8 x 1/14" to M10x1
Version U without pre-assembled thread adapter JBL PROFLORA CO2 ADAPT U - M
Cylinder connection thread: M10 x 1

Preset working pressure: approx. 2 bar
Precision needle valve
Connection thread for hose screw connection: 1/8"
Hose screw connection for hose 4/6 mm
Solenoid valve JBL PROFLORA CO₂ VALVE
Voltage: 12 V DC
Power consumption: 2 W
Hose screw connection outlet: for hose 4/6 mm
Inlet thread: 1/8"

Closed when currentless (NC) Power supply unit:
Primary: 100 – 240 V AC, 47 – 60 Hz, 0.25 A
Secondary: 12 V DC, 0.3 A, 3.6 W

pH control JBL PROFLORA CO2 CONTROL:
See separate operating instructions.

Safety instructions

Please read and observe the following safety instructions for a safe and hazard-free handling of the CO2 pressurised gas cylinders.

Safety instructions:

1. Follow the safety instructions for handling CO₂. These can be found on the CO₂ pressurised gas cylinders.
2. Children must be supervised to ensure that they do not play with the appliance and its power supply unit.
3. Do not use the appliance for any purpose other than that described in these instructions for use.
4. Do not operate or store the unit in places where there is a risk of frost.
5. Appliance may only be used indoors.
6. Appliance may only be used in a dry environment.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download JBL PROFLORA CO2 Manual
