Cisco Catalyst 9800 Series Installation Manual

Performing a Preinstallation Configuration (Optional)

The following procedures describe the processes to ensure that your AP installation and initial operation go as expected.

Note
Performing a preinstallation configuration is an optional procedure. If your network controller is properly configured, you can install your AP in its final location and connect it to the network from there.

The following illustration shows the preinstallation configuration setup:

Perform the following steps:

Before you begin

Ensure that the Cisco Controller Distribution System (DS) port is connected to the network. Use the procedure for CLI or GUI as described in the release appropriate Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide.

• Enable Layer 3 connectivity between APs, Cisco Controller Management, and AP-Manager interface.
• Configure the switch to which your AP has to attach. See the Cisco Wireless Controller Configuration Guide for the release you are using, for additional information.
• Configure the Cisco Catalyst 9800 Series Wireless Controller as the primary so that new APs always join it.
• Ensure that the DHCP is enabled on the network. The AP must receive its IP address through DHCP.

Note
An 802.11ax AP is assigned an IP address from the DHCP server only if a default router (gateway) is configured on the DHCP server (enabling the AP to receive its gateway IP address) and the gateway ARP is resolved.

• CAPWAP UDP ports must not be blocked in the network.
• The AP must be able to find the IP address of the controller. This can be accomplished using DHCP, DNS, or IP subnet broadcast. This guide describes the DHCP method to convey the controller IP address. For other methods, see the product documentation.

Note
The AP requires a multi-gigabit Ethernet (5 Gbps) link to prevent the Ethernet port from becoming a bottleneck for traffic.

Procedure

Step 1
Power the AP using supported power source.

• As the AP attempts to connect to the controller, the LED cycles through a green, red, and off sequence, which can take up to five minutes.
  Note
  If the AP remains in this mode for more than five minutes, the AP cannot find the primary Cisco Catalyst 9800 Series Wireless Controller. Check the connection between the AP and the Cisco Catalyst 9800 Series Wireless Controller and be sure that they are on the same subnet.
• If the AP shuts down, check the power source.
• After the AP finds the Cisco Catalyst 9800 Series Wireless Controller, it attempts to download the new operating system code if the AP code version differs from the Cisco Catalyst 9800 Series Wireless Controller code version. While this is happening, the Status LED blinks blue.
  If the operating system download is successful, the AP reboots.

Step 2
(Optional) Configure the AP. Use the controller CLI, GUI, or Cisco DNA Center to customize the access point-specific 802.11ax network settings.

Step 3
If the preinstallation configuration is successful, the Status LED is green, indicating normal operation. Disconnect the AP and mount it at the location at which you intend to deploy it on the wireless network.

Step 4
If your AP does not indicate normal operation, turn it off and repeat the preinstallation configuration

Note
When you are installing a Layer 3 access point on a subnet that is different from the Cisco Catalyst 9800 Series Wireless Controller, ensure the following setup is configured:

• A DHCP server is reachable from the subnet on which you plan to install the AP.
• The subnet has a route back to the controller.
• This route has destination UDP ports 5246 and 5247 open for CAPWAP communications.
• The route back to the primary, secondary, and tertiary controller allows IP packet fragments.
• If address translation is used, the access point and the controller have a static 1-to-1 NAT to an outside address. Port Address Translation is not supported.

Preinstallation Checks and Installation Guidelines

Before you mount and deploy your access point, we recommend that you perform a site survey (or use the Site Planning tool) to determine the best location to install your access point.

You should have the following information about your wireless network available:

• Access point locations
• Access point mounting options: To a vertical or horizontal wall or a pole
• Access point power options: Use either of the following options to power the AP:
  • DC power input
  • Cisco-approved power injector
  • 802.3at (PoE+), 802.3bt, and Cisco Universal PoE (Cisco UPOE)
• Operating temperature: -40° ≤ Ta ≤ +158°F (-40°C ≤ Ta ≤ 70°C) with solar load and still air. Extended operating temperature (DC powered): -58° to +167°F (-50° to +75°C) without solar loading, still air, and cold start limited to -40°C.
• Console access using the console port
  We recommend that you use a console cable that is one meter or less in length.

Note
The AP may face issues while booting if you use an unterminated console cable (not plugged into any device or terminal) or a console cable that is more than one meter in length.

We recommend that you make a site map showing access point locations so that you can record the device MAC addresses from each location and return them to the person who is planning or managing your wireless network.

Mounting the Access Point

Mounting Hardware

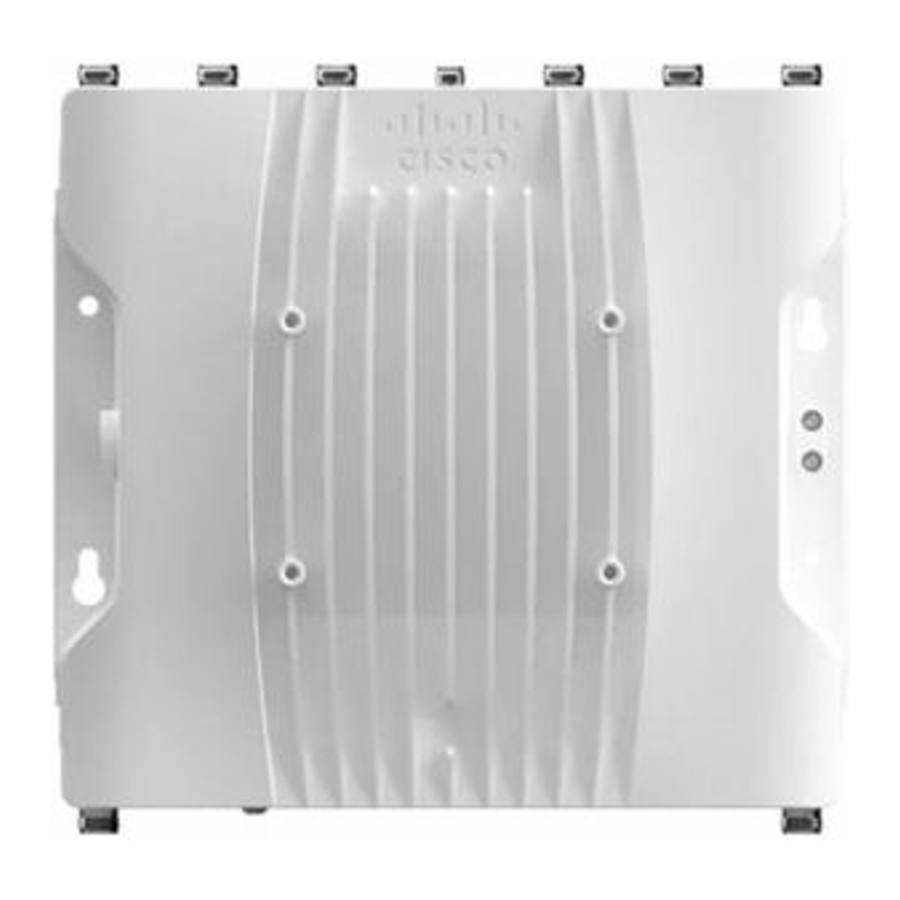

The Catalyst IW9167E access point has built-in mounting flanges. You can also use the following mounting hardware:

• DIN rail mounting bracket
• Pole mounting bracket

Required mounting hardware depends on the mounting location:

• For ceilings or hard ceilings or walls, directly mount the access point using the built-in mounting flanges.

The mounting flanges are on the sides of the access point that are without ports.

• For electrical cabinets or network boxes, directly mount the access point using the mounting flanges or use the DIN rail mounting bracket.
• For pole mounting, use the pole mounting bracket.

Mounting Bracket Part Numbers

Note
These brackets do not ship with the access point, but you can order them separately.

Table 1: Mounting Bracket Part Numbers

Mounting Bracket	Cisco Part Number
DIN Rail Mounting Bracket	AIR-ACCDMK3700=
Pole Mounting Bracket (for 2"–3.2" diameter pole)	AIR-ACCPMK3700=
Pole Mounting Bracket (for 2"–16" diameter pole)	AIR-ACCPMK3700-2=

Using the Integrated Flange Mounts

Direct mounting using the integrated flange mounts is typically for confined spaces or deployments that experience severe shock and vibration.
To mount the access point using the integrated flange mounts:

Procedure

Step 1
Choose the access point location that can safely support the weight of the access point.

Step 2
Use the access point mounting holes as a template, and mark them at the mounting location.

1. Main mounting flange
2. Mounting holes

Step 3
Drill holes on the mounting surface for plastic wall anchors to suit 1/4-20 or M6 bolts, and add the appropriate anchors.

Step 4
Align the access point mounting holes with the suspended ceiling mounting holes.

Step 5
Insert a mounting screw in each of the four mounting holes and tighten.

Step 6
You can use the keyholes for "hands-free" installation.

Note
Ensure that the access point is firmly secured.

Using the DIN Rail Mounting Bracket

You can use DIN rail mounting in network or electrical closets or cabinets, or in wiring rooms that have low-levels of shock and vibration. Figure 1: DIN Rail Mounting Assembly, shows the DIN rail and DIN rail mounting assembly.

Using the DIN Rail Mounting Bracket

Figure1: DIN Rail Mounting Assembly

1. 35 mm DIN rail (not supplied by Cisco)
2. DIN rail mounting bracket clip

To DIN rail mount the access point:

Procedure

Step 1
Assemble the access point and DIN rail mounting bracket using the M6 hardware supplied as shown in the following figure.

1. Steel DIN mounting bracket
2. M6 insert
3. M6 screw (Torque 6–7 ft-lbs)
4. Access Point

Step 2
Position the access point assembly directly in front of the DIN rail.

Step 3
Insert the DIN rail mounting bracket under the spring-loaded upper mounting clips.

Note
Ensure that the DIN rail seats into the anti-slip clips.

Step 4
Pull down the retention handles until the lower lip of the DIN rail mounting bracket seats in the lower mounting bracket clip.

Step 5
Release the retention handles.

Using the Pole Mounting Bracket

You can choose one of the following pole mounting brackets in the following table, according to the size of the pole that you are going to mount your access point on.

Table 2: Pole Mounting Brackets

Mounting Bracket	Cisco Part Number	Applicable Pole Diameter
Pole Mounting Bracket	AIR-ACCPMK3700=	2–3.2 inches
Pole Mounting Bracket 2	AIR-ACCPMK3700-2=	2–16 inches

Using the Mounting Bracket AIR-ACCPMK3700=

To mount the access point on a pole using the mounting bracket AIR-ACCPMK3700=:

Procedure

Step 1
Use the supplied U bolts, washers, and nuts to attach the mounting bracket to the pole.

1. 2"– 3.2" (5–8 cm) diameter pole
2. M8 x 1.25 U-bolt
3. M8 x 1.25 nuts and washers
4. Pole mounting bracket

Step 2
Use the included bolts, washers, and nuts to attach the access point to the mounting plate.

Note
Ensure that you symmetrically tighten the nuts on the U-bolts. If you over tighten one side, the U-bolt will skew.

Step 3
Torque the nuts to 6 to 7 foot-pounds.

1. Access point
2. M6 bolts and washers
3. Pole mounting bracket
4. 2"– 3.2" (5–8 cm) diameter pole

Note
Ensure that the access point is firmly secured to the mounting bracket.

You can use the keyholes for "hands-free" installation. Ensure that you torque the nuts to 6 to 7 ft-lbs.

Never leave the access point unattended if the mounting hardware is not torqued to full value.

Using the Mounting Bracket AIR-ACCPMK3700-2=

The mounting bracket AIR-ACCPMK3700-2= supports poles from 2 to 16 inches in diameter. To mount the access point on a pole using this mounting bracket:

Procedure

Step 1
Assemble two strap brackets on the pole clamp bracket that are positioned for the pole diameter you are using to mount the access point. The following image illustrates the pole diameter indicators and bolt holes on the pole clamp bracket.

Figure 2: Pole Clamp Bracket Adjustment Hole Locations

1	Pole size indicators
	2 to 6 in. 6 to 11 in. 11 to 16 in.
2	Bolt holes for pole diameters (11 to 16 inches indicated)

Step 2
Position the strap brackets on the pole clamp bracket for the pole diameter you are using and secure each strap bracket with two M8 x16 bolts (with lock washers), as the following image shows. Tighten the bolts to 13 to 15 ft lbs (17.6 to 20.3 N-m).

Figure 3: Assembled Pole Clamp Bracket and Strap Brackets

1. M8 x1.25x16 bolts (with lock washers)
2. Pole clamp bracket
3. Strap bracket (shown positioned for 11 to 16 inch diameter pole)

Step 3
Screw the M8 nut onto the pole clamp bracket support bolt, and tighten just enough to prevent the bolt from falling off.

Step 4
To mount your access point on a vertical pole, you need to install two metal bands around the pole to support the access point. This process requires extra tools and material not provided in the pole mount kit (see the following table for details).

Table 3: Material Needed to Mount Access Point on a Pole

Mounting Method	Materials Required	In Kit
Vertical pole	Two 0.75-in (1.9 cm) stainless steel bands	Yes
	Banding strap tool (BAND IT) (Cisco AIR-BAND-INST-TL=)	No
	Ground lug (provided with access point)	Yes
	Crimping tool for ground lug, Panduit CT-720 with CD-720-1 die (http://onlinecatalog.panduit.com)	No
	#6 AWG ground wire	No

Step 5
Select a mounting location on the pole to mount the access point. You can attach the access point to any pole from 2 to 16 inch (5.1 to 40.6 cm) in diameter.

Step 6
For poles larger than 3.5 inch (8.9 cm), mount the pole clamp bracket assembly to a pole (see the following image) using two metal straps. Following the instructions provided with the banding strap tool (BAND IT) (AIR-BAND-INST-TL=), loop each metal strap twice through the slots on the strap bracket.

Do not place the metal straps in the large open area between the pole clamp bracket and the strap brackets, because this does not properly secure the access point.

Figure 4: Clamp Bracket Assembly Mounted on Poles Larger than 3.5 inch (8.9 cm)

1. Pole clamp bracket
2. Strap slot in strap bracket
3. Metal mounting strap
4. Pole

Step 7
For pole diameters of 3.5 inch (8.9 cm) or less, mount the pole clamp bracket assembly to a pole using two metal straps looped through the space between the pole clamp bracket and the strap brackets to provide maximum holding strength for extreme environments. Following the instructions provided with the banding strap tool (BAND IT) (AIR-BAND-INST-TL=), loop each metal strap twice.

Do not place the metal straps in the large open area between the pole clamp bracket and the strap brackets because this does not properly secure the access point.

Step 8
Position the pole clamp bracket on the pole as needed before tightening the metal bands.

Note
When the metal bands are tightened to the full tension, the pole clamp bracket cannot be adjusted unless the metal bands are cut or disassembled.

Step 9
Tighten the metal bands using the banding strap tool (BAND IT) (Cisco AIR-BAND-INST-TL=) by following the operating instructions in the box with the tool. Ensure that the metal bands are as tight as possible.

Step 10
Place the mounting bracket onto the pole clamp bracket support bolt.

Step 11
Install four M8 x16 bolts (with flat and lock washers) into the bolt holes.

Figure 5: Mounting Bracket and Pole Clamp Bracket Assembly

1. Pole clamp bracket assembly
2. Access point support bolt
3. Bolt holes
4. Mounting bracket

Step 12
Hand-tighten the bolts and the nut (do not overtighten).

Step 13
Adjust the top edge of the mounting bracket until it is horizontal and tighten the bolts and the flange nut to 13 to 15 ft-lbs (17.6 to 20.3 N-m).

Step 14
Use the included bolts, washers, and nuts to attach the access point to the mounting plate.

Step 15
Torque the nuts to 6 to 7 ft-lbs.

Figure 6: Access Point Installed in the Mounting Bracket

1. Access point
2. M6 bolts and washers
3. Pole mounting bracket
4. Pole

Note
Ensure that the access point is firmly secured to the mounting bracket.

Never leave the access point unattended if the mounting hardware is not torqued to full value.

Installing a Lightning Arrestor

Overvoltage transients can be created through lightning static discharges, switch processes, direct contact with power lines, or through earth currents. The Lightning Arrestor limits the amplitude and duration of disturbing interference voltages and improves the over voltage resistance of in-line equipment, systems, and components. A lightning arrestor installed according to these mounting instructions balances the voltage potential, thus preventing inductive interference to parallel signal lines within the protected system.

Installation Considerations

Cisco recommends that you bulkhead mount the lightning arrestor so it can be installed as a wall-feed through on the wall of the protected space.

The importance of obtaining a good ground and bonding connection cannot be overstressed. Consider these points when grounding the lightning arrestor:

• Connect the lightning arrestor components directly to the grounding point.
• The contact points of the ground connection must be clean and free of dust and moisture.
• Tighten threaded contacts to the torque specified by the manufacturer.

Lightning Arrestor Installation Notes

This lightning arrestor is designed to be installed between the antenna cable that is attached to an outdoor antenna and the Cisco wireless device. You can install the lightning arrestor either indoors or outdoors. It can be connected directly to a wireless device having an external N connector. It can also be mounted inline or as a feed-through. Feed-through installations require 5/8 in. (16 mm) hole to accommodate the lightning arrestor.

Note

• This lightning arrestor is part of a lightning arrestor kit. The kit contains a lightning arrestor and a grounding lug.
• When you install the lightning arrestor, follow the regulations or best practices applicable to lightning protection installation in your local area.

Installing the Lightning Arrestor Outdoors

If you install the lightning arrestor outdoors, use the supplied ground lug and a heavy wire (#6 solid copper) to connect it to a good earth ground, such as a ground rod. The connection should be as short as possible.

1. Nut
2. Lockwasher
3. Ground lug
4. Unprotected Side (to antenna)
5. Protected side (to wireless device)

Cable for the Lightning Arrestor

Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as possible because cable length also determines the amount of signal loss (the longer the run, the greater the loss).

Cisco recommends a high-quality, low-loss cable for use with the lightning arrestor.

Grounding the Access Point

In all installations, after mounting the access point, you must properly ground the unit before connecting power cables.

Statement 1024—Ground Conductor
This equipment must be grounded. To reduce the risk of electric shock, never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1074—Comply with Local and National Electrical Codes
To reduce risk of electric shock or fire, installation of the equipment must comply with local and national electrical codes.

The access point is shipped with a grounding kit.

Figure 7: Access Point Grounding Kit Contents

1. Grounding lug
2. Screws x 2, M4 x 6mm

Note
The grounding kit also includes the oxide inhibitor, which is contained in a tube.

To ground the access point:

Procedure

Step 1
Use a crimping tool to crimp a 6-AWG (13.3 mm²) ground wire (not included in the grounding kit) to the ground lug.

Step 2
Connect the supplied ground lug to the access point ground connection point using the supplied screws. Apply supplied oxide inhibitor between the ground lug and the access point ground connection.

1. AP ground connection point

Step 3
Tighten the screws to 20-25 inch-lbs of torque.

Step 4
If necessary, strip the other end of the ground wire and connect it to a reliable earth ground such as a grounding rod or appropriate ground point on a grounded pole. Length of the ground cable should not exceed 1 meter, and 0.5 meter is preferred. Use supplied oxide inhibitor on the grounded interface.

Powering the Access Point

The AP supports these power sources:

• DC power – 24–48 VDC
• Power-over-Ethernet (PoE)

The AP can be powered via the PoE input from an inline power injector or a suitably powered switch port. Depending on the configuration and regulatory domain, the required power for full operation is 802.3bt or UPOE.

For more information, see Power Sources.

Power Feature Matrix

The following table provides the AP power feature matrix.

Table 4: Catalyst IW9167EH Access Point Power Feature Matrix

Power Input	2.4 GHz Radio	dBm Per Path	5 GHz Radio	dBm Per Path	5 GHz / 6 GHz Radio	dBm Per Path	Aux Radio	GNSS	mGig Eth	SFP
24-48V	4x4	24	4x4	24	4x4	17	Yes	Yes	max 5G	Yes
802.3bt/ UPOE	4x4	24	4x4	24	4x4	17	Yes	Yes	max 5G	Yes
802.3at	2x2	23	2x2	23	2x2	17	Yes	Yes	max 1G	Yes/1G

Connecting to the DC Power Port Using Certified Cable Gland or Flex Conduit

Follow these steps to connect to the DC power port using certified Cable Gland or Flex Conduit (not supplied):

Procedure

Step 1 Remove the M25 plug. Separate the Gland Connector as per the manufacturers instructions and pass the DC cable through it.

1. 4P Micro-Fit
2. Wire
3. Gland (Ex) (not supplied)
4. Armored Cable (not supplied)

Note
The recommended cable gland specification shall be M25x1.5, here, the M25 is the diameter (metric), 1.5 is the pitch, the adapters should have approximately 7 threads. The recommended M25 connector cap O-ring temperature ratings shall be greater than 91°C (195.8°F).

Step 2
Plug 4P connector cable into the DC connector in the chassis.

Step 3
Thread the Gland Connector body (with gasket) into the chassis.

Step 4
Insert the grommet into the ferrule, and press it into the body.

Step 5
Tighten the clamp nut onto the body until the grommet compresses onto the DC cable.

1. SFP port connected using cable gland
2. RJ-45 port connected using cable gland
3. DC power port connected using cable gland

Connecting Data Cables

This AP supports data connections through the Ethernet port and the Small Form-factor Pluggable (SFP) port.

If you are using the SFP port to deliver data through a fiber-optic cable, the AP must be powered by DC power, power adapter, PoE+ power source, or a power injector.

Connect using an Ethernet Cable

Connecting to the RJ-45 Port Using Certified Cable Gland or Flex Conduit
Follow these steps to connect to the RJ-45 port using certified Cable Gland or Flex Conduit (not supplied):

Procedure

Step 1
Remove the M25 plug. Separate the Gland Connector as per the manufacturers instructions and slide the RJ-45 cable through it.

1. RJ-45 plug
2. Cable
3. Gland (Ex) (not supplied)
4. Armored Cable (not supplied)

Note
The recommended cable gland specification shall be M25x1.5, here, the M25 is the diameter (metric), 1.5 is the pitch, the adapters should have approximately 7 threads. The recommended M25 connector cap O-ring temperature ratings shall be greater than 91°C (195.8°F).

Step 2
Plug the RJ-45 cable into the RJ-45 connector in the chassis.

Step 3
Thread the Gland Connector body (with gasket) into the chassis.

Step 4
Insert the grommet into the ferrule, and press it into the body.

Step 5
Tighten the clamp nut onto the body until the grommet compresses onto the RJ-45 cable.

1. SFP port connected using cable gland
2. RJ-45 port connected using cable gland
3. DC power port connected using cable gland

Connect using a Fiber-Optic Cable

Connecting to SFP Port Using Cable Gland

Follow these steps to connect to the SFP port using cable gland:

Note
Copper SFP or Fiber SFP will be detected by the system only after a power cycle.

Procedure

Step 1
Insert the fiber SFP into the chassis.

Step 2
Disassemble the fiber adapter and slide parts over fiber cable.

1. SFP module
2. Wire
3. Gland (Ex)
4. Armored Cable

Note
The recommended cable gland specification shall be M25x1.5, here, the M25 is the diameter (metric), 1.5 is the pitch, the adapters should have approximately 7 threads. The recommended M25 connector cap O-ring temperature ratings shall be greater than 91°C (195.8°F).

Step 3
Plug the fiber cable into the SFP.

Step 4
Thread the adapter body (with O-Ring) into the chassis.

Step 5
Insert the grommet into the ferrule, and press it into the adapter body.

Step 6
Tighten the clamp nut onto the adapter body until the grommet compresses onto the fiber cable.

1. SFP port connected using cable gland
2. RJ-45 port connected using cable gland
3. DC power port connected using cable gland

Documents / Resources

References

• Cisco Catalyst 9800 Series Wireless Controllers - Configuration Guides - Cisco

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Cisco Catalyst 9800 Series Installation Manual
