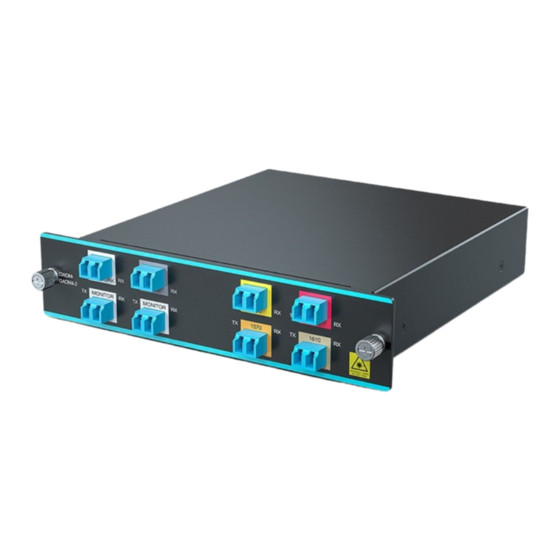

Cisco CWDM Passive Optical System
Installation Note
This document provides installation instructions for the Cisco Coarse Wave Division Multiplexer
(CWDM) passive optical system. The CWDM passive optical system product numbers are listed in
Table
1.
Table 1
CWDM Passive Optical System Product Numbers
Product Number
CWDM-CHASSIS-2=
CWDM-MUX8A=
CWDM-OADM4-1=
CWDM-OADM4-2=
CWDM-OADM1-1470=
CWDM-OADM1-1490=
CWDM-OADM1-1510=
CWDM-OADM1-1530=
CWDM-OADM1-1550=
CWDM-OADM1-1570=
CWDM-OADM1-1590=
CWDM-OADM1-1610=
WDM-1300-1550-S=
CAB-SM-LCSC-1M=
CAB-SM-LCSC-5M=
Corporate Headquarters:
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Copyright © 2004–2005 Cisco Systems, Inc. All rights reserved.
Description
2-slot chassis, 1 RU
8-channel MUX/DEMUX module
4-channel OADM module (1470, 1490, 1510, and
1530 nm)
4-channel OADM module (1550, 1570, 1590, and
1610 nm)
Dual single-channel OADM module, 1470 nm
Dual single-channel OADM module, 1490 nm
Dual single-channel OADM module, 1510 nm
Dual single-channel OADM module, 1530 nm
Dual single-channel OADM module, 1550 nm
Dual single-channel OADM module, 1570 nm
Dual single-channel OADM module, 1590 nm
Dual single-channel OADM module, 1610 nm
1300 nm/1550 nm splitter cable
LC to SC connector cable, 1 m
LC to SC connector cable, 5 m
